Vendor BuildPro

Inserta Clamps, Fit 5/8 Holes

SKU: UDN5150

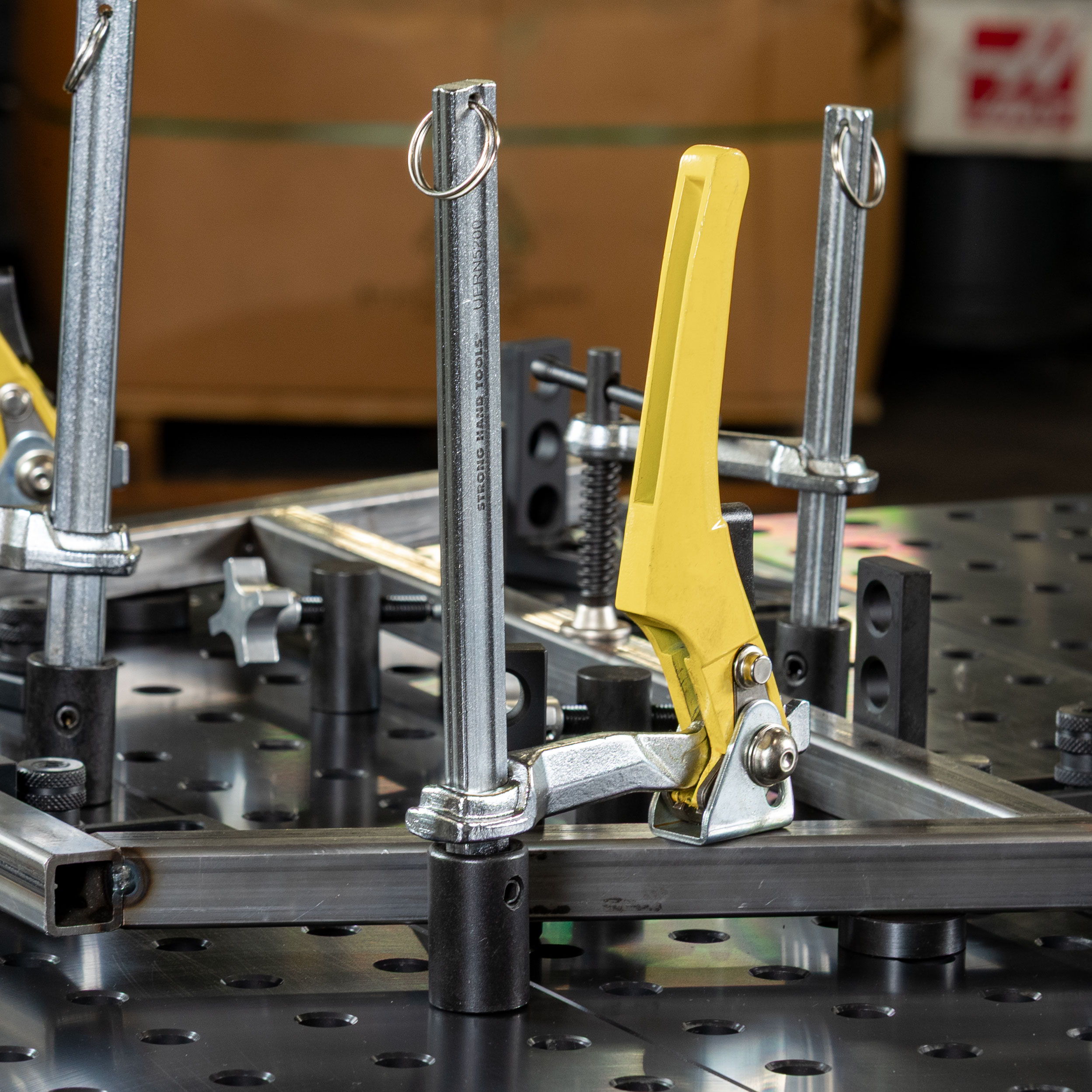

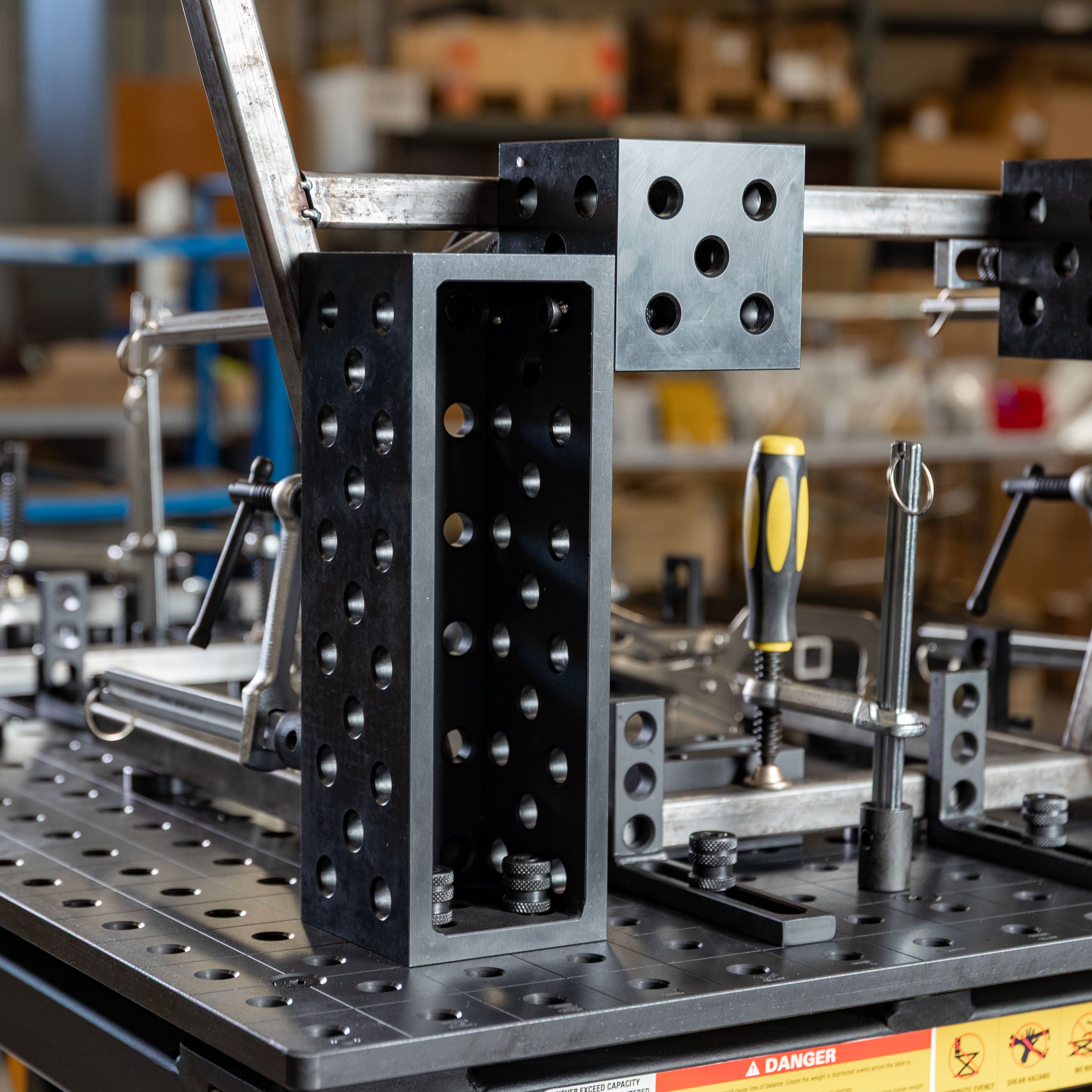

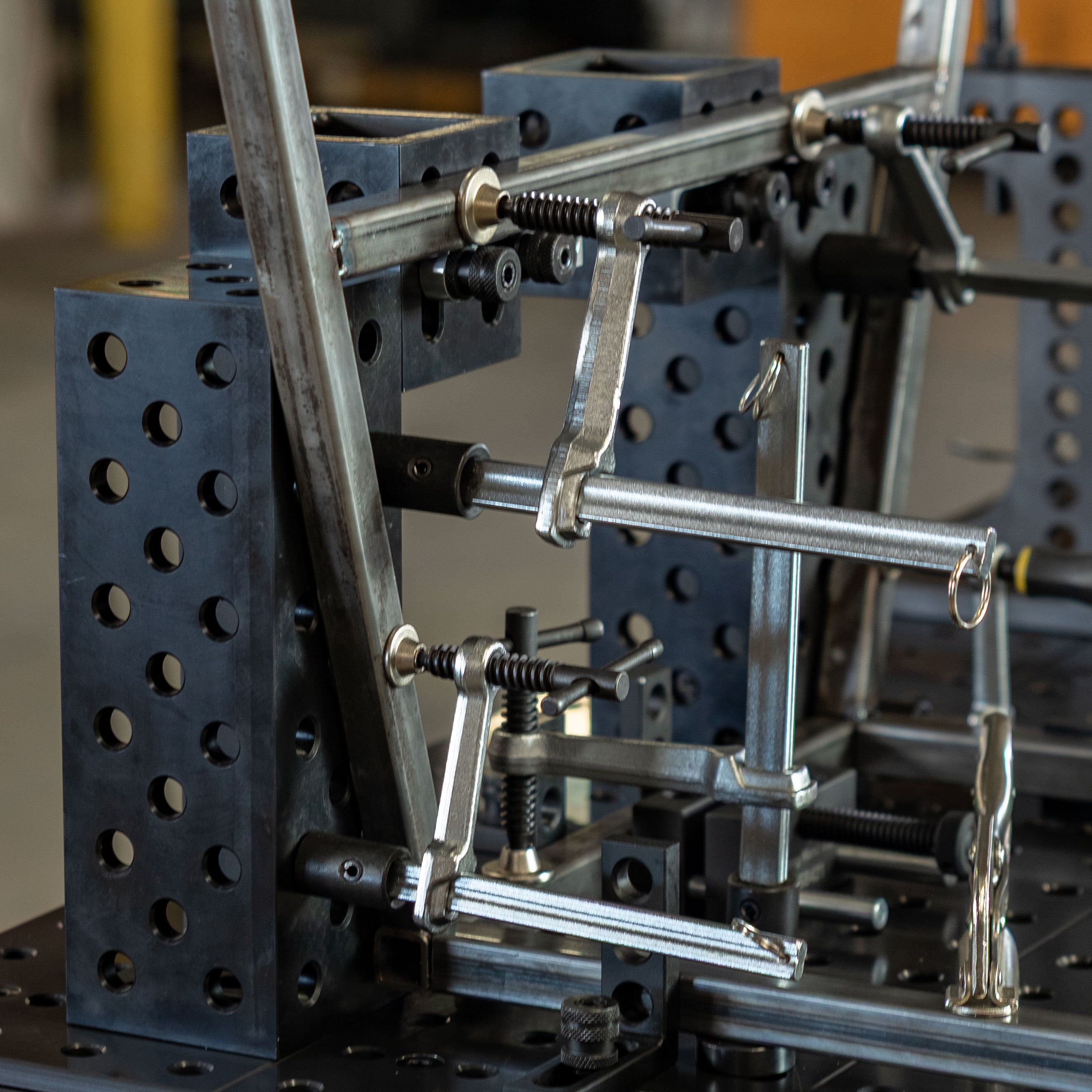

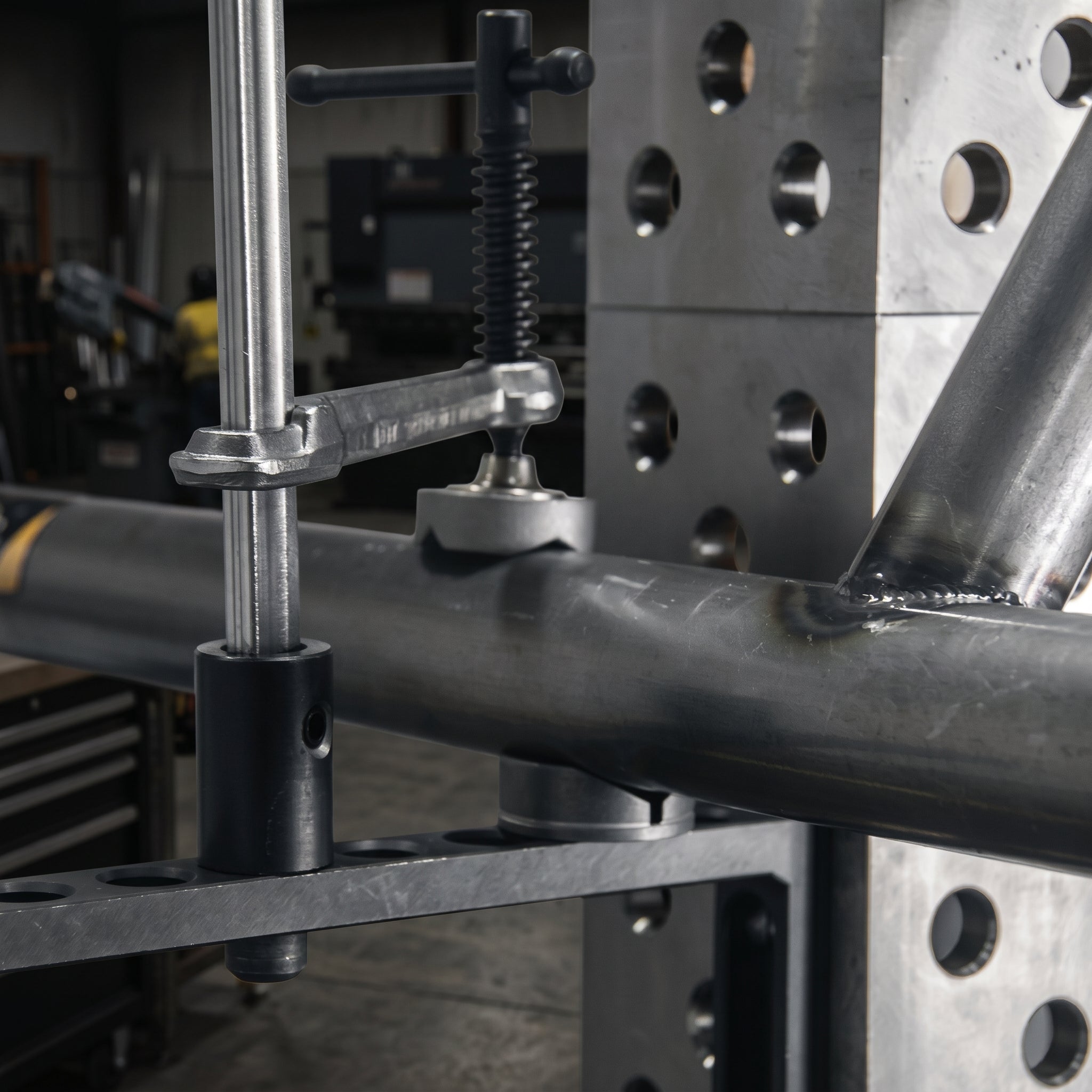

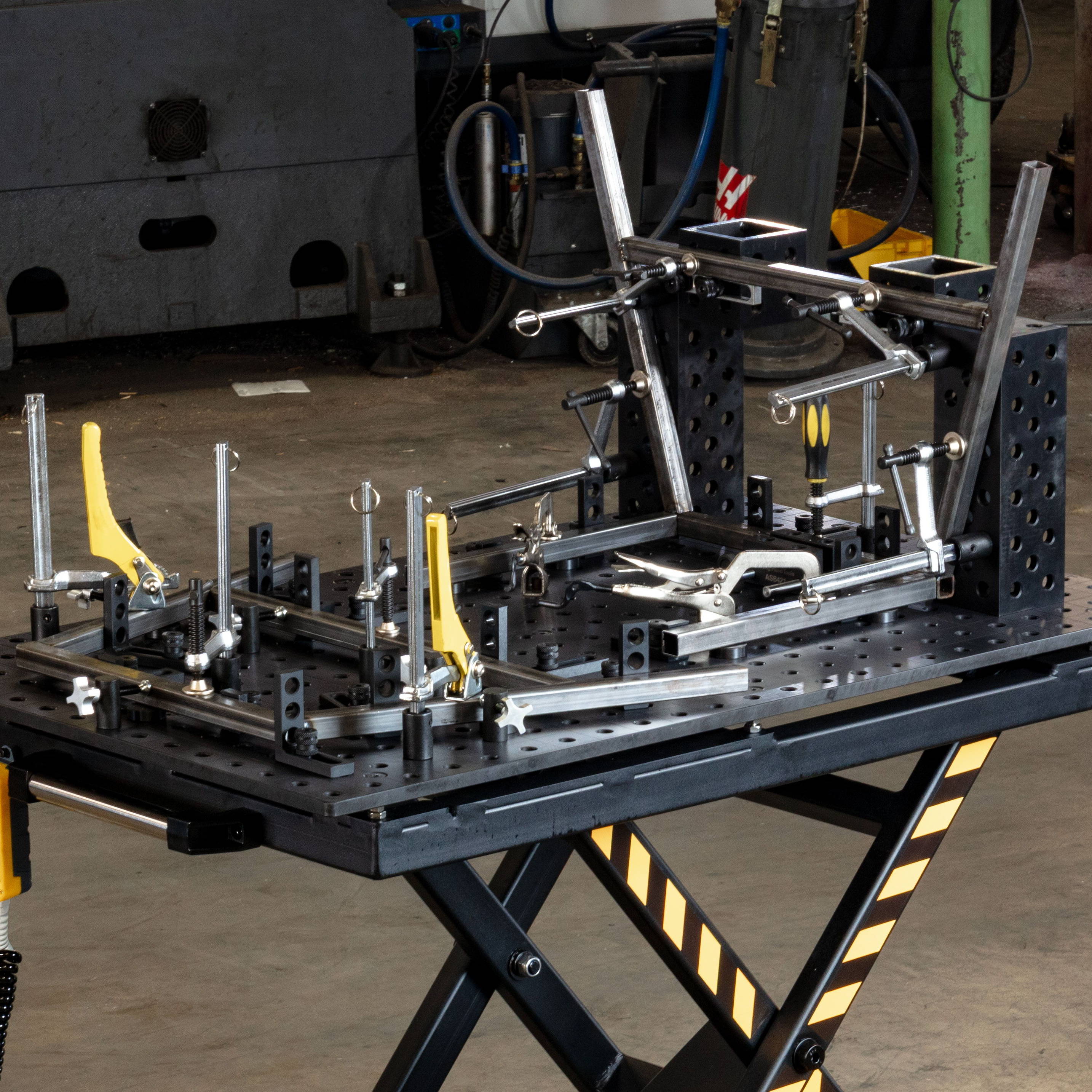

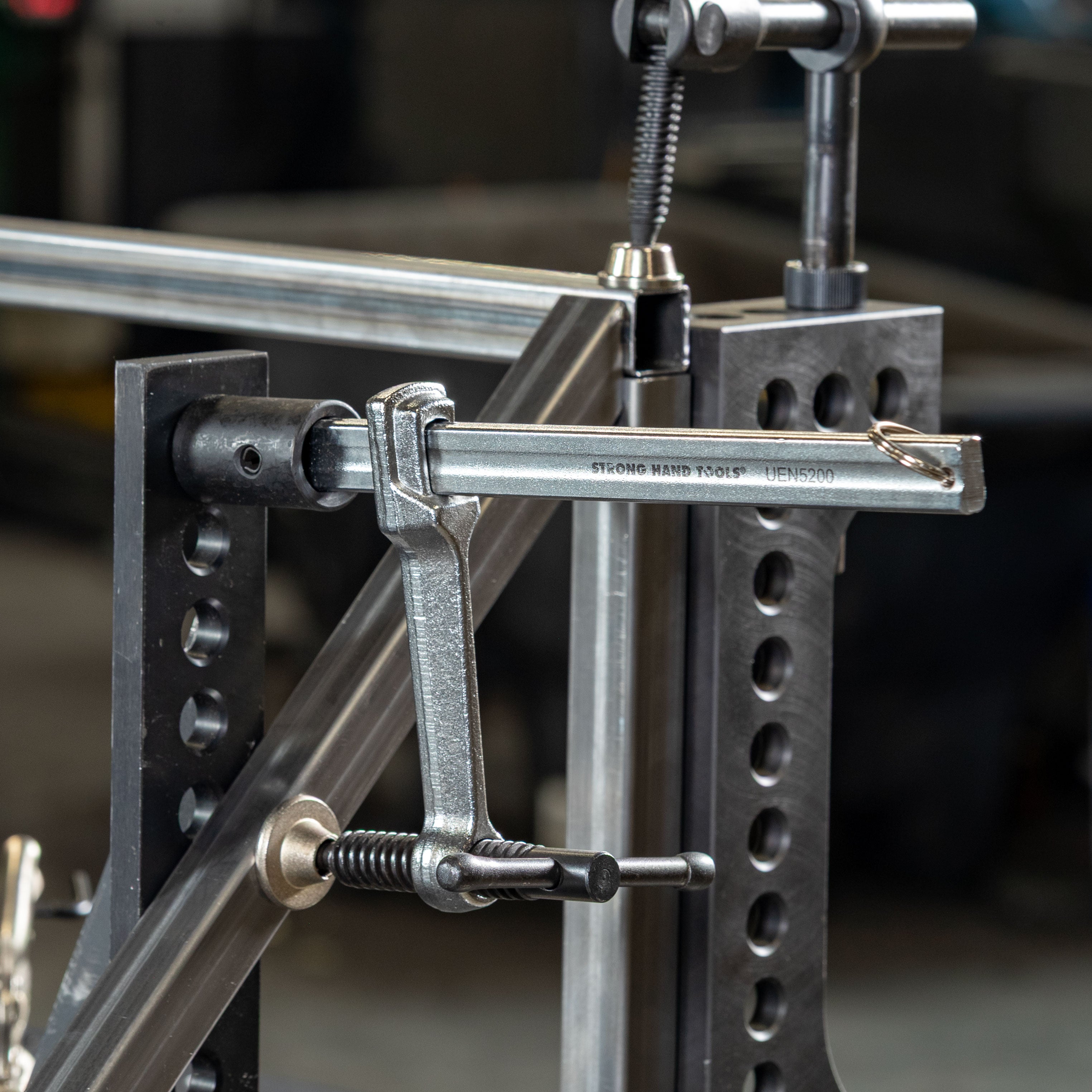

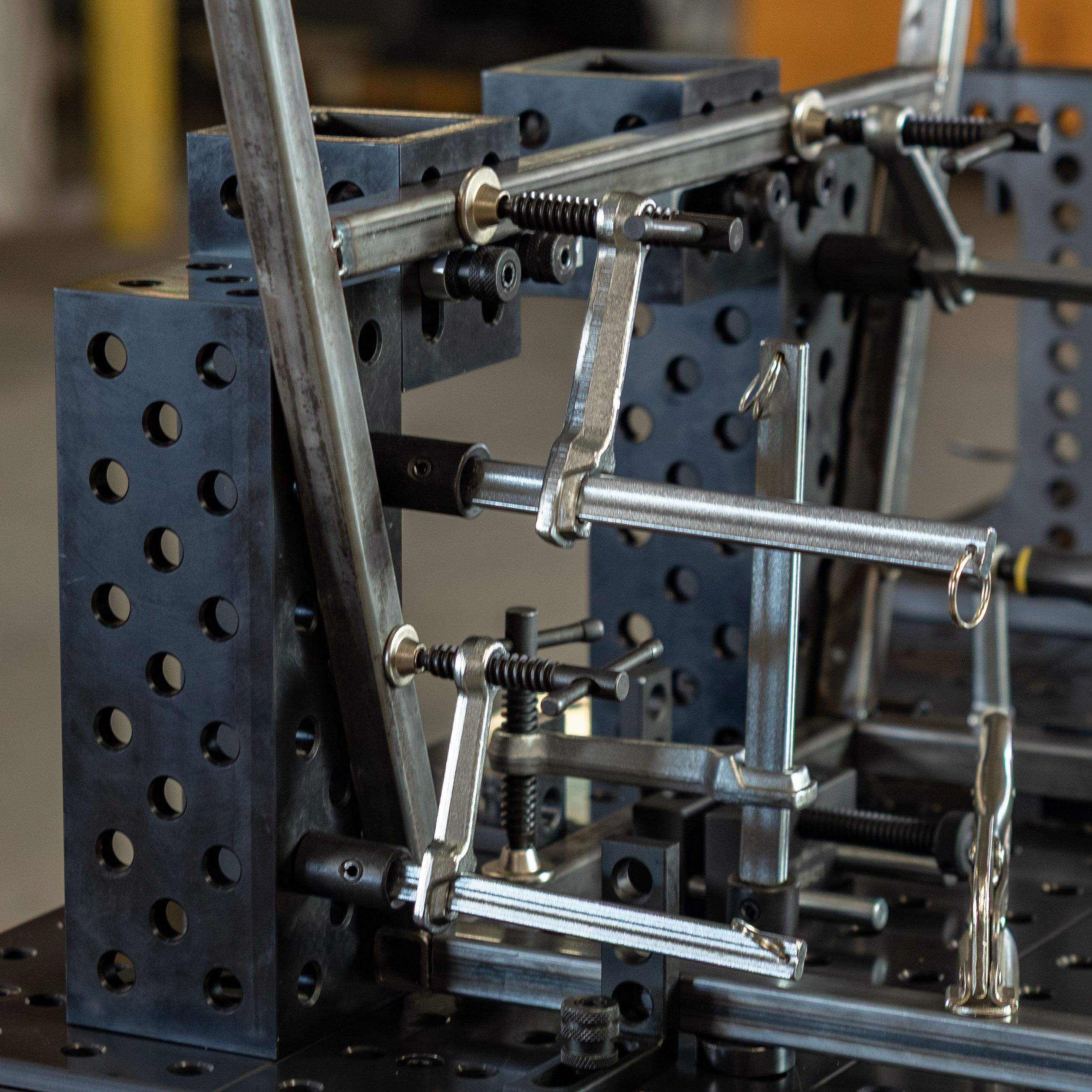

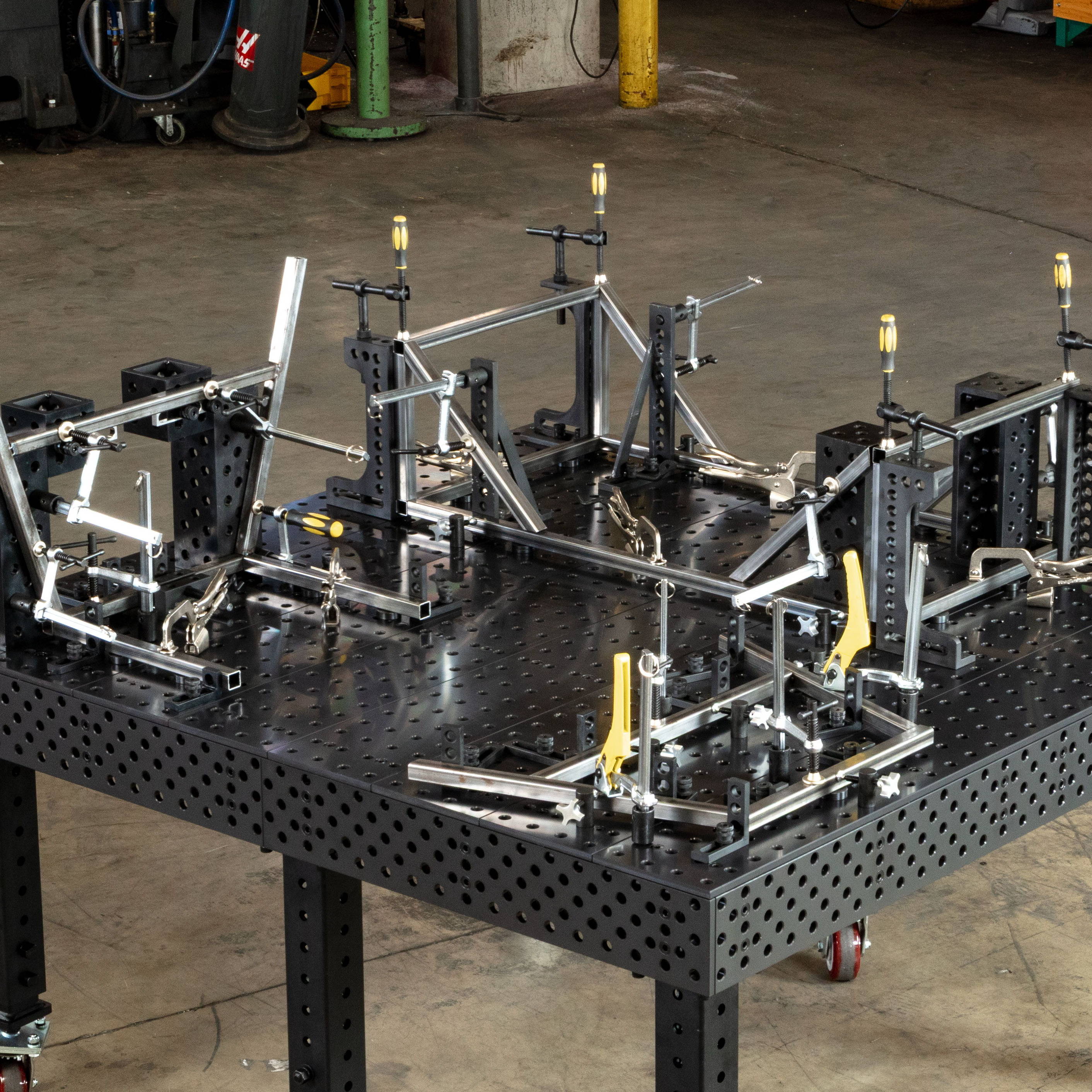

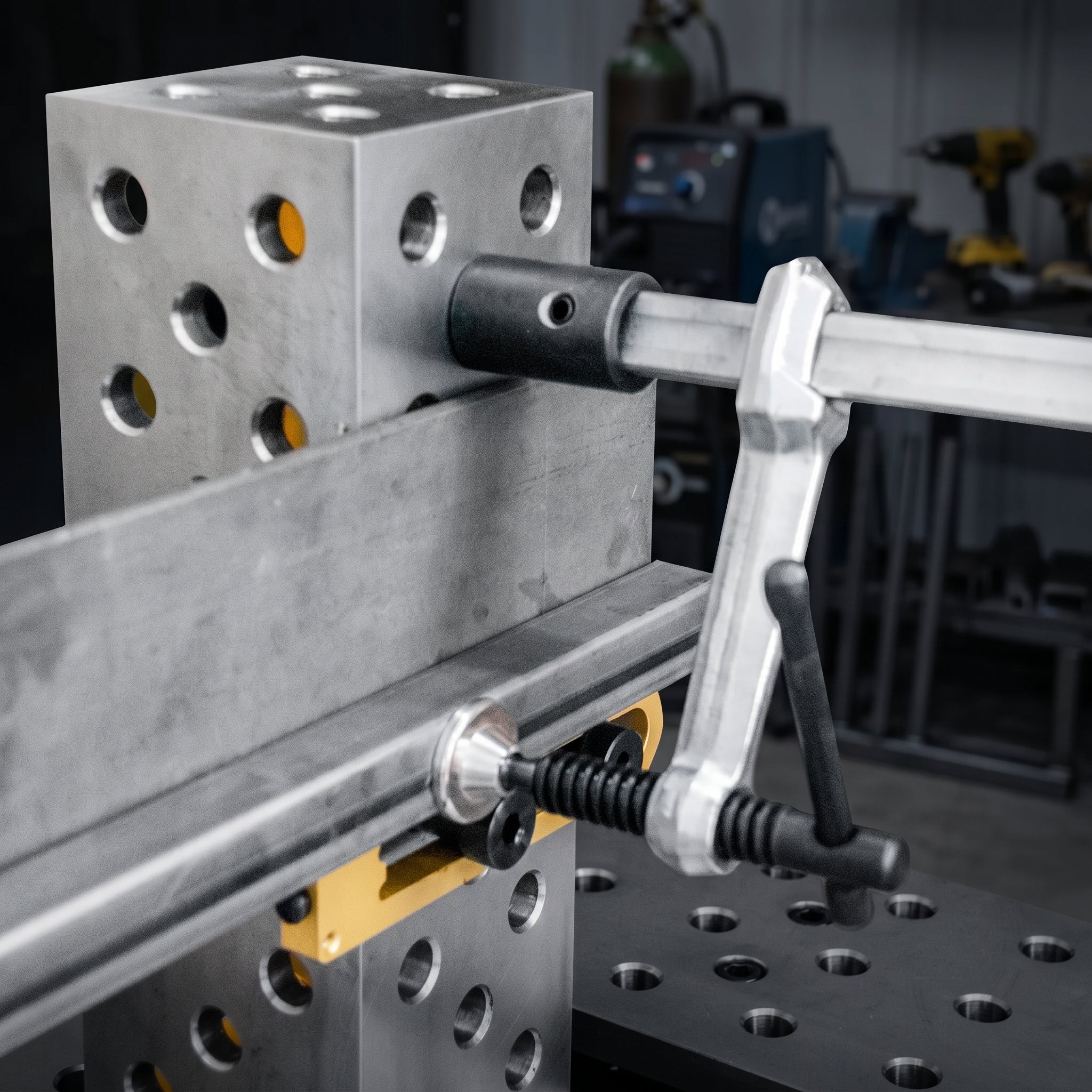

Place the Inserta Clamps into the 5/8″ holes on the BuildPro tabletop and squares for fast, easy clamping. Clamp in the vertical or horizontal position at any height.

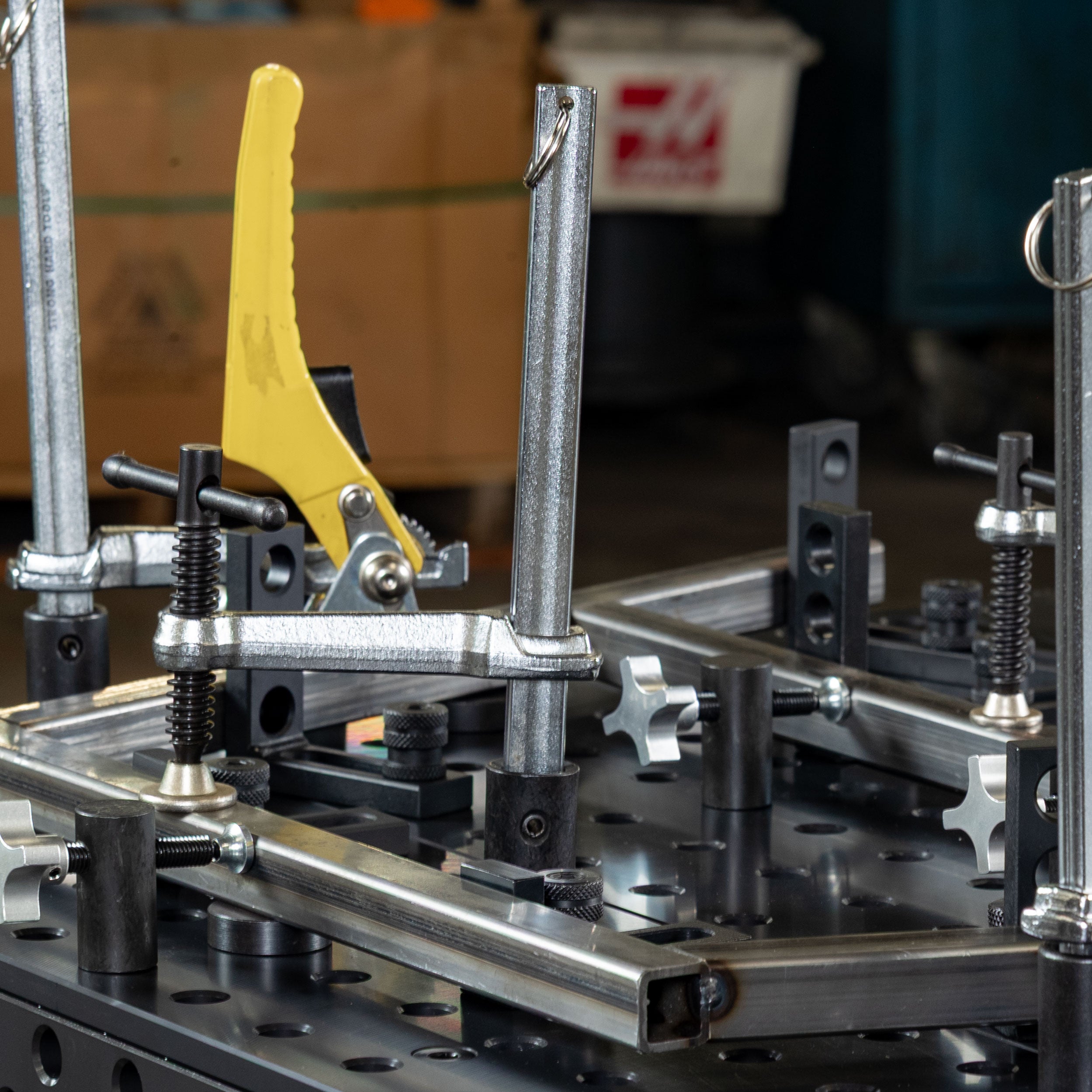

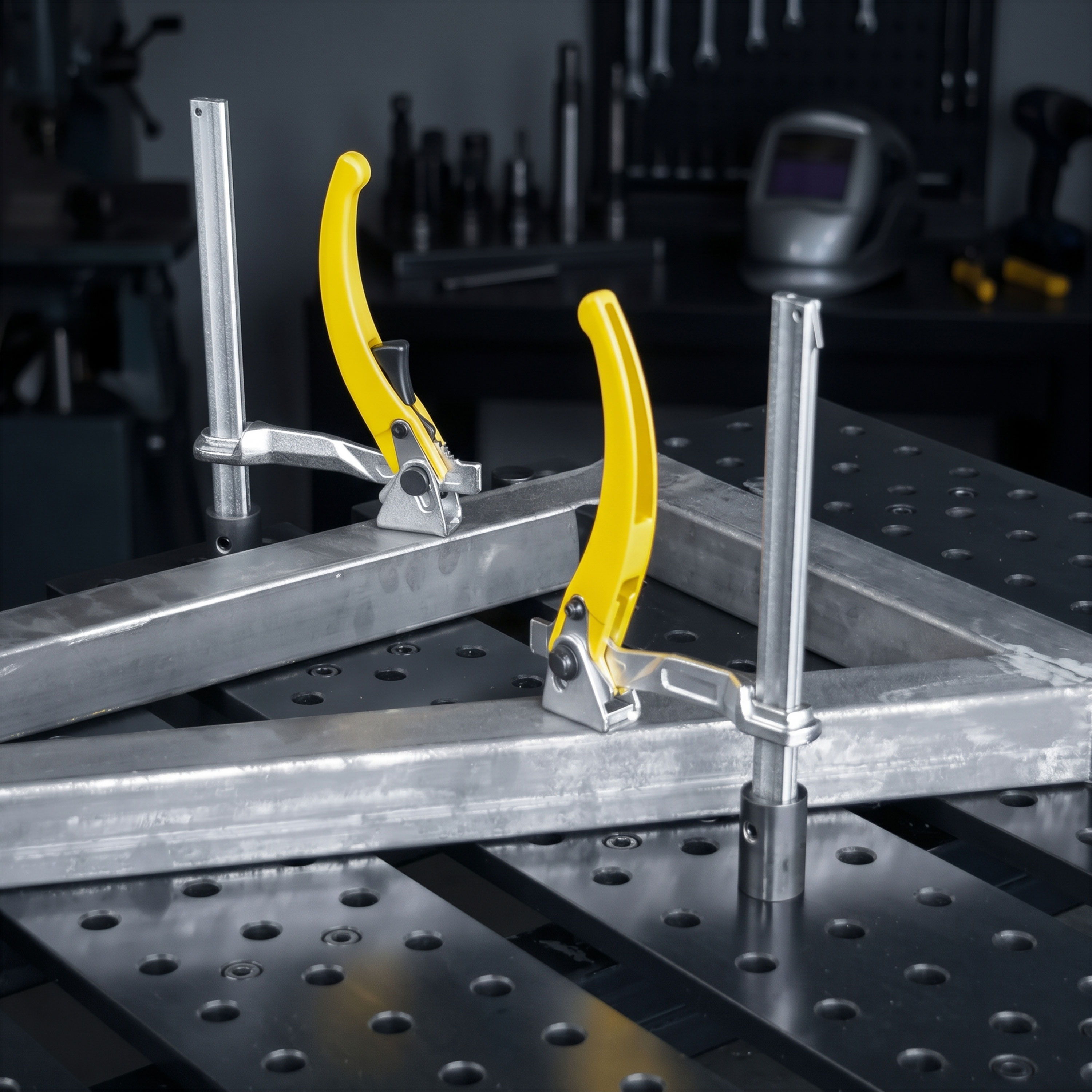

The Ratchet Handle Model is ideal for tight space clamping, and the ratchet mechanism ensures rapid, vibration and torsion-resistant clamping.

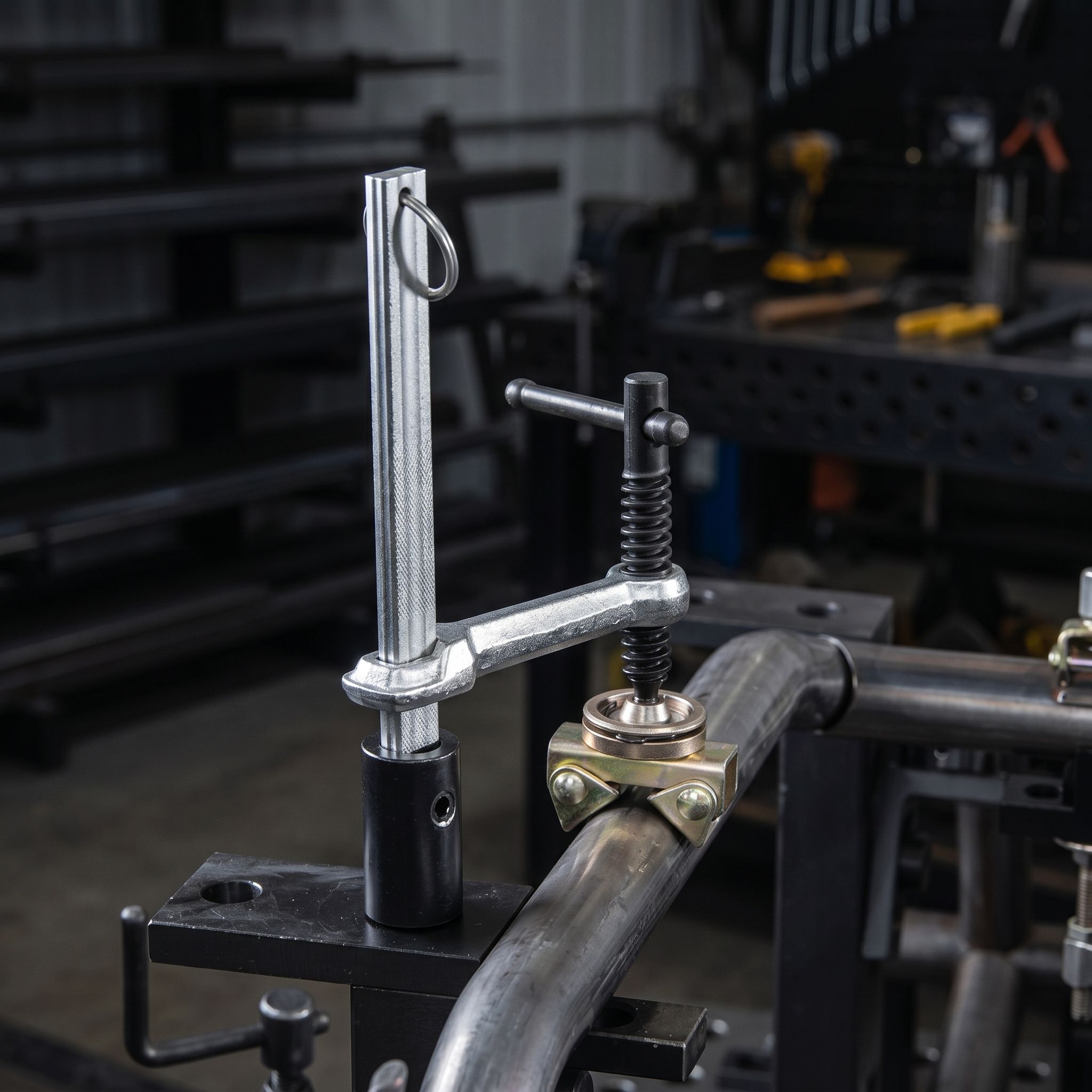

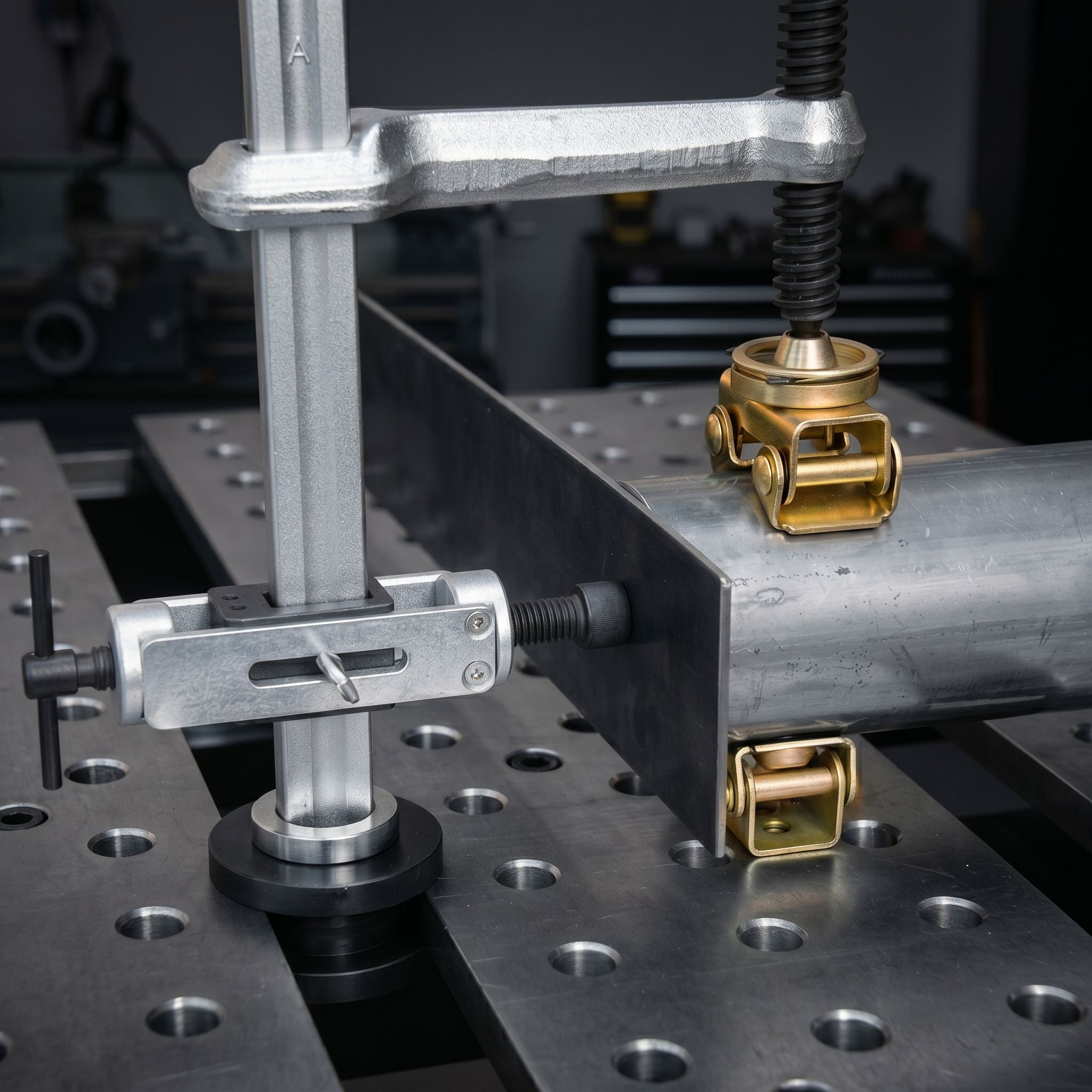

Clip the optional Top V-Pads onto the top spindle to clamp round or angled stock. Remove the clamp arm by depressing the spring stop, and slide the Sidekick attachment onto the clamp bar, followed by the clamp arm, for two-point horizontal and vertical clamping force.

Regular price $20.00
Sale price $20.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

UDN5150 - STEP

UEN5200 - STEP

UERN5200 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Handle Clamping Capacity (in) Throat Depth (in) Clamping Pressure (lb) Rail Size (in) Weight (lb) Replacement Pad

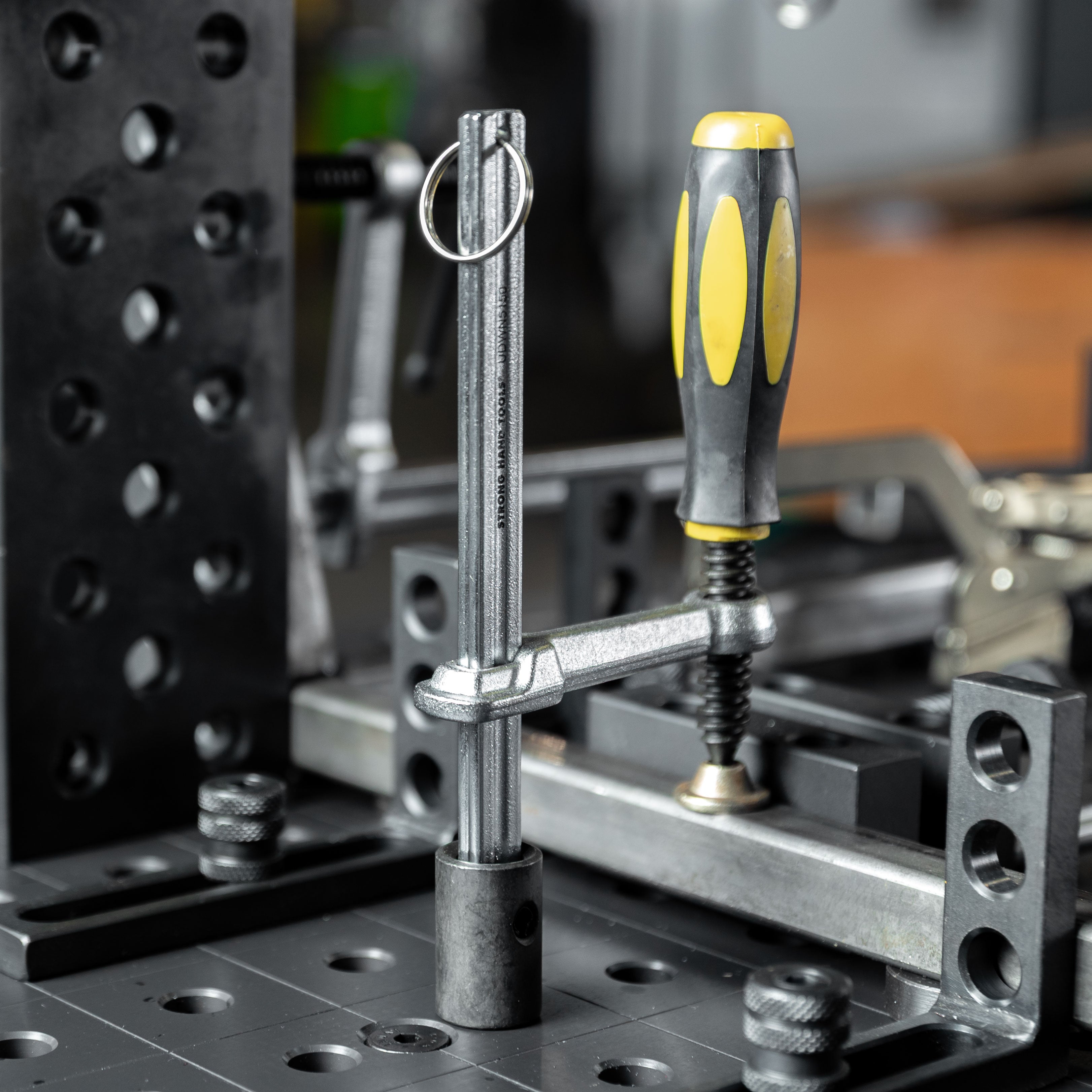

UDWN5150 Straight Handle 6-1/2 3-1/4 300 5/8 x 5/16 1.4 XDP

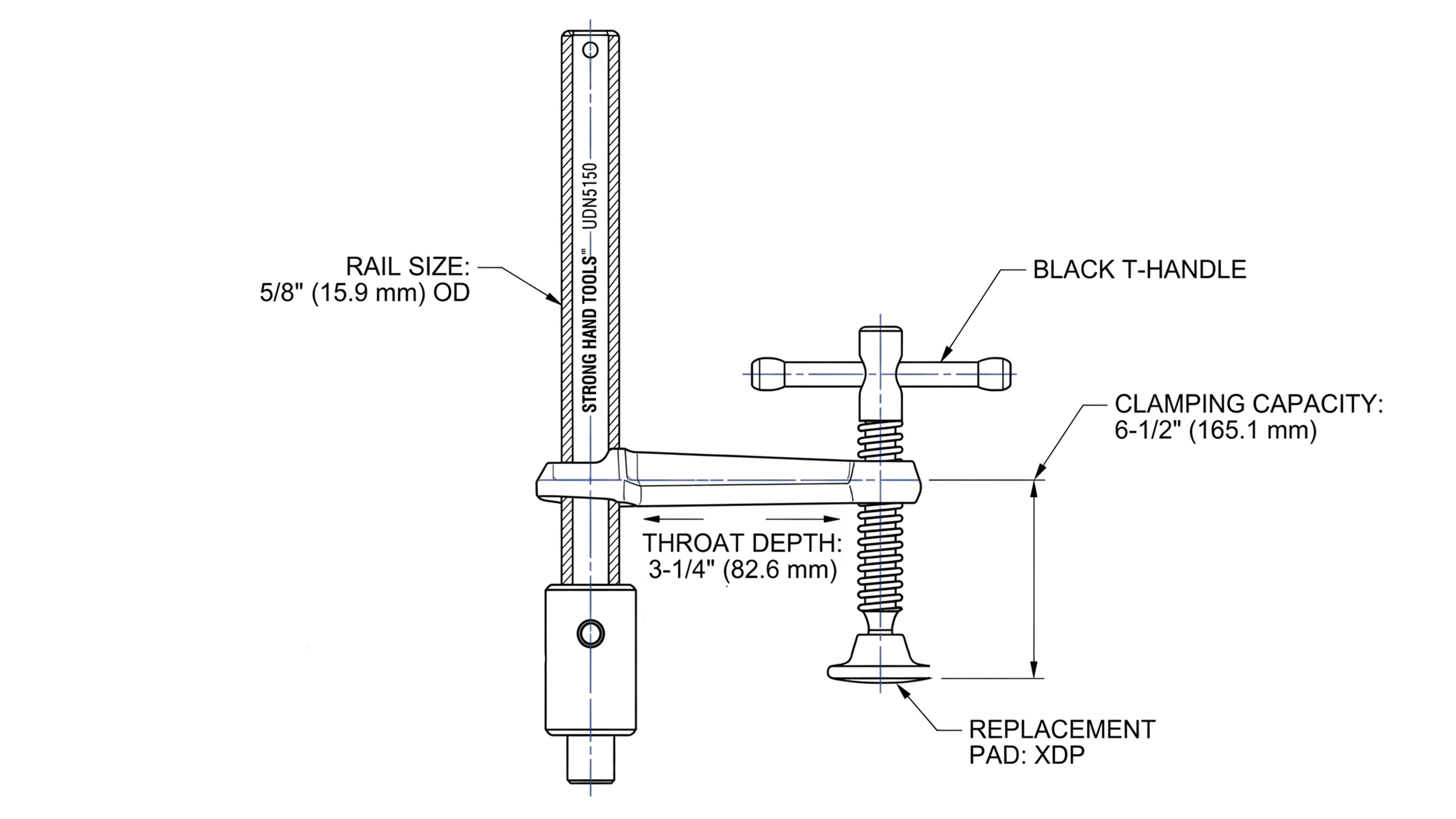

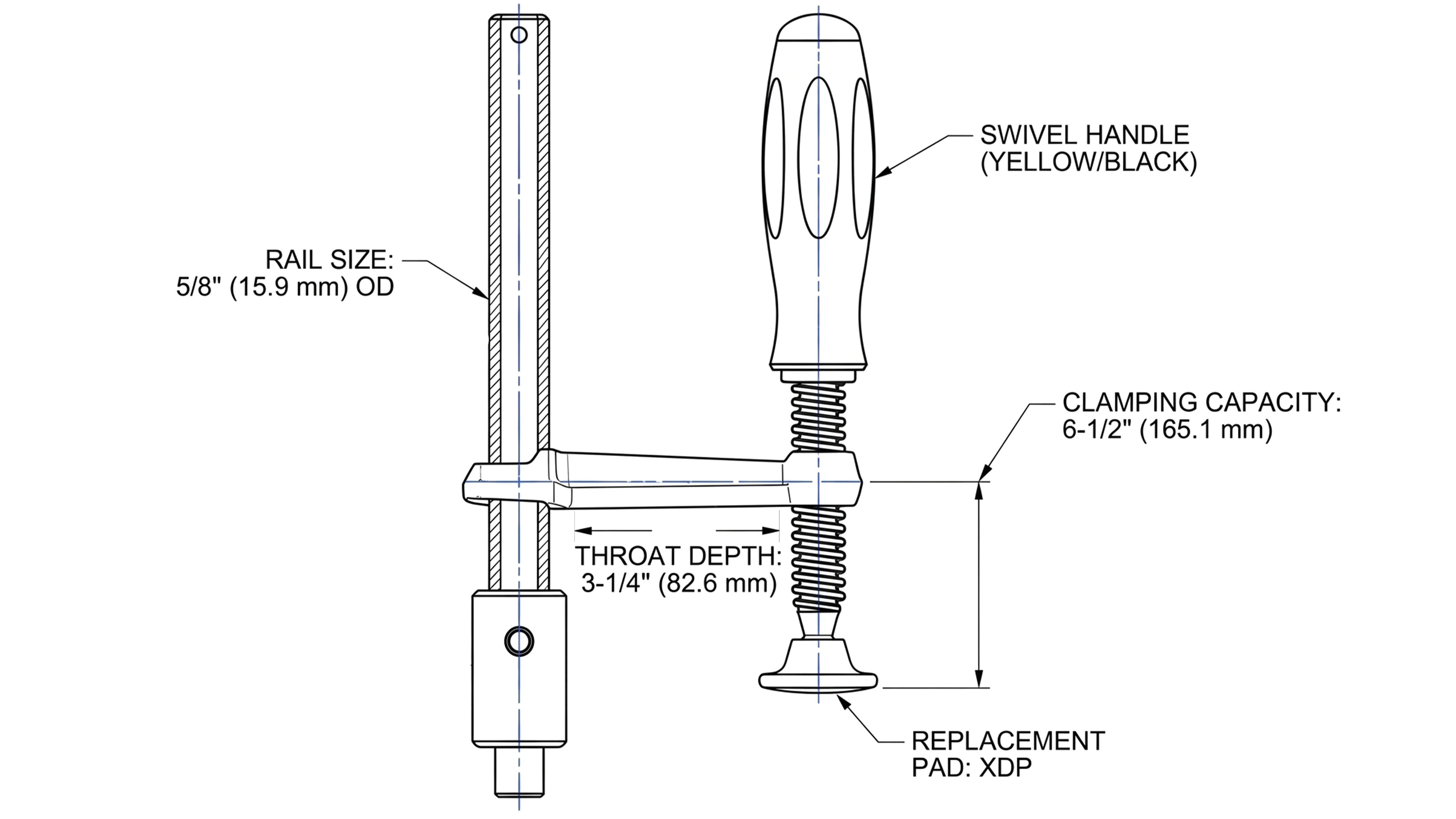

UDN5150 T-Handle 6-1/2 3-1/4 300 5/8 x 5/16 1.2 XDP

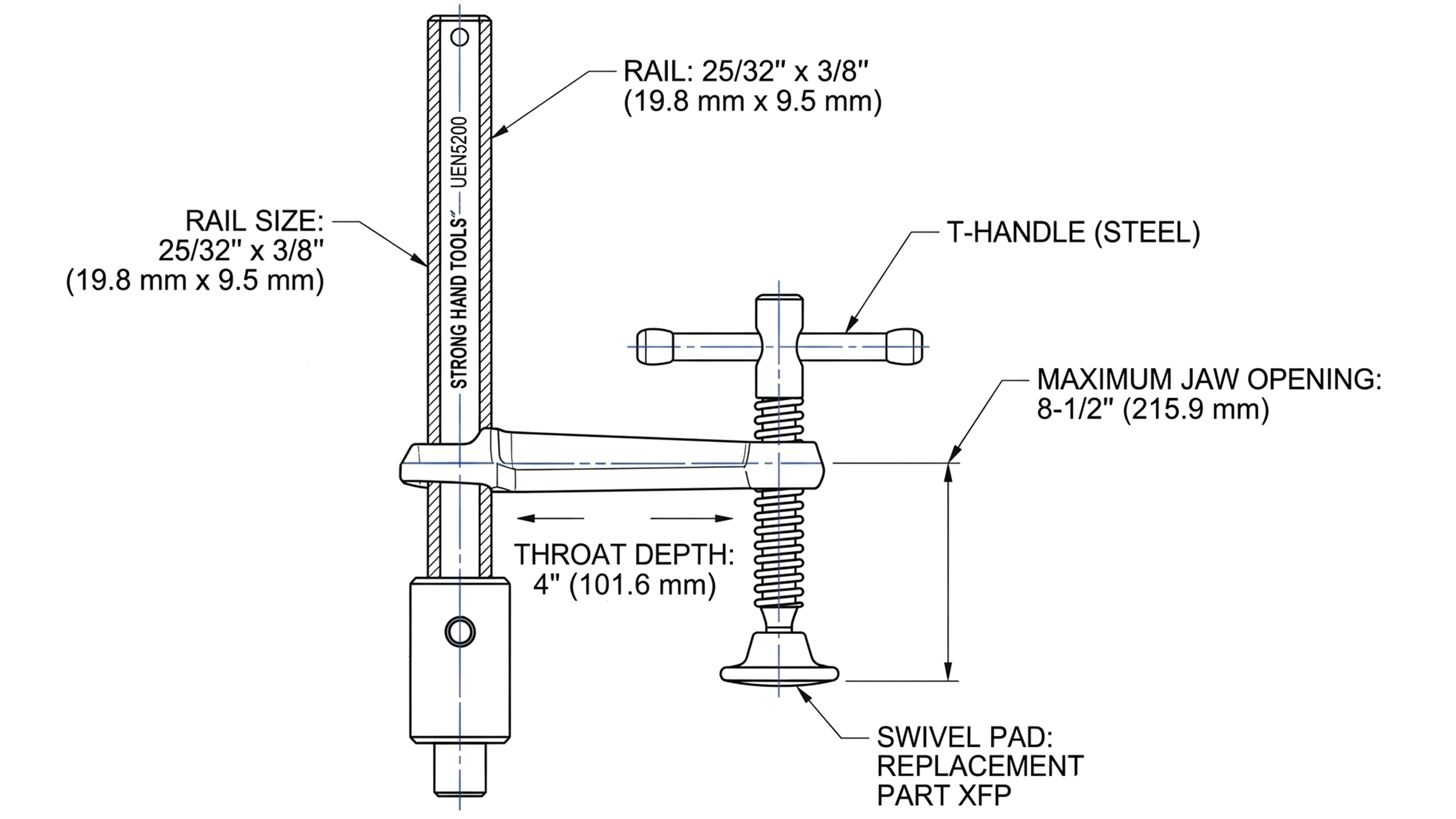

UEN5200 T-Handle 8-1/2 4 400 25/32 x 3/8 2.2 XFP

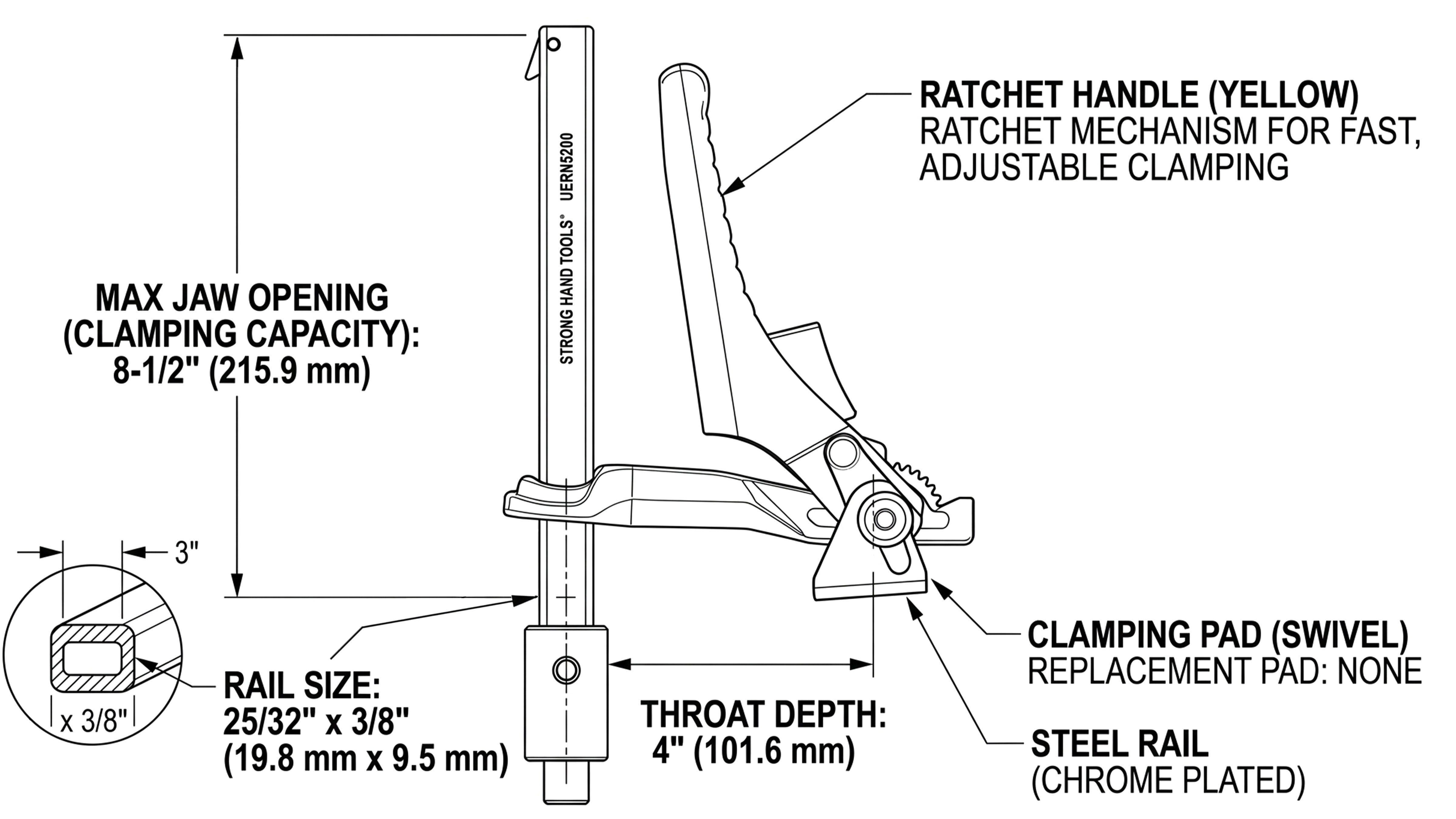

UERN5200 Ratchet Handle 8-1/2 4 400 25/32 x 3/8 2.2 -
