- Max Capacity: 800 lb

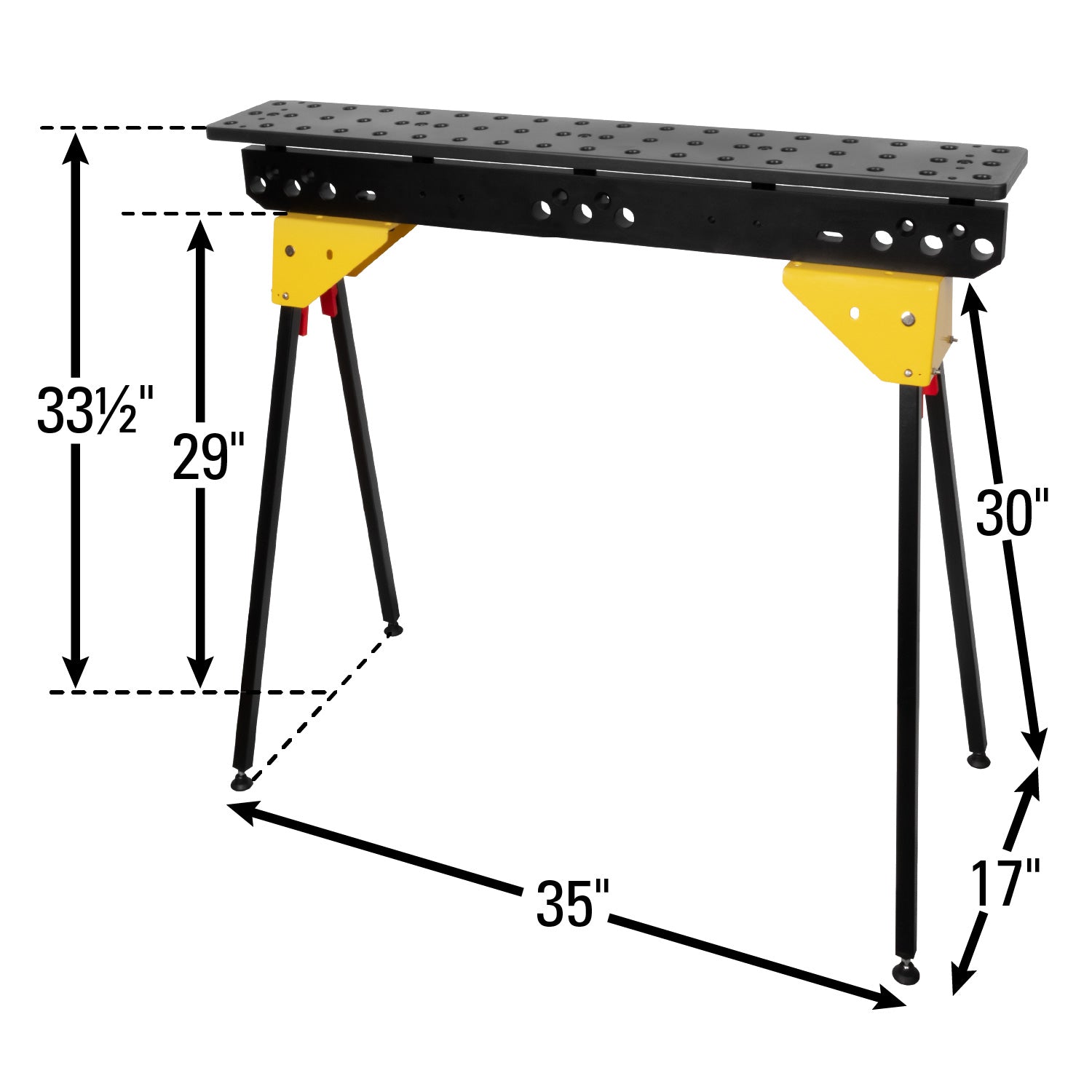

- Height Adjustable: 33.4"- 42.4" table surface height
- Professional-Grade Surface: 5/8" thick nitrid-coated plate offers durability and longevity in demanding environments.
- Universal Compatibility: Designed to mount easily to most workbenches, giving you a flexible upgrade without replacing your existing setup.
- Precision Clamping: Compatible with standard Inserta clamps, pins, and fixtures, so your tools go wherever you do.
- Compact, Efficient Design: Slim 6" width is ideal for tasks that require narrow but sturdy support without taking over your entire bench.
- Made for Modularity: Works as a standalone work surface or as part of a custom workstation layout.
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures
Back Ordered: ETA Late December - Early January
Patent Pending
Scout 36, Sawhorse Kit (36" x 6") 5/8" System
5/8"
Hole Diameter
2"
Hole Spacing
Nitrided
Material Finish
Lightweight
Portable
Regular price
$320.00
Sale price
Regular price
Shipping calculated at checkout.
Built for the Field
Mobile Work Stands with Pro-Level Fixturing, Anywhere You Work.
When the job moves, your gear should too. With durable surfaces, clamp-ready plates, and rock-solid support, these tools keep your workflow sharp and efficient, even off the grid.
800 lb
Max capacity, adjustable legs

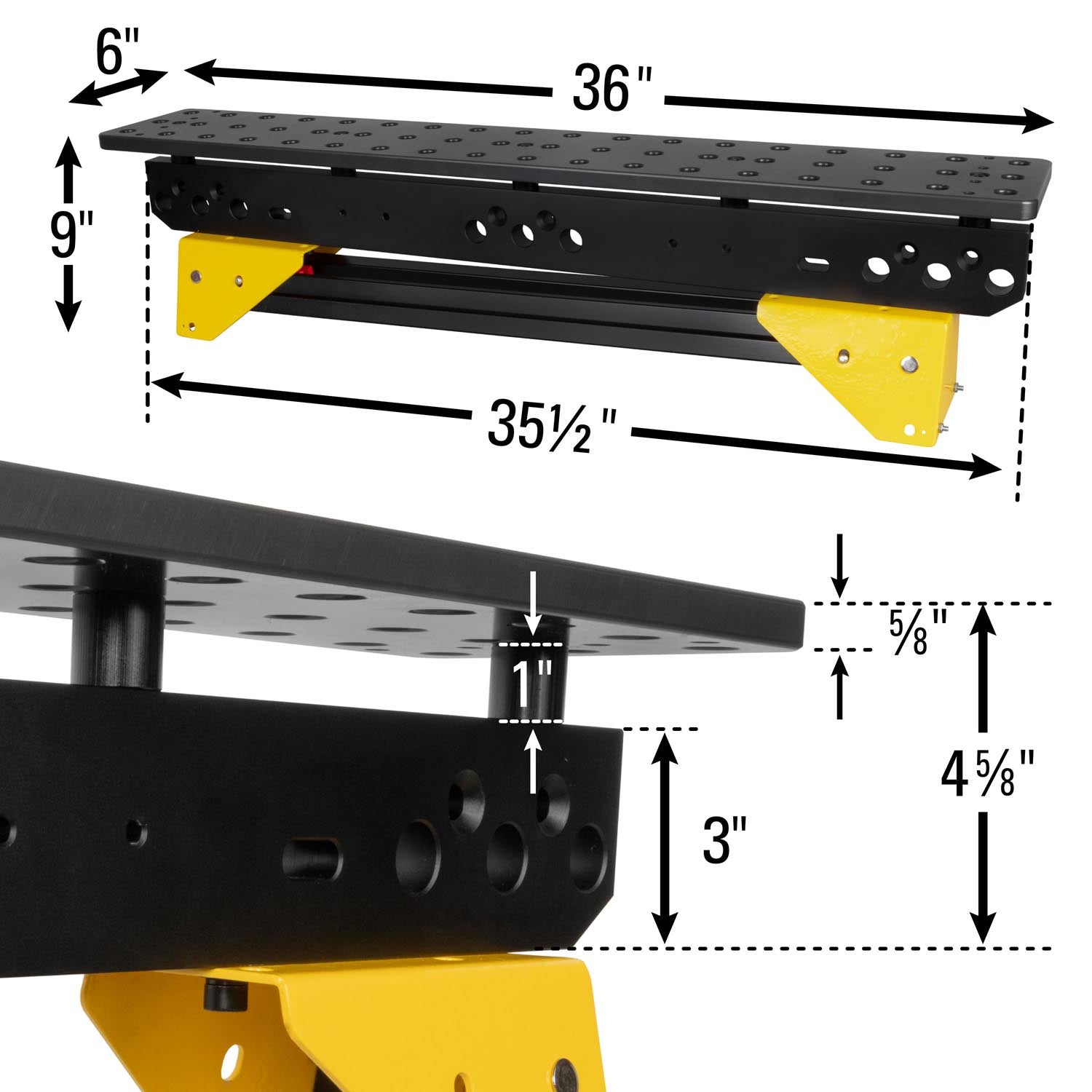

36" x 6"
Nitrided 5/8" thick plate
2" x 2"
5/8" hole grid, Inserta-ready
Nitrided Steel
Material Finish
Why welders reach for it
Spatter wipes off
The 5/8" thick nitrid-coated plate resists weld spatter and corrosion in demanding environments.

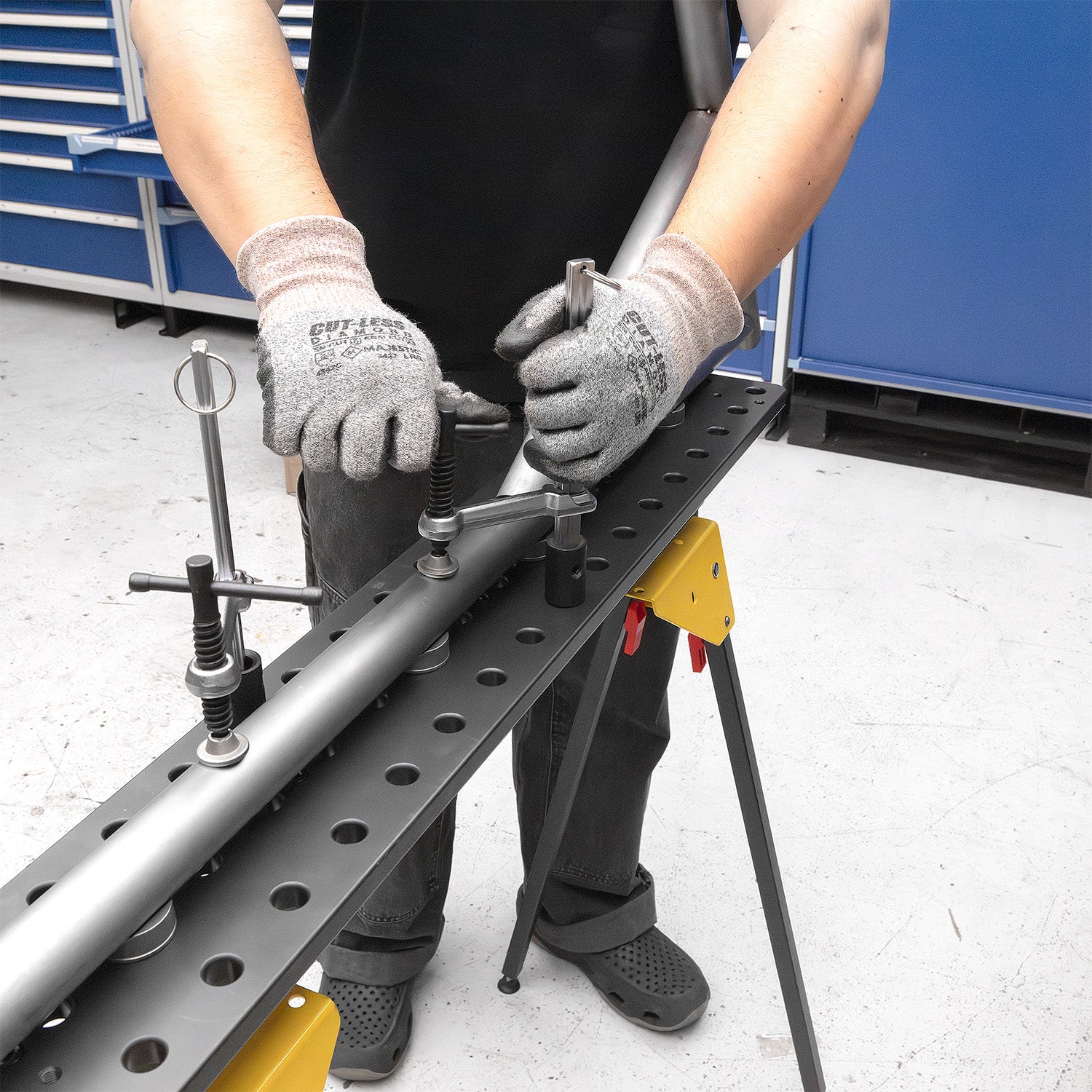

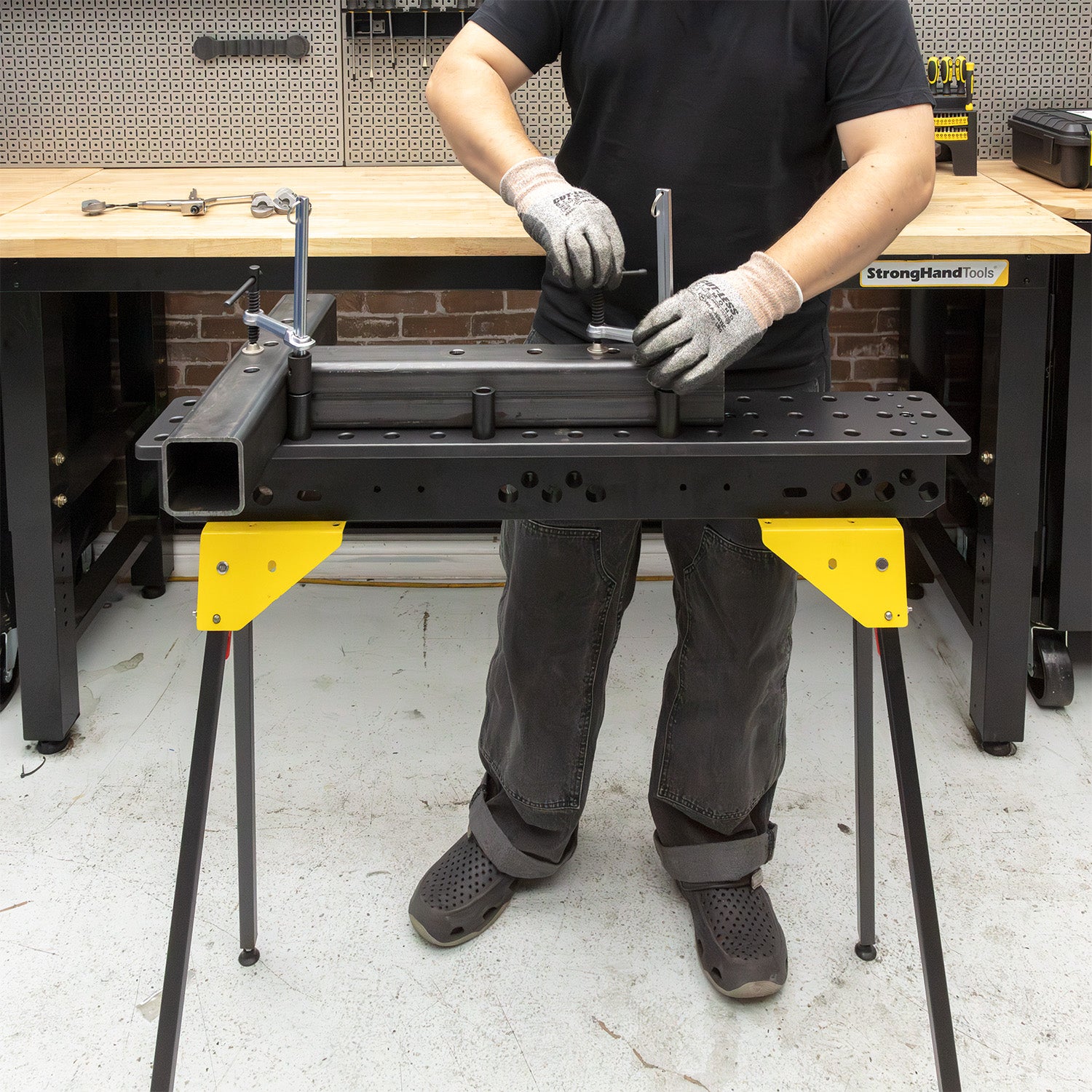

Your fixturing already fits
5/8" holes on a 2" x 2" grid take standard Inserta clamps, pins, and fixtures — the same tooling as every BuildPro table.

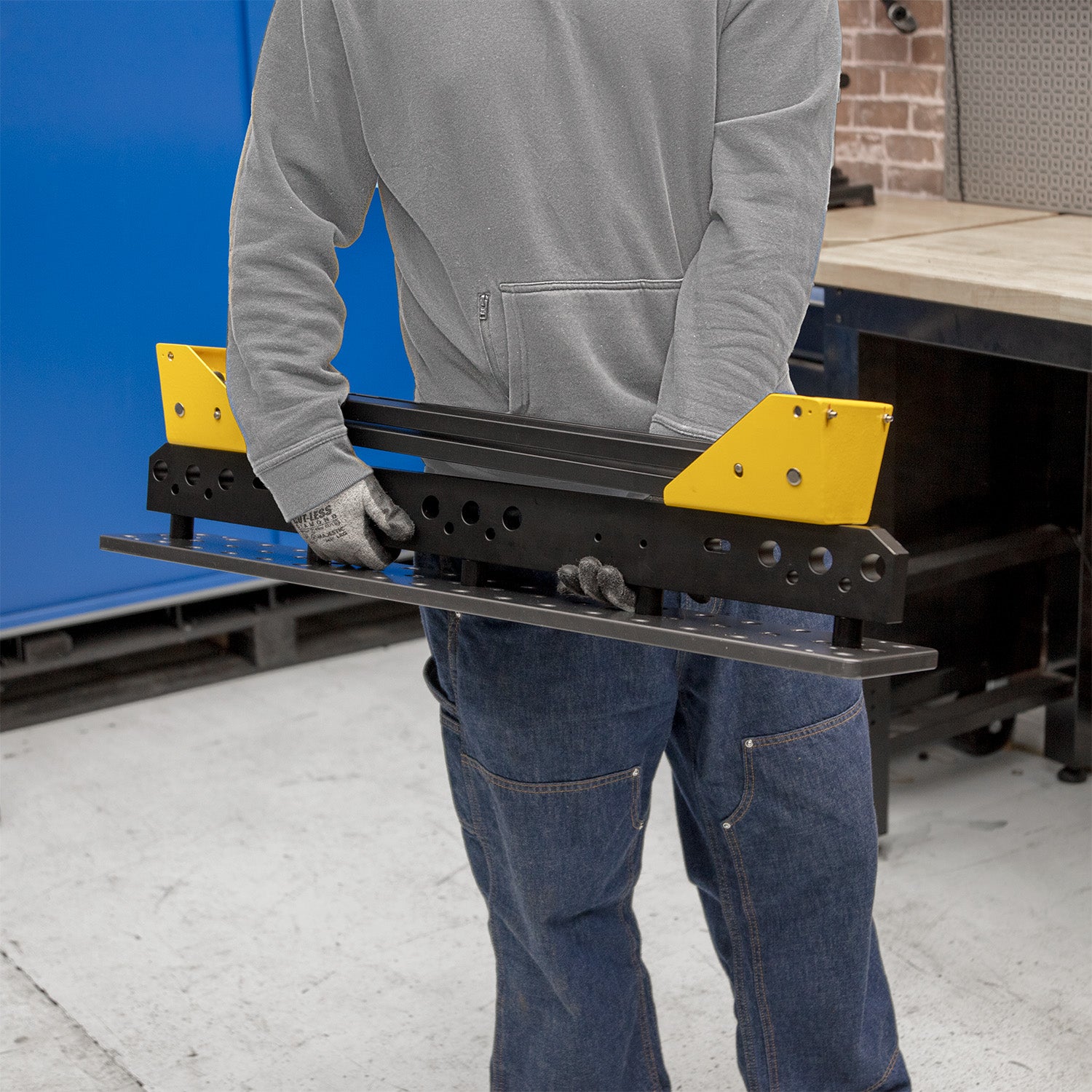

One person carries it
Legs fold, the plate grabs like a handle, and the whole stand rides in a truck bed — set up and clamping in minutes, no second set of hands.
Flat stays flat
A machined 5/8" steel plate won't sag or dish like a jobsite sawhorse — your reference surface is true every setup.
Grows into a workstation
Join two tops into a 36" x 12" table, hang a side vise, add a tool tray — one plate becomes a full fixturing station.
Ground clamp friendly
Bare conductive steel means you clip the ground anywhere on the plate and weld — no paint to grind off, no insulated coating.

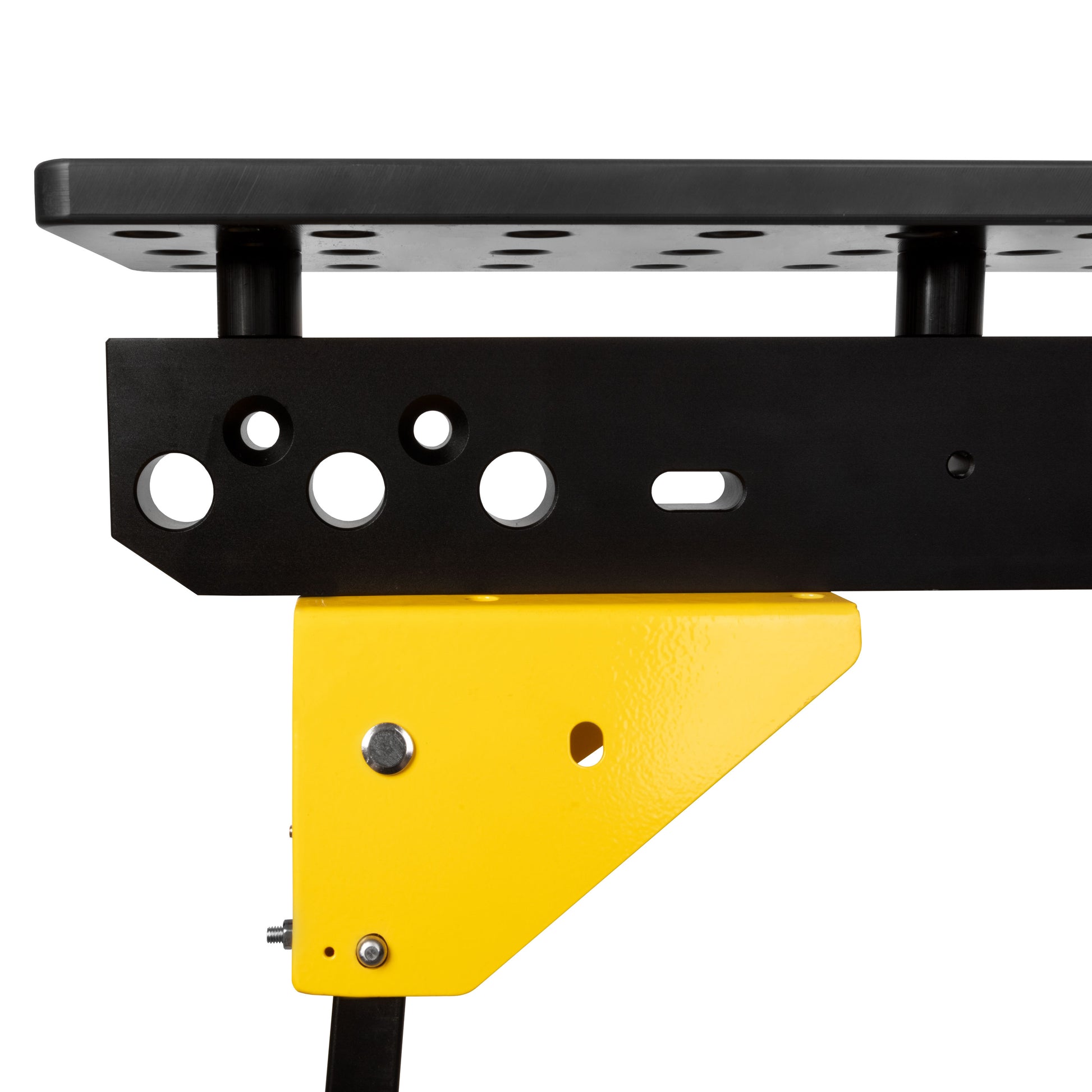

Scout 36 Beam Anatomy
Every machined feature on the 36 × 6 nitrided top plate and its aluminum beam — what it is, and what bolts to it. Select a callout on the drawing.
Focus
Isolate part
Callout Drawing
Fig. 1 — plan and side elevation Top plate · grid Highlighted:
Callout 1 of 6
Nitrided Steel Top Plate
Click a numbered pin, or use ← → to step through all six features.
Hole Pattern
Fig. 2 — top and side views, drawn to scaleDrop a workpiece on the plate, or tap any hole to see where it sits.
Try a setup
Swipe to see the full plate
Every hole is a full-depth 5/8″ thru-hole on true 2″ centers, so Inserta clamps, pins and stops drop straight into any position on the grid. The nitrided surface shrugs off spatter and resists corrosion.
Leg Options
Fig. 3 — select a configurationSpecification
Sheet dataPlate & Beam
| Working surface | |
|---|---|
| Plate thickness | |
| Hole diameter | |
| Hole spacing | |
| Plate finish | Nitrided |
| Beam material | Aluminum |
| System | 5/8" Inserta |
| Part number | TSB366-AF1 |
Why it is built this way
- Nitrided steel top. Case-hardened surface resists corrosion and sheds weld spatter.
- Aluminum beam. Carries the plate at full 36" span while keeping the kit one-hand portable.
- Slim 6" width. Narrow enough to reach around a workpiece, deep enough to clamp against.
- Modular. Runs solo on a pair of legs, or drops into a larger bench layout.
12 pc Clamping Kit — optional add-on
- Inserta Clamp 6.5"×2
- Inserta Plier 6.5"×2
- Inserta Stop×4
- Aluminum V-Block×4
- Travel Pouch×1
Vise add-ons: 4" jaw forged, drill press, cradle, or side vise.

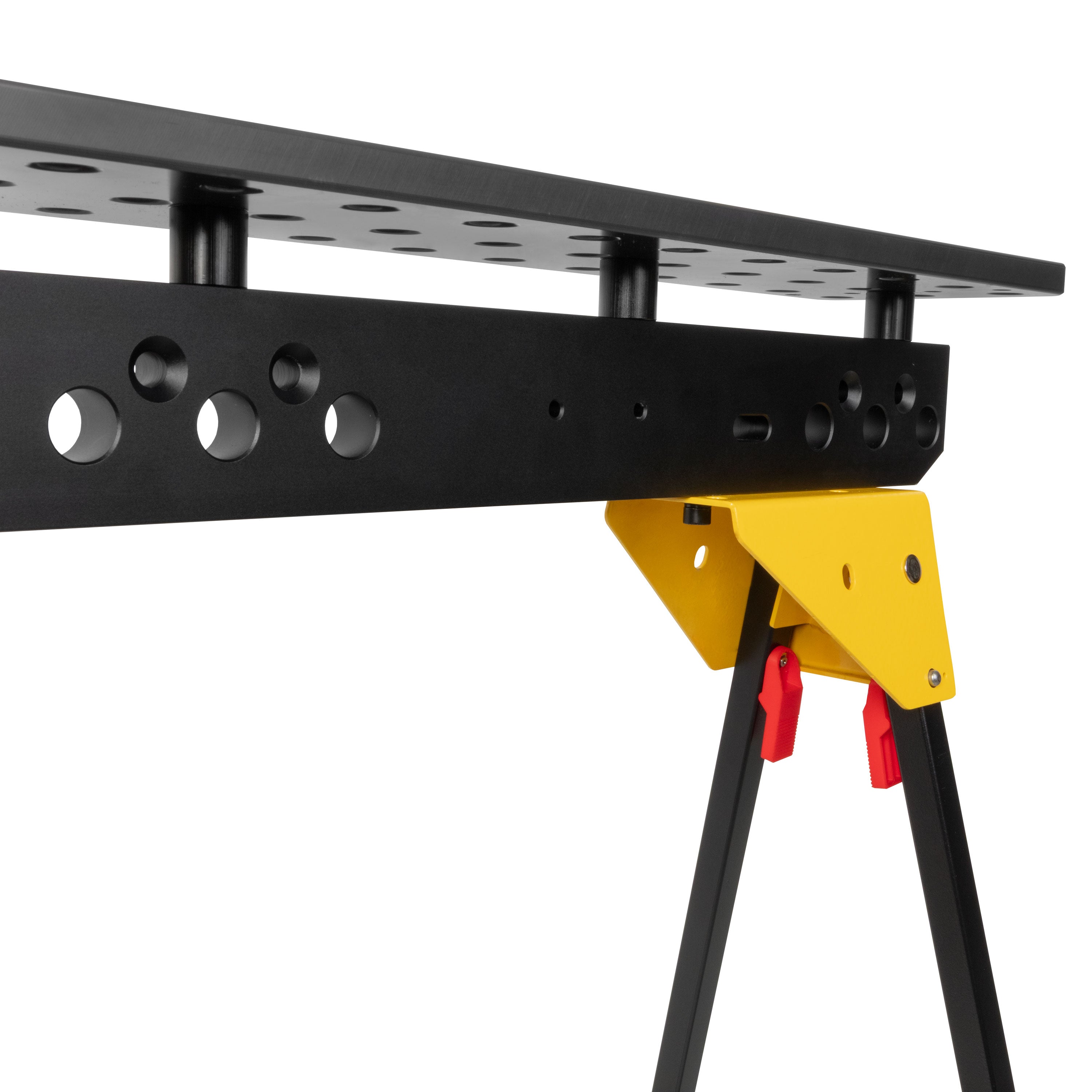

Heavy Duty, Adjustable Sawhorse Legs
(800 LB - MAX CAPACITY)
Adjustable Folding Legs
Sold out
Kit Options
12pc Clamping Kit
Sold out
Clamping Kit + Vise
Sold out
NOMAD Table Legs
(350 LB - MAX CAPACITY)
- Professional-Grade Surface: 5/8" thick nitrid-coated plate offers durability and longevity in demanding environments.
Precision Clamping: Compatible with standard Inserta clamps, pins, and fixtures, so your tools go wherever you do.
Fully Adjustable Support: Angle & height adjustable. 3 preset tilt positions: flat, 30°, 85°. Height Adjust Setting: 30.3", 31.3", 32.8", 34.4", 36.0"Portable & Compact: Folds easily for quick setup, and storage.
NOMAD 36, Sawhorse
Sold out
Kit Options
12pc Clamping Kit
Sold out
Clamping Kit + Vise
Sold out
What Comes Inside The Clamping Kits?
12pc Clamping Kit
Travel Pouch
x1
Inserta Clamp 6.5"
x2
Inserta Plier 6.5"
x2
Inserta Stop
x4
Aluminum V-Block
x4
12pc Clamping Kit + Vise
Forged Vise (4" Jaw)
x1
Travel Pouch
x1
Inserta Clamp 6.5"
x2
Inserta Plier 6.5"
x2
Inserta Stop
x4
Aluminum V-Block
x4
