Straight Edge Stops, 5/8 Holes

SKU: T50505

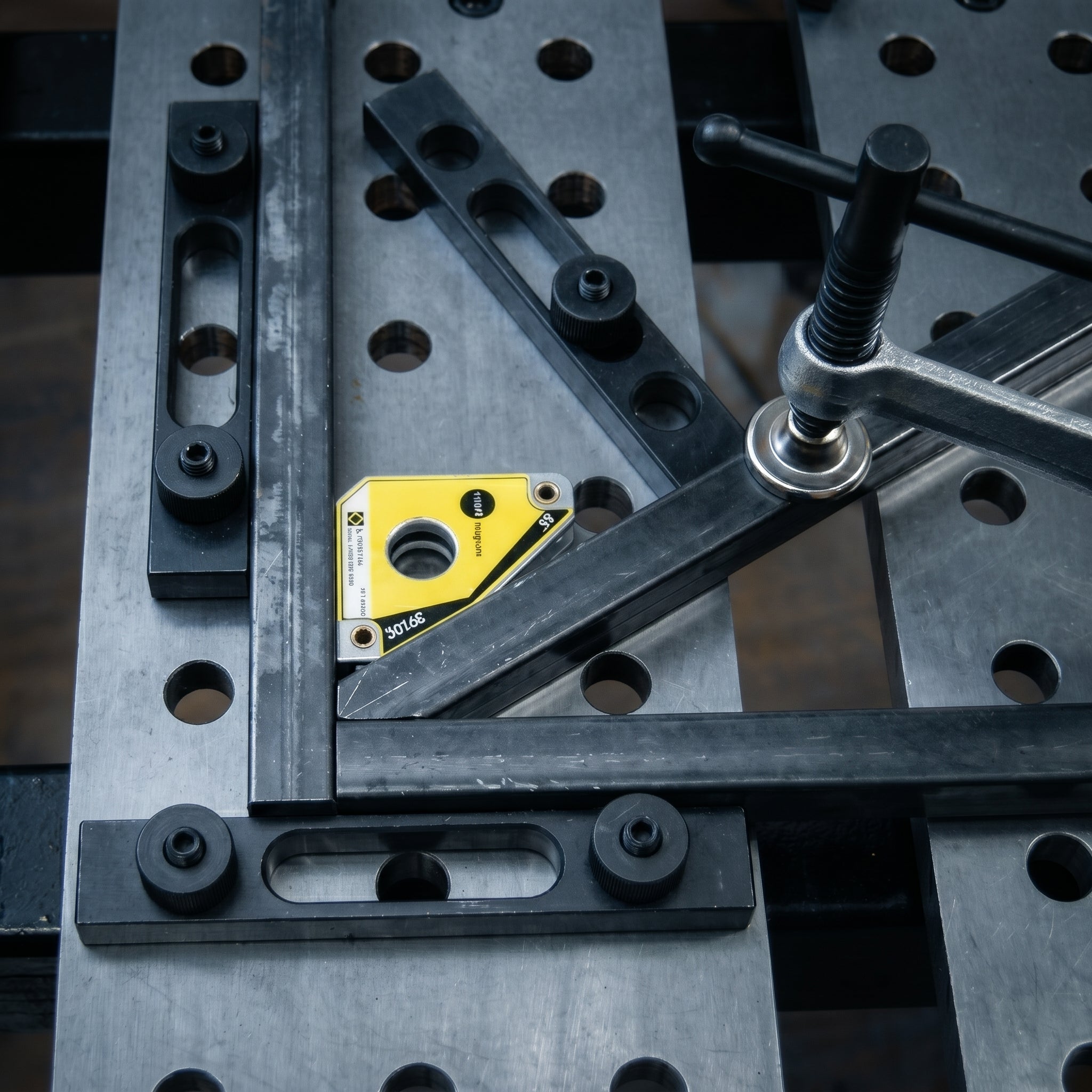

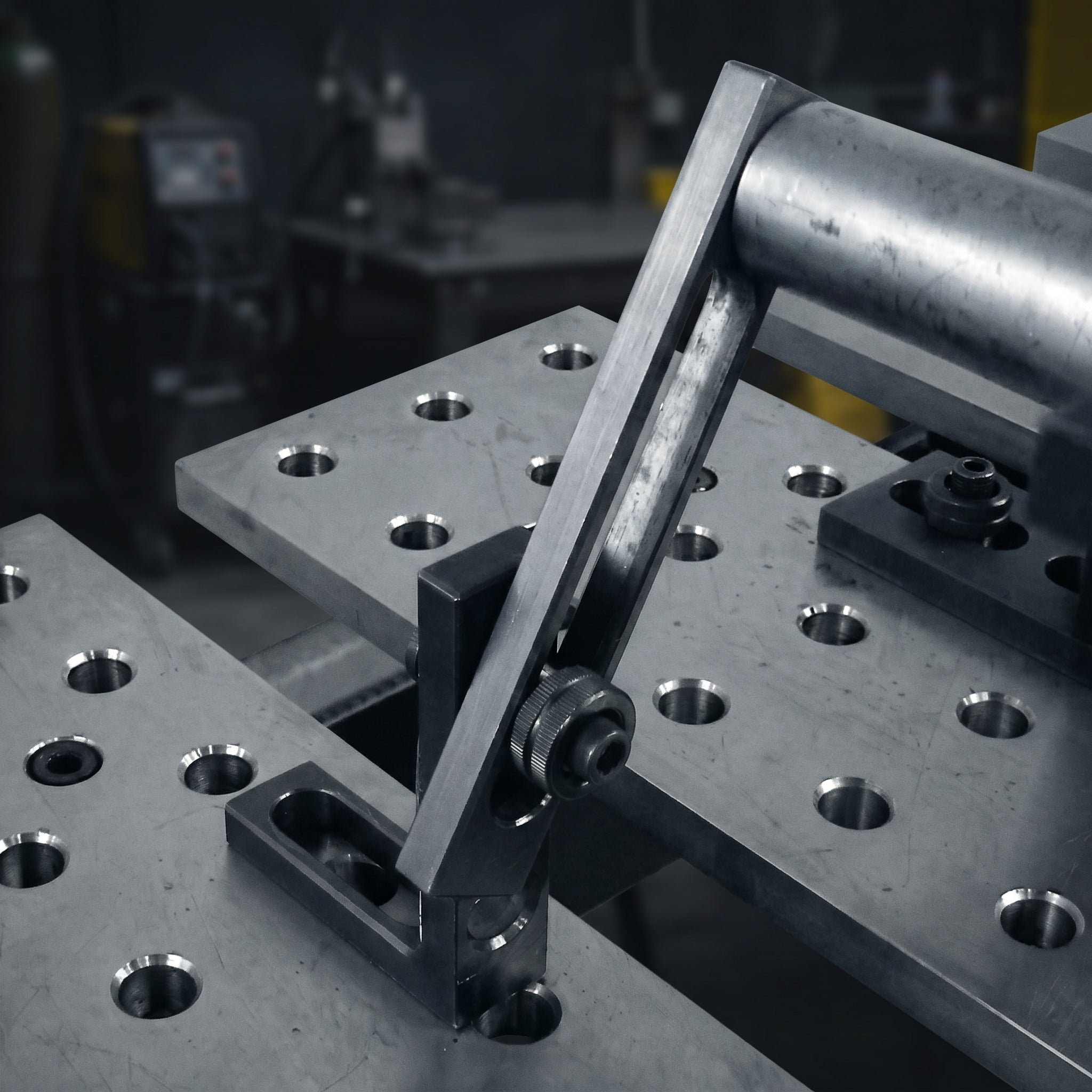

Long slots make these precision machined Straight Edge Stops infinitely adjustable in fixturing applications and squaring up parts.

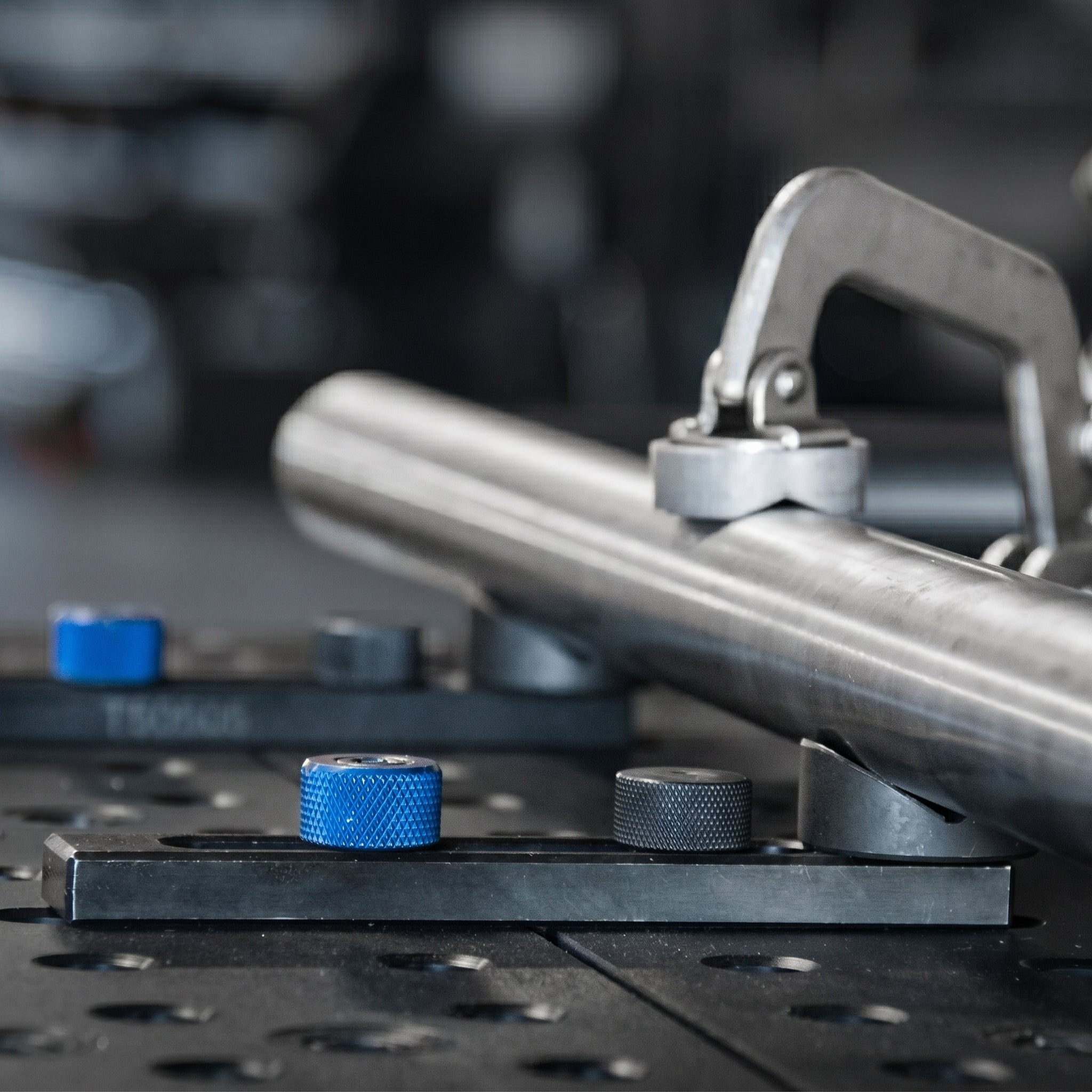

Use with V-Blocks for the adjustable fixturing of round tubes.

$17.50
$17.50
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

T50505 - STEP

T50510 - STEP

T50517 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Dimension (in) Slot Length (in) ∅.625" Holes Weight (lb)
T50505 6 x 1.18 x 0.47 3.5 1 0.6
T50510 8 x 1.18 x 0.47 2 2 0.8
T50517 10 x 1.18 x 0.47 5 4 0.9
