Max Tables, 4' x 4'

Name: Max Tables, 4' x 4'
Brand: BuildPro
SKU: TMA54848F
Price: 3060.0 USD
Availability: InStock

SKU: TMA54848F

All BuildPro® Tables are constructed from 5/8" thick steel plate, with Ø5/8" CNC machined and holes chamfered in a 2" grid pattern.

Actual Table Surface Dimension: 48" x 48"
Tabletop Side Height: 6-1/4"

* All load capacities are calculated based on static load.

* Optional Leg Brace Assembly TMLB48 is suggested.

U.S. PAT. 8065967

$3,060.00

$3,060.00 ~~$3,400.00~~

Sale Sold out

Shipping calculated at checkout.

* FREE leg braces with MAX and Slotted table order. Submitting your quote request. Upon submission, our distributor will add the applicable leg brace to your order, reach out to finalize and fulfill your order. 10/1-12/31/2024. While supplies last.

Finish

Legs

Quantity must be 1 or more

Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual

Table Setup Instructions

Reversible Plate Instructions

Specifications

CAD Files

TMA54848F - STEP

TMB54848F - STEP

TMR54848F - STEP

TMRC54848F - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

View this table in your shop

* All MAX TABLES ARE PATENTED: U.S. PAT. 8065967

Our single-sided heavy-duty tables feature boreholes on the top surface and feature patented self-locating and reversible table top plates. Maximum Table Surface, Maximum Capacity. Utilize the additional holes (33% more than slotted tables) for clamping at multiple points.

Available in standard and nitrided tabletop finishes.

Reversible Self-Locating Table Plates

Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!

Tabletop Side Height

6-1/4″ for both MAX and MAX Slotted tables

Table Accuracy

Table flatness: ±0.005 per 24″ x 24″

Hole spacing: 2.000″ ±0.001

Hole diameter: 0.625″ +.002/-.000

Plate thickness: 0.630″ ±0.004

Standard (plain) / Nitrided Finish

Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.

What people say about us:

Very very well made! Super precise tolerances, clean and ready to be used. Just slap the legs on and off we go! Would recommend!

Kasey S (Gainesville, GA)

Really fast and accurate setup for square joints - big time saver in setup and by minimizing repairs to poor welds.

Dan L (EMI)

Has improved prototype building to a make sure parts are welded accordingly.

Craig M (CUMMINS SERVICE TRAINING)

Use with 4x Heavy Duty Legs

Capacity: 1,500 lb / leg

Part No. (Standard Finish)	Part No. (Nitrided Finish)	Use with Leg	Table Surface Height (in)	Gross Weight (lb)

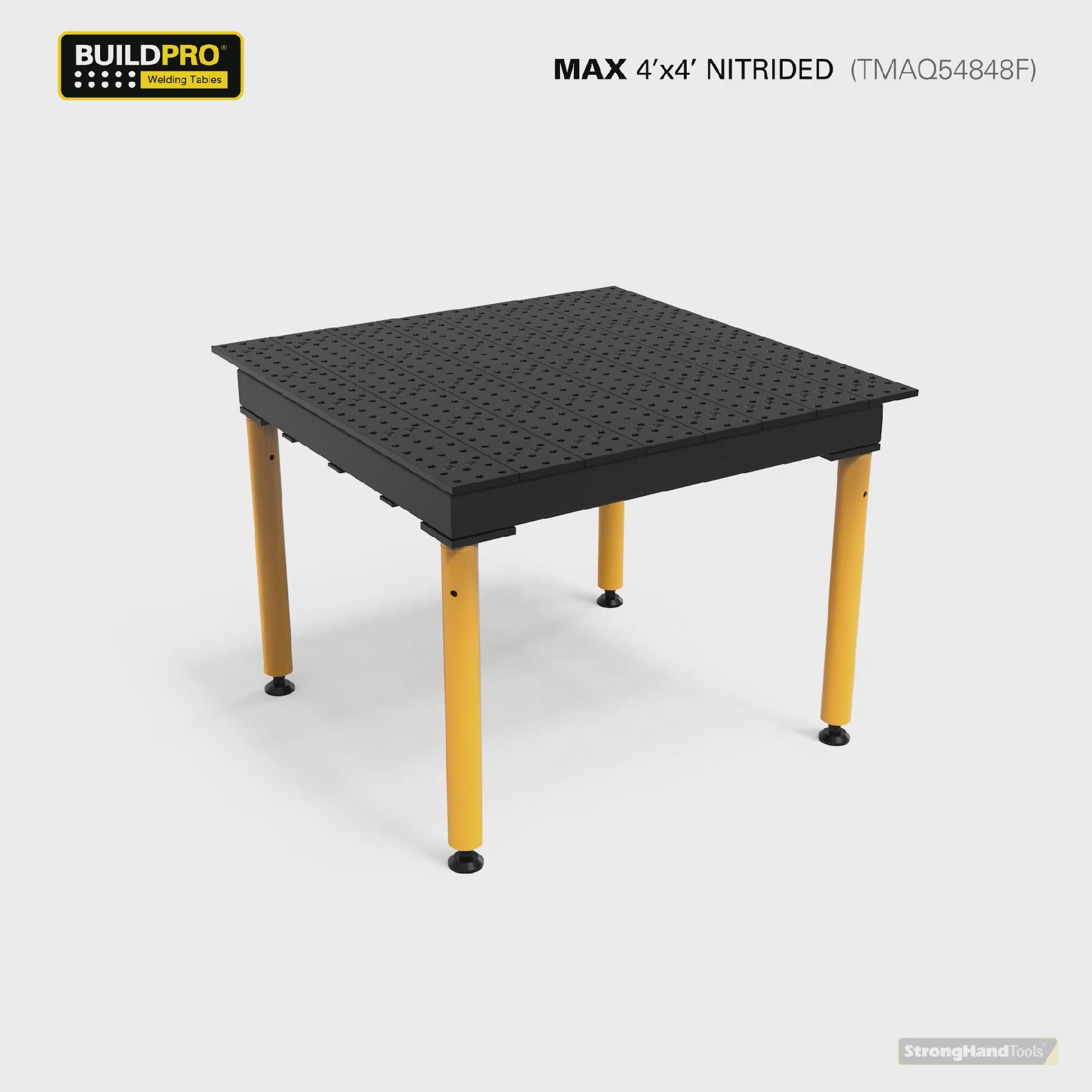

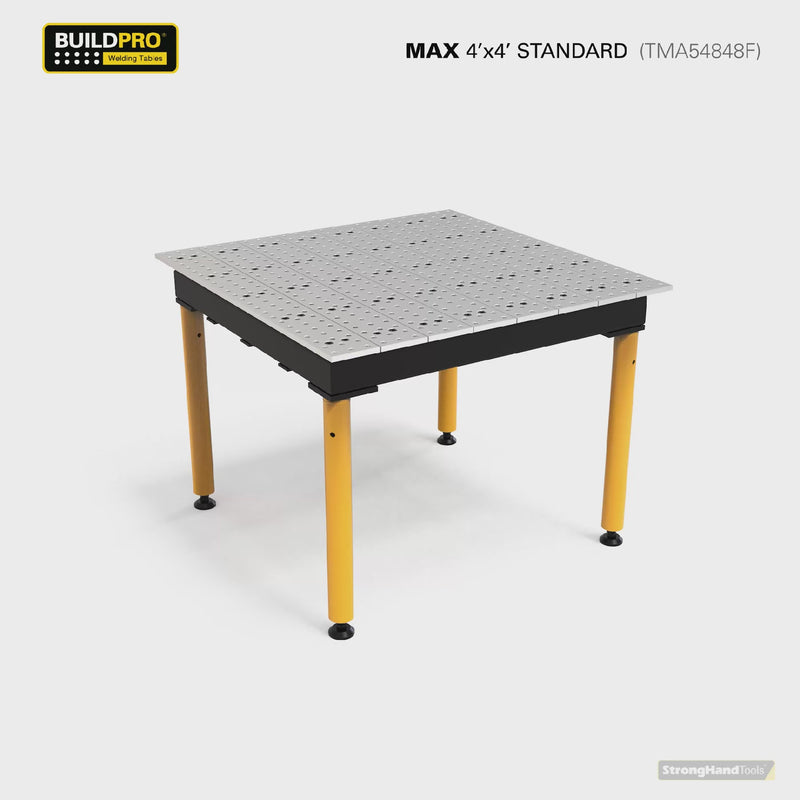

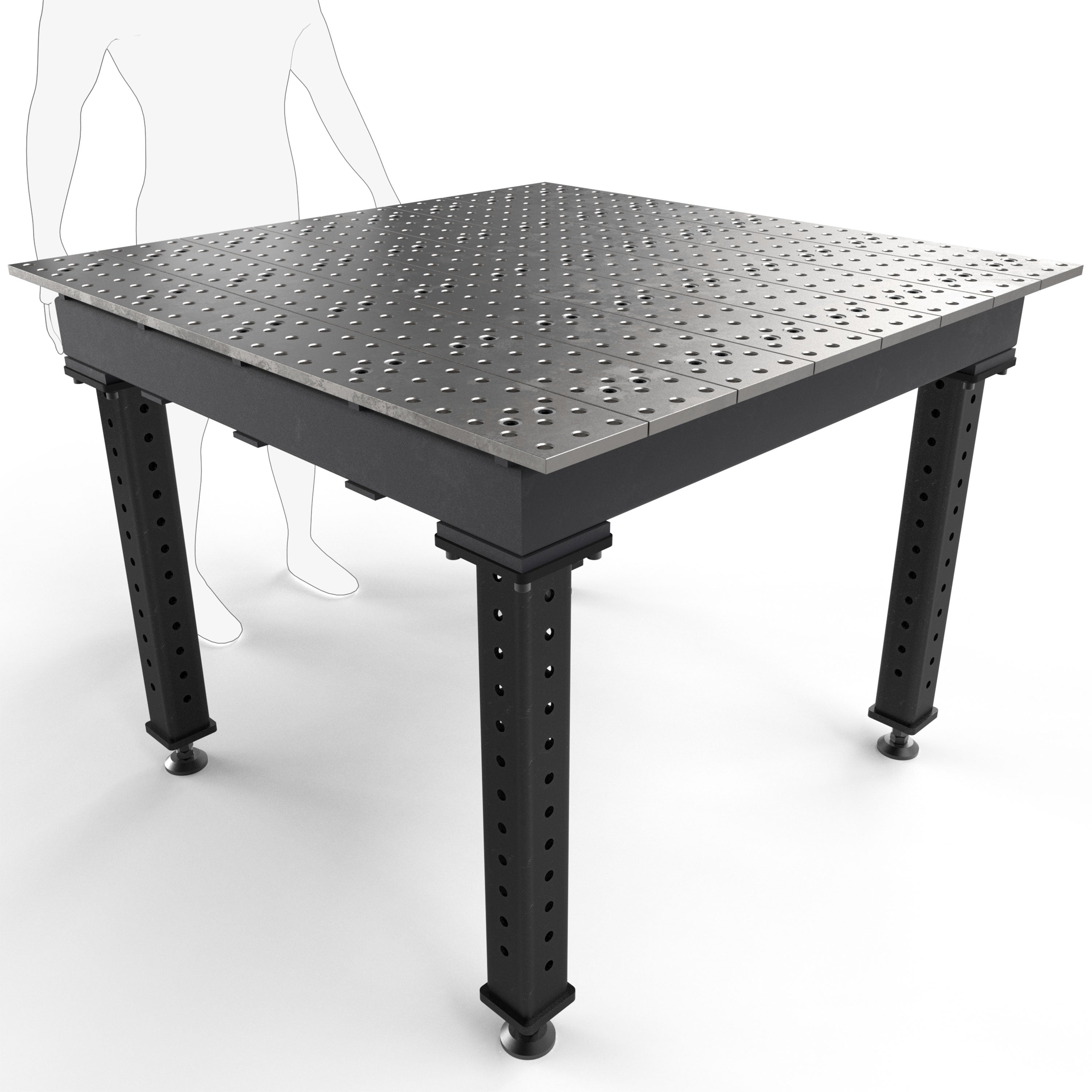

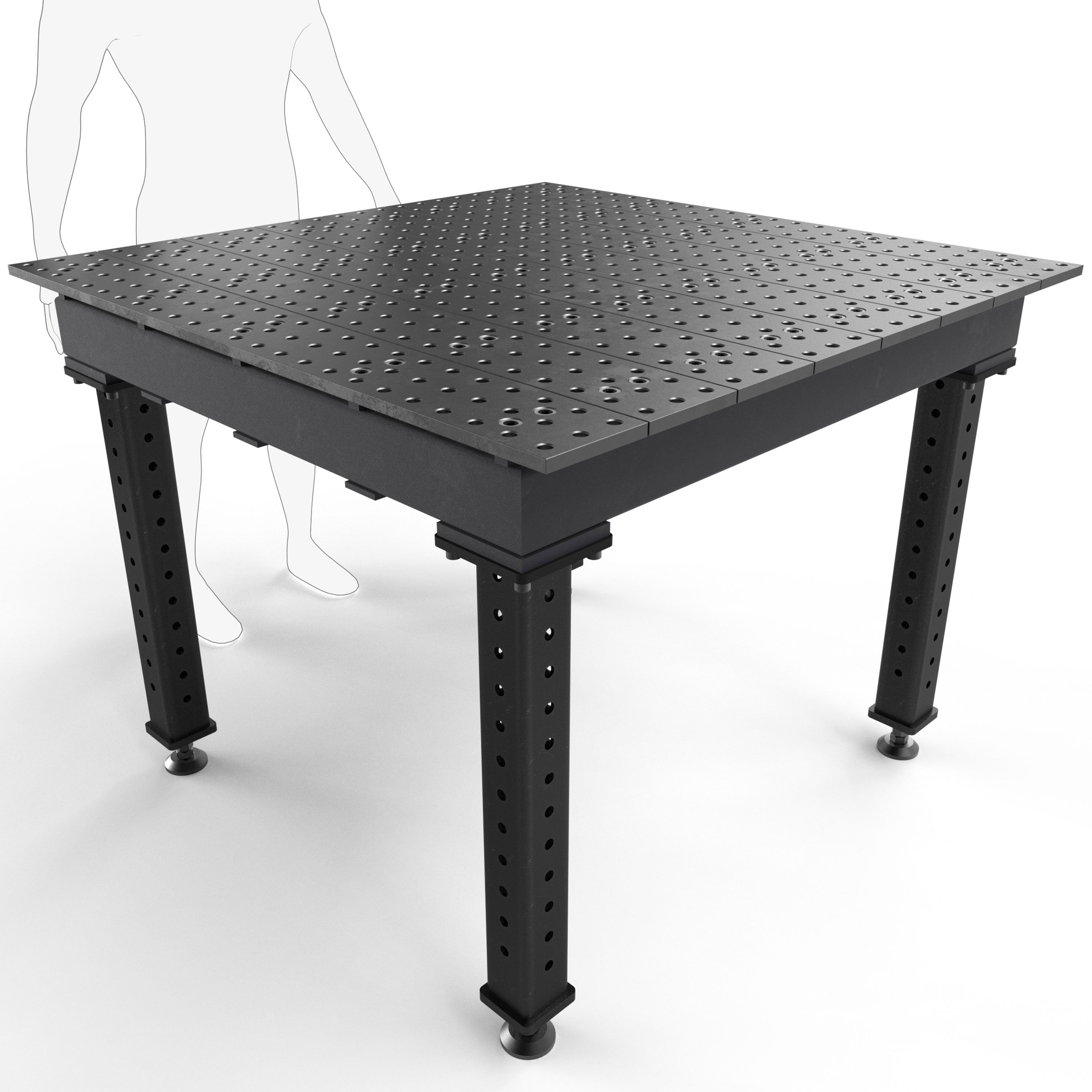

TMA54848F	TMQA54848F	TML3130	36-1/2	720

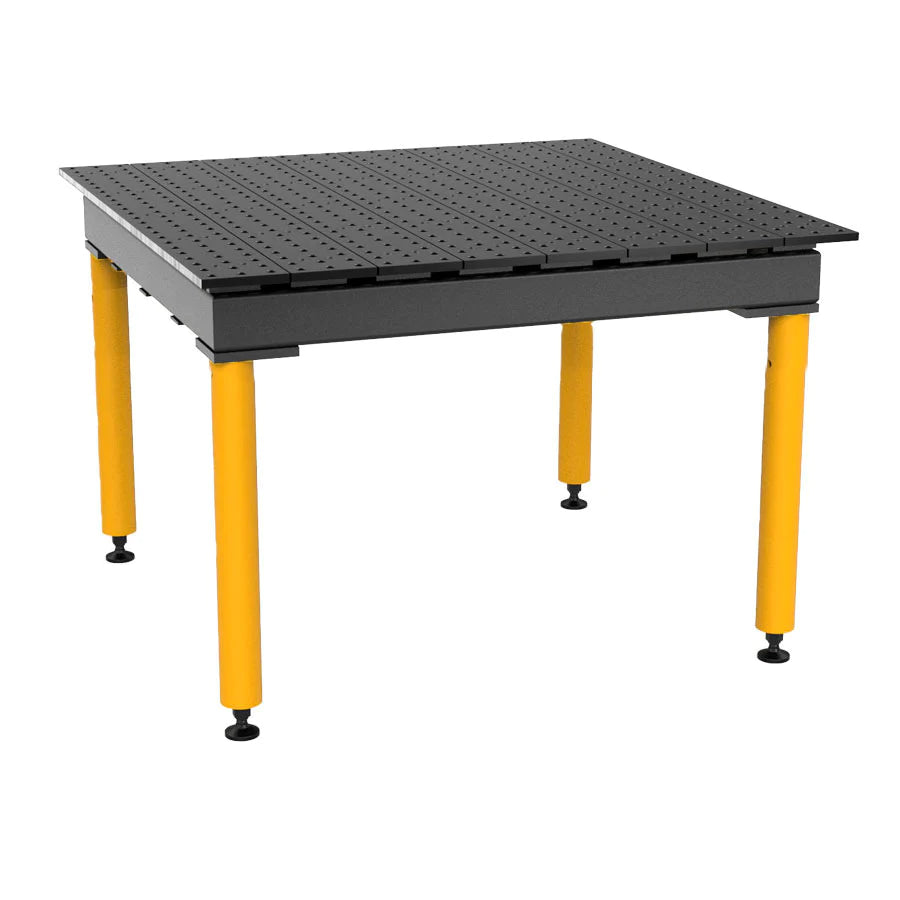

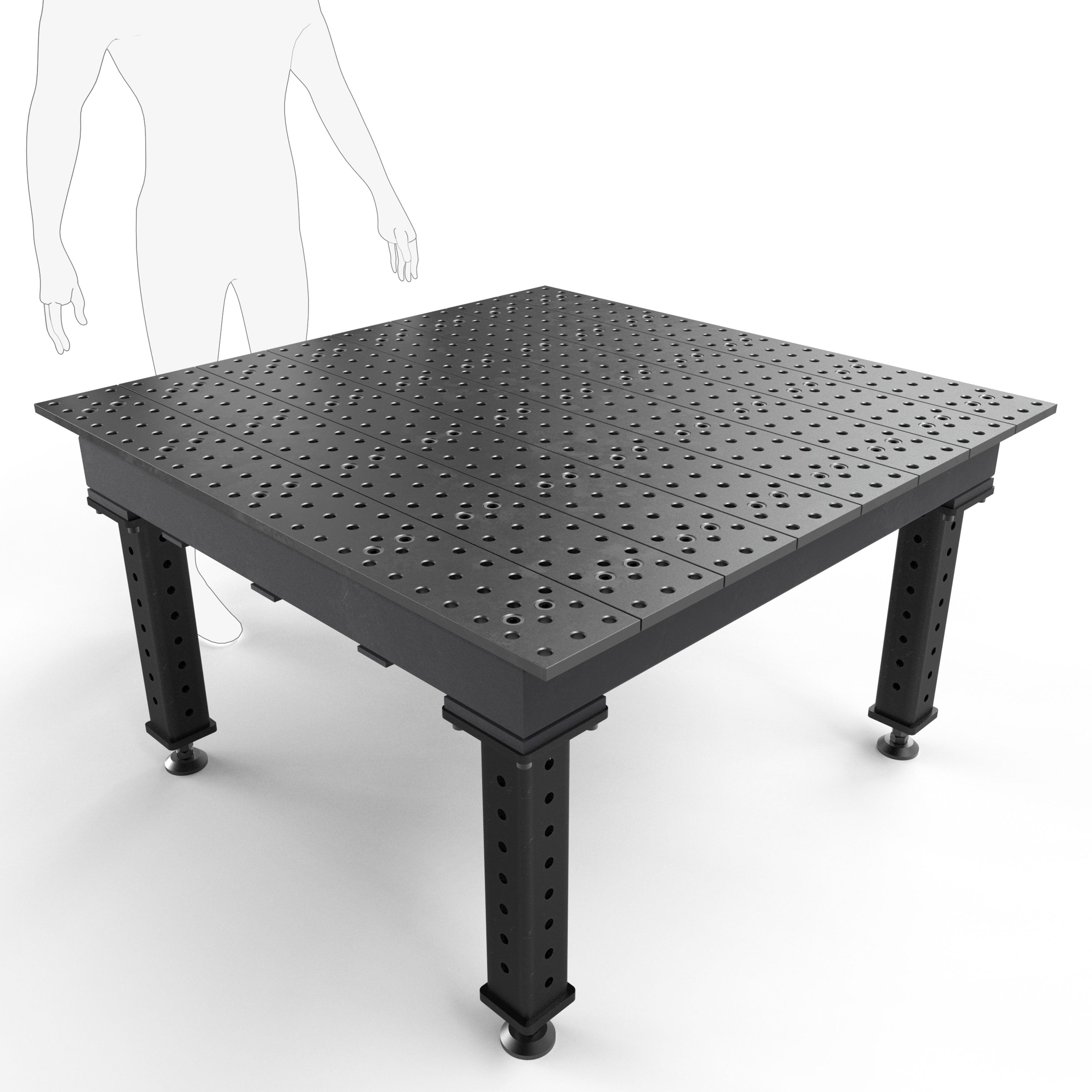

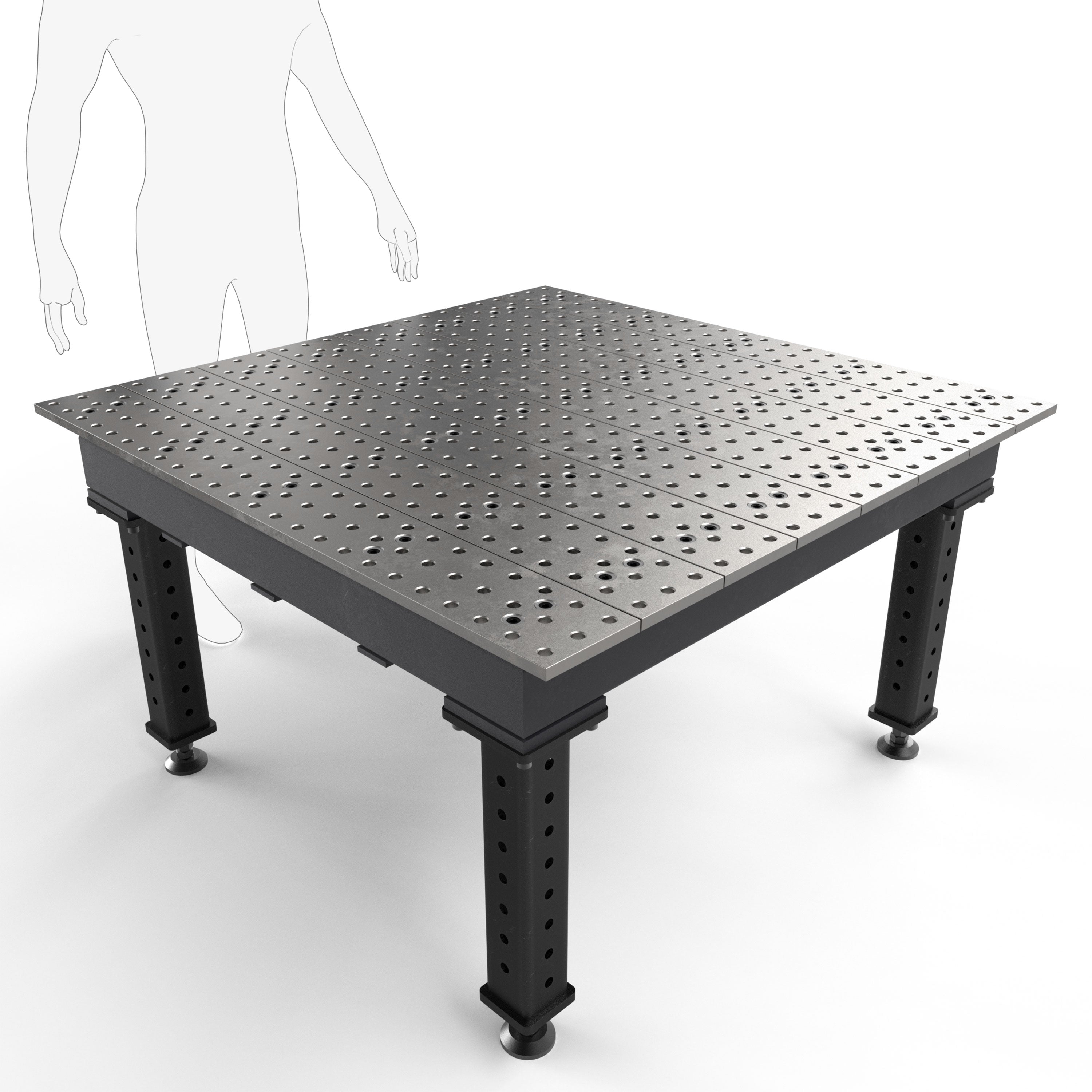

TMB54848F	TMQB54848F	TML2530	30-1/2	710

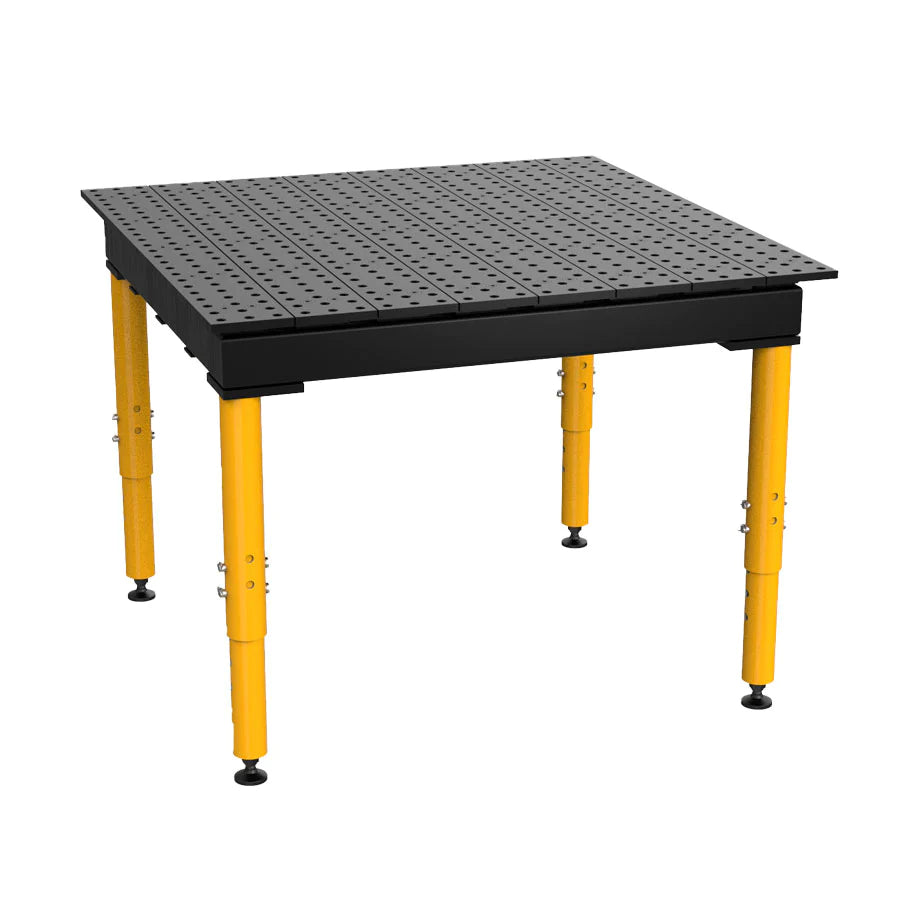

Use with 4x adjustable legs - adjustable at 1" increments

Capacity: 1,500 lb / leg

Part No. (Standard Finish)	Part No. (Nitrided Finish)	Use with Leg	Table Surface Height (in)	Gross Weight (lb)

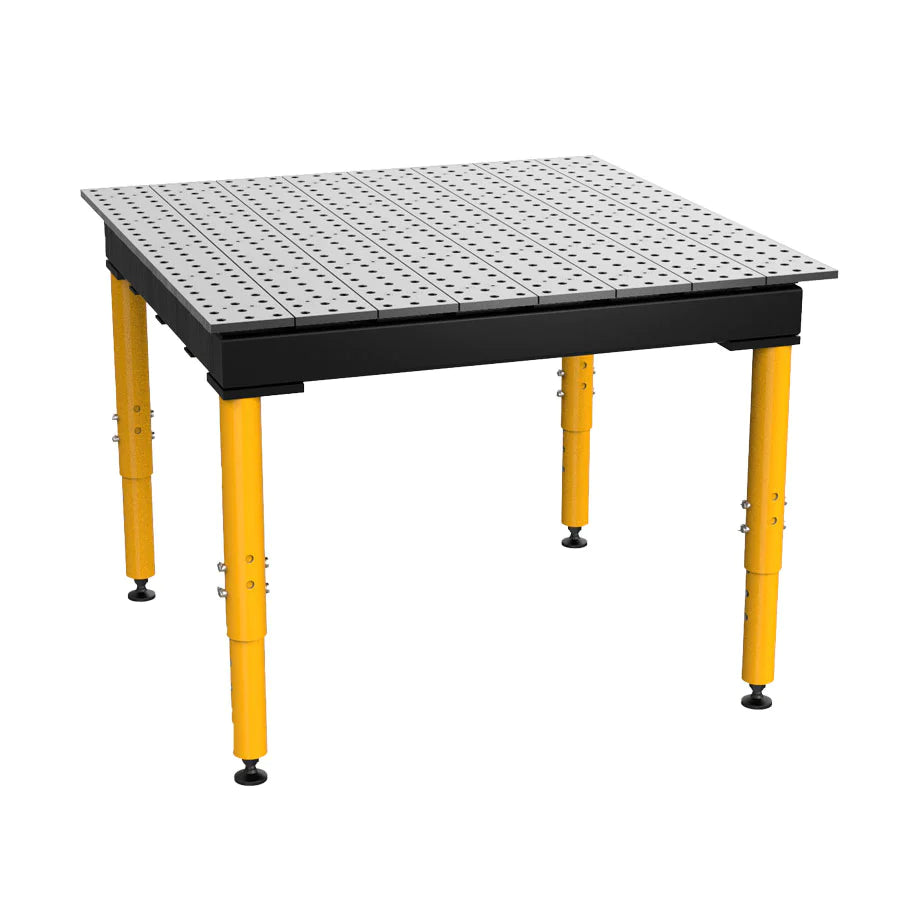

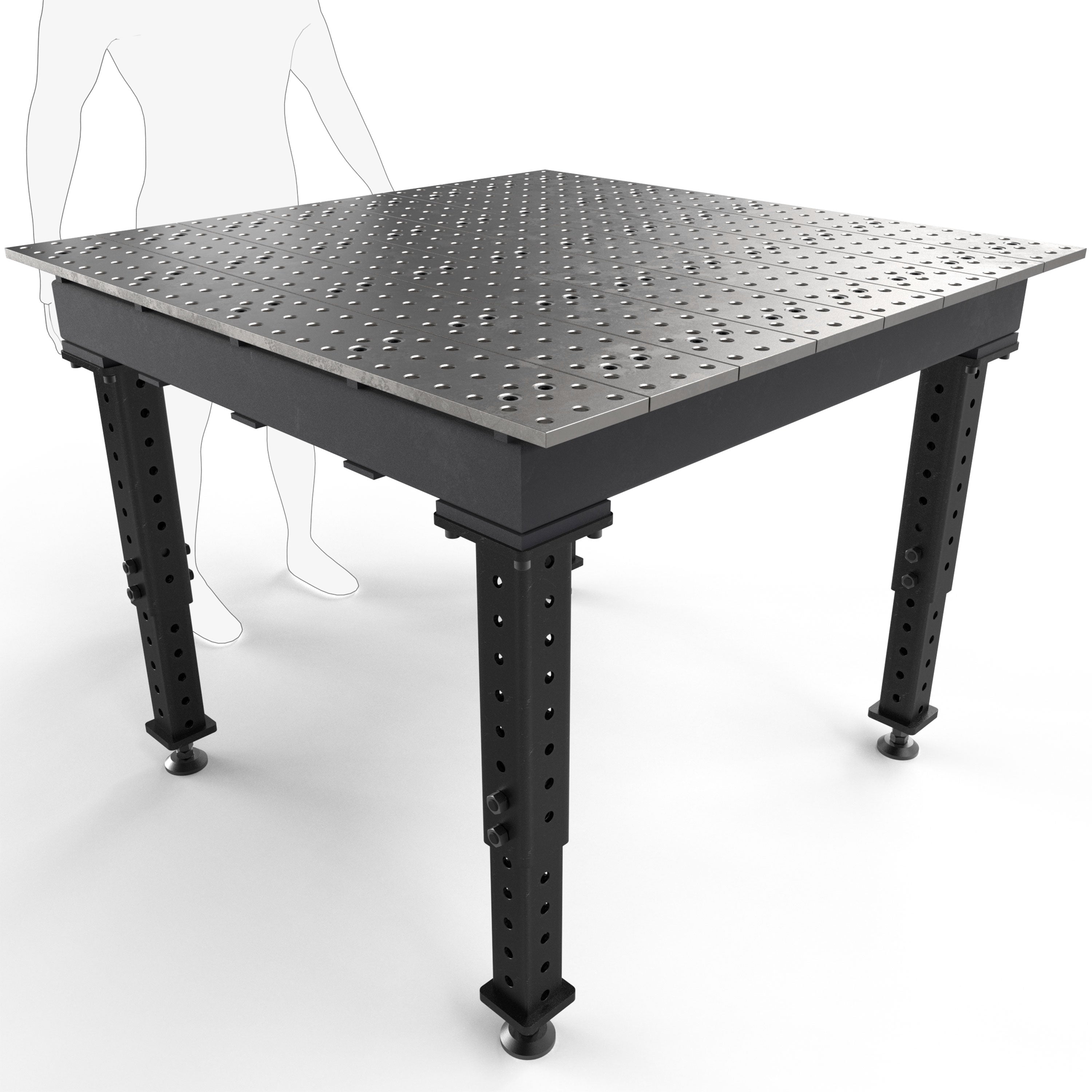

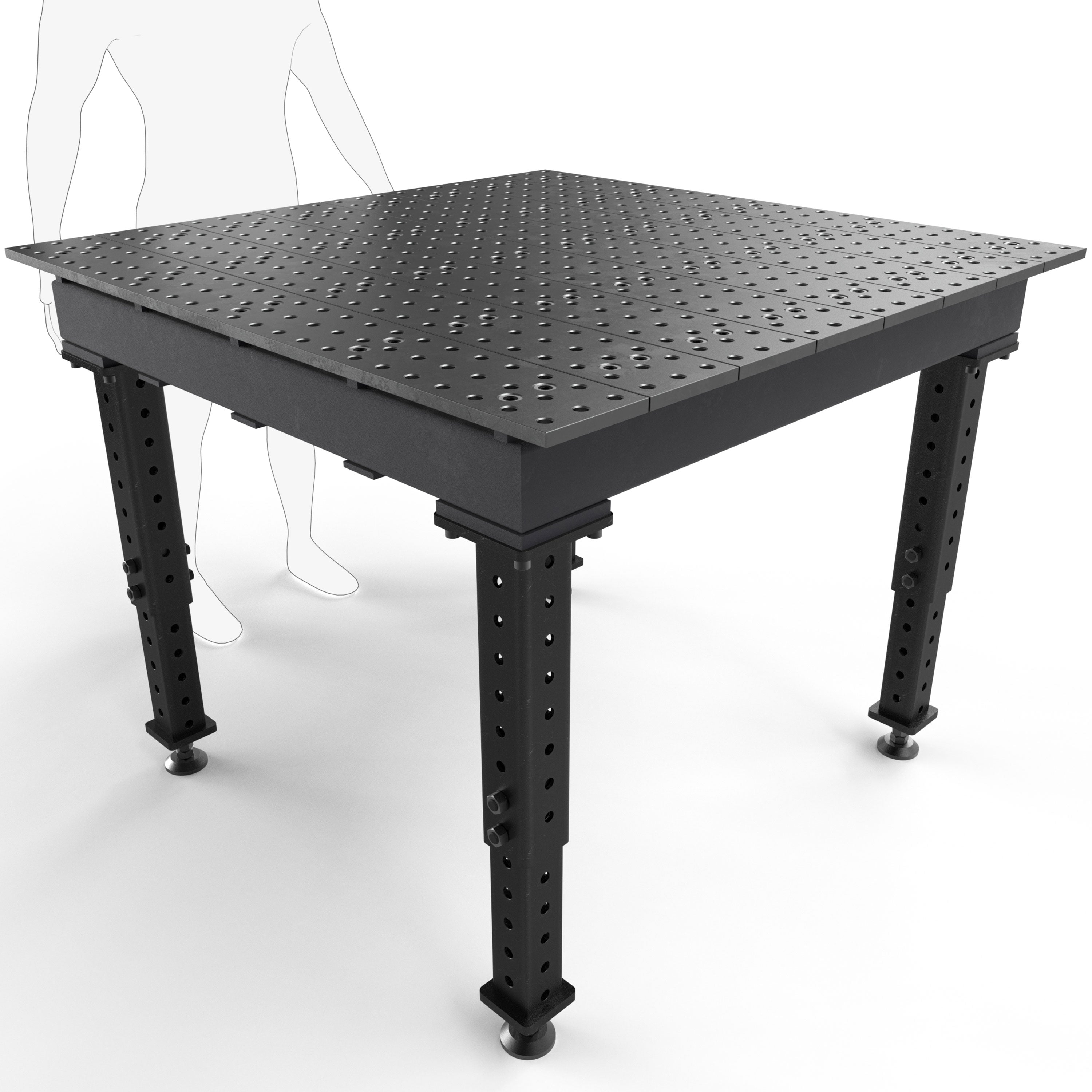

TMR54848F	TMQR54848F	TMLR30	28-1/2 ~ 38-1/2	728

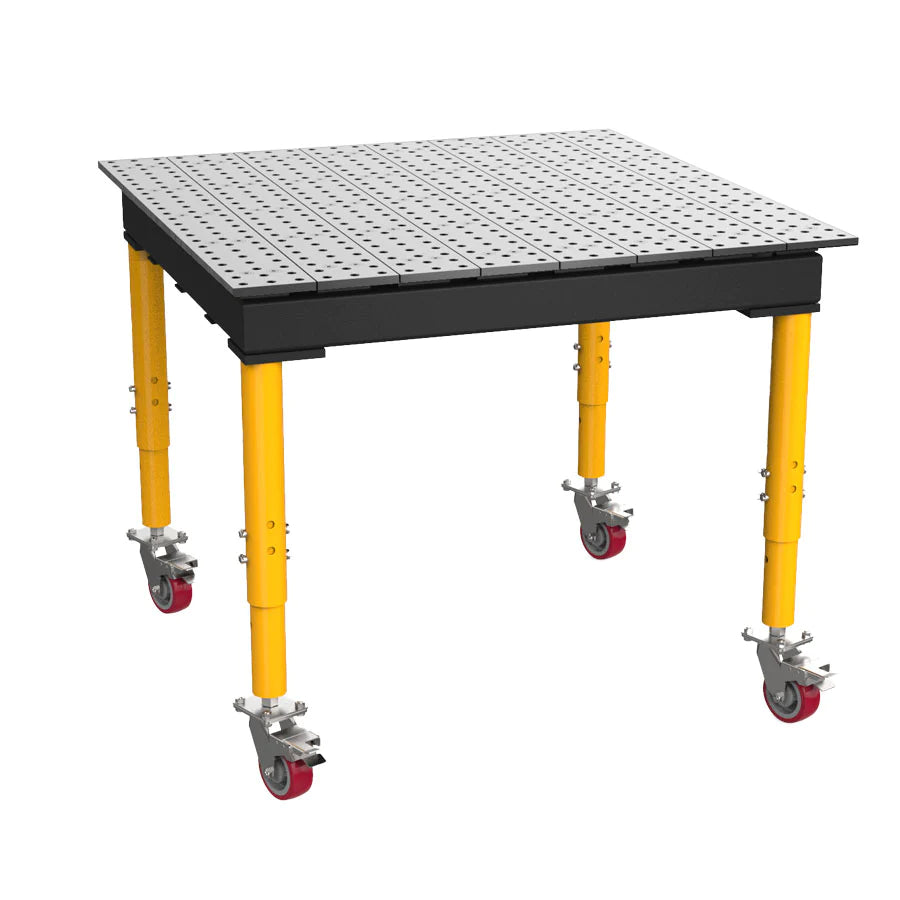

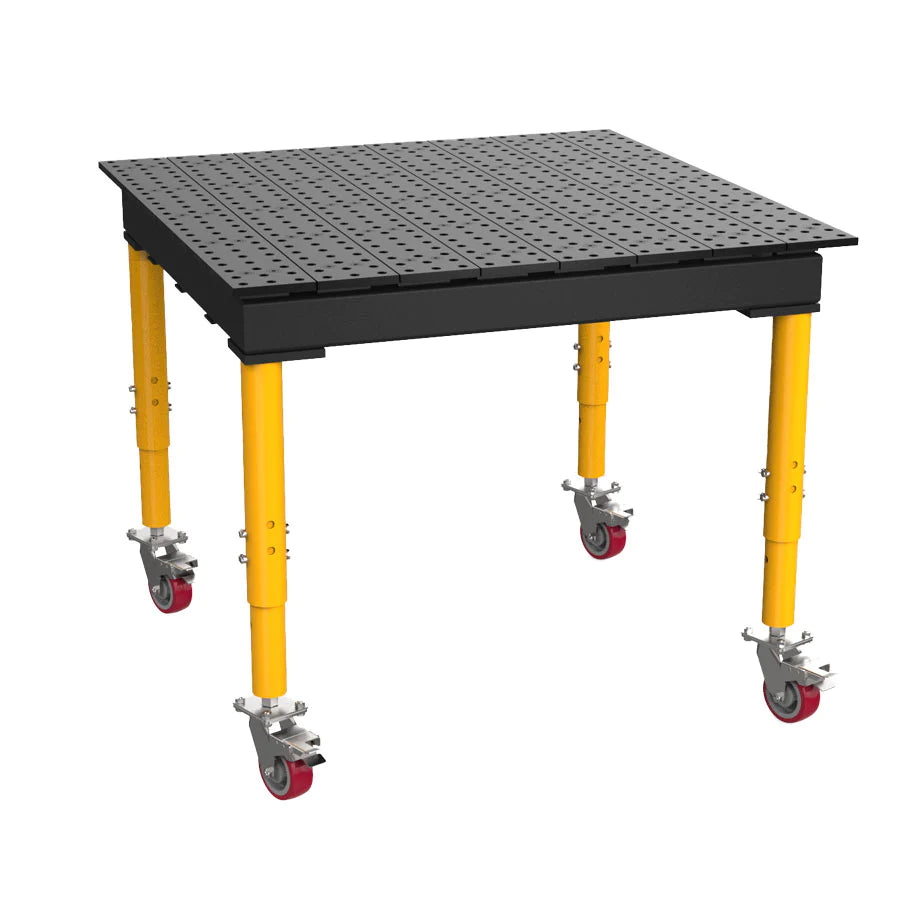

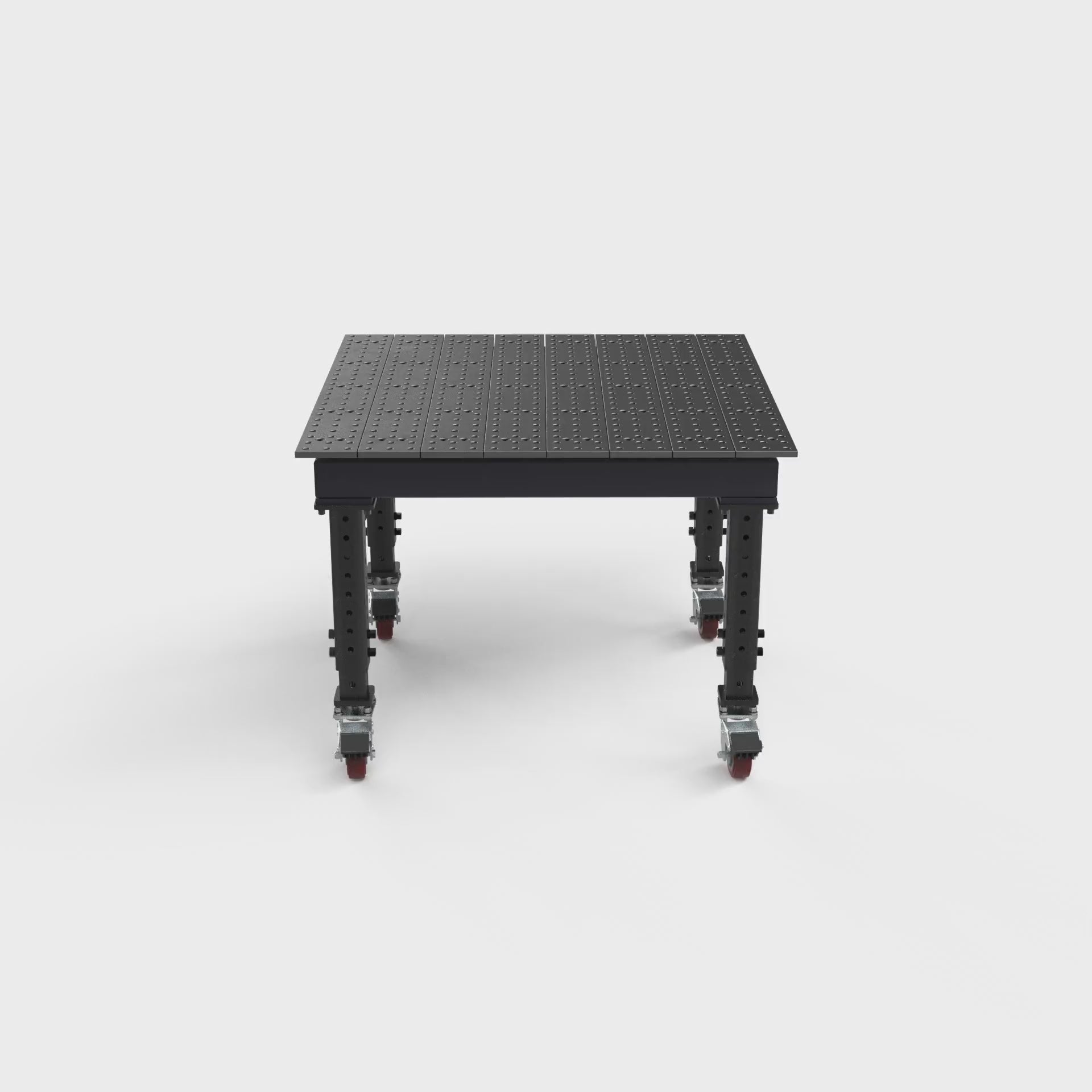

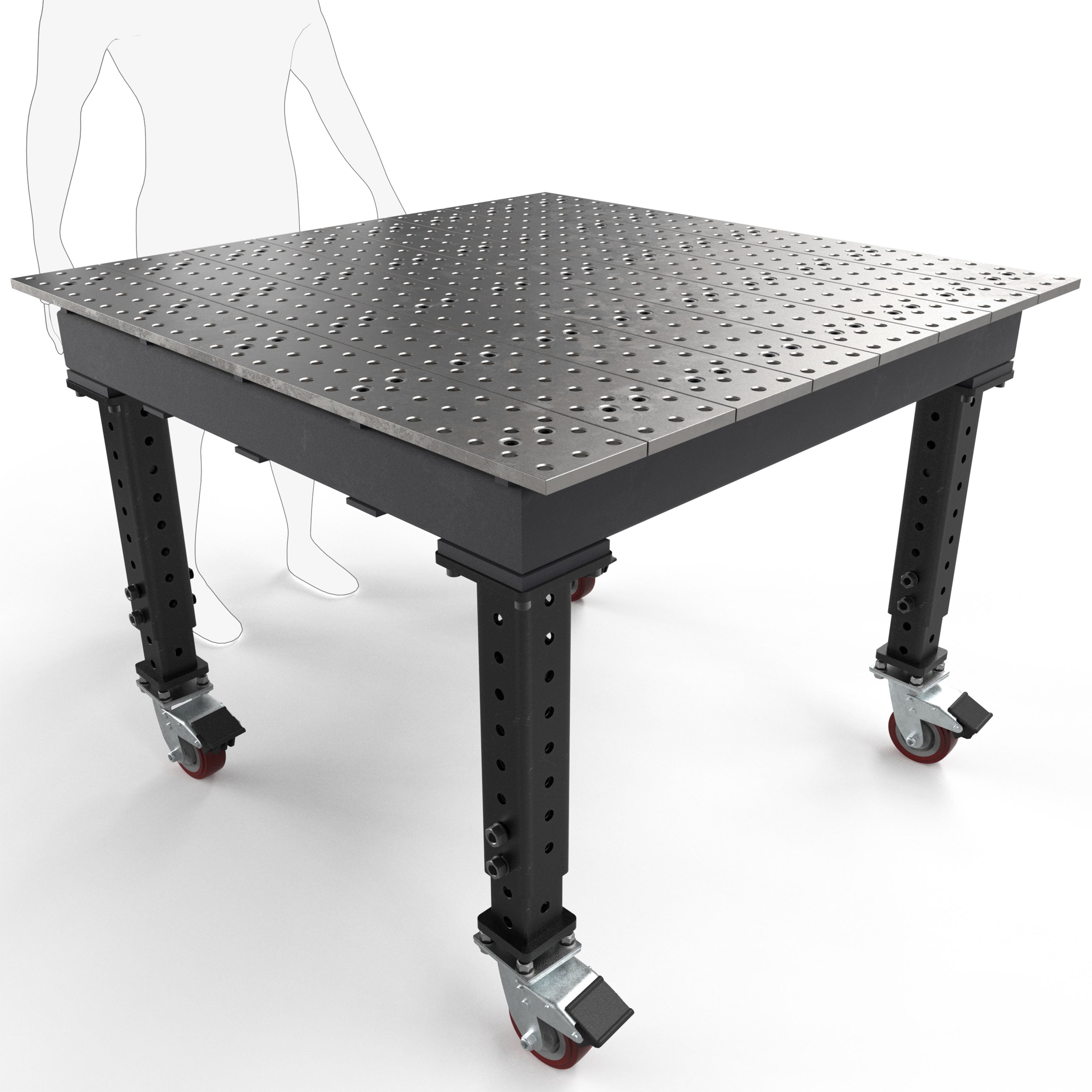

Use with 4x adjustable legs with mobility caster

Capacity: 650 lb / leg

Part No. (Standard Finish)	Part No. (Nitrided Finish)	Use with Leg	Table Surface Height (in)	Gross Weight (lb)

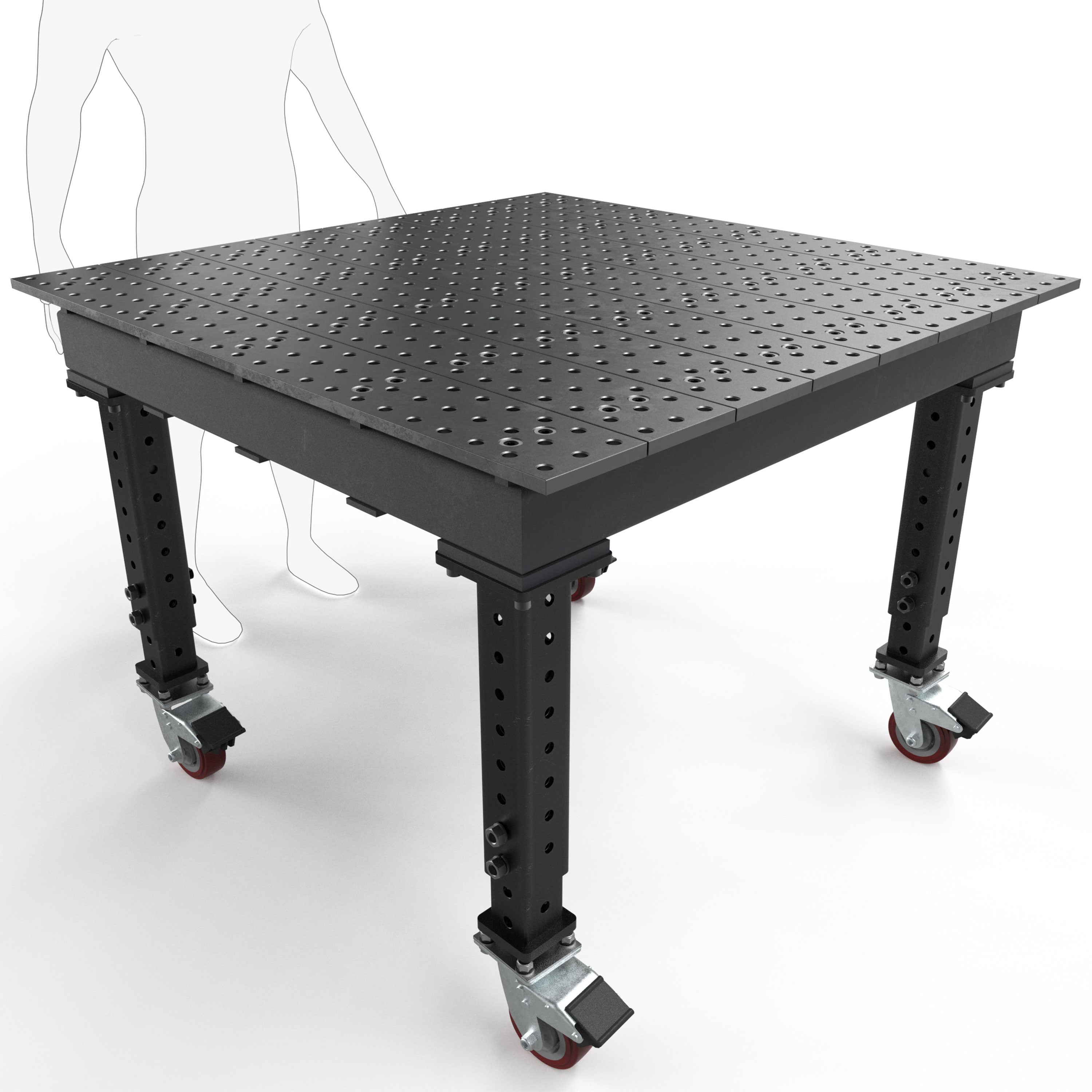

TMRC54848F	TMQRC54848F	TMLC30	33-1/4 ~ 43-1/4	750
