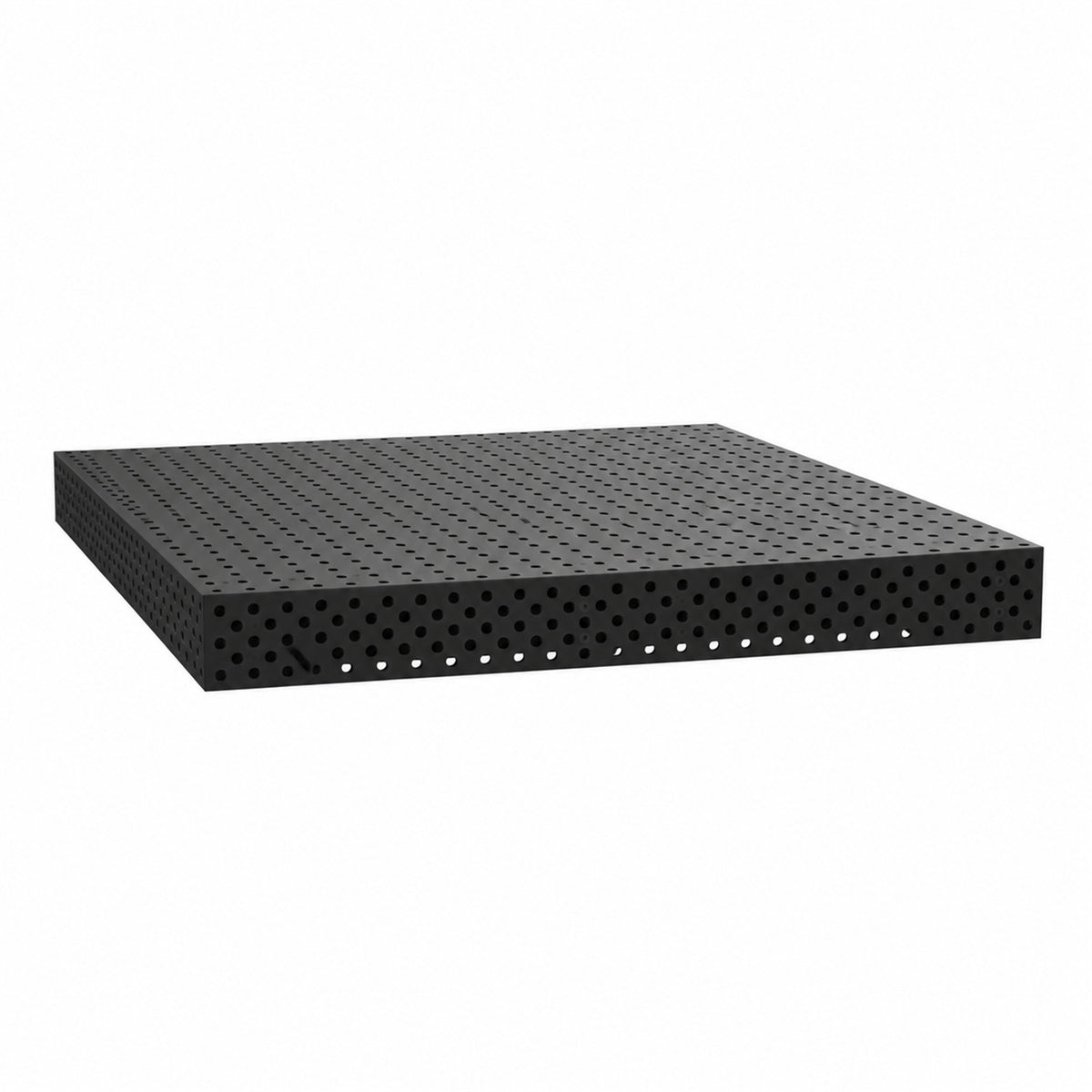

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.
Table Accuracy
| Hole Diameter: | 0.625" + .002 / -.000 |
| Hole Spacing: | 2.000" ±0.001 |
| Table Flatness: | ±0.005 per 24" x 24" |
| Plate Thickness: | 0.47" ±0.004 |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |
The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.
Table Accuracy
| Hole Diameter: | 0.625" + .002 / -.000 |
| Hole Spacing: | 2.000" ±0.001 |
| Table Flatness: | ±0.005 per 24" x 24" |
| Plate Thickness: | 0.47" ±0.004 |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |

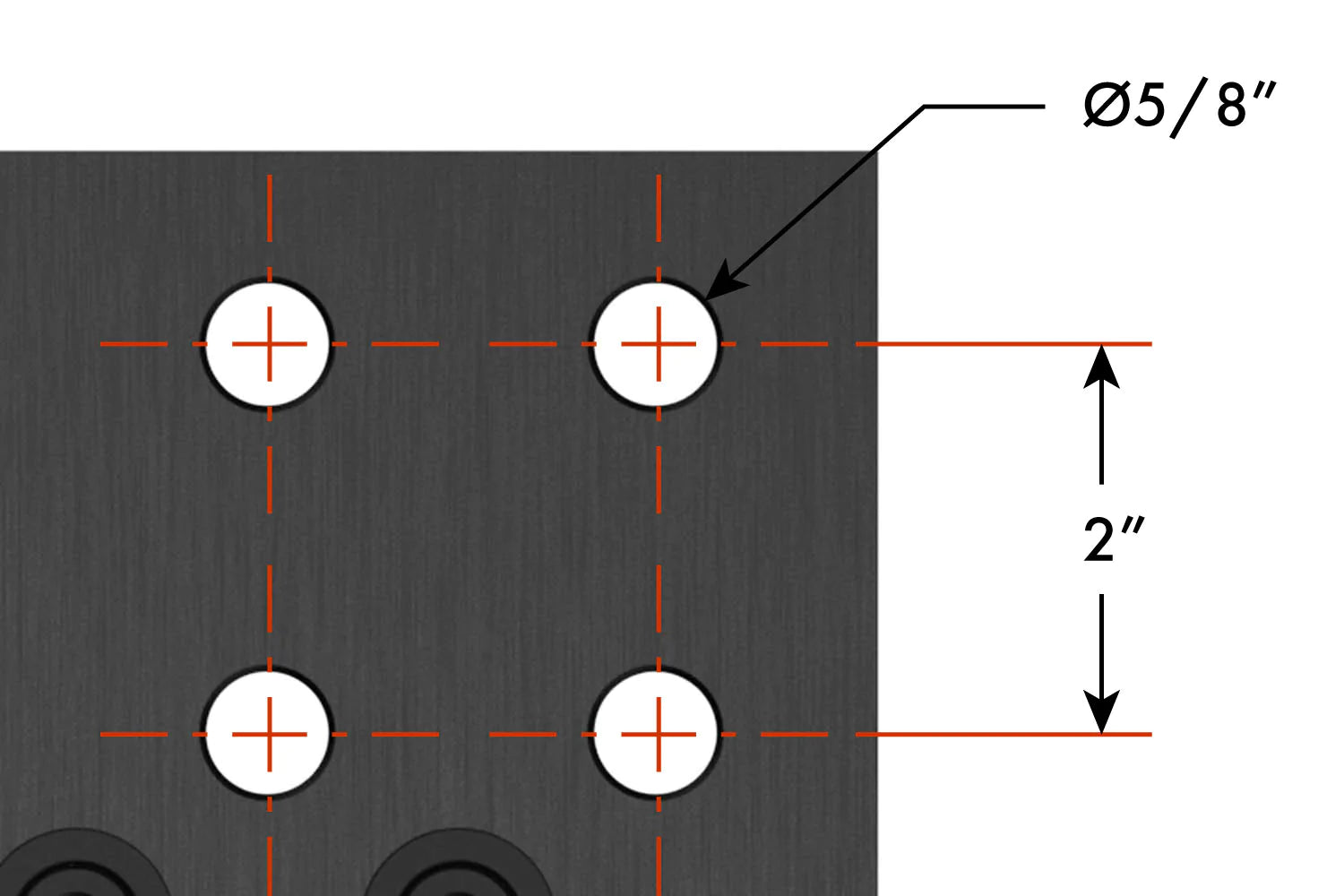

Precision ground steel plates, with CNC machined Ø5/8" holes in a 2" grid pattern for locating, positioning and mounting BuildPro clamps and accessories.
Plates can be reconfigured to expand the width of the table for larger projects.
Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.
Precision ground steel plates, with CNC machined Ø5/8" holes in a 2" grid pattern for locating, positioning and mounting BuildPro clamps and accessories.
Plates can be reconfigured to expand the width of the table for larger projects.
Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.

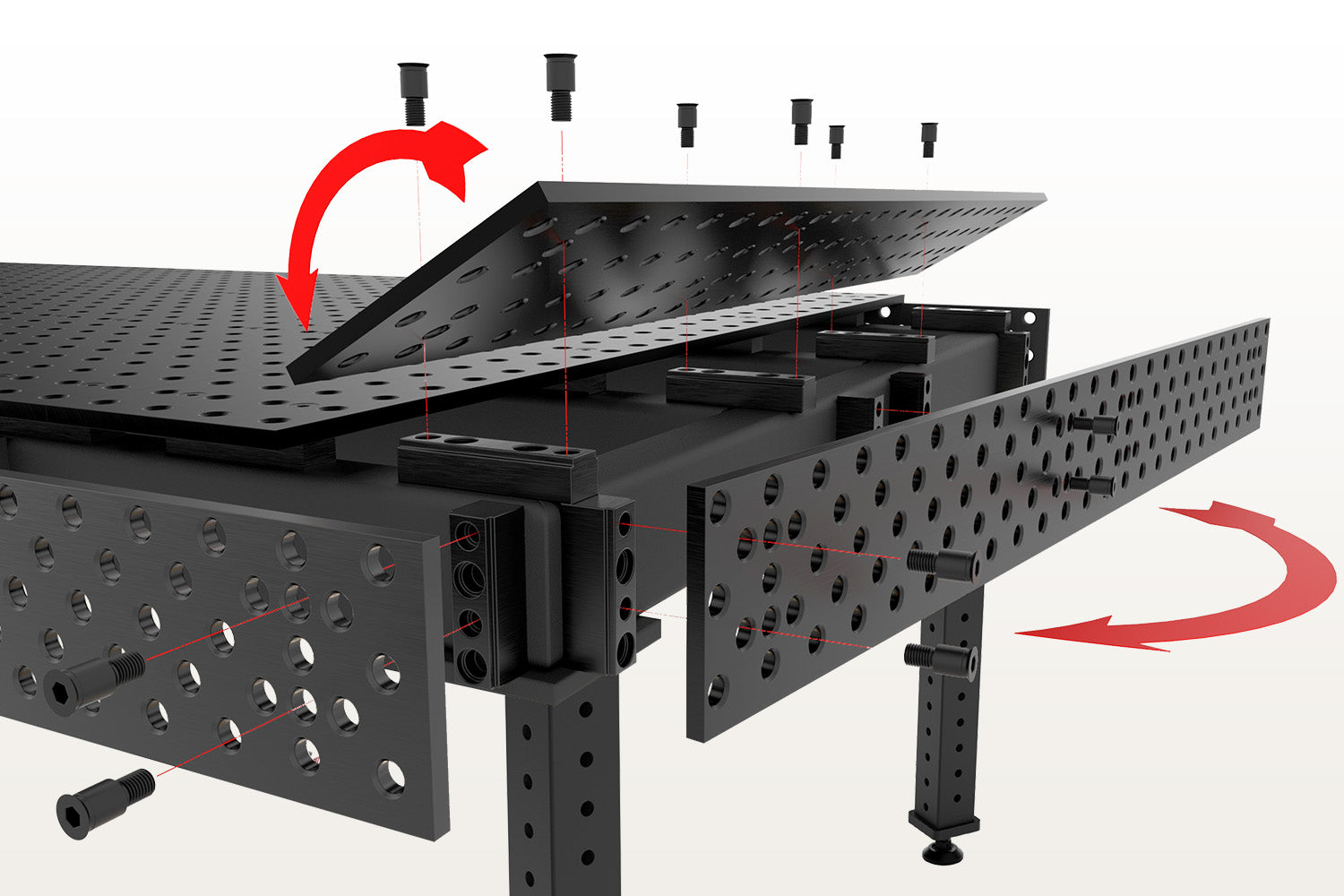

REVERSIBLE Self-Locating Top & Side Plates
All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.47″ ±0.004

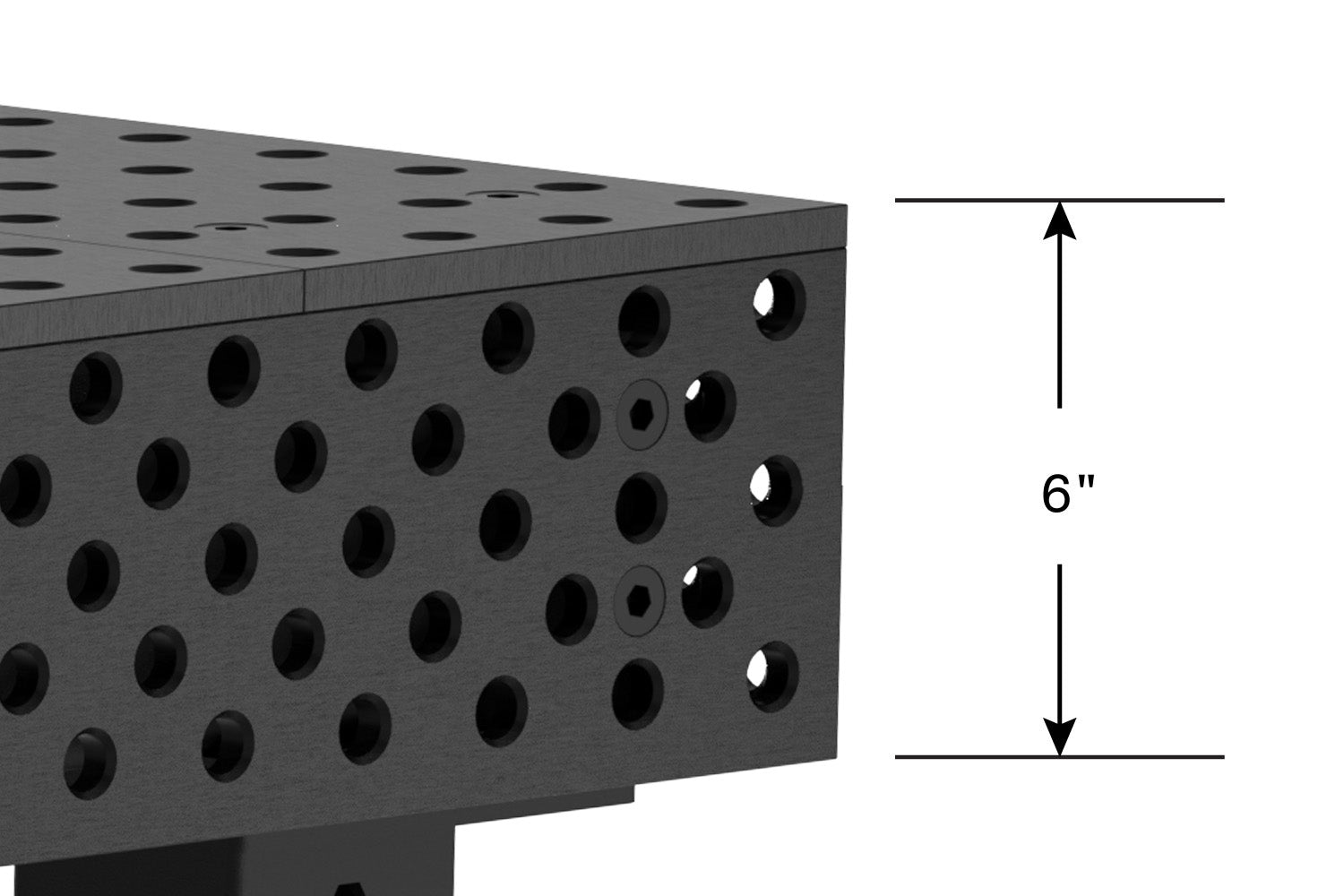

Tabletop Side Height
The new five-sided tables feature a 5-1/2″ side plate combined with the top plate to create a 6″ height.
Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.

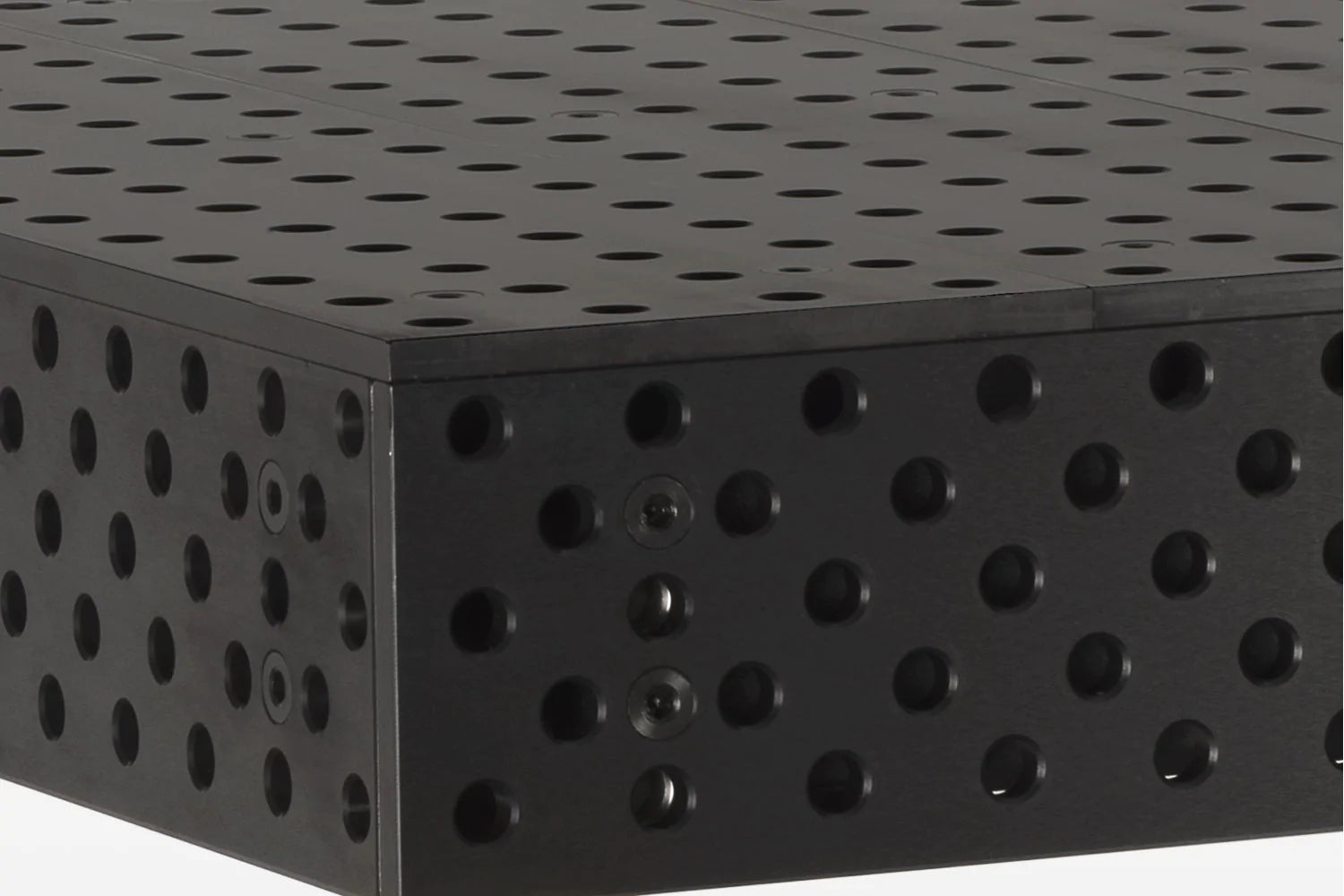

Nitrided (Heat-Treated) Tabletop
All top and side plates of alpha table are constructed from heat-treated steel, hardened to 58-62 HRC (top) and 50-55 HRC (side), and finished with a nitrite coating with a case depth of .0004-.0008″.

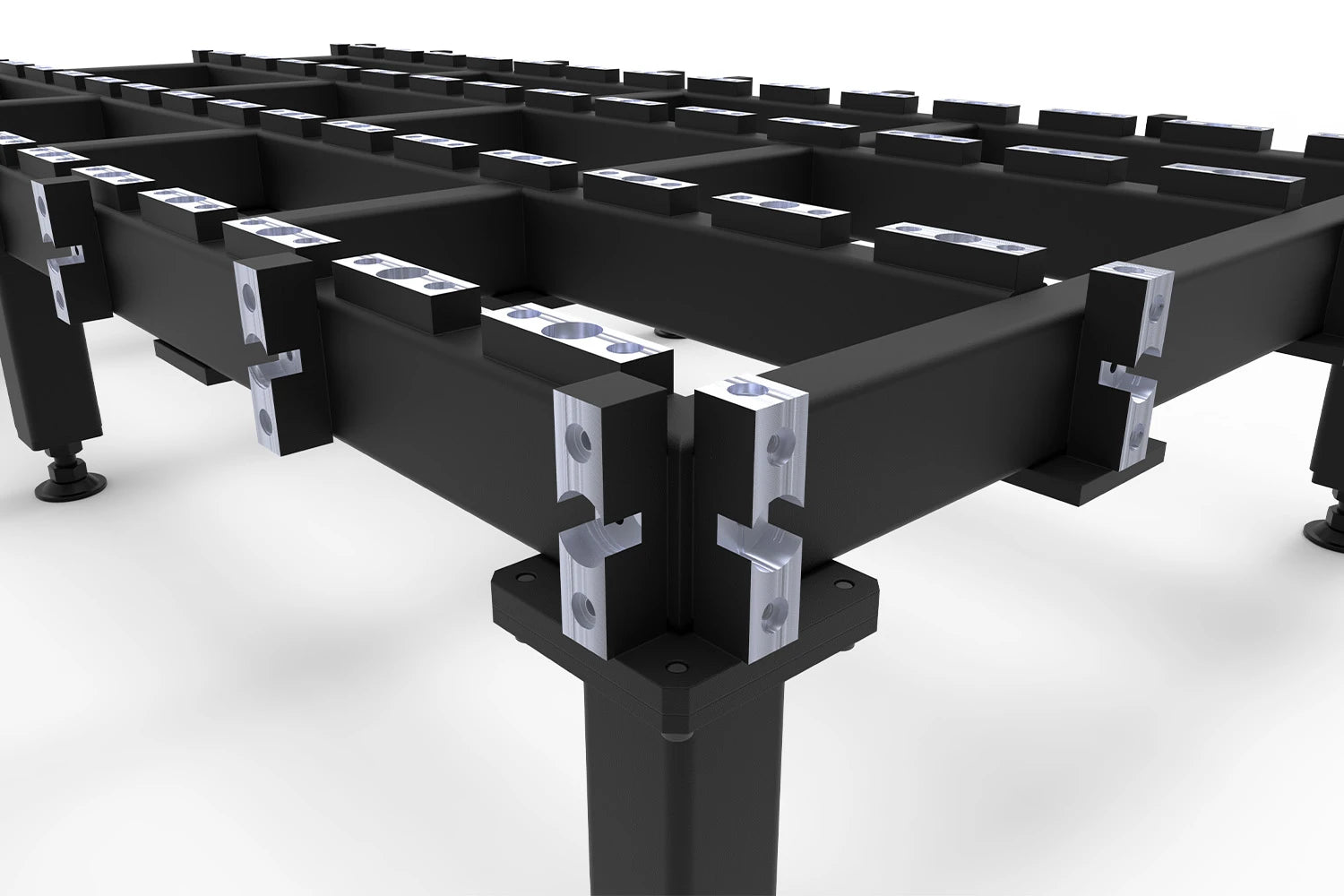

Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
REVERSIBLE Self-Locating Top & Side Plates
All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.47″ ±0.004
Tabletop Side Height
The new five-sided tables feature a 5-1/2″ side plate combined with the top plate to create a 6″ height.
Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.
Nitrided (Heat-Treated) Tabletop
All top and side plates of alpha table are constructed from heat-treated steel, hardened to 58-62 HRC (top) and 50-55 HRC (side), and finished with a nitrite coating with a case depth of .0004-.0008″.
Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
What people say about us:

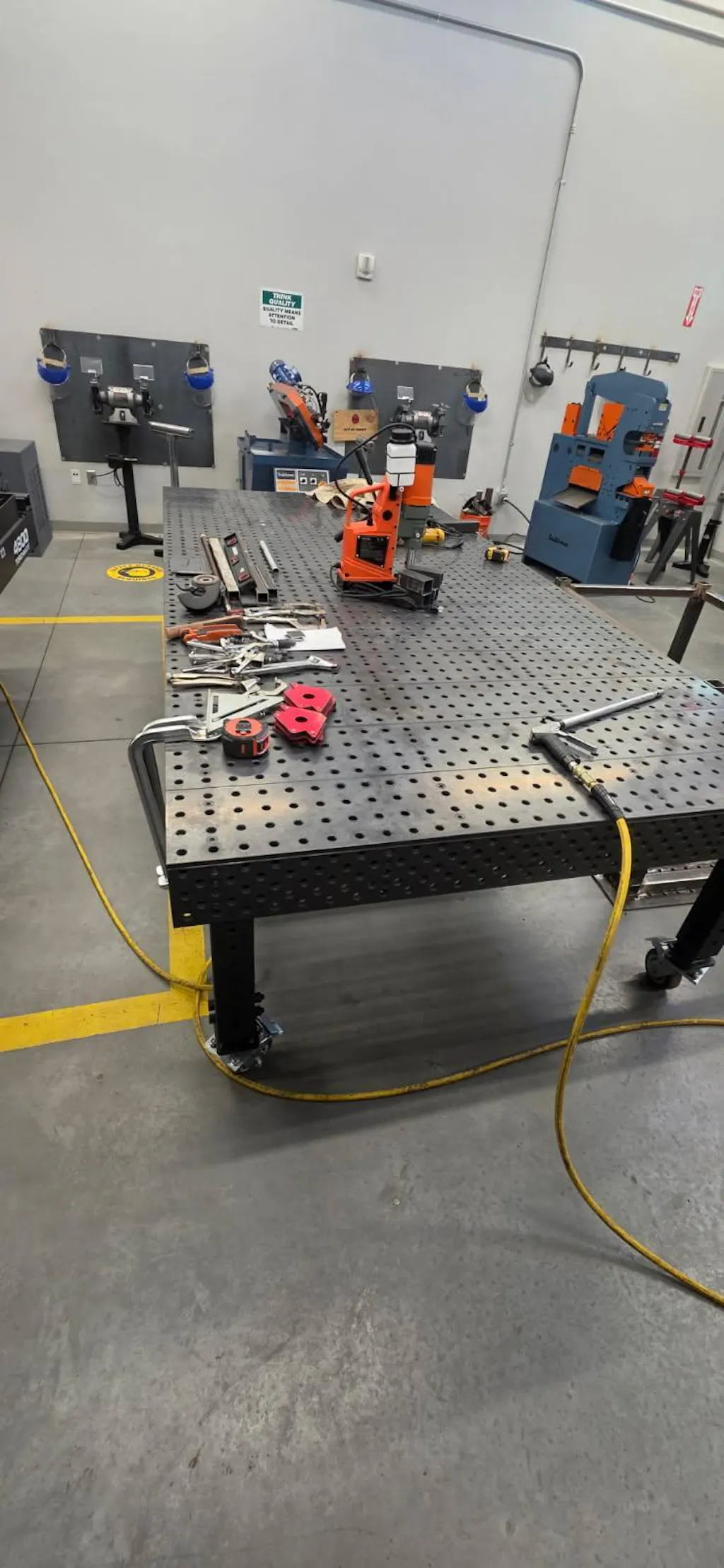

Amazing craftsmanship!!! Exclusively use by Orange County Water District R&D Welding Fabrication Department
Ray H (Riverside, CA)
This table is amazing and totally worth the purchase. Saves so much time and effort!! Quality built!!
Christopher S (Wellington, CO)

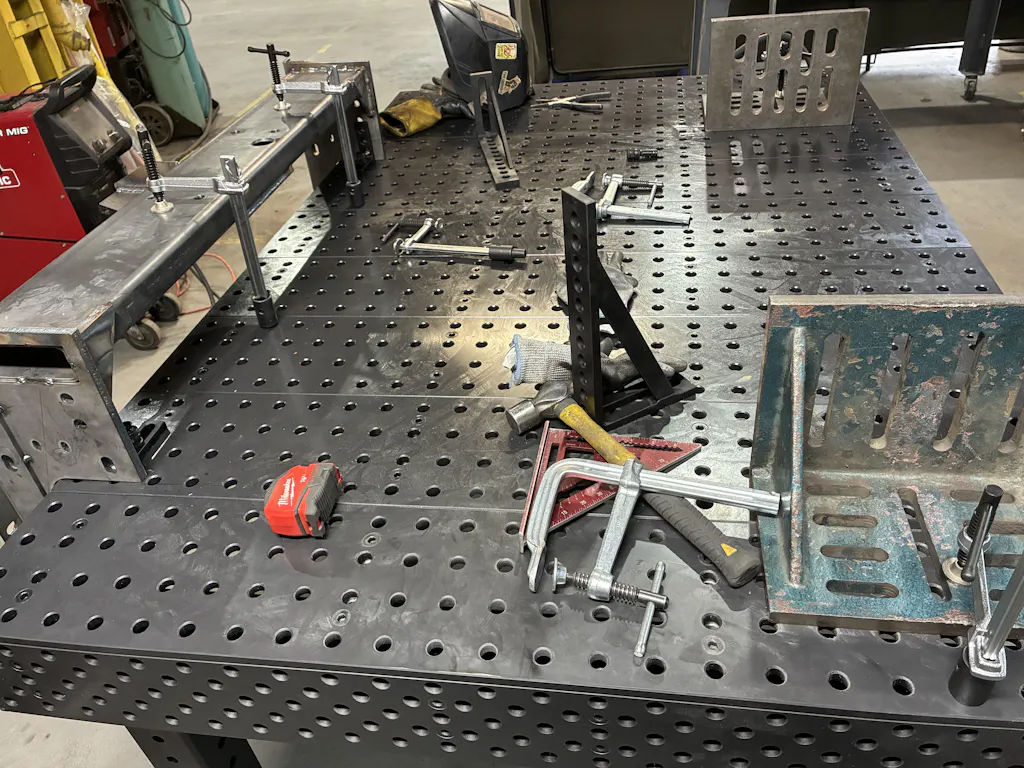

It has allowed us to accept larger projects thank to the quick fixturing available now.
James M (Houston, TX)

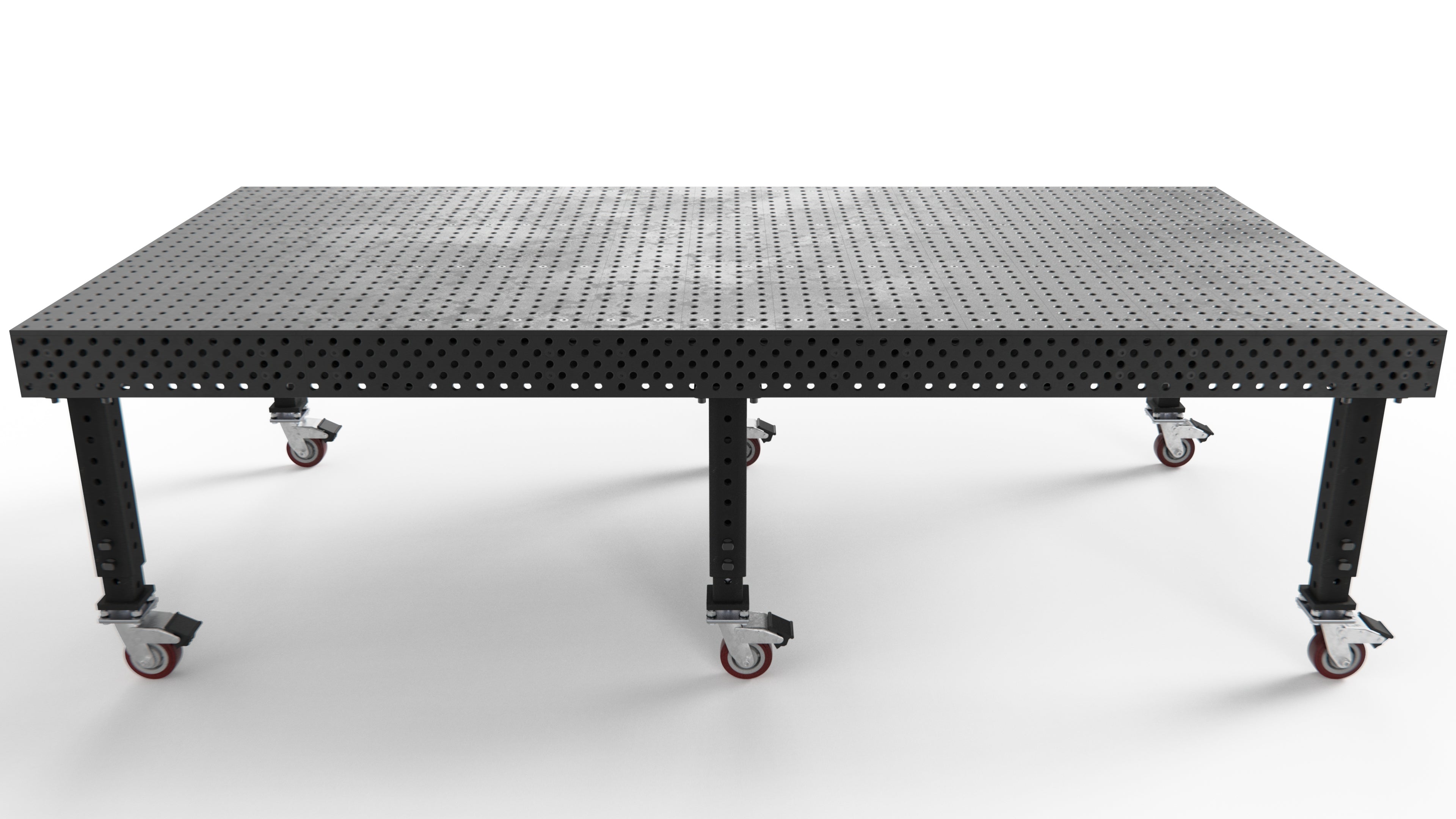

| Part No. | Finish | Dimension (ft) | Dimension (in) | Gross Weight (lb) |
|---|---|---|---|---|

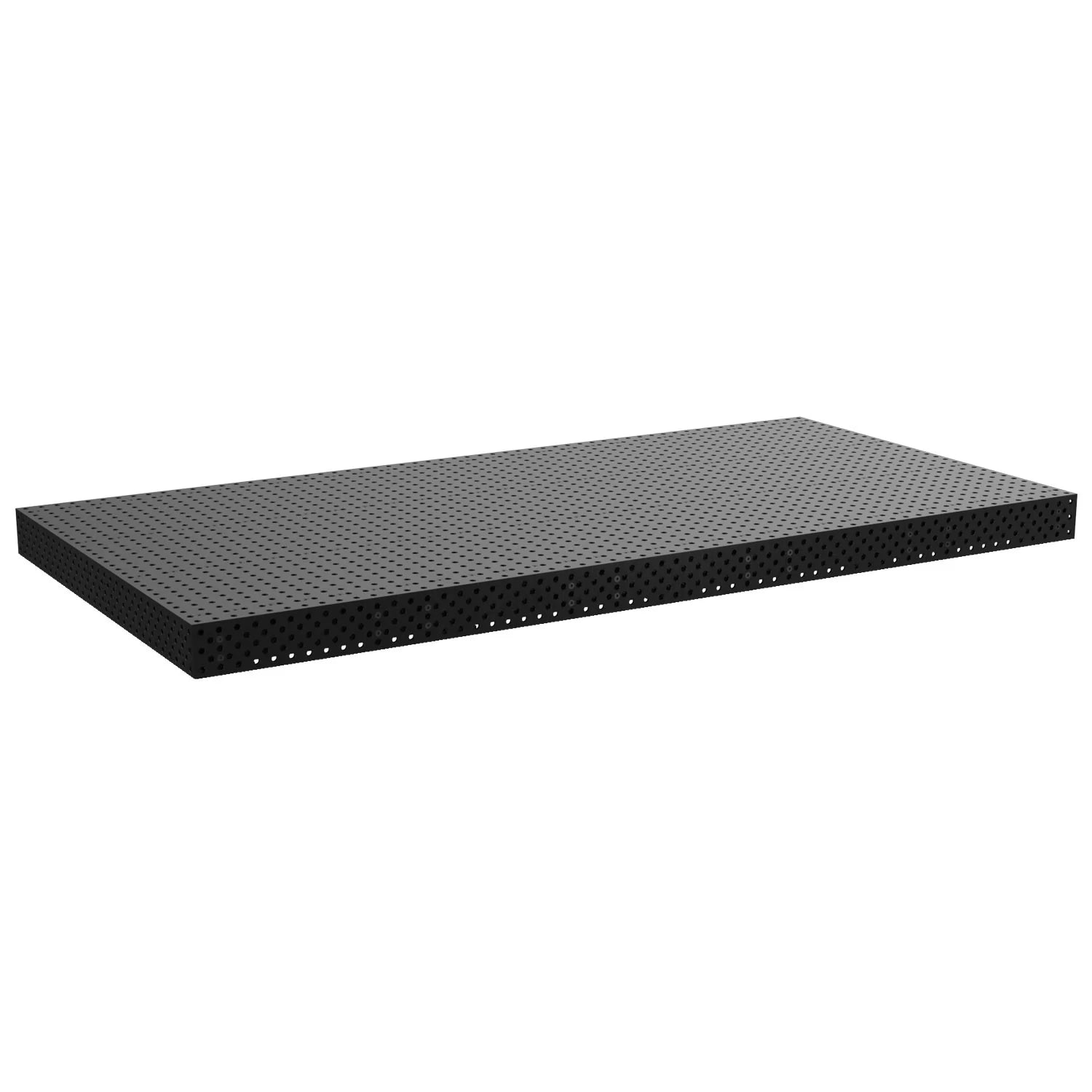

| TA5-12060Q-N | Nitrided | 10 x 5 | 120 x 60 | 1,930 |

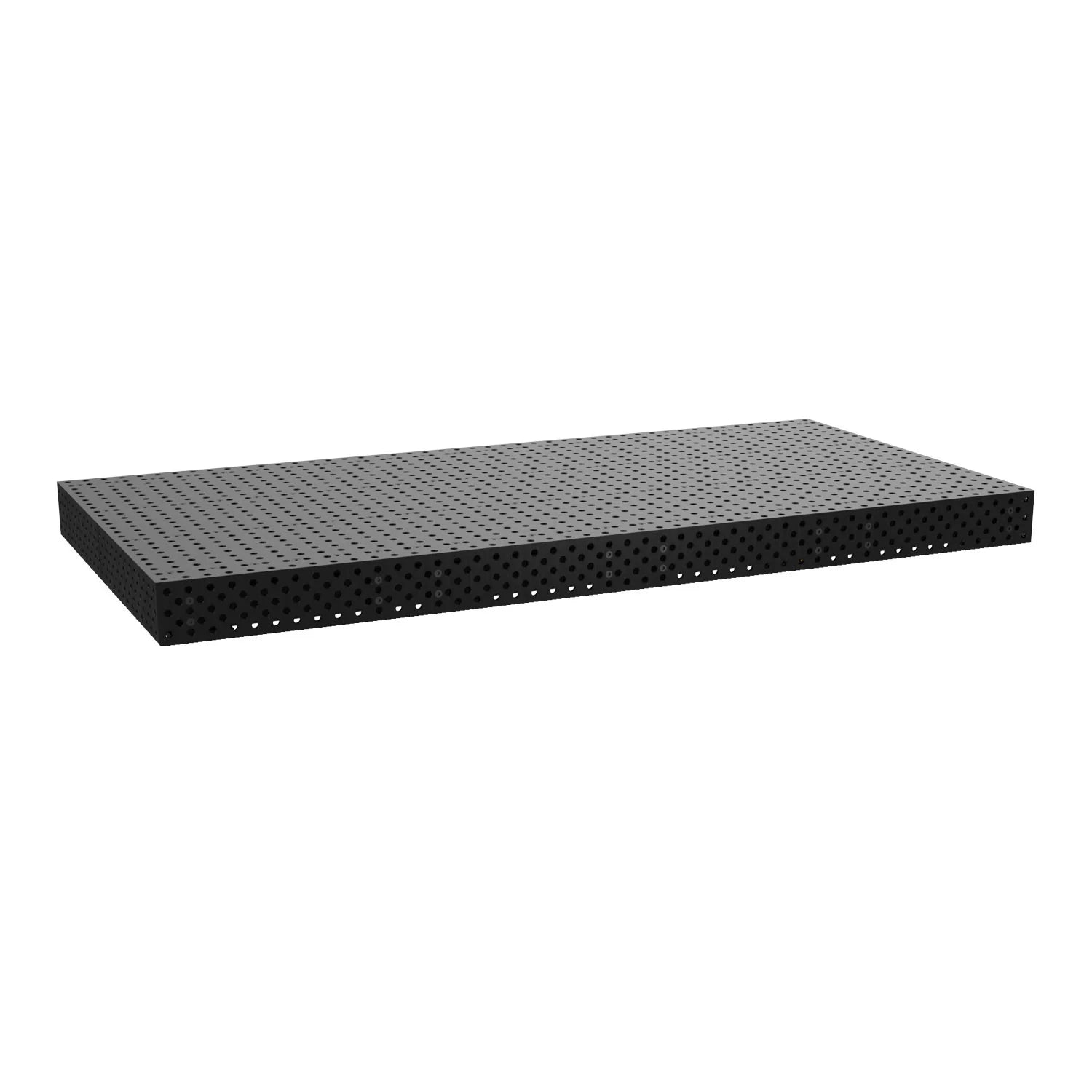

| TA5-9648Q-N | Nitrided | 8 x 4 | 96 x 48 | 1,356 |
| TA5-7248Q-N | Nitrided | 6 x 4 | 72 x 48 | 980 |

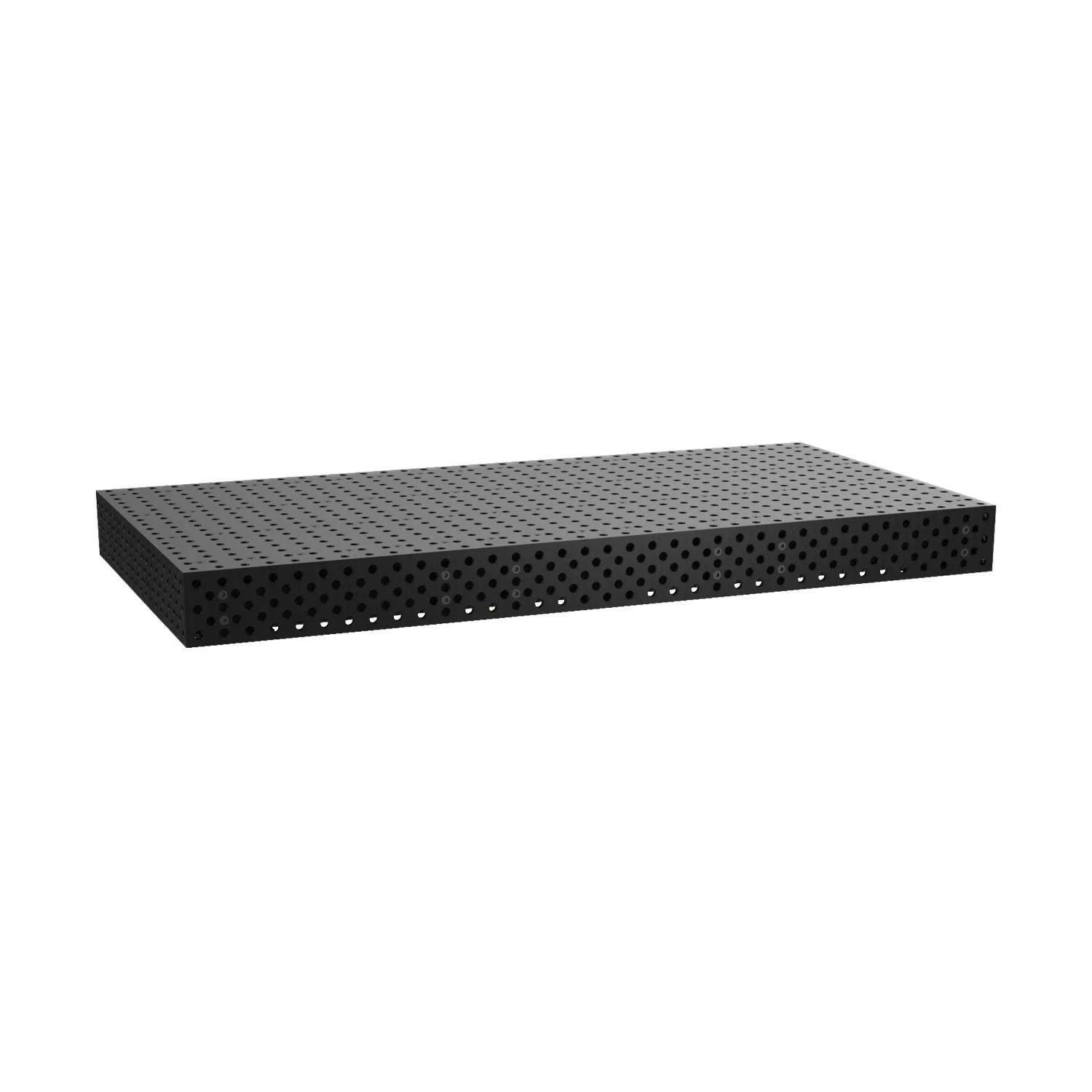

| TA5-7236Q-N | Nitrided | 6 x 3 | 73 x 36 | 890 |

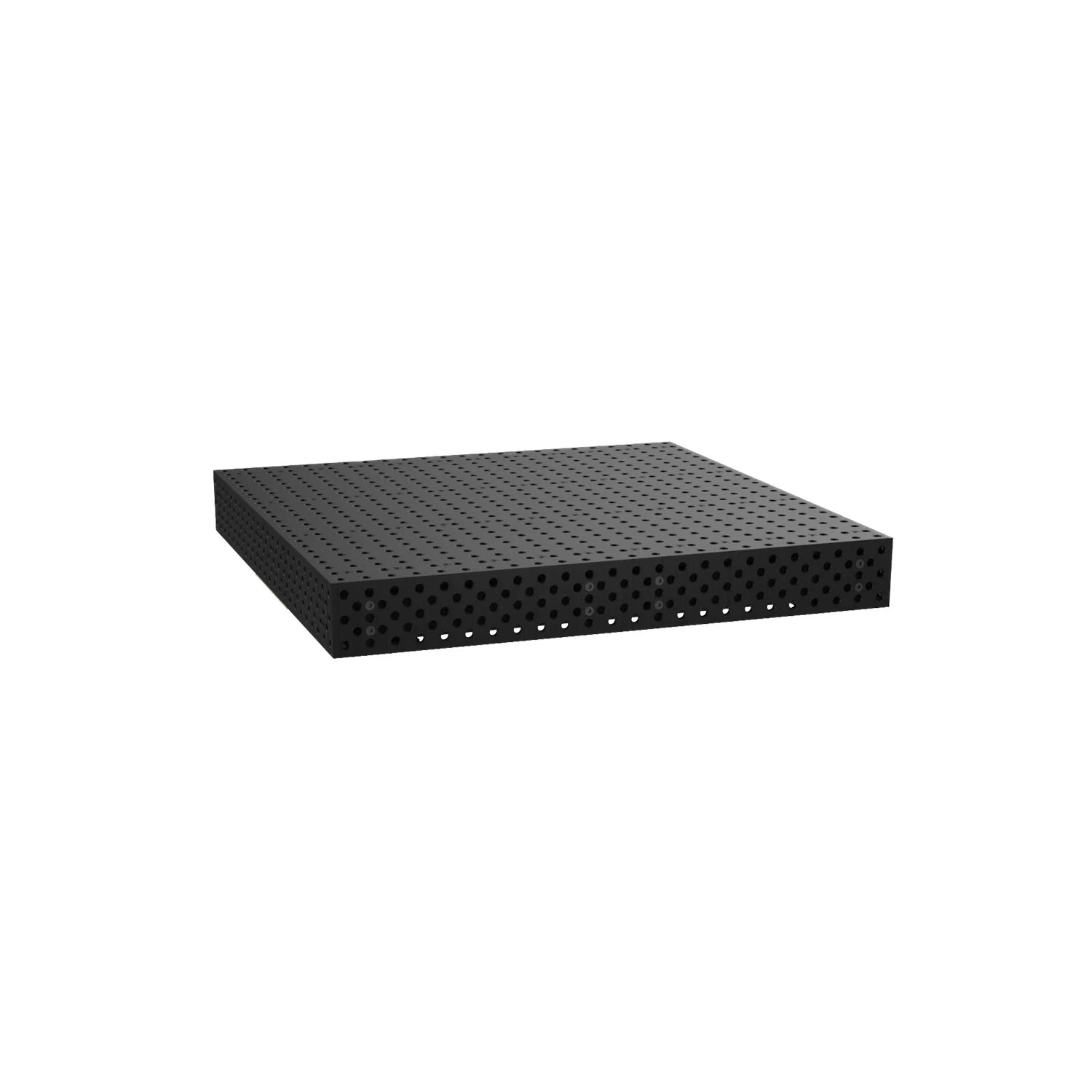

| TA5-4848Q-N | Nitrided | 4 x 4 | 48 x 48 | 717 |
