Actual Table Surface Dimension: 72″ x 48″
Tabletop Side Height: 6″
* All load capacities are calculated based on static load.
* If you have the legacy model that comes with yellow round legs, optional Leg Brace Assembly TMLB72A is suggested.

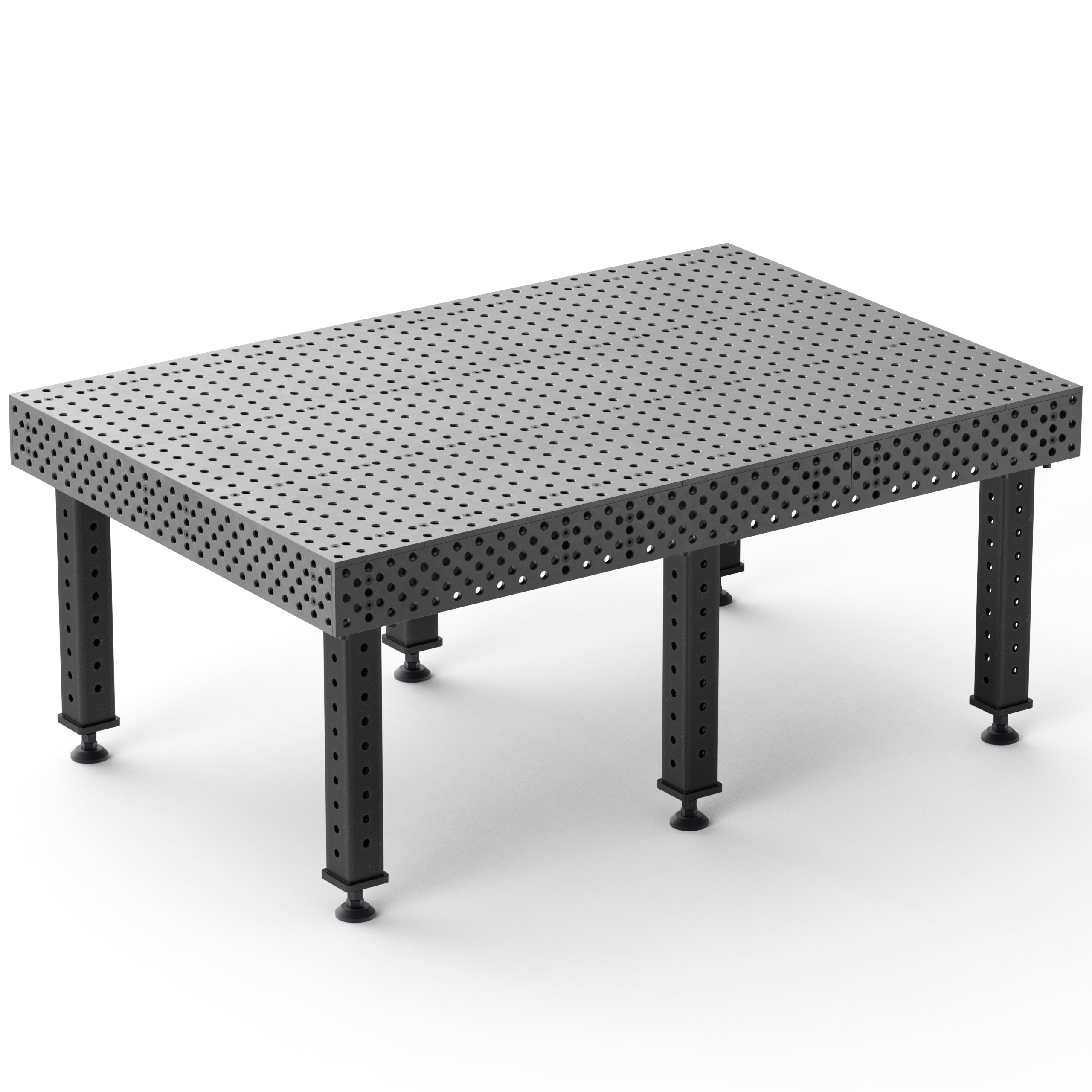

Alpha 5/8 Tables, 6' x 4'
Alpha 5/8 Tables, 6' x 4'
Regular price
$6,355.00 USD
Sale price
$6,355.00 USD
Regular price
Shipping calculated at checkout.
Available in stock (20)
-
Estimated delivery: Jun 21 - Jun 25
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
Use with 6x Heavy Duty Legs
| Part No. | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|

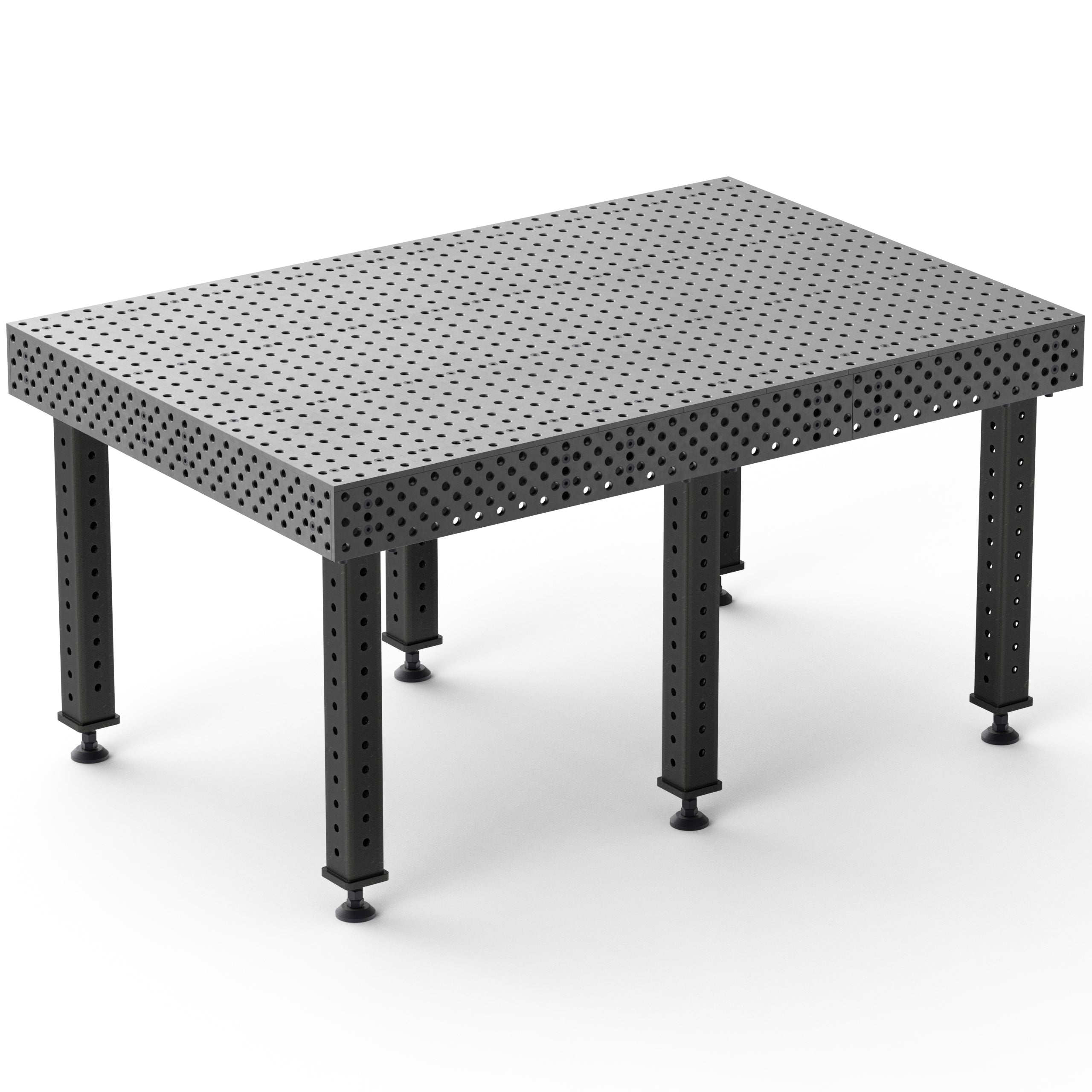

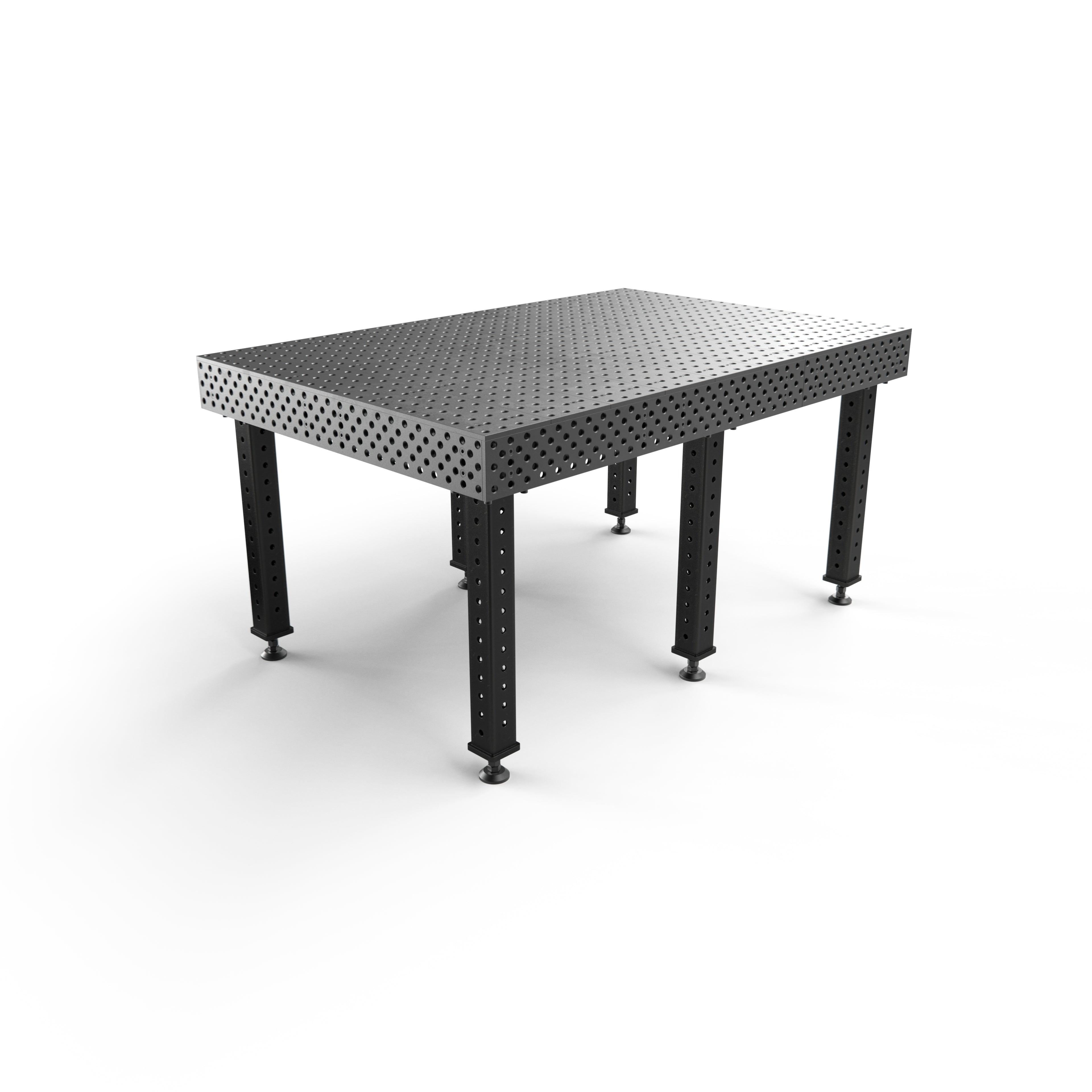

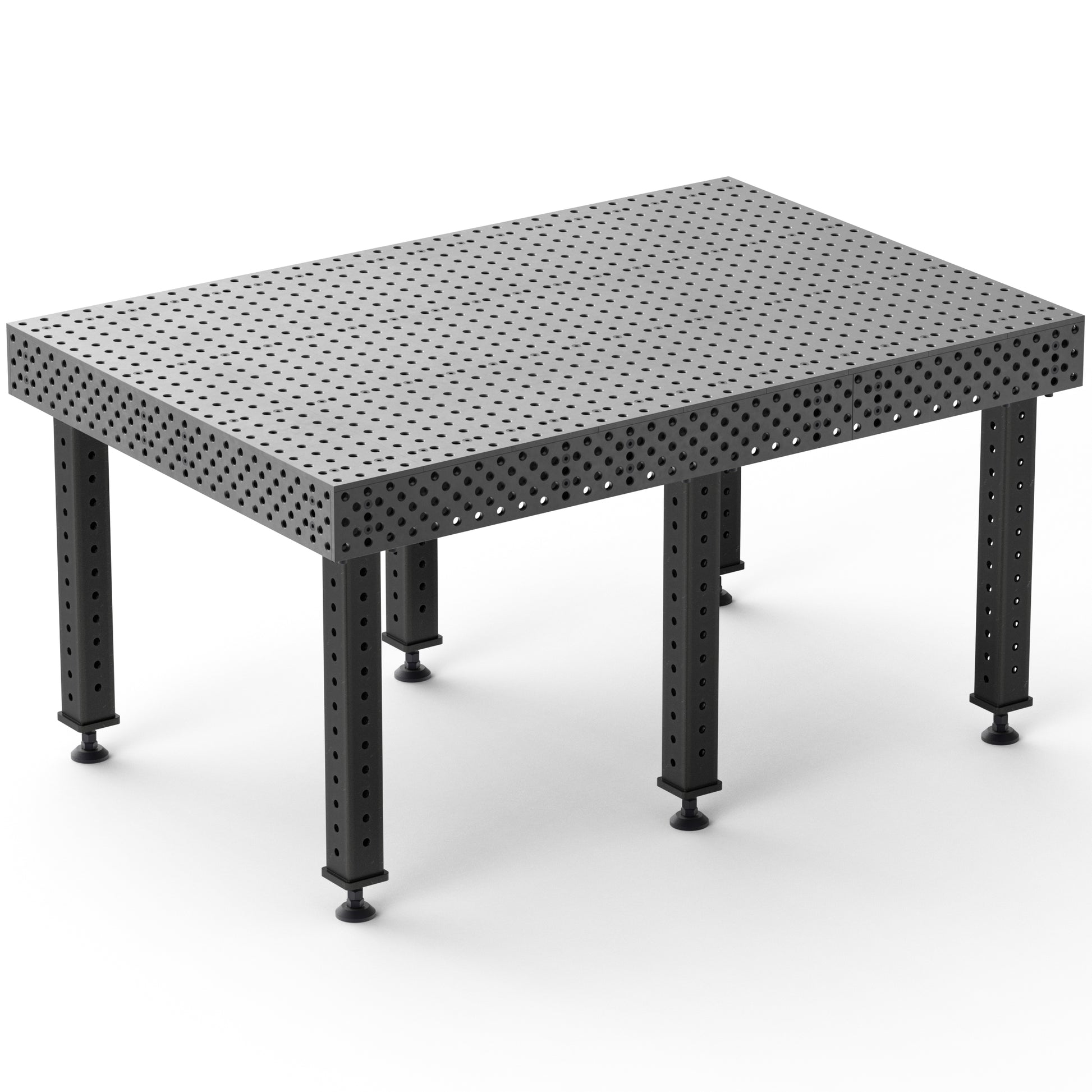

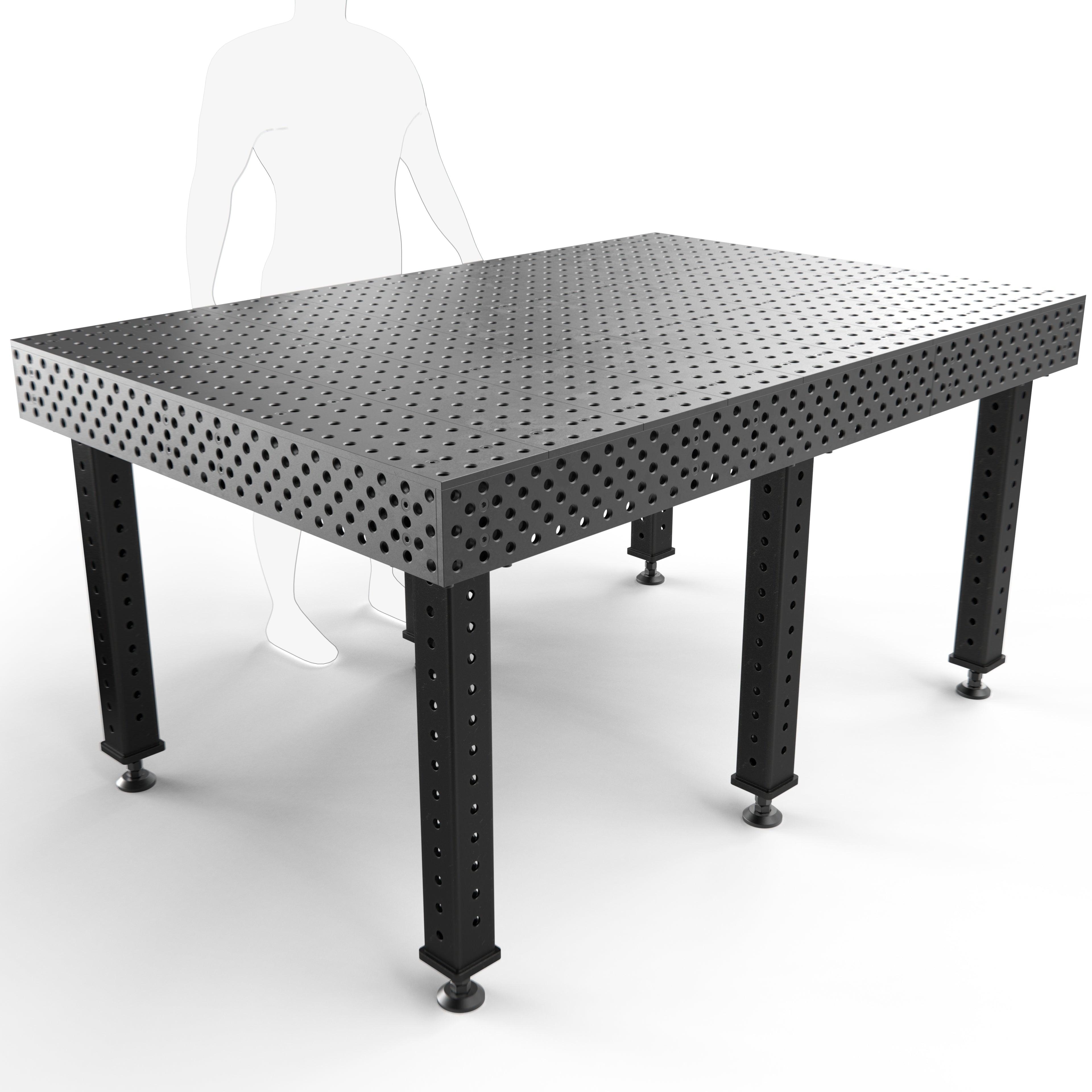

| TA5-7248Q-A1 | TMSL3130 | 36.3 | 1,077 |

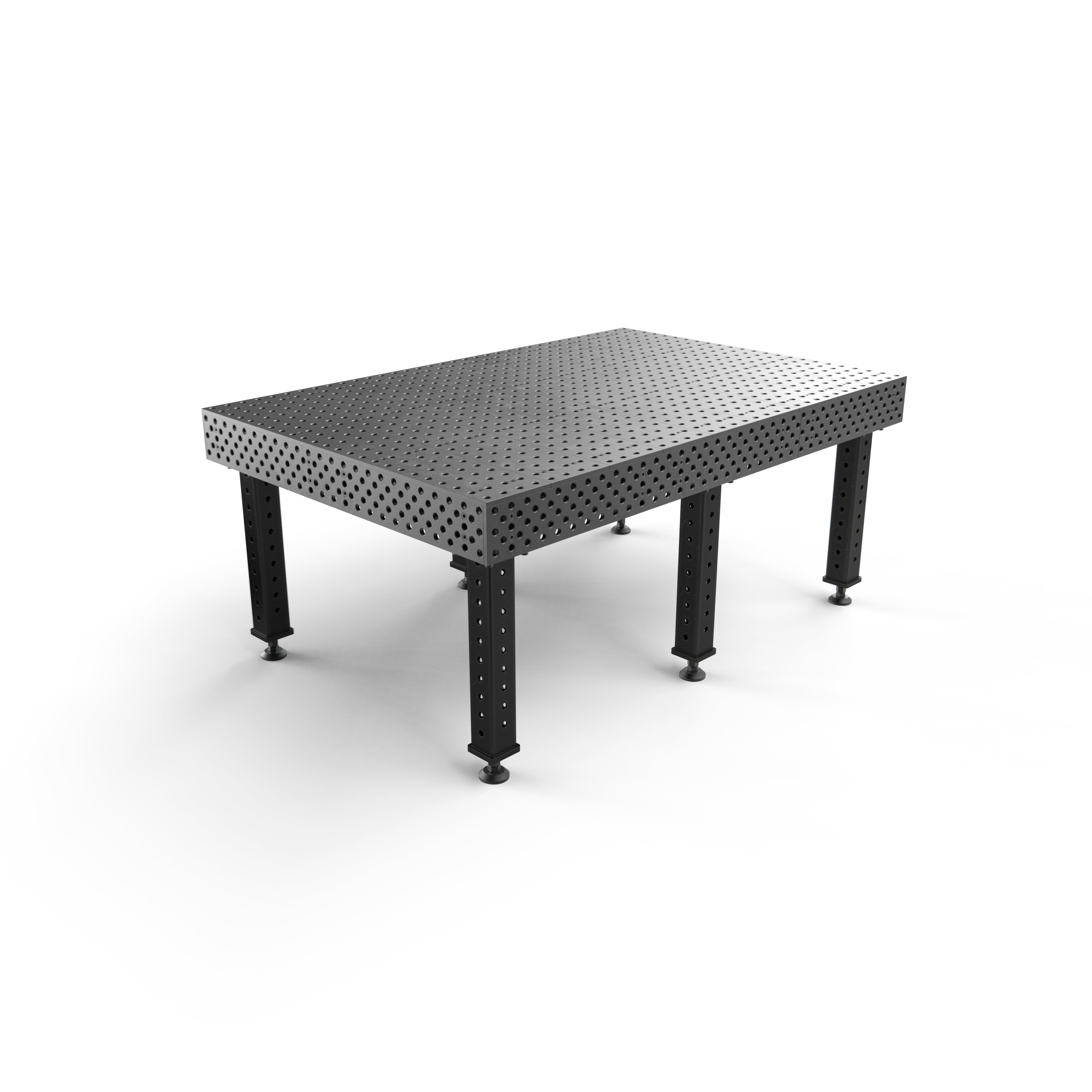

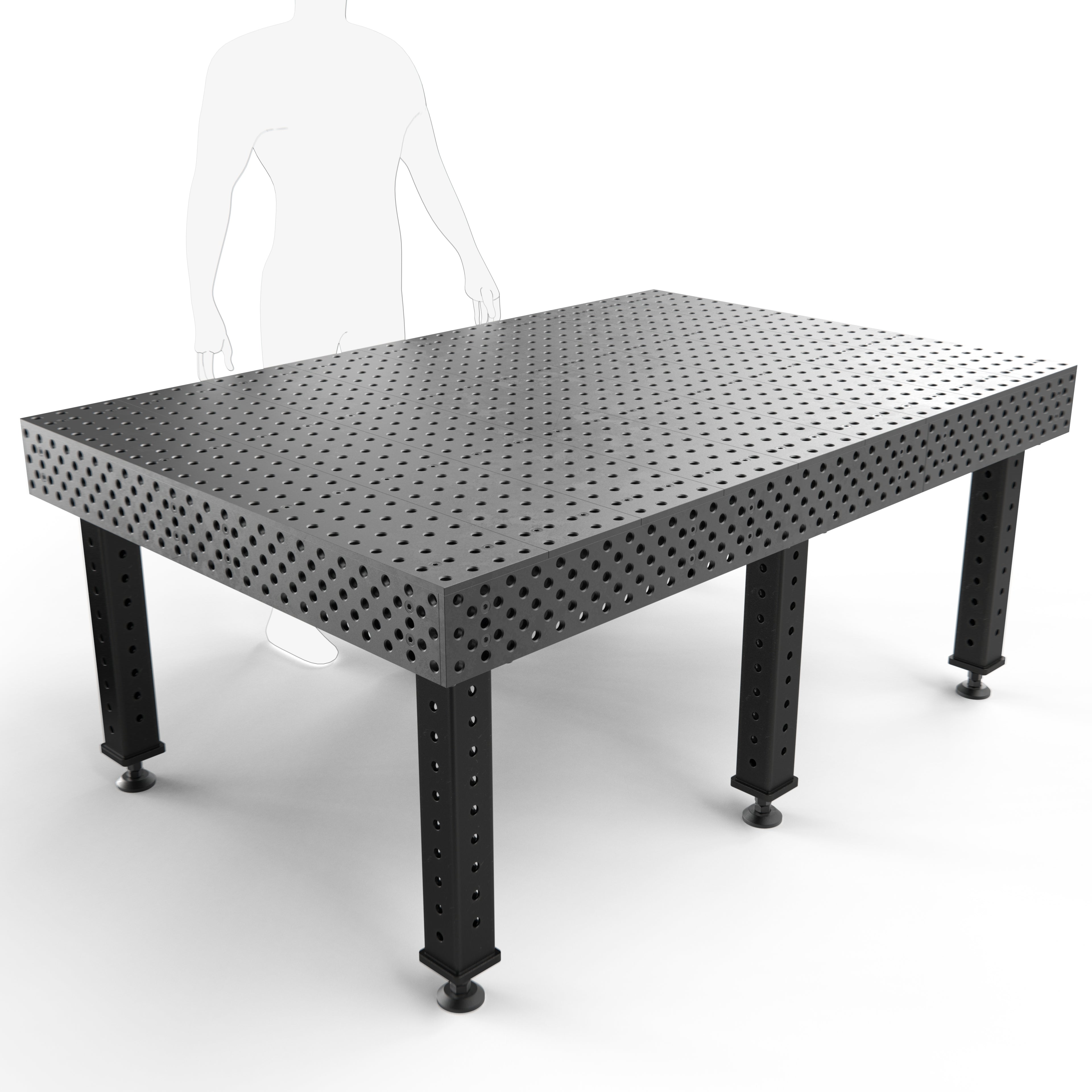

| TA5-7248Q-A2 | TMSL2530 | 30.3 | 1,065 |

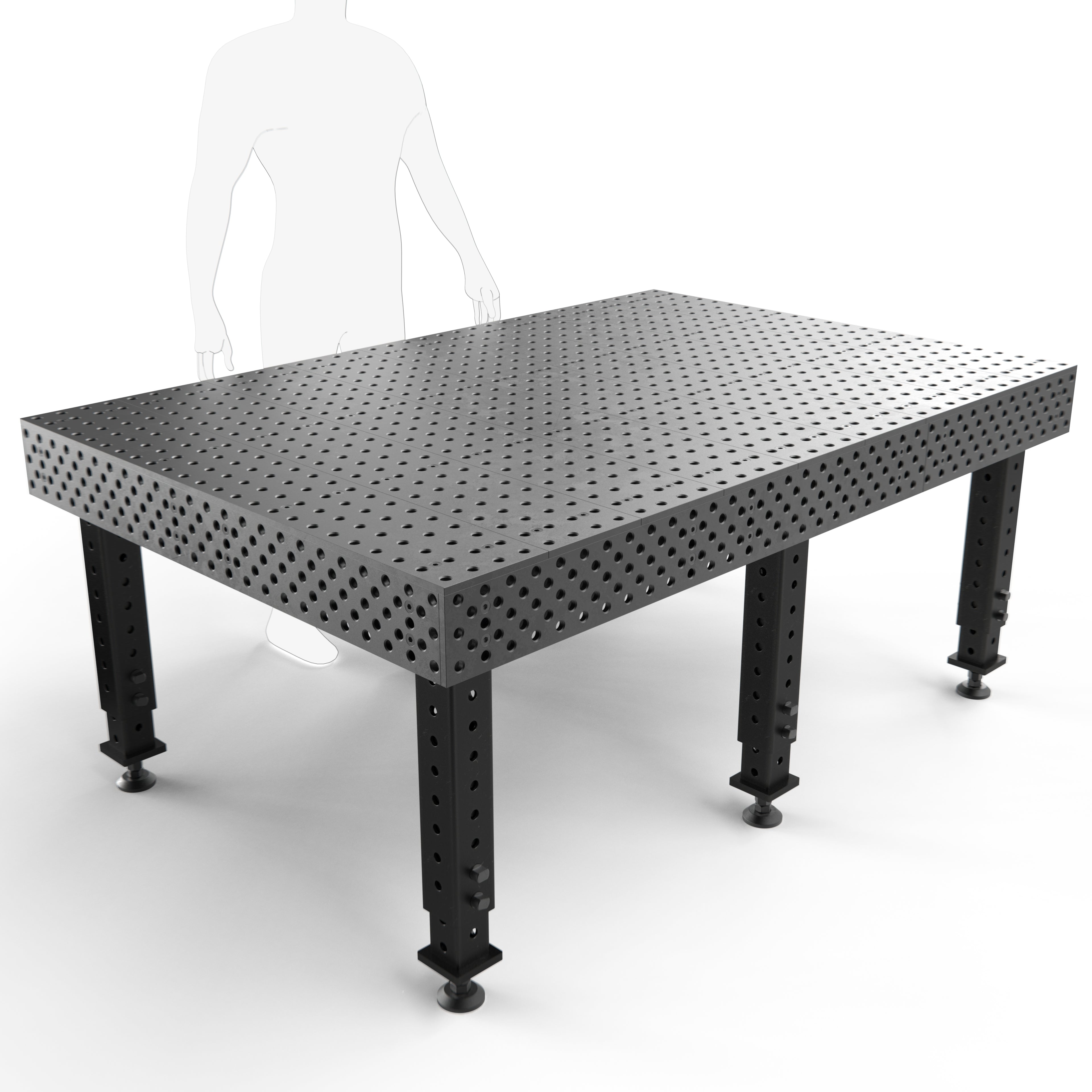

Use with 6x adjustable legs - adjustable at 1" increments
| Part No. | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|

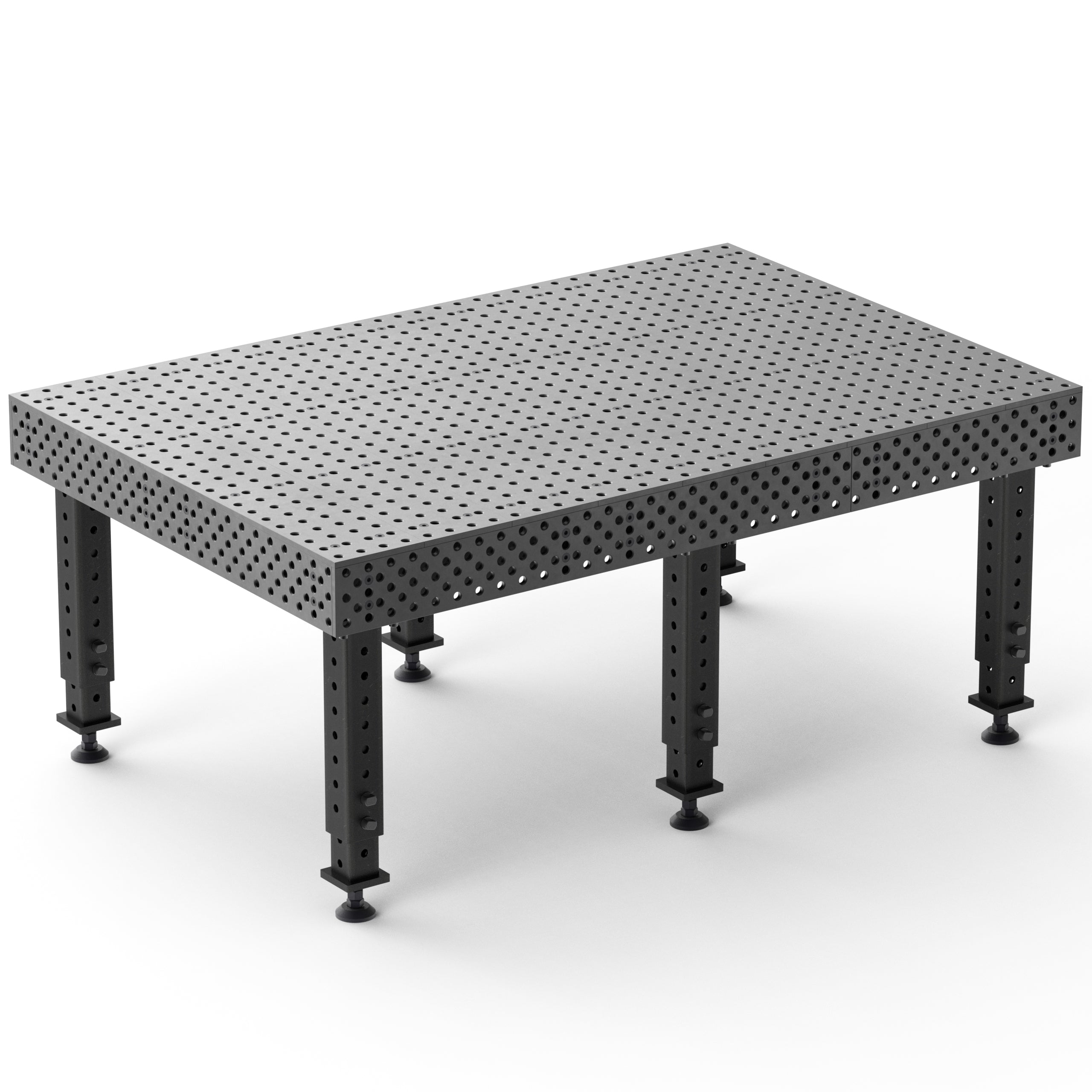

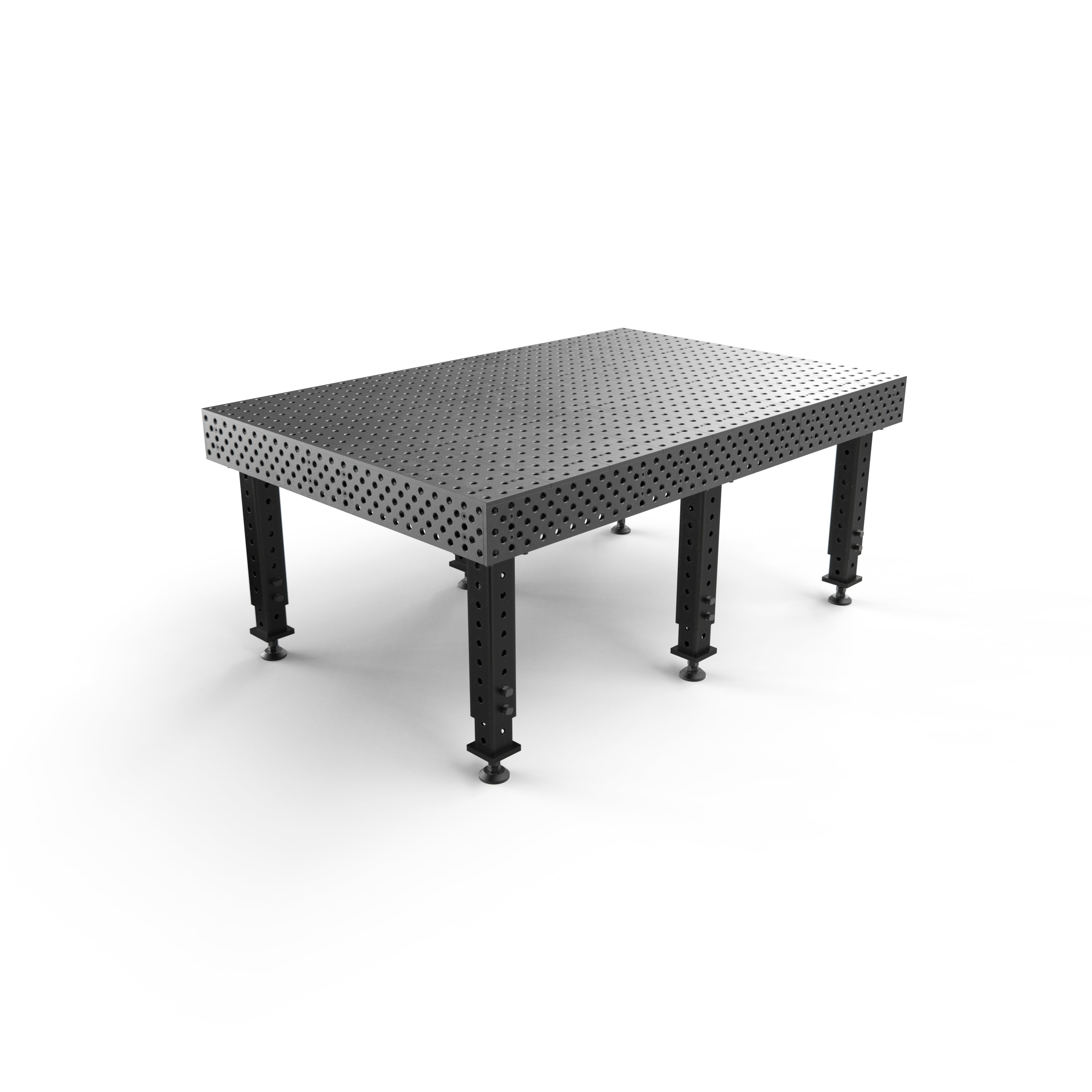

| TA5-7248Q-B1 | TMSLR30 | 28.3 ~ 38.3 | 1,098 |

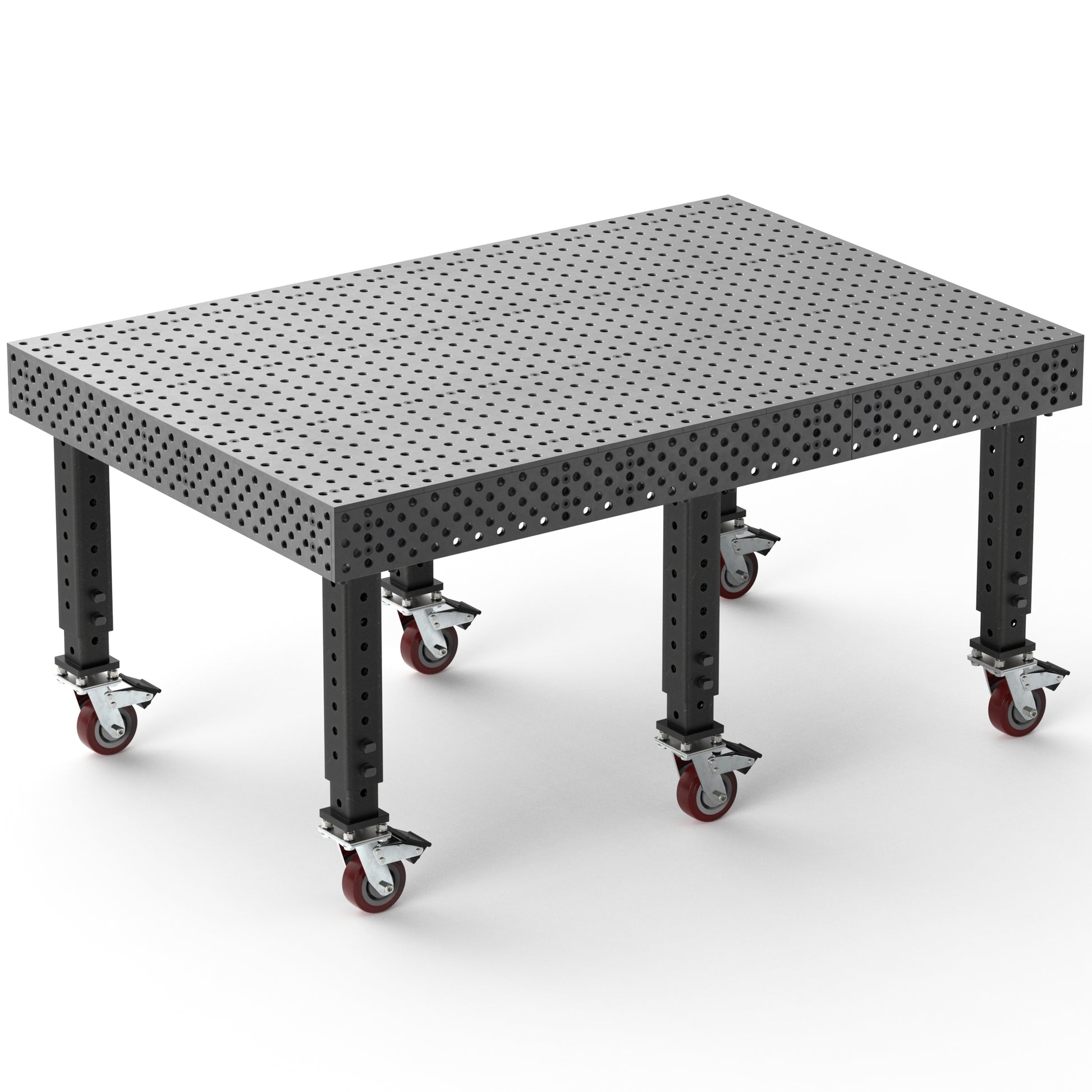

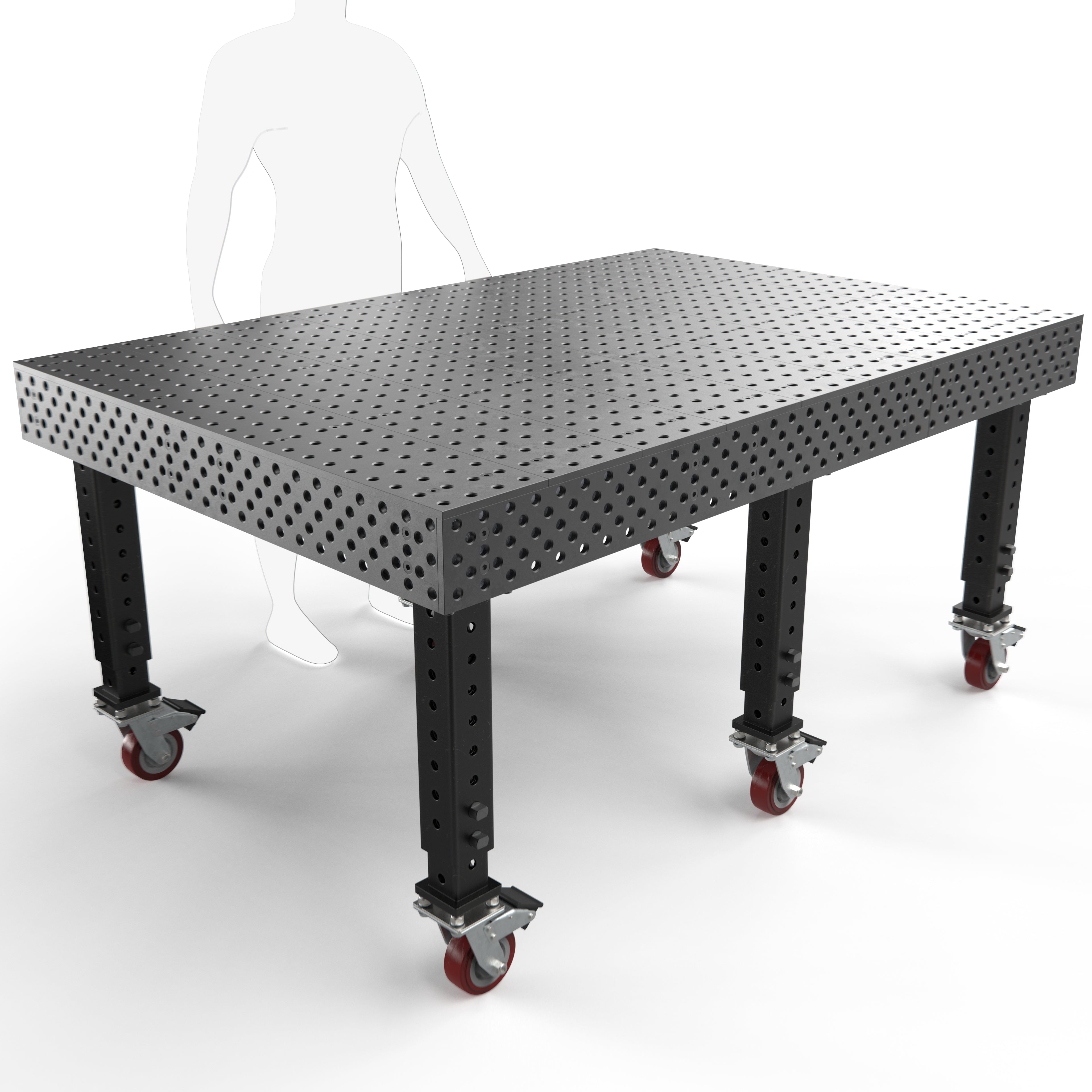

Use with 6x adjustable legs with mobility caster
| Part No. | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|

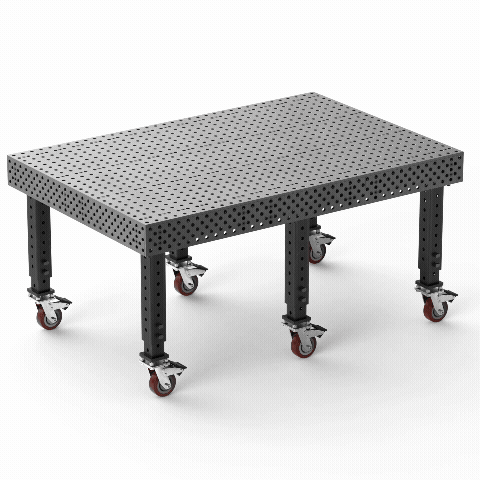

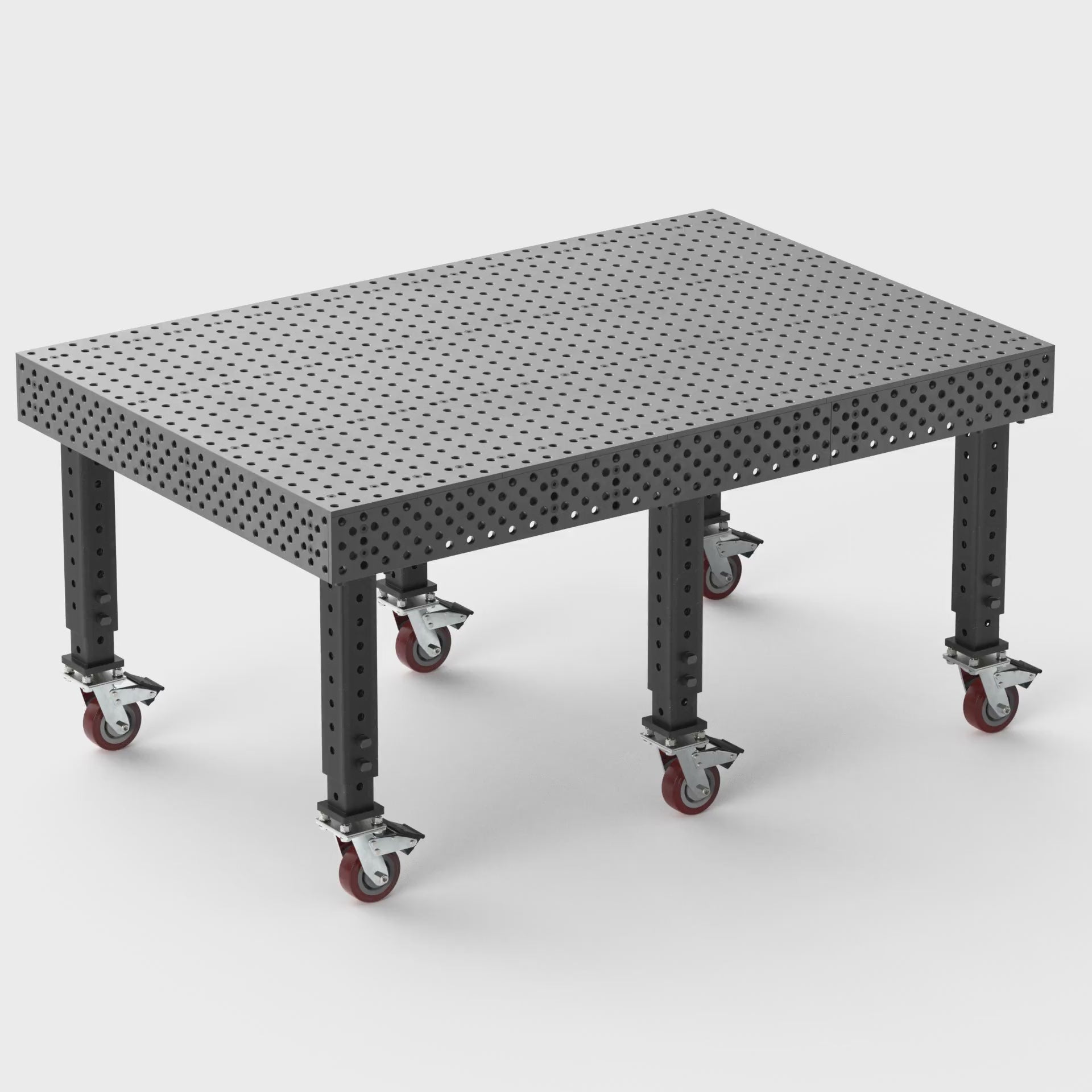

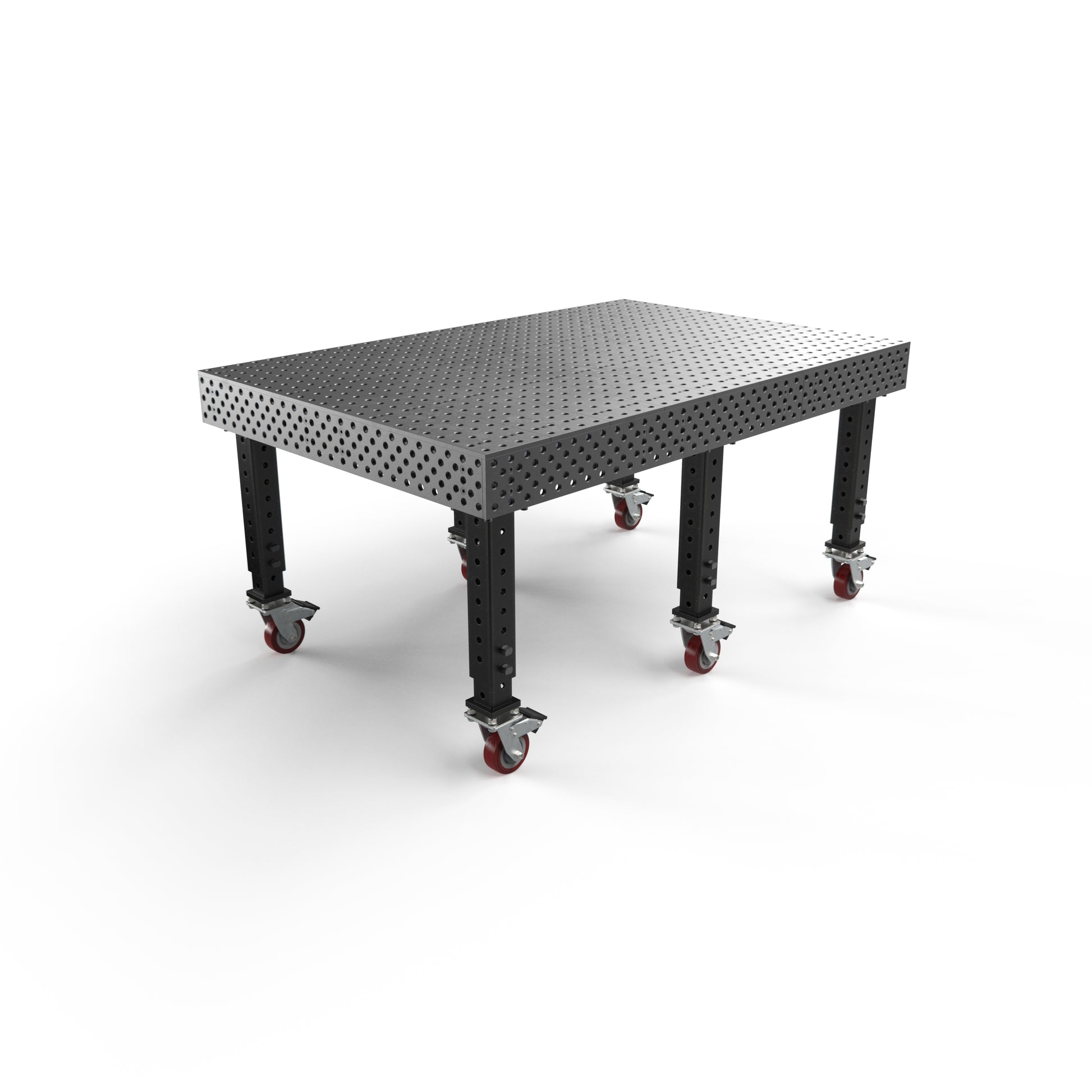

| TA5-7248Q-C1 | TMSLC30 | 33 ~ 43 | 1,133 |
If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.
The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.
Table Accuracy
| Hole Diameter: | 0.625" + .002 / -.000 |
| Hole Spacing: | 2.000" ±0.001 |
| Table Flatness: | ±0.005 per 24" x 24" |
| Plate Thickness: | 0.47" ±0.004 |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |
The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.
Table Accuracy
| Hole Diameter: | 0.625" + .002 / -.000 |
| Hole Spacing: | 2.000" ±0.001 |
| Table Flatness: | ±0.005 per 24" x 24" |
| Plate Thickness: | 0.47" ±0.004 |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |
Precision ground steel plates, with CNC machined Ø5/8" holes in a 2" grid pattern for locating, positioning and mounting BuildPro clamps and accessories.

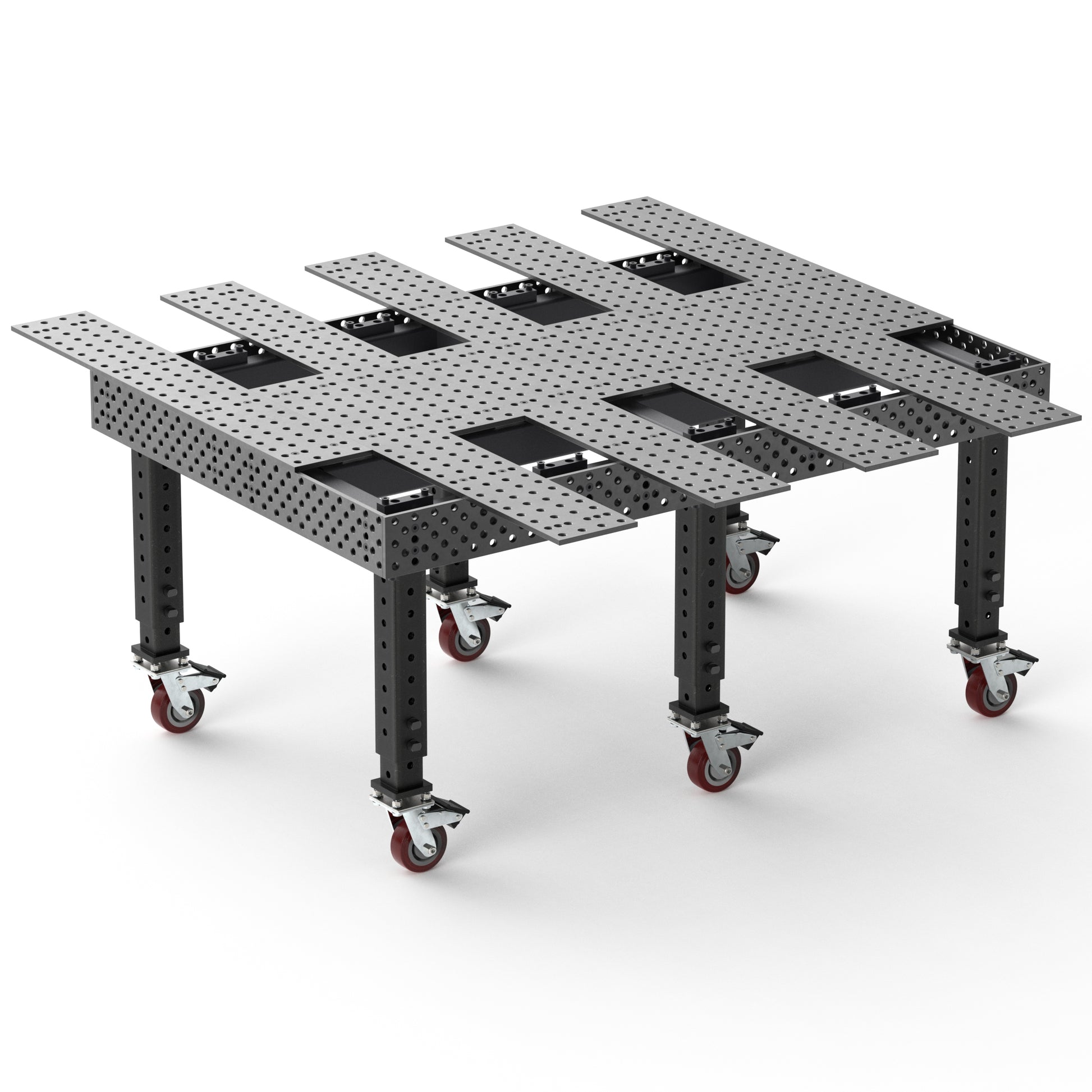

Plates can be reconfigured to expand the width of the table for larger projects.
Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.
REVERSIBLE Self-Locating Top & Side Plates
All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.47″ ±0.004
Tabletop Side Height
The new five-sided tables feature a 5-1/2″ side plate combined with the top plate to create a 6″ height.
Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.
Nitrided (Heat-Treated) Tabletop
All top and side plates of alpha table are constructed from heat-treated steel, hardened to 58-62 HRC (top) and 50-55 HRC (side), and finished with a nitrite coating with a case depth of .0004-.0008″.
Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
Precision ground steel plates, with CNC machined Ø5/8" holes in a 2" grid pattern for locating, positioning and mounting BuildPro clamps and accessories.
Plates can be reconfigured to expand the width of the table for larger projects.
Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.
REVERSIBLE Self-Locating Top & Side Plates
All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.47″ ±0.004
Tabletop Side Height
The new five-sided tables feature a 5-1/2″ side plate combined with the top plate to create a 6″ height.
Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.
Nitrided (Heat-Treated) Tabletop
All top and side plates of alpha table are constructed from heat-treated steel, hardened to 58-62 HRC (top) and 50-55 HRC (side), and finished with a nitrite coating with a case depth of .0004-.0008″.
Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
