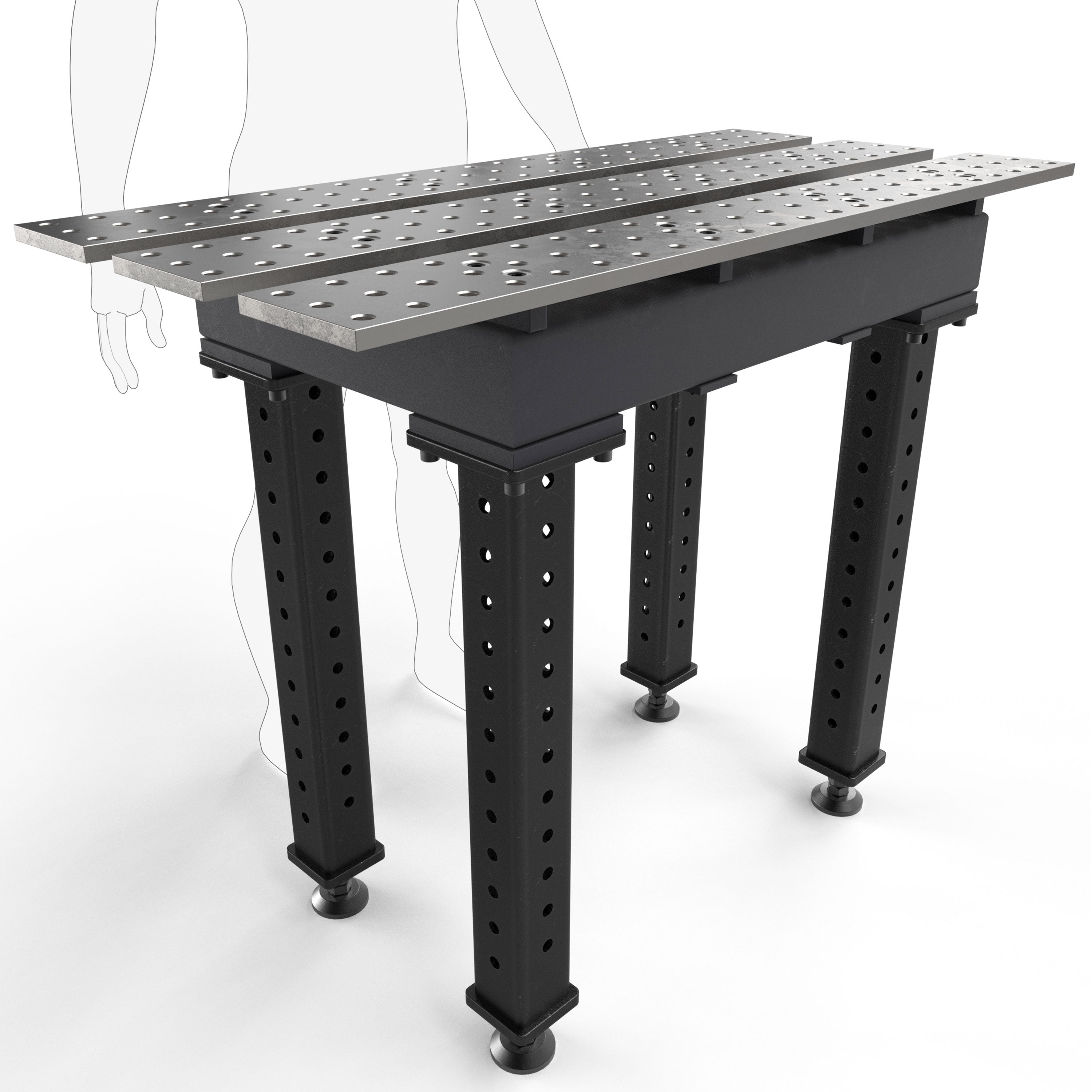

MAX Slotted Tables, 2' × 4'

SKU: TMA52246

All BuildPro® Tables are constructed from 5/8" thick steel plate, with Ø5/8" CNC machined and holes chamfered in a 2" grid pattern.

All Slotted tables have 1.7" slots between plates.

Actual Table Surface Dimension: 22" x 46"
Tabletop Side Height: 6-1/4"

* All load capacities are calculated based on static load.

* Optional Leg Brace Assembly TMLBR22 is suggested.

U.S. PAT. 8065967
Regular price $1,655.00
Sale price $1,655.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Specifications
CAD Files

TMA52246 - STEP

TMB52246 - STEP

TMR52246 - STEP

TMRC52246 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

View this table in your shop

* All MAX TABLES ARE PATENTED: U.S. PAT. 8065967

Our slotted, single-sided heavy-duty tables feature open gaps between the top plates. Providing extra versatility, allowing you to slide clamping tools or pliers using T-Slot adapters or Sliding Channel on the open slot edges as clamping surfaces.

Available in standard and nitrided tabletop finishes.

Reversible Self-Locating Table Plates

Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!

Tabletop Side Height

6-1/4″ for both MAX and MAX Slotted tables

Table Accuracy

Table flatness: ±0.005 per 24″ x 24″

Hole spacing: 2.000″ ±0.001

Hole diameter: 0.625″ +.002/-.000

Plate thickness: 0.630″ ±0.004

Slot: 1.7″

Standard (plain) / Nitrided Finish

Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.

What people say about us:

A must have welding table for any fabricator! Perfect addition to our High School welding program.

Adam S (Hazel Park, MI)

My BuildPro expands capabilities in manufacturing and reduces setup time for the 10+ fixtures that we use. It is a space saver!

Austin N (Pro-Grow Supply)

We make pump assemblies that we could not weld in-house on a typical bench. The BuildPro table holds the parts firmly to maintain accurate weldments.

Jason C (Industrial Flow Solutions)

Amazing product! I had done countless hours of research into the best welding tables and kept coming back to these. They WON’T disappoint! Endless possibilities for fixtures and great customer support. Will be buying more!

Mike T

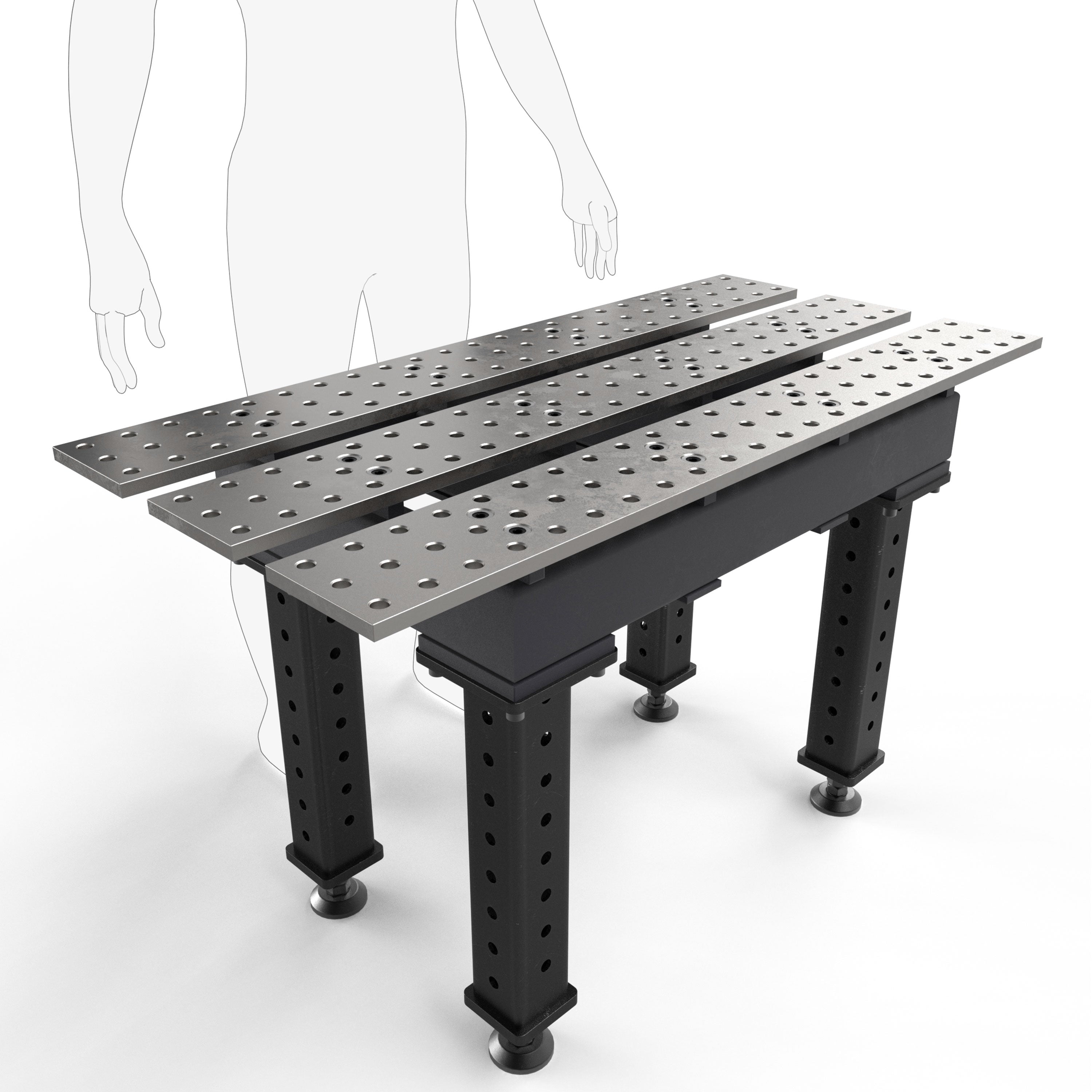

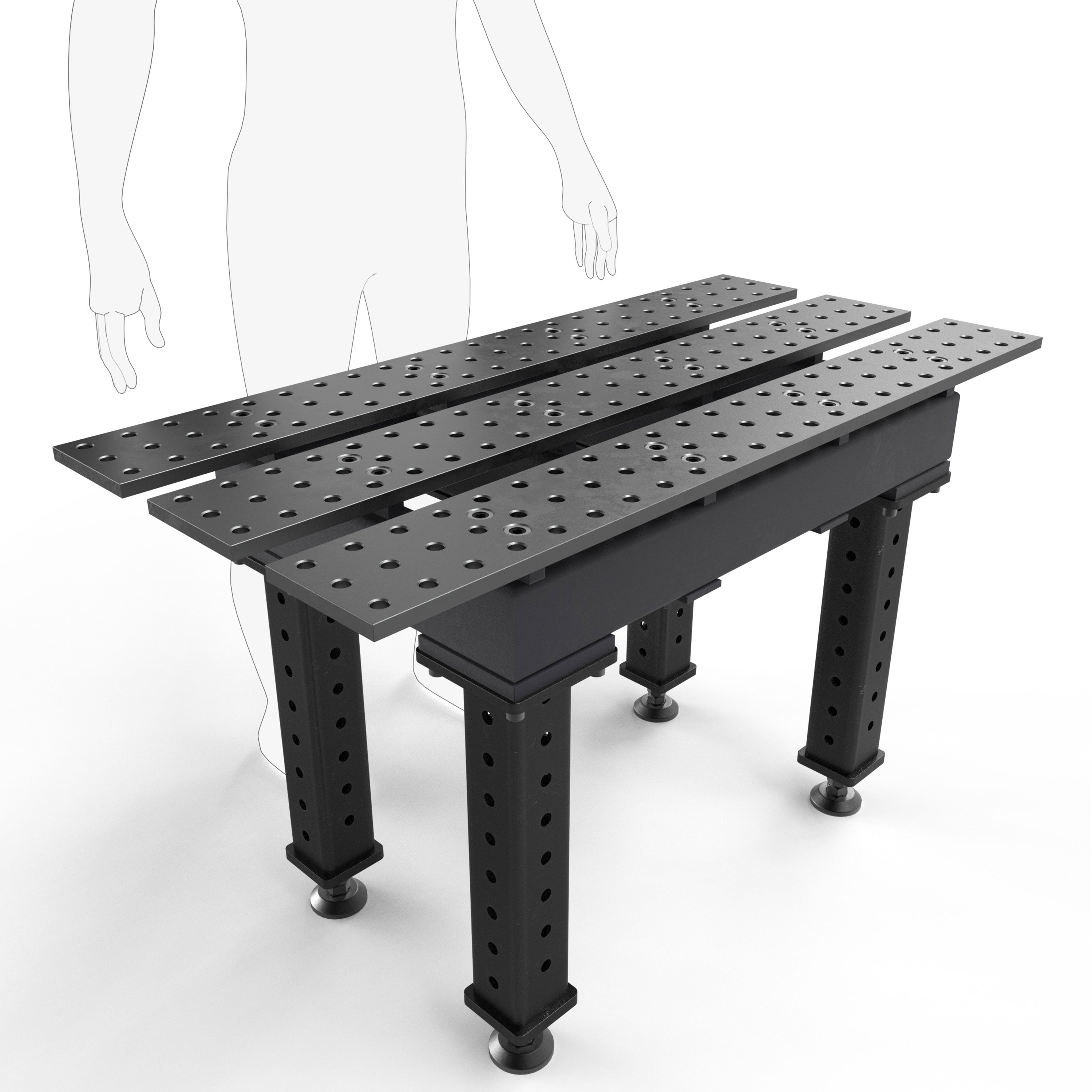

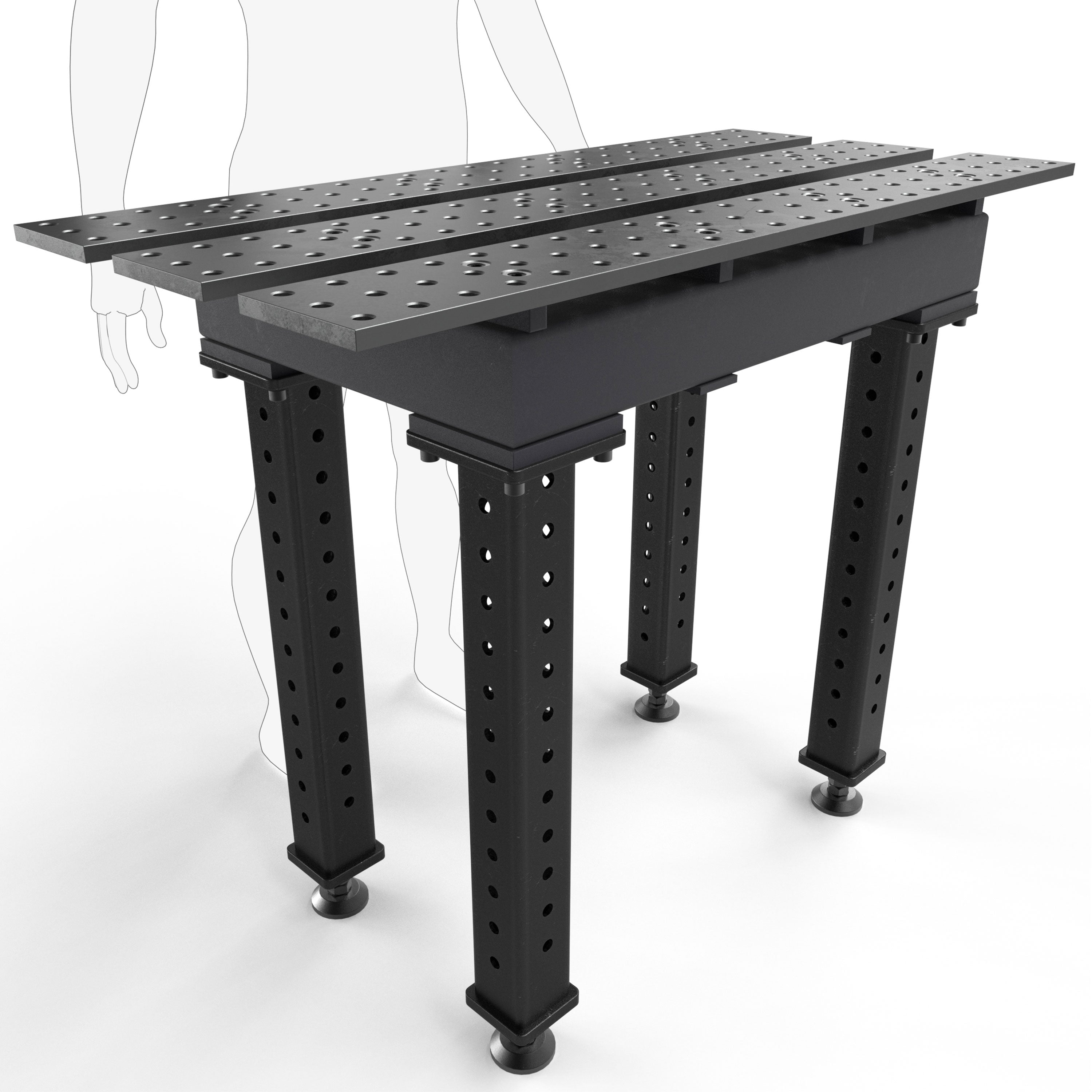

Use with 4x Heavy Duty Legs

Capacity: 1,500 lb / leg

Part No. (Standard Finish) Part No. (Nitrided Finish) Use with Leg Table Surface Height (in) Gross Weight (lb)
TMA52246 TMQA52246 TML3130 36-1/2 332

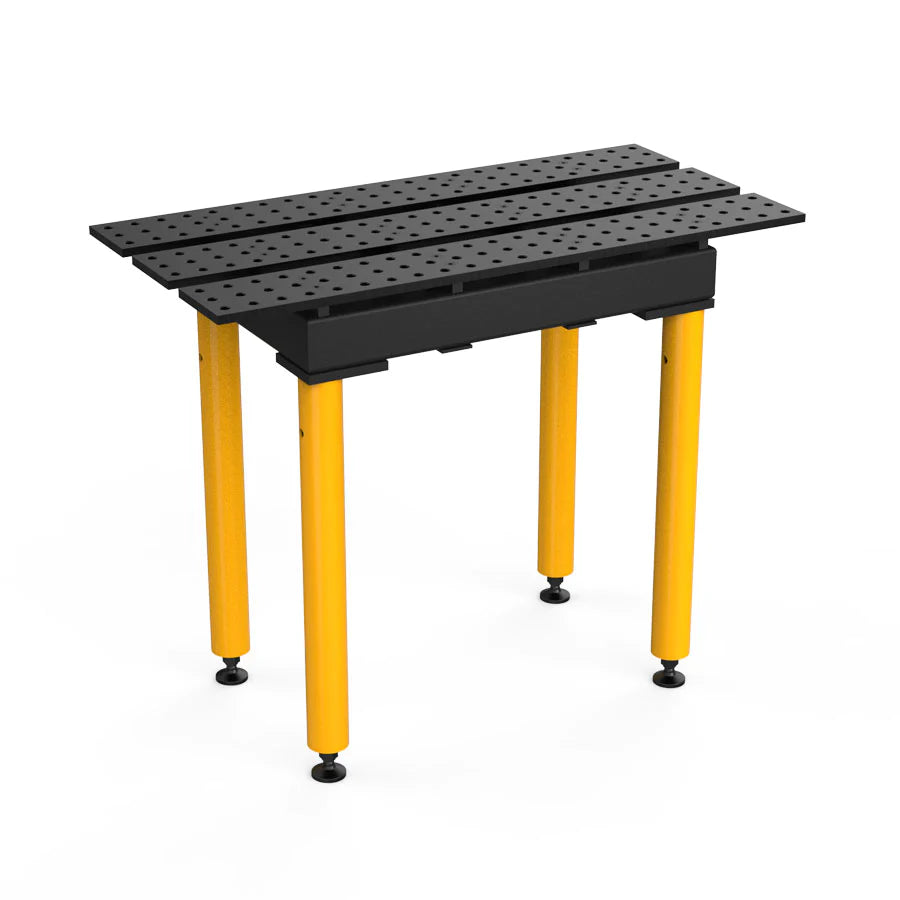

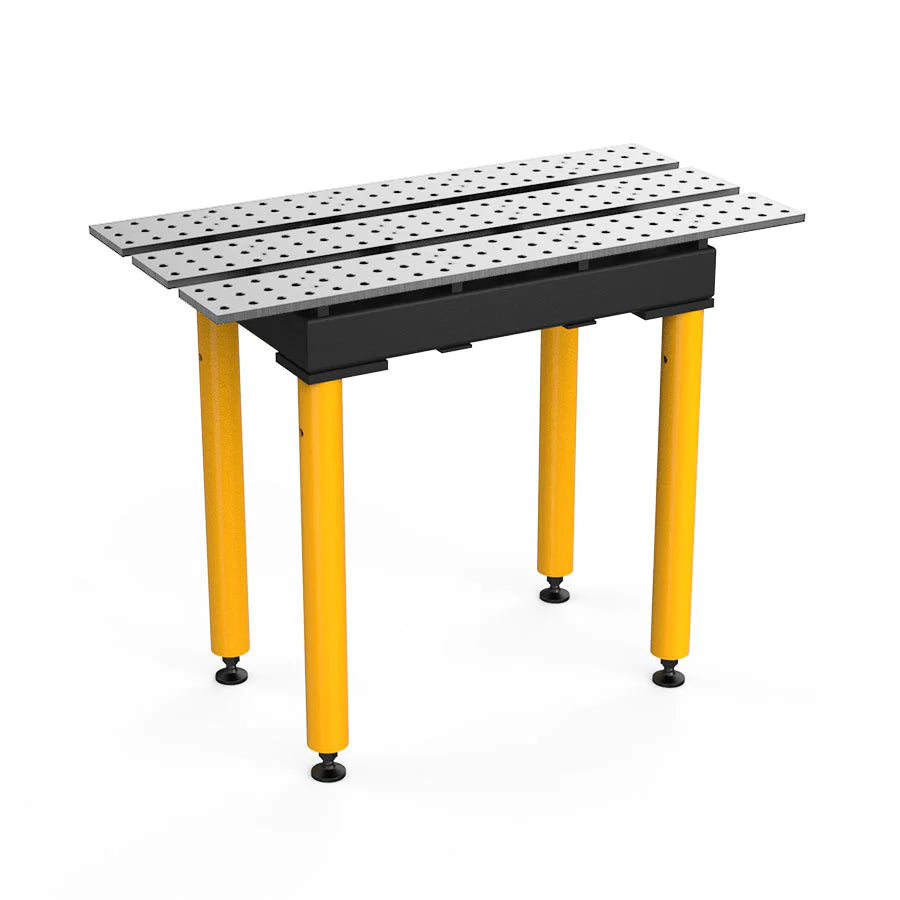

TMB52246 TMQB52246 TML2530 30-1/2 324

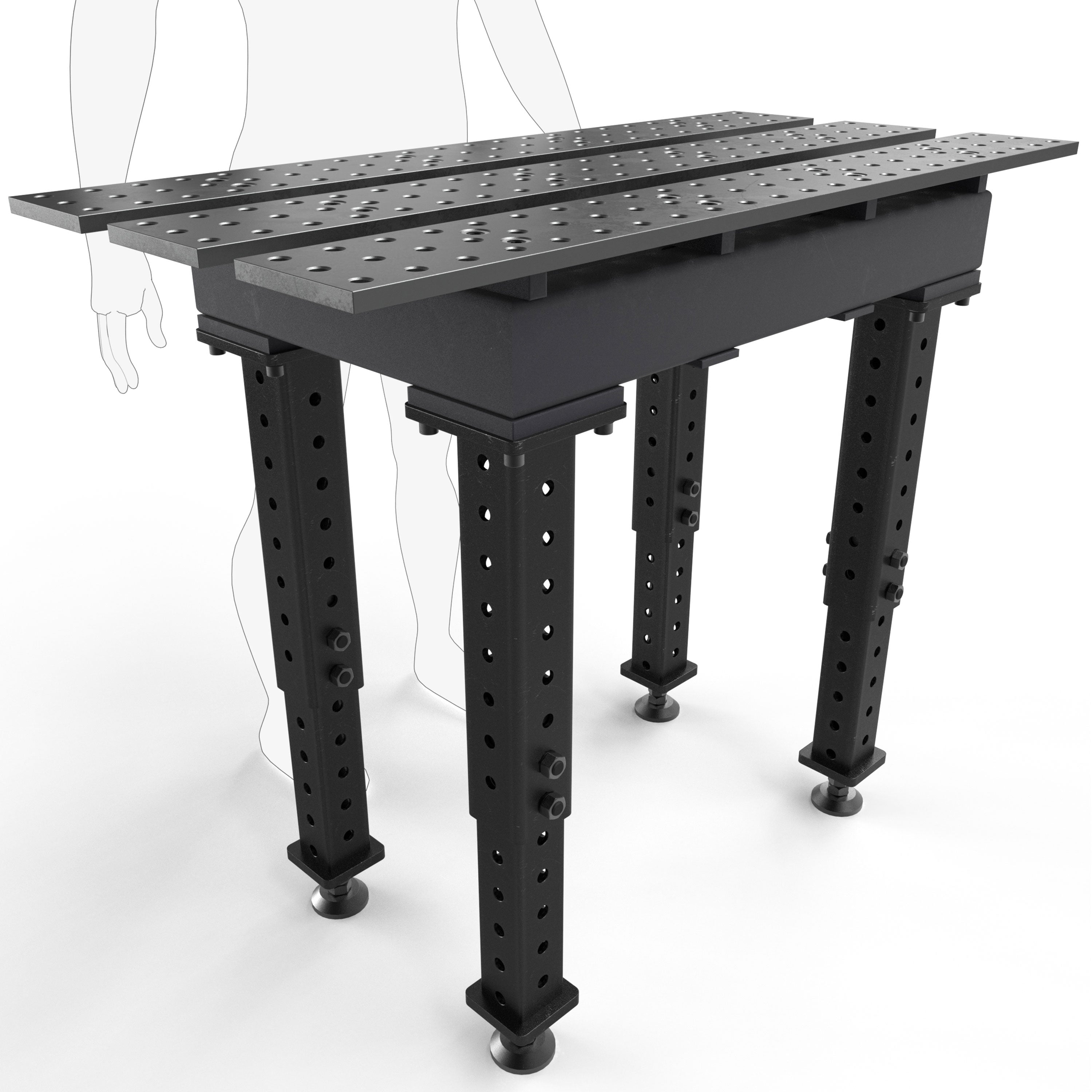

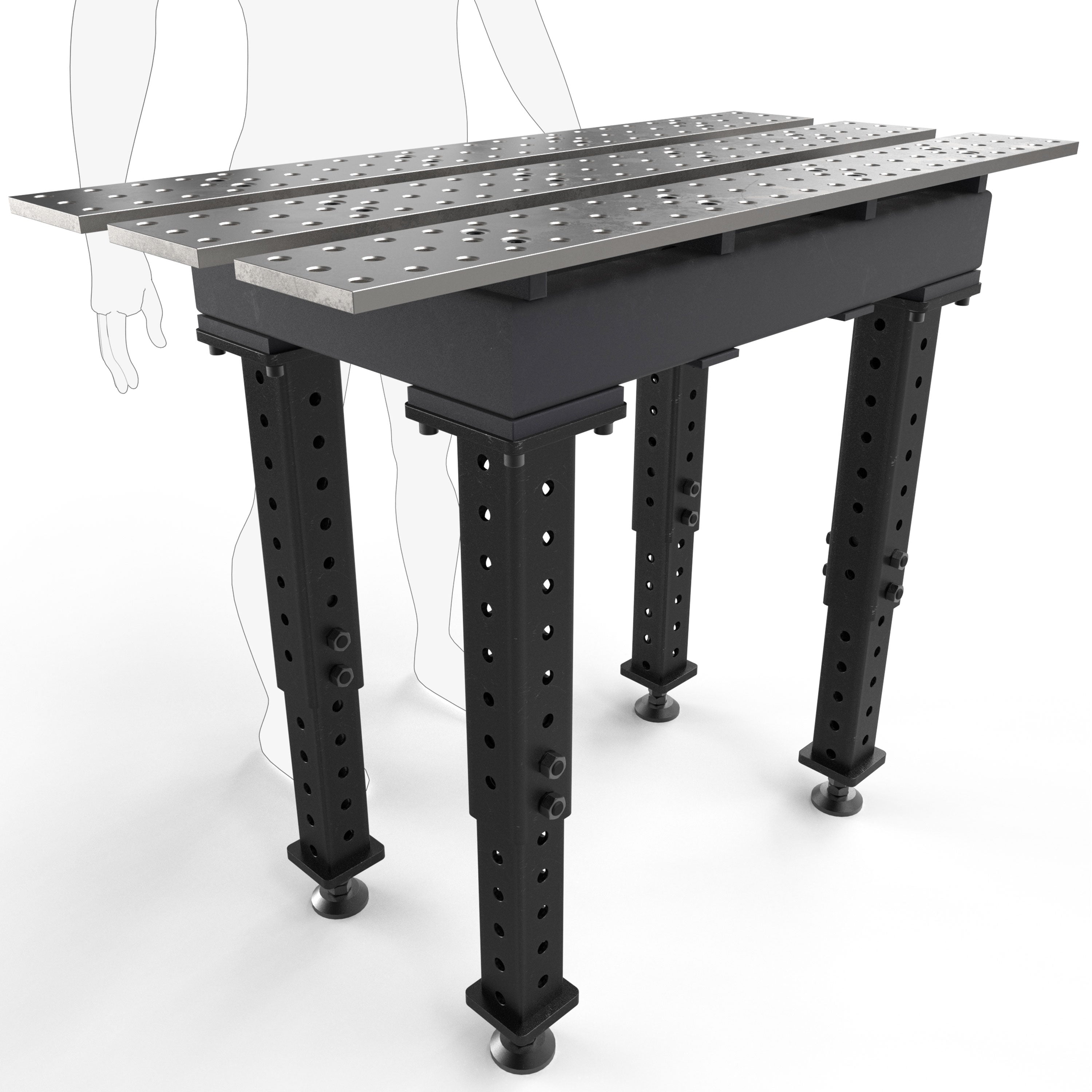

Use with 4x adjustable legs - adjustable at 1" increments

Capacity: 1,500 lb / leg

Part No. (Standard Finish) Part No. (Nitrided Finish) Use with Leg Table Surface Height (in) Gross Weight (lb)

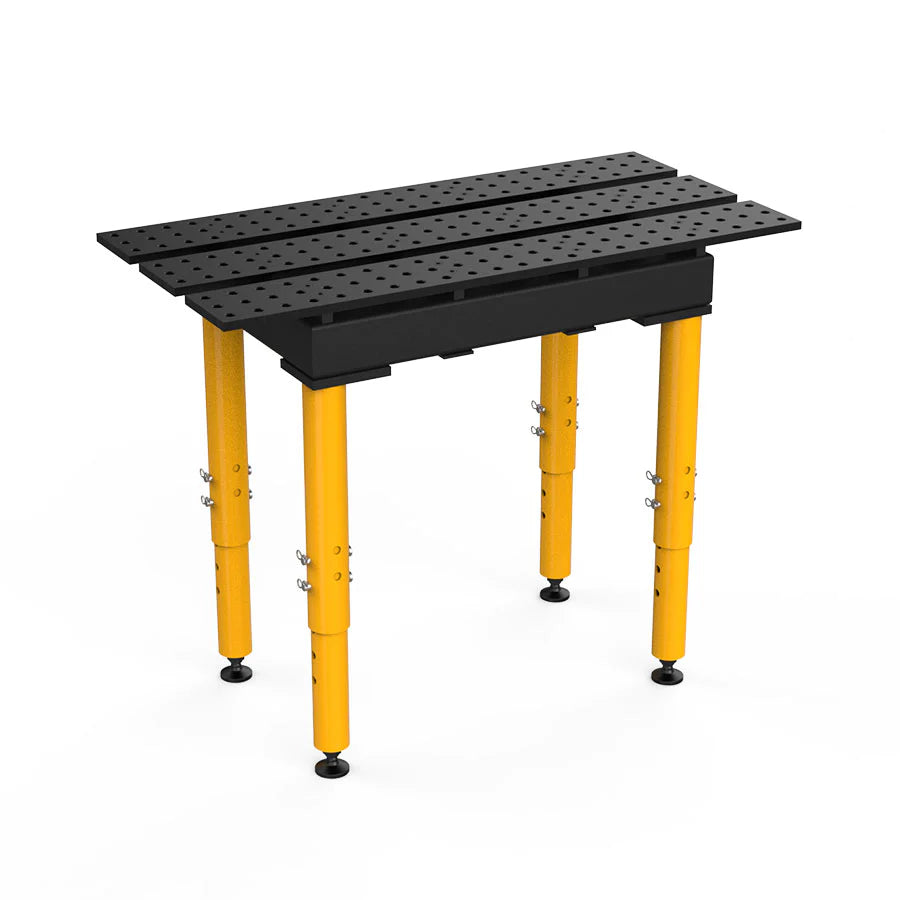

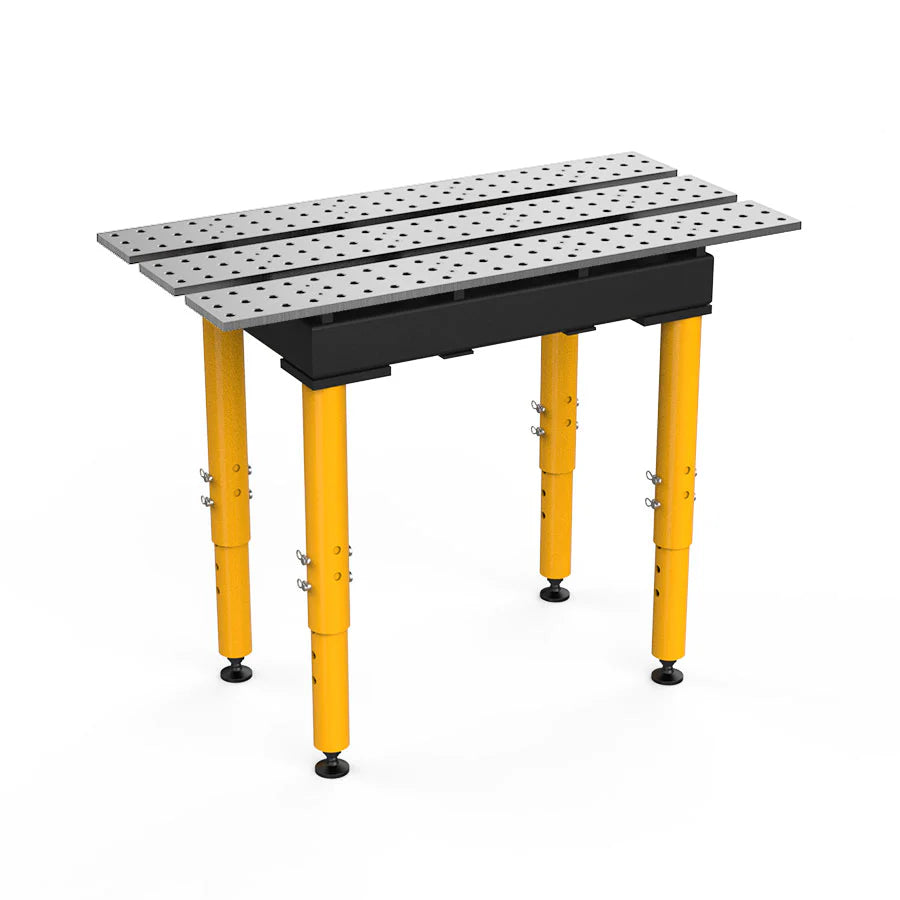

TMR52246 TMQR52246 TMLR30 28-1/2 ~ 38-1/2 346

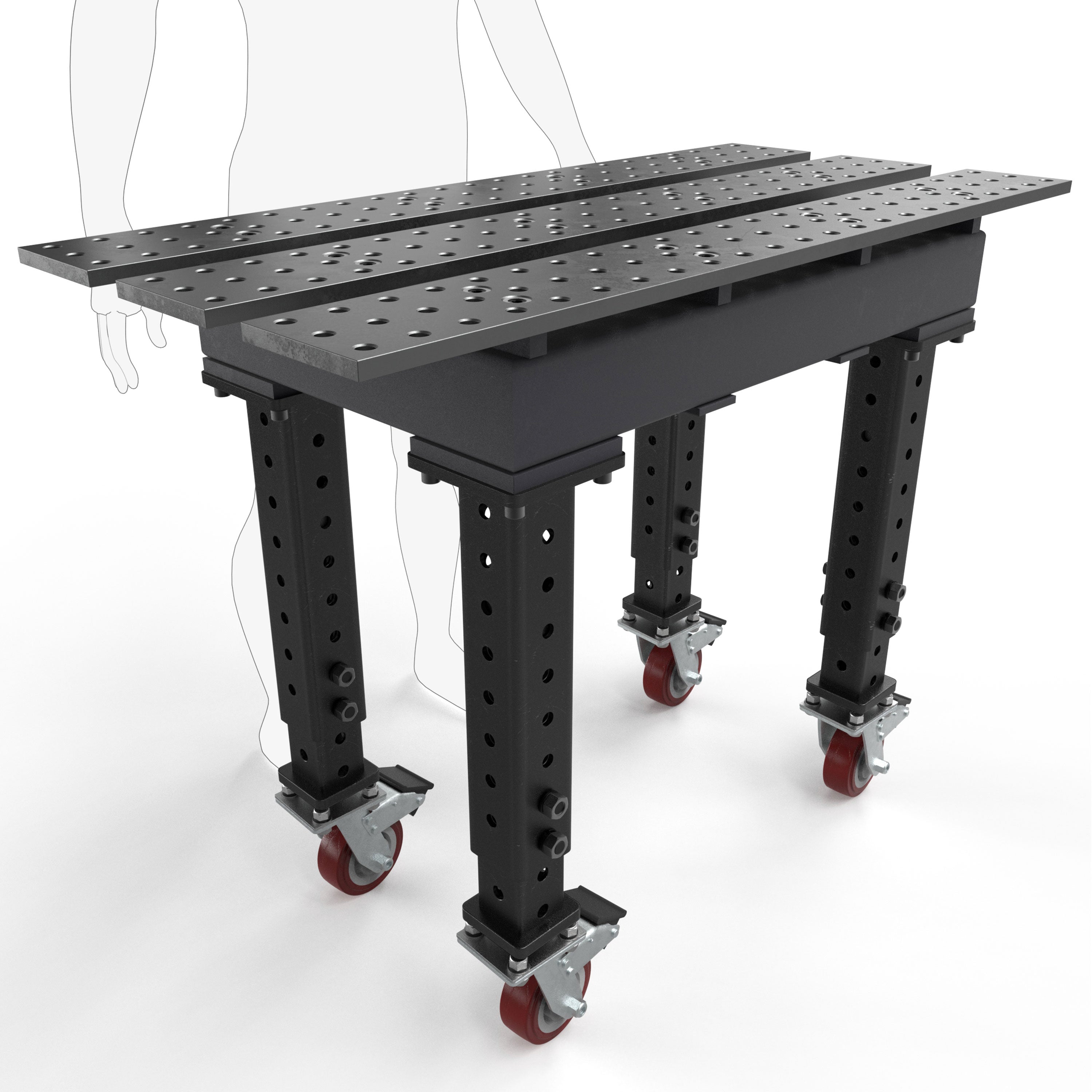

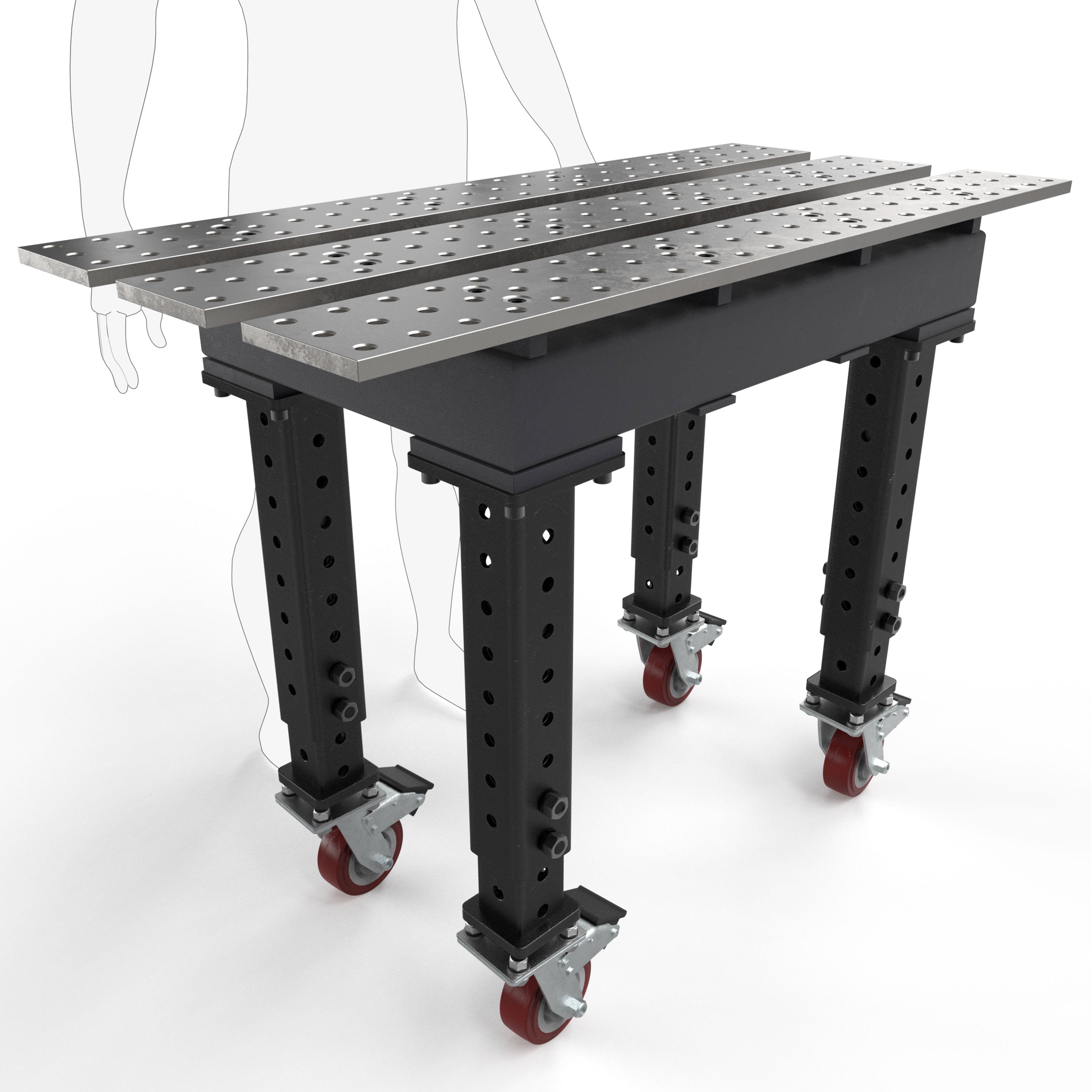

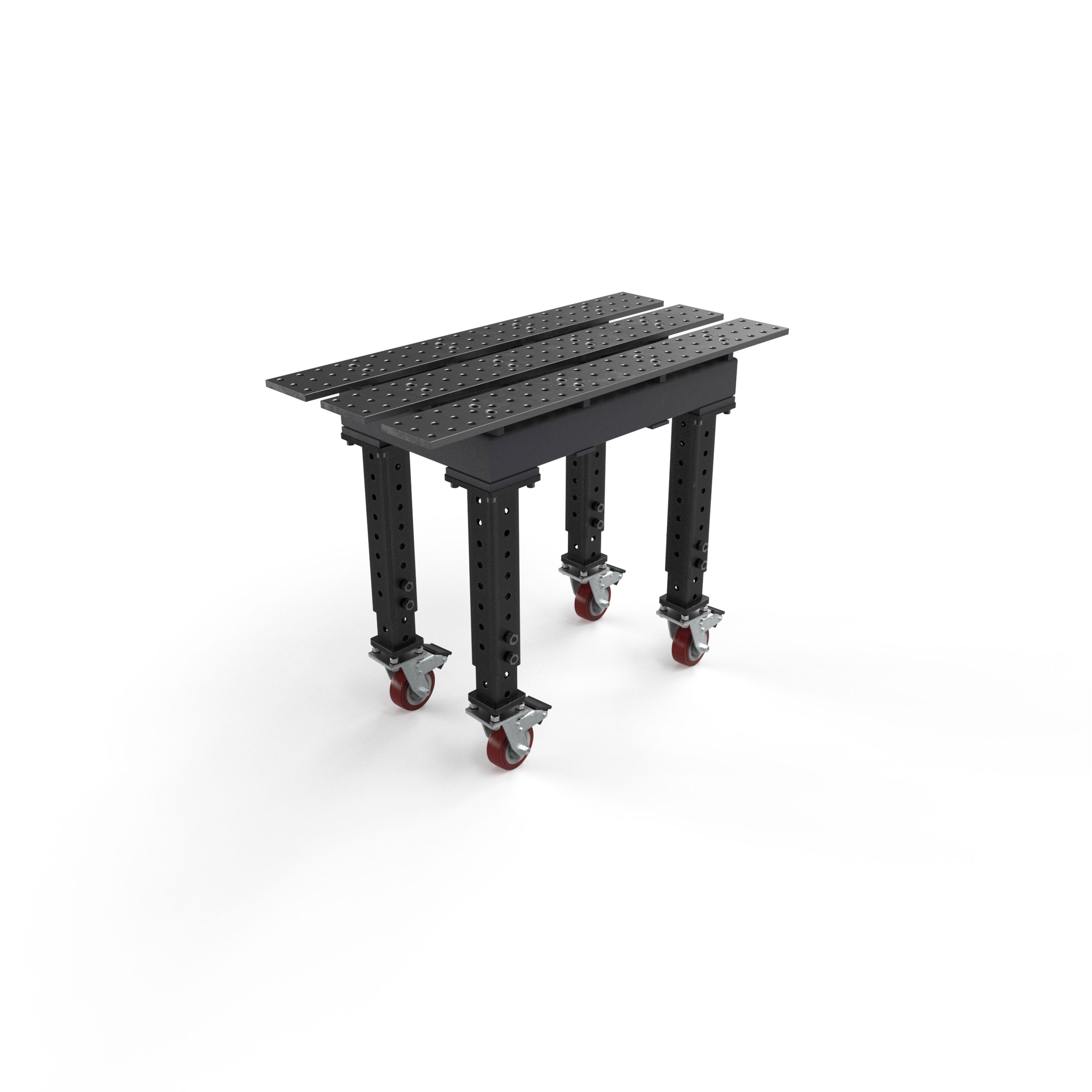

Use with 4x adjustable legs with mobility caster

Capacity: 650 lb / leg

Part No. (Standard Finish) Part No. (Nitrided Finish) Use with Leg Table Surface Height (in) Gross Weight (lb)

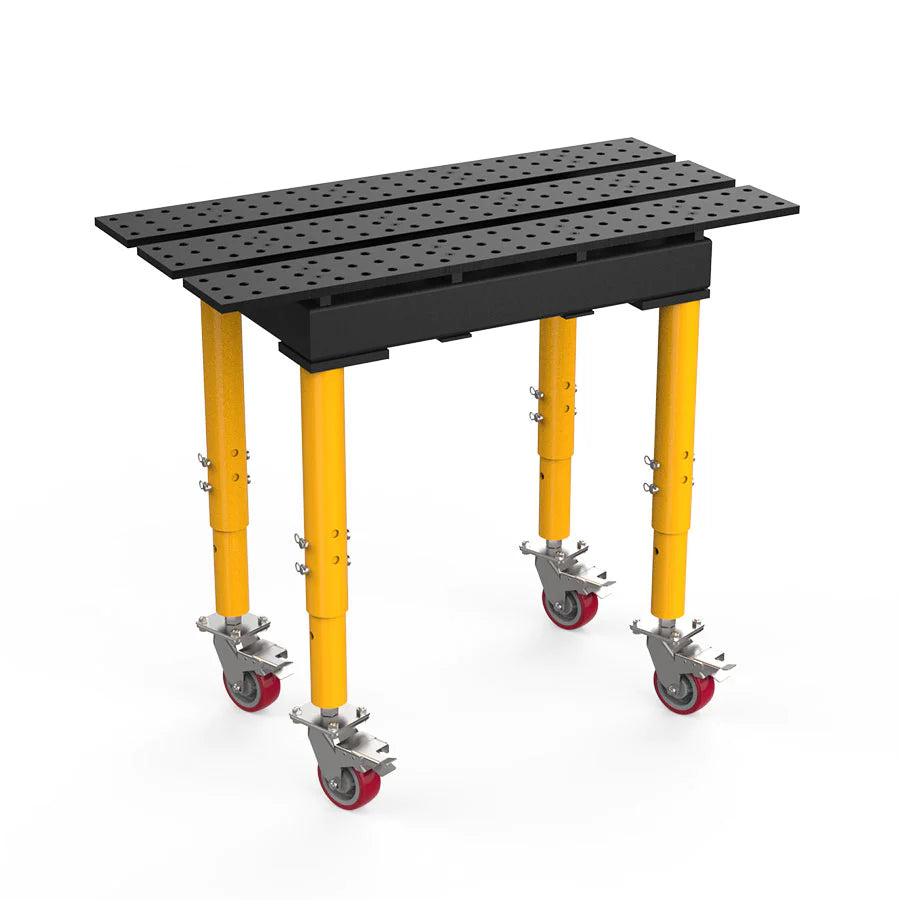

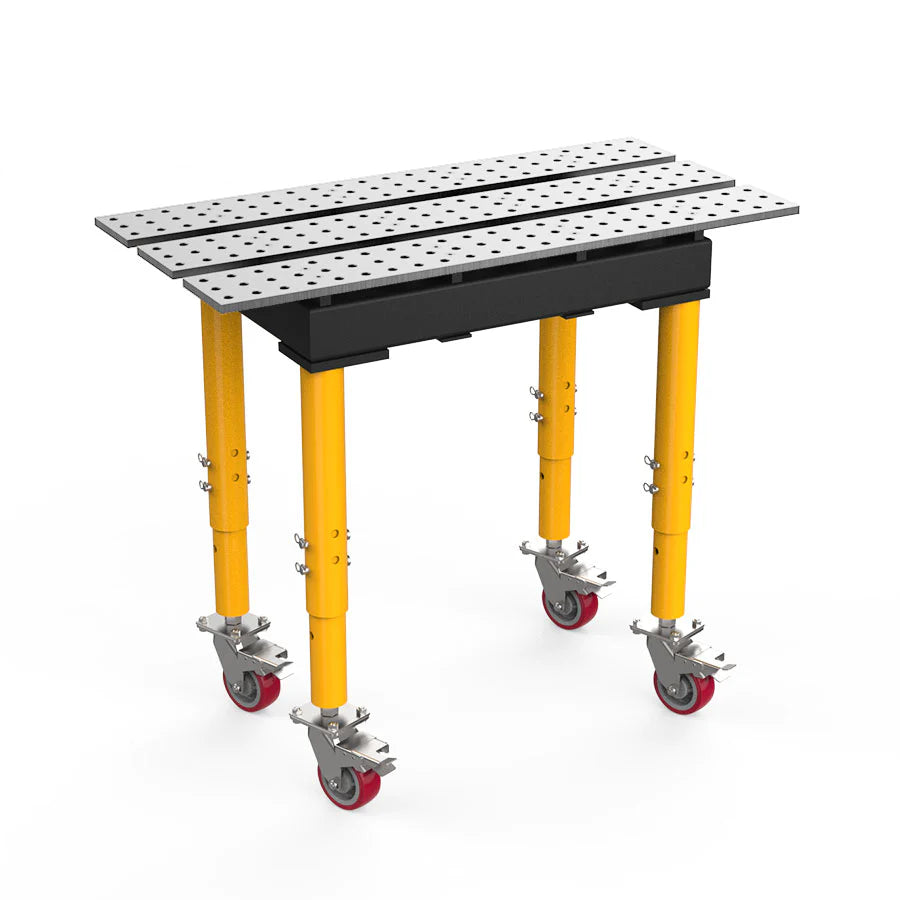

TMRC52246 TMQRC52246 TMLC30 33-1/4 ~ 43-1/4 369

Get Table Accessories & Replacements
