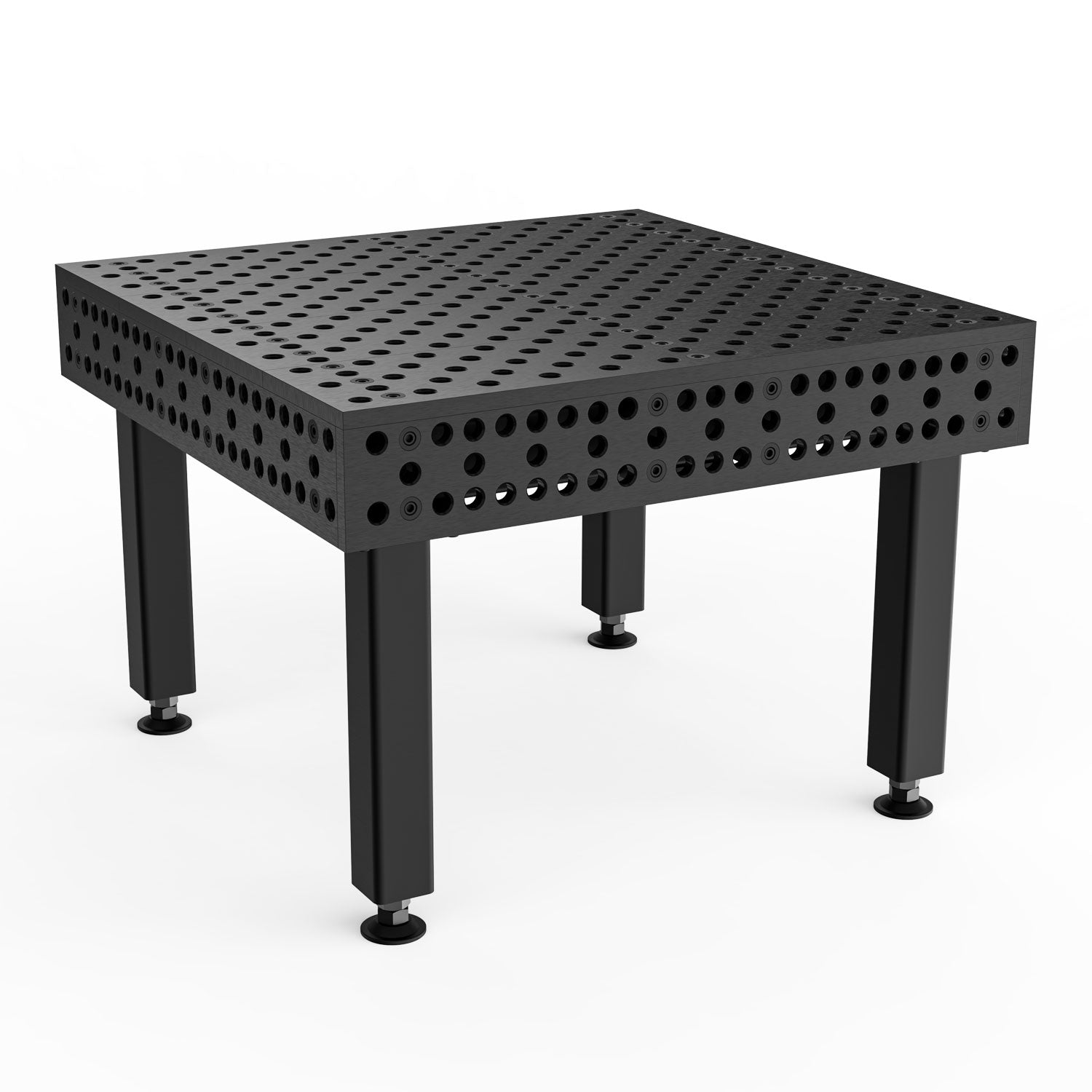

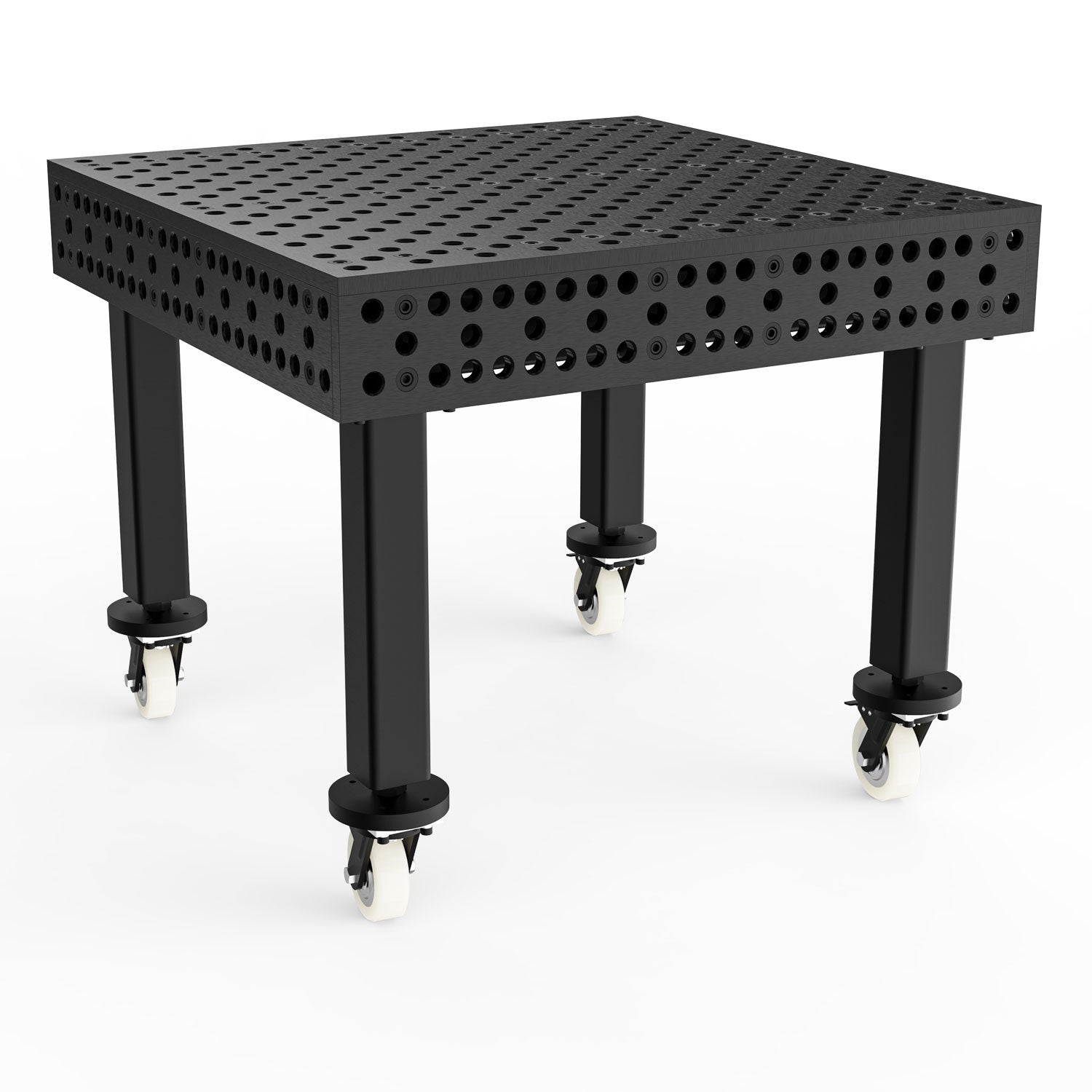

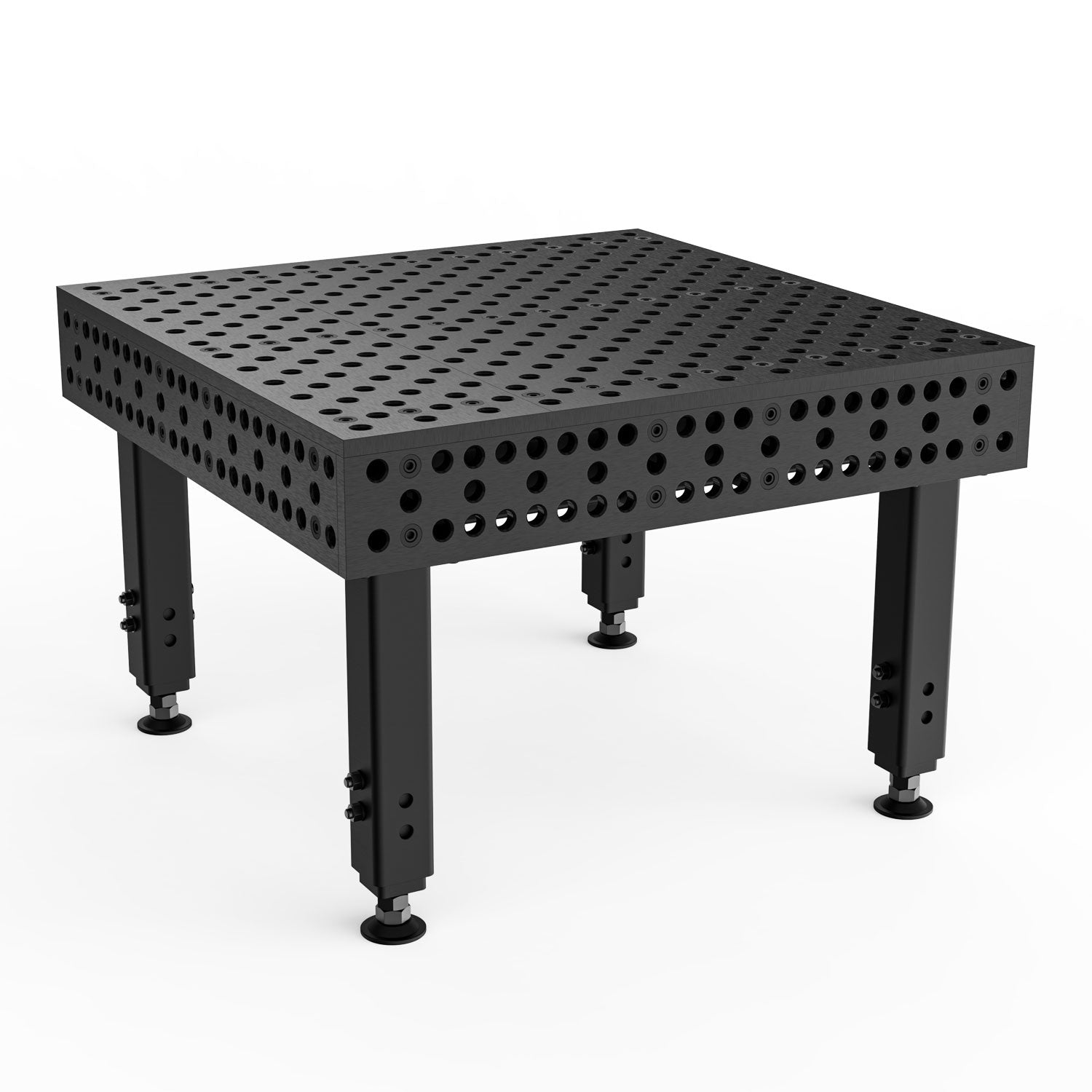

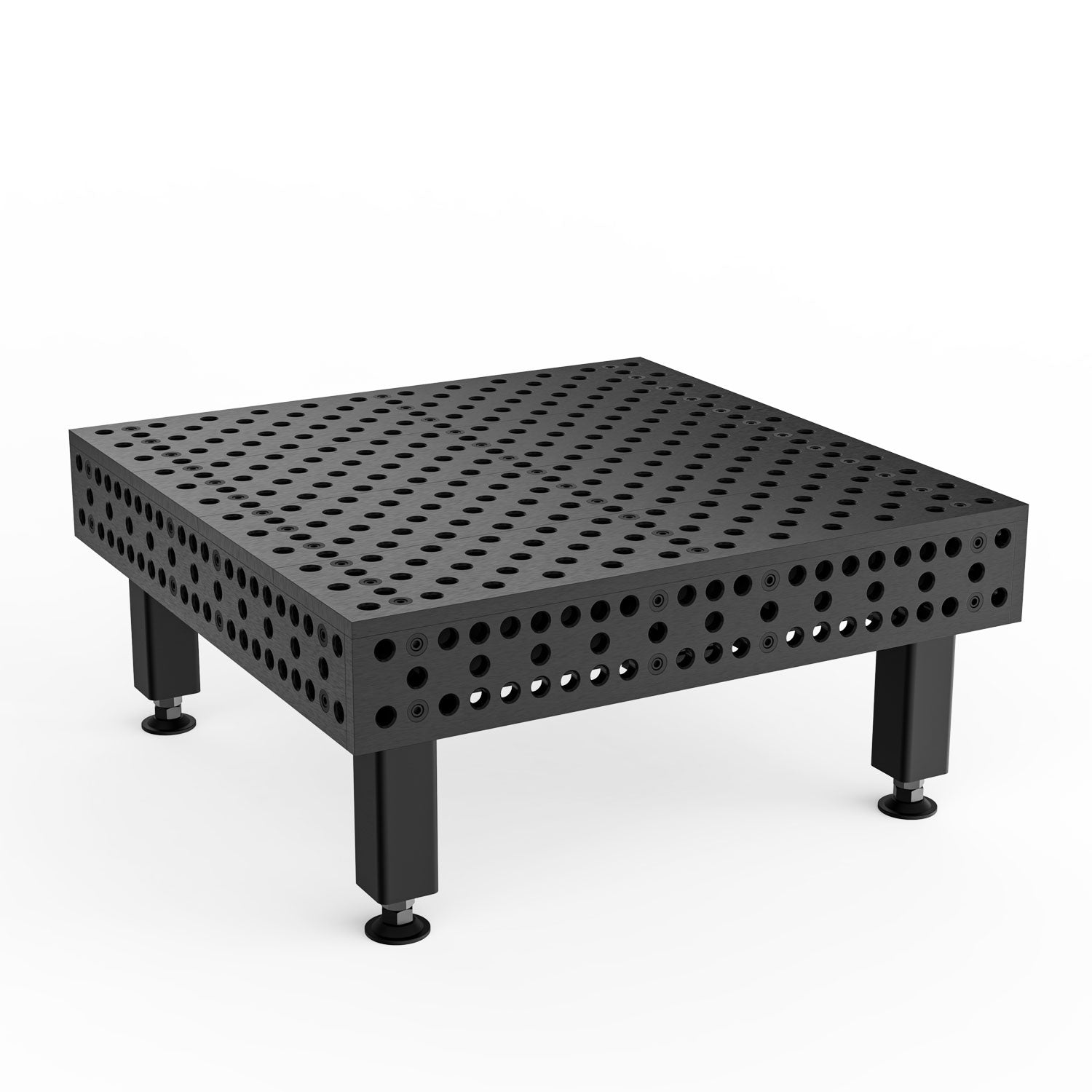

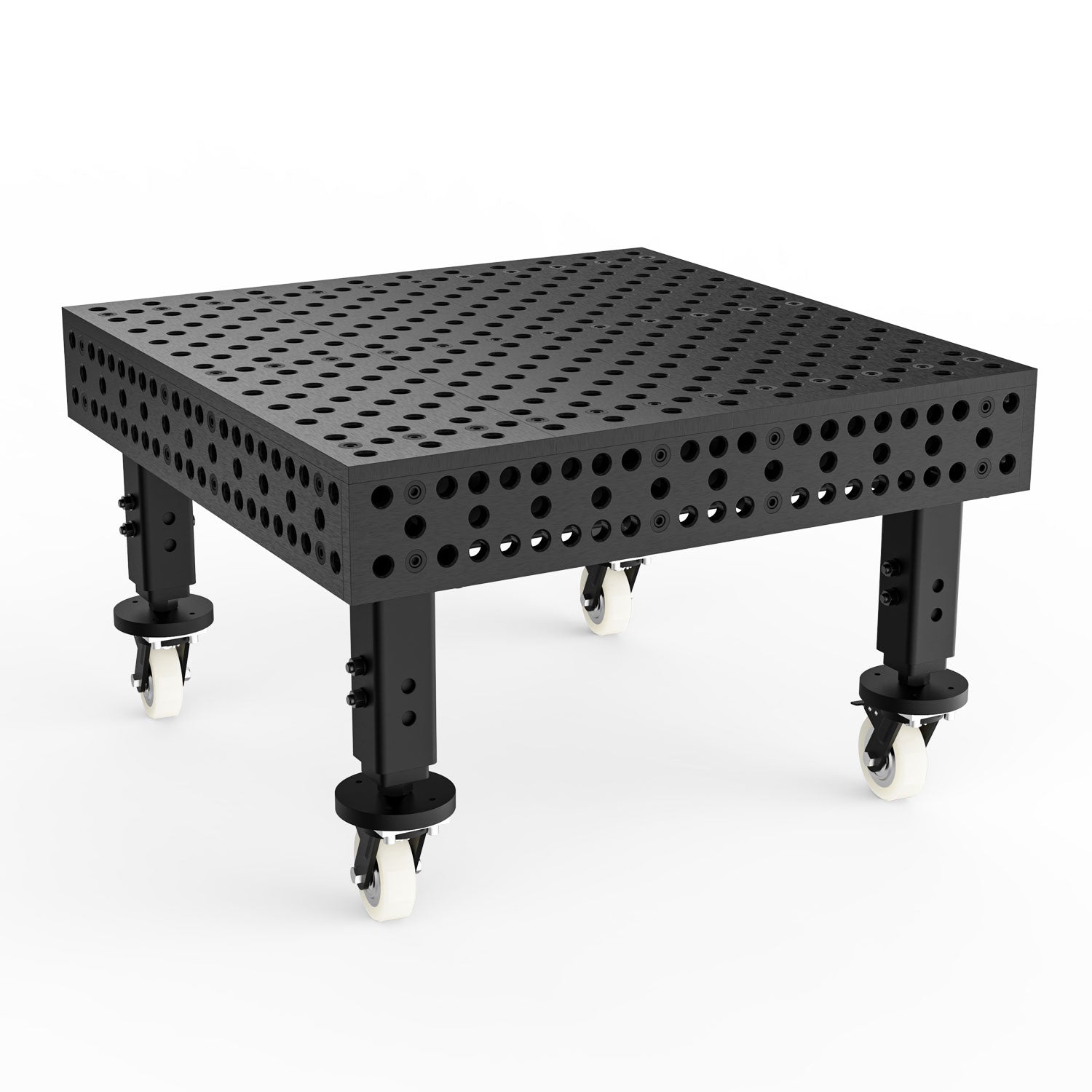

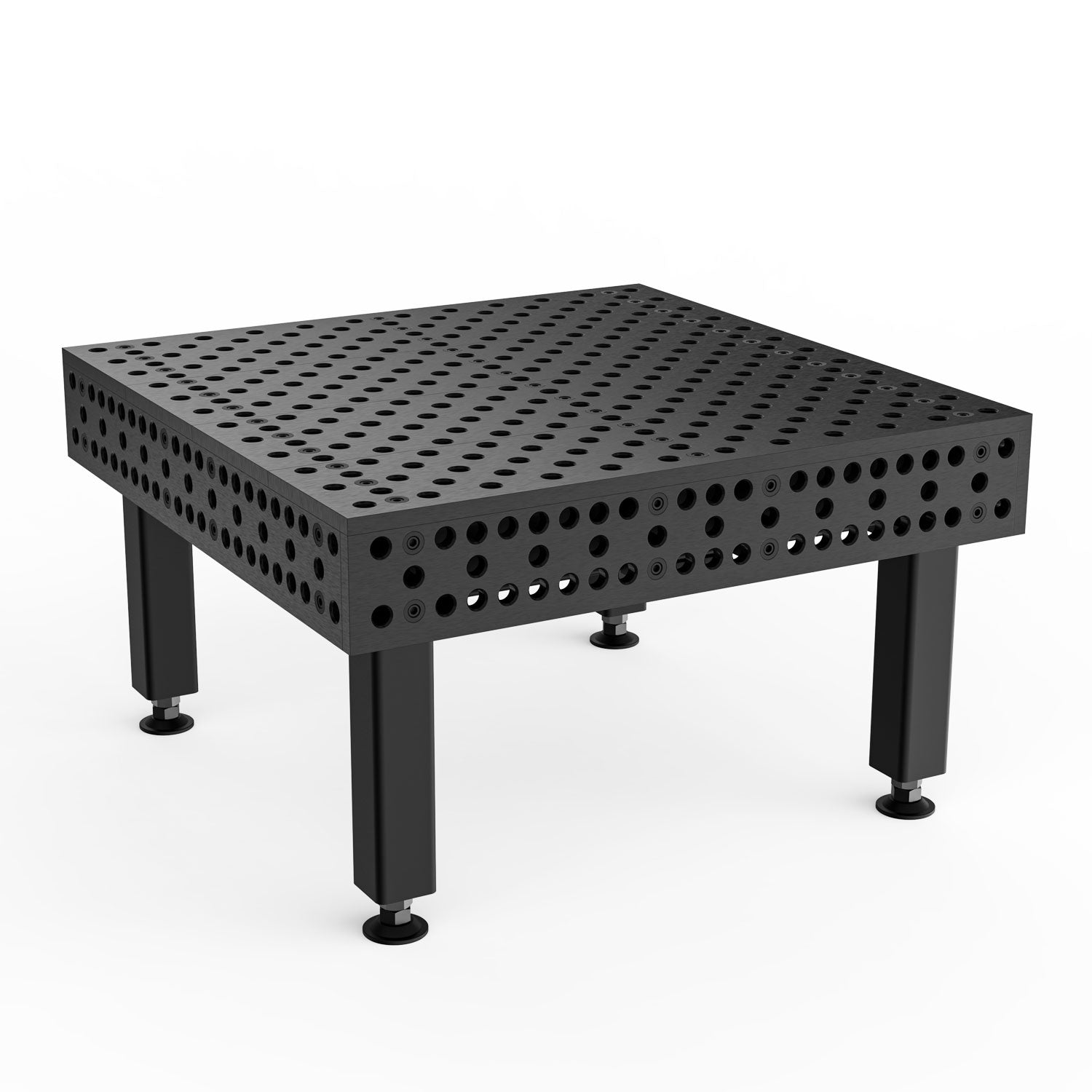

Table Accuracy
Hole Diameter: | 28 + .20 /-0 mm |
Hole Spacing: | 100 ±0.05 mm |
Table Flatness: | ±0.125 mm per 600 x 600 mm |
Plate Thickness: | 25 ±0.06 mm |
Tabletop Finish: | Nitrided (Heat-Treated) |
Surface Hardness: | 58-62 HRC |
Coefficient of Friction: | 0.37 |
Top Plate
Material: | P20 |
Hardness: | 58-62 HRC |
Side Plate
Material: | Q345B |
Hardness: | 50-55 HRC |

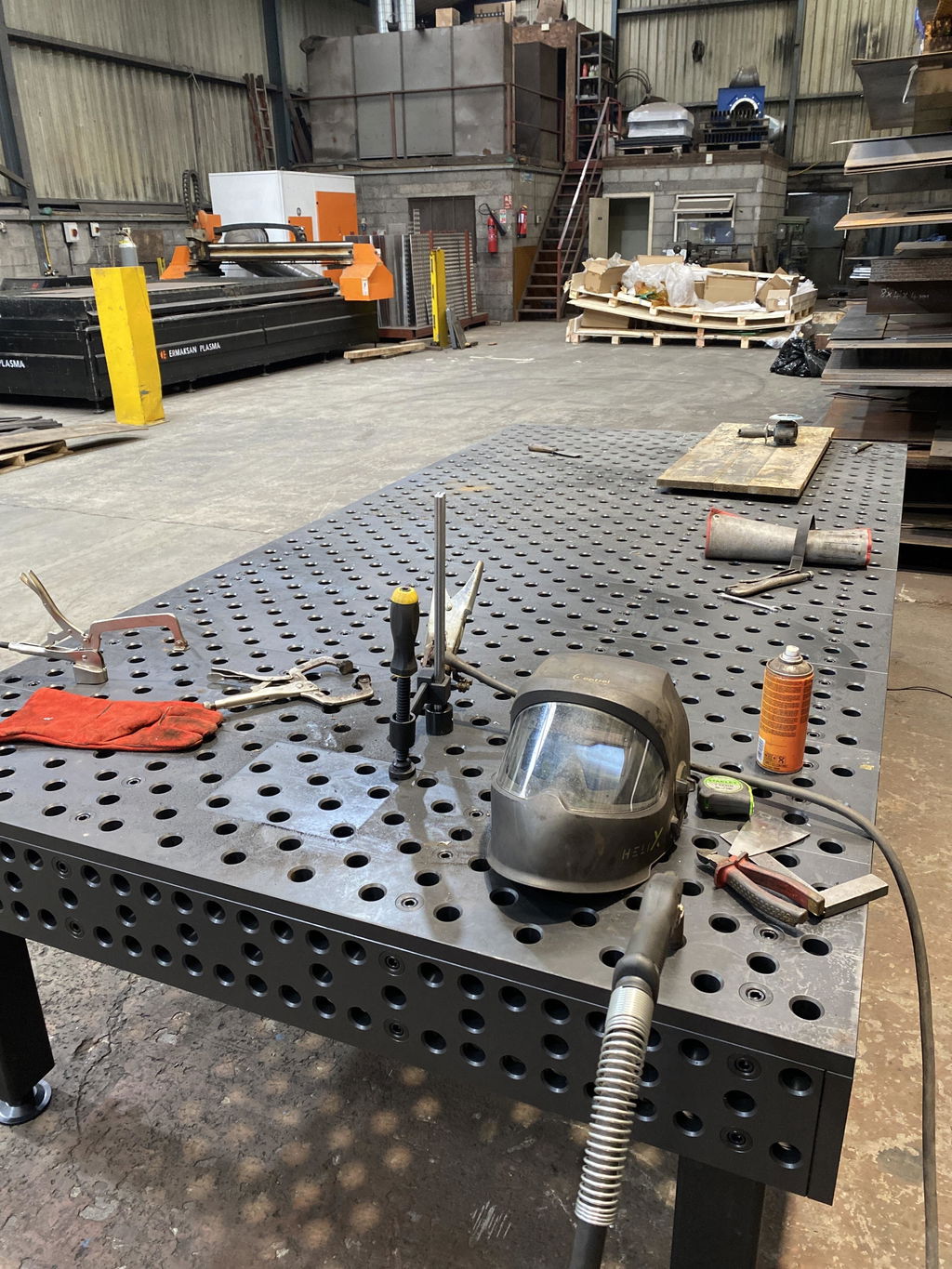

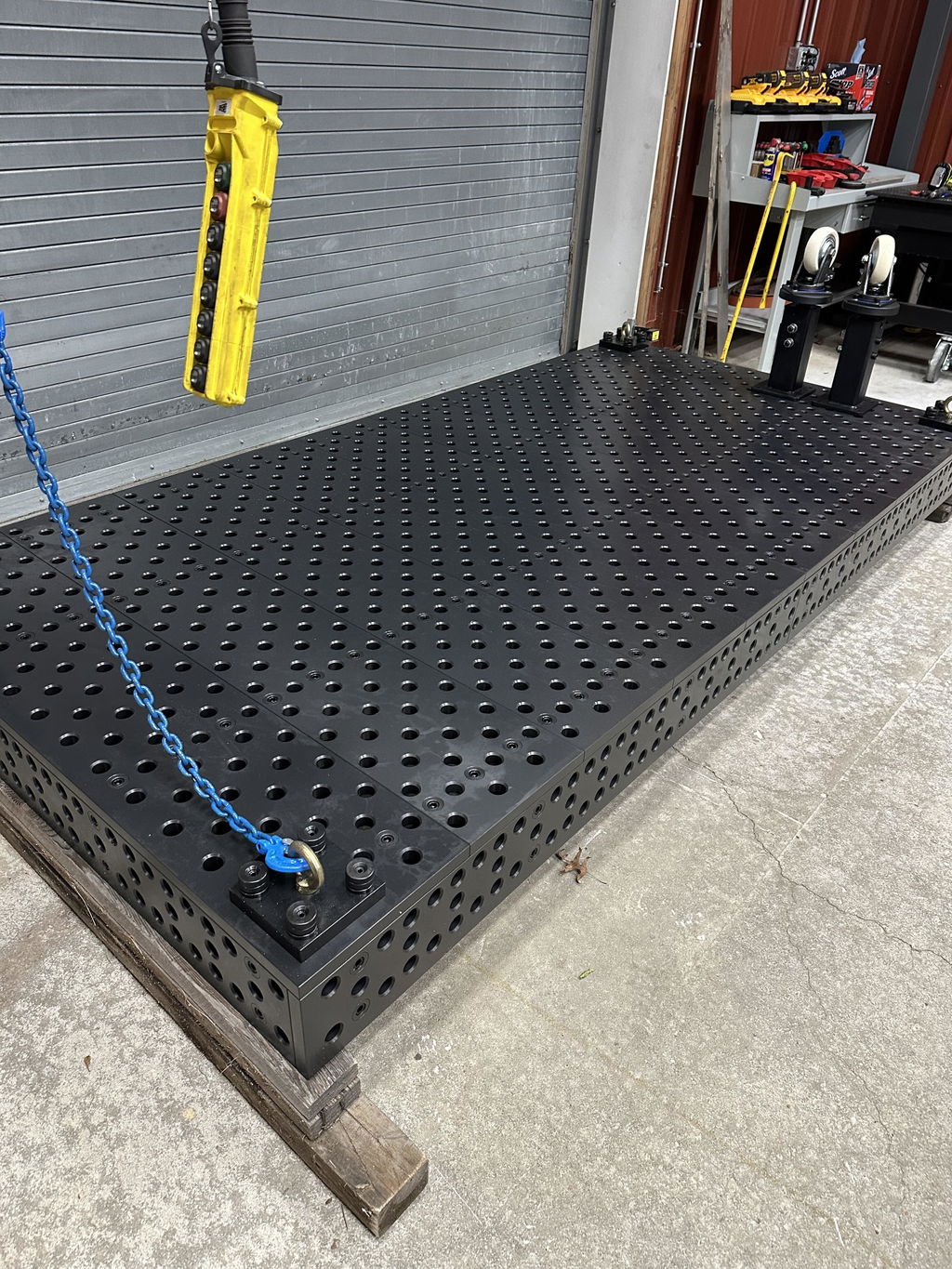

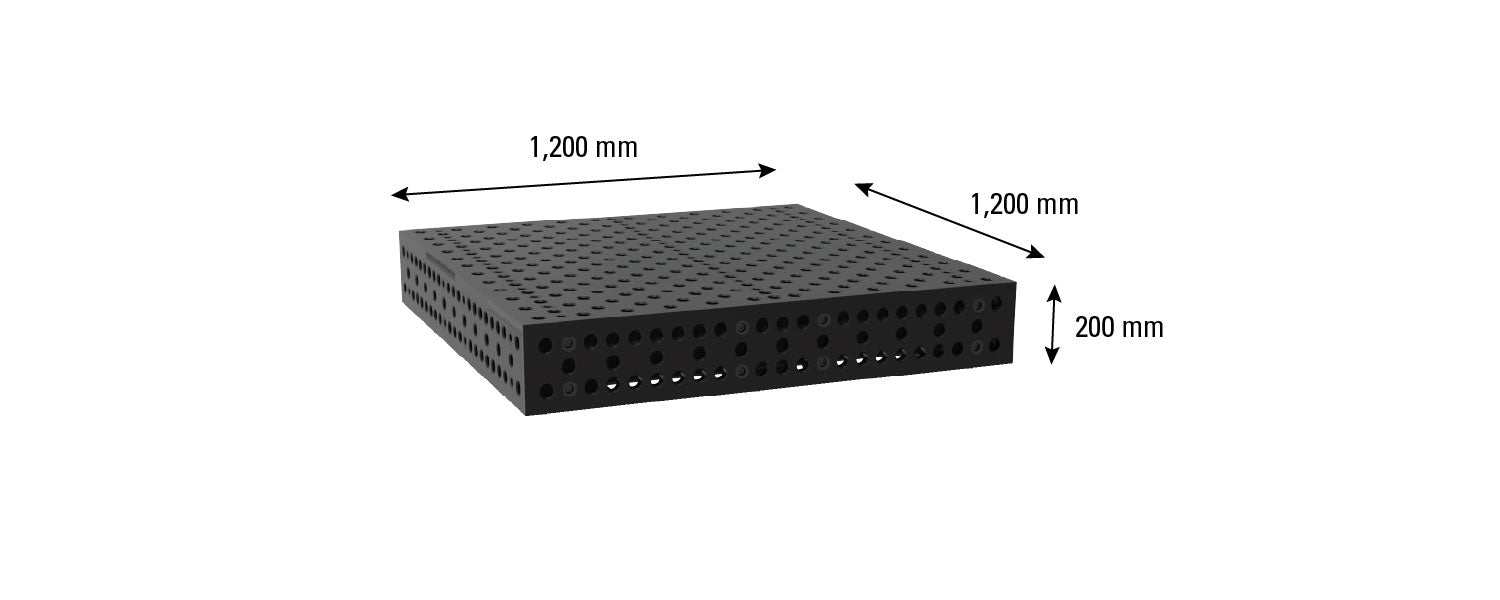

View this table in your shop
Table Accuracy
Hole Diameter: | 28 + .20 /-0 mm |
Hole Spacing: | 100 ±0.05 mm |
Table Flatness: | ±0.125 mm per 600 x 600 mm |
Plate Thickness: | 25 ±0.06 mm |
Tabletop Finish: | Nitrided (Heat-Treated) |
Surface Hardness: | 58-62 HRC |
Coefficient of Friction: | 0.37 |
Top Plate
Material: | P20 |
Hardness: | 58-62 HRC |

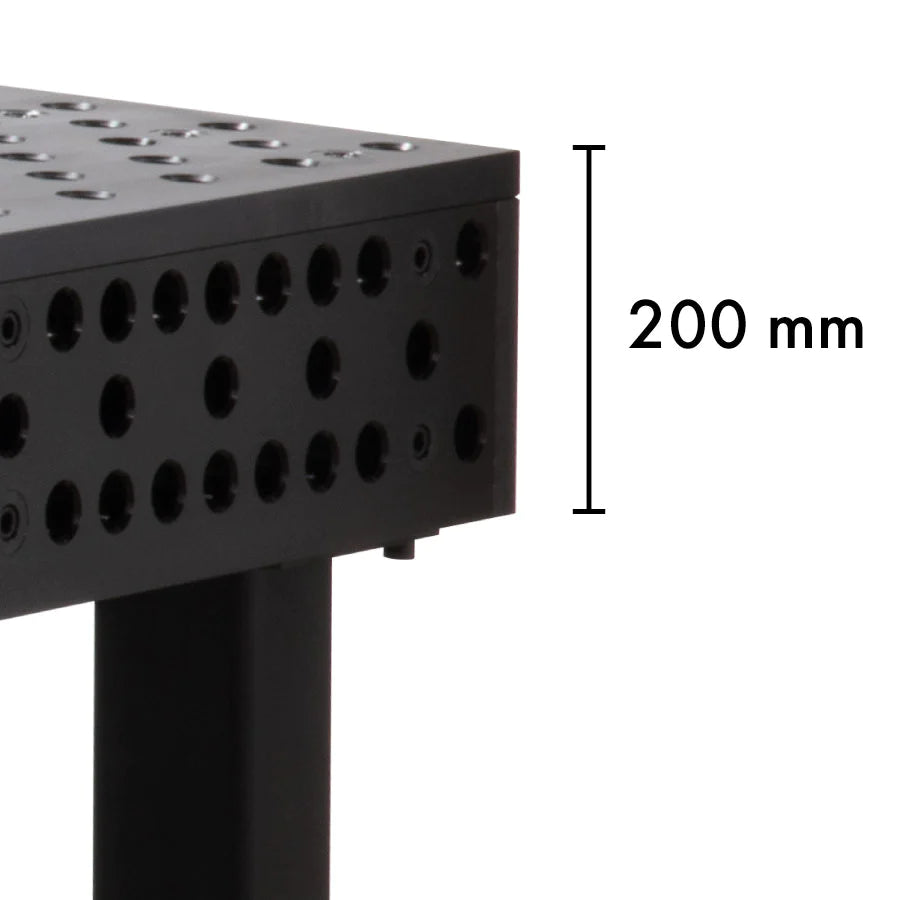

Side Plate
Material: | Q345B |
Hardness: | 50-55 HRC |
Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.
QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.

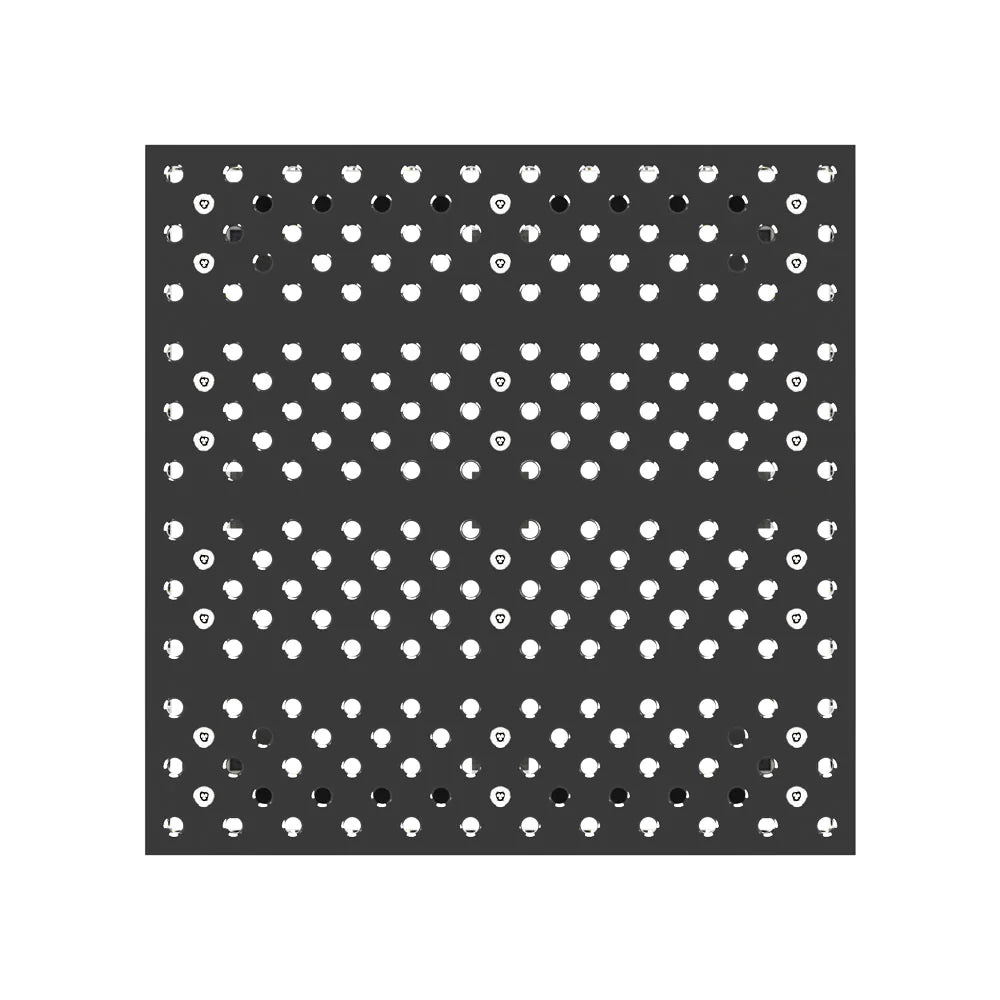

Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.
Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.
QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.
Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.
System Borehole
Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm
Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.
