Table Accuracy
Hole Diameter: | 28 + .20 /-0 mm |
Hole Spacing: | 100 ±0.05 mm |
Table Flatness: | ±0.125 mm per 600 x 600 mm |
Plate Thickness: | 25 ±0.06 mm |
Tabletop Finish: | Nitrided (Heat-Treated) |
Surface Hardness: | 58-62 HRC |
Coefficient of Friction: | 0.37 |
Top Plate
Material: | P20 |
Hardness: | 58-62 HRC |
Side Plate
Material: | Q345B |
Hardness: | 50-55 HRC |
View this table in your shop
Table Accuracy
Hole Diameter: | 28 + .20 /-0 mm |
Hole Spacing: | 100 ±0.05 mm |
Table Flatness: | ±0.125 mm per 600 x 600 mm |
Plate Thickness: | 25 ±0.06 mm |
Tabletop Finish: | Nitrided (Heat-Treated) |
Surface Hardness: | 58-62 HRC |
Coefficient of Friction: | 0.37 |
Top Plate
Material: | P20 |
Hardness: | 58-62 HRC |
Side Plate
Material: | Q345B |
Hardness: | 50-55 HRC |
Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.
QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.
Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.
Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.
QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.
Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.

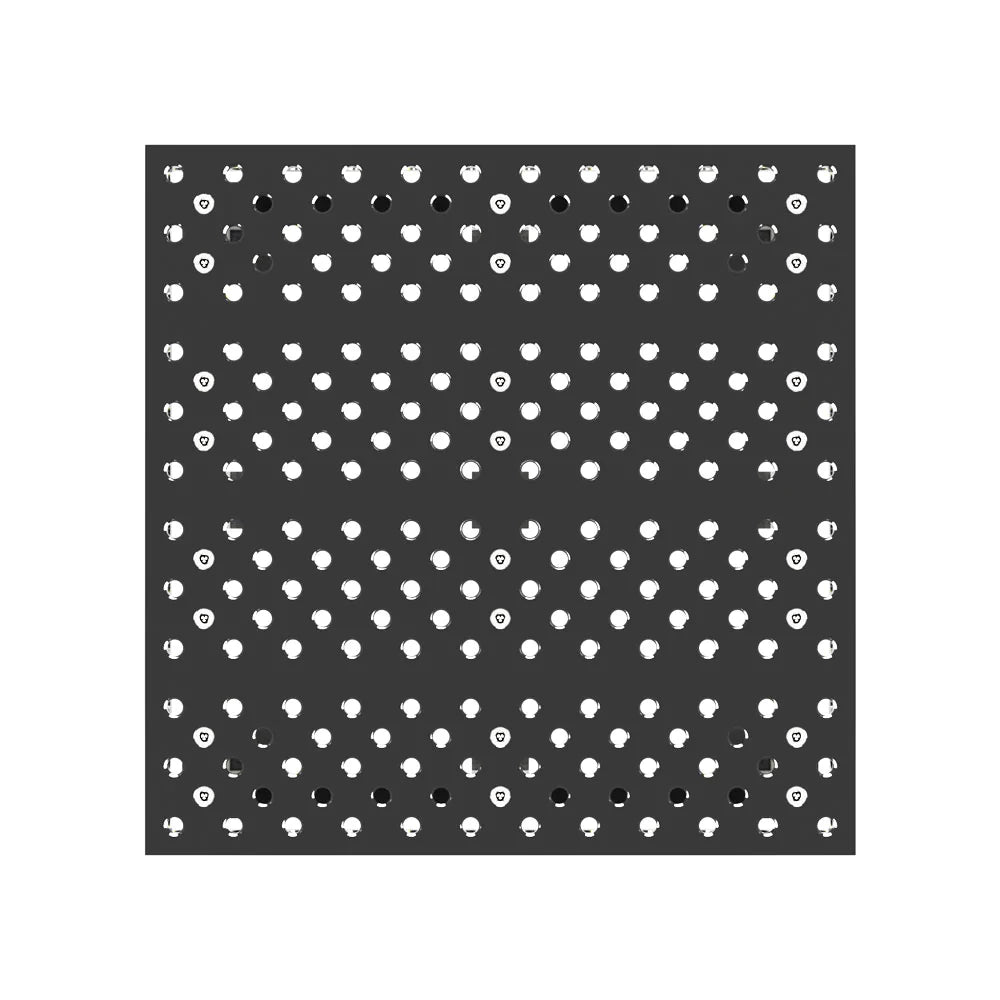

System Borehole
Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm
Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.
Material Thickness
Table surface
Self-locating Plate System for Top and Side Plates

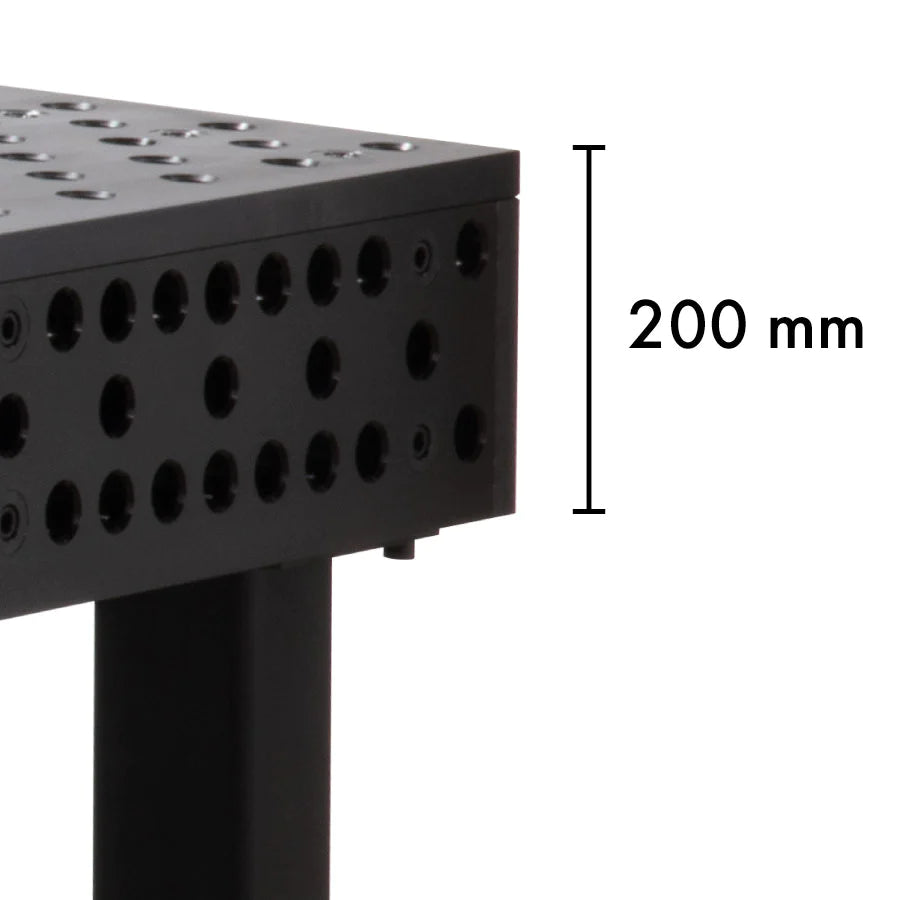

Table Side Panel
Plate Mounting Detail for Side Plates
System Borehole
Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm
Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.
Material Thickness
Table surface
Self-locating Plate System for Top and Side Plates
Table Side Panel
Plate Mounting Detail for Side Plates
What people say about us:
I am still waiting on the fixture kit but so far am very impressed with the craftsmanship put into this table. It is super heavy but easy to assemble with the help of a forklift.
Kevin T
Morro Bay, CA
These tables are exceeding my expectations. They are built much heavier than what I envisioned.
Don W
Manitowoc, WI
Excellent size. Good access for mounting and tool insertion. Very stiff. Very straight.
David S
San Luis Obispo, CA

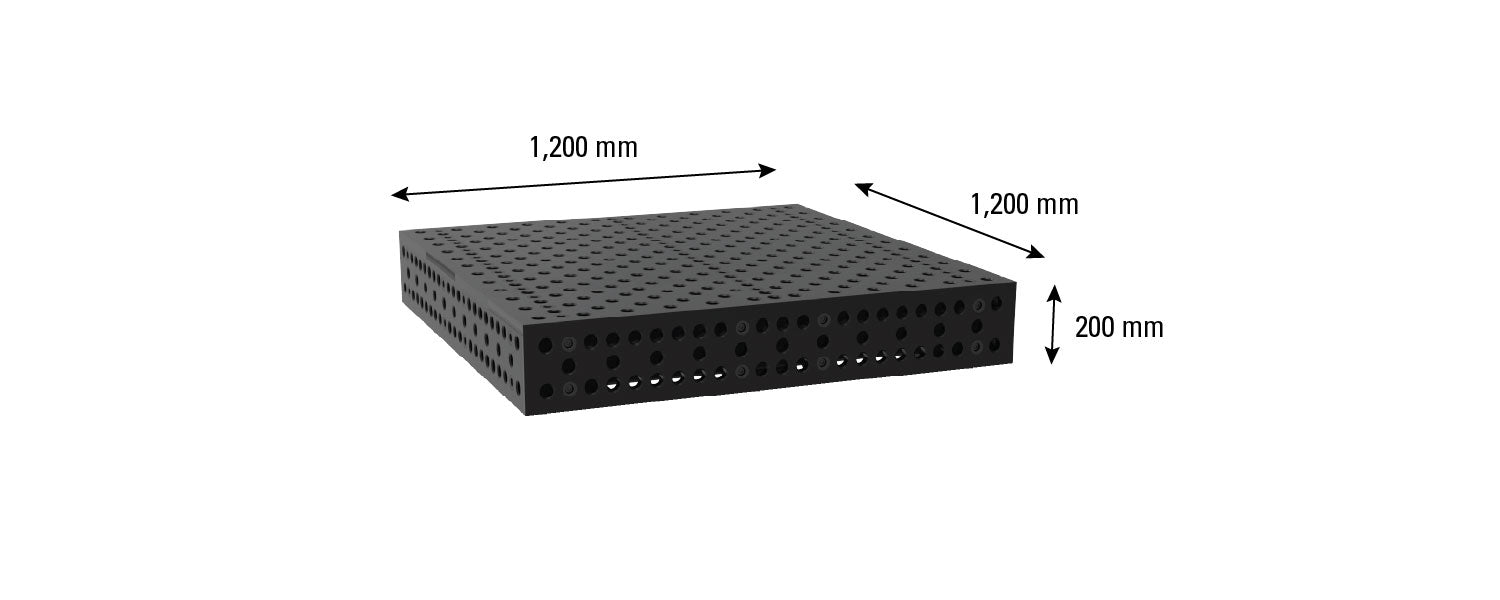

Tabletop + Fixed Length Legs
Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
---|---|---|---|---|

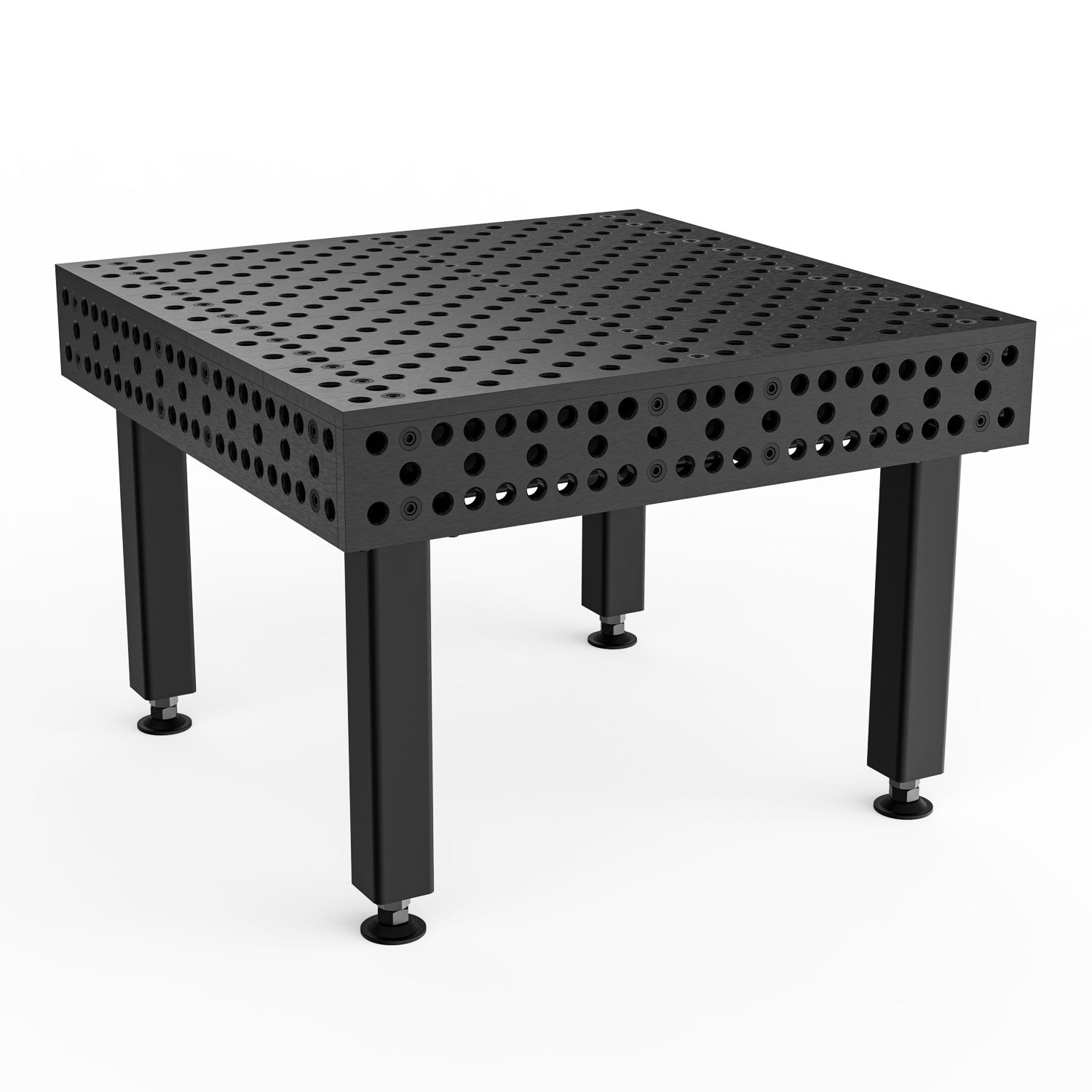

T28-1212XQ-A1 | T28-81007 | 850 | 4,000 | 579 |

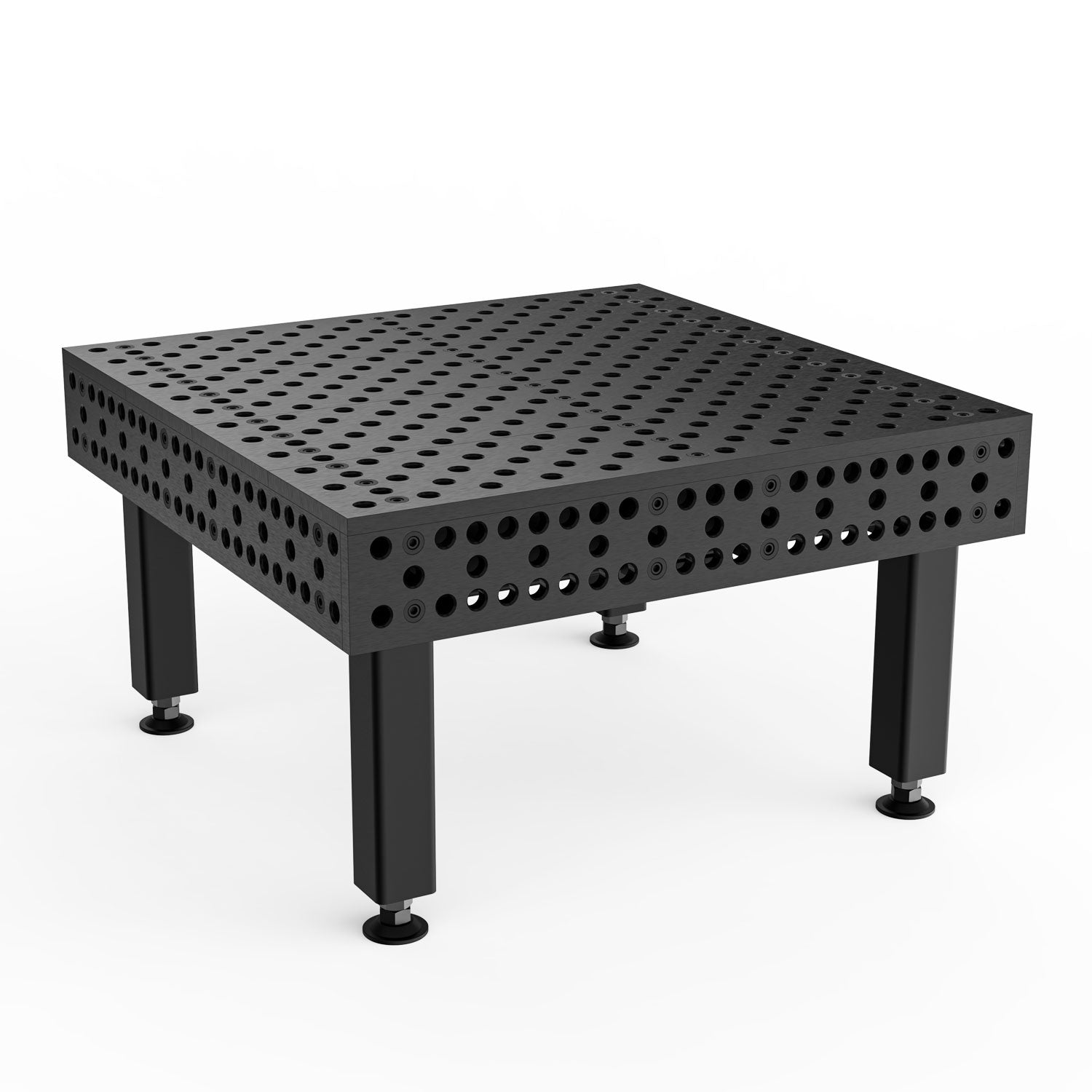

T28-1212XQ-A2 | T28-81005 | 700 | 4,000 | 577 |

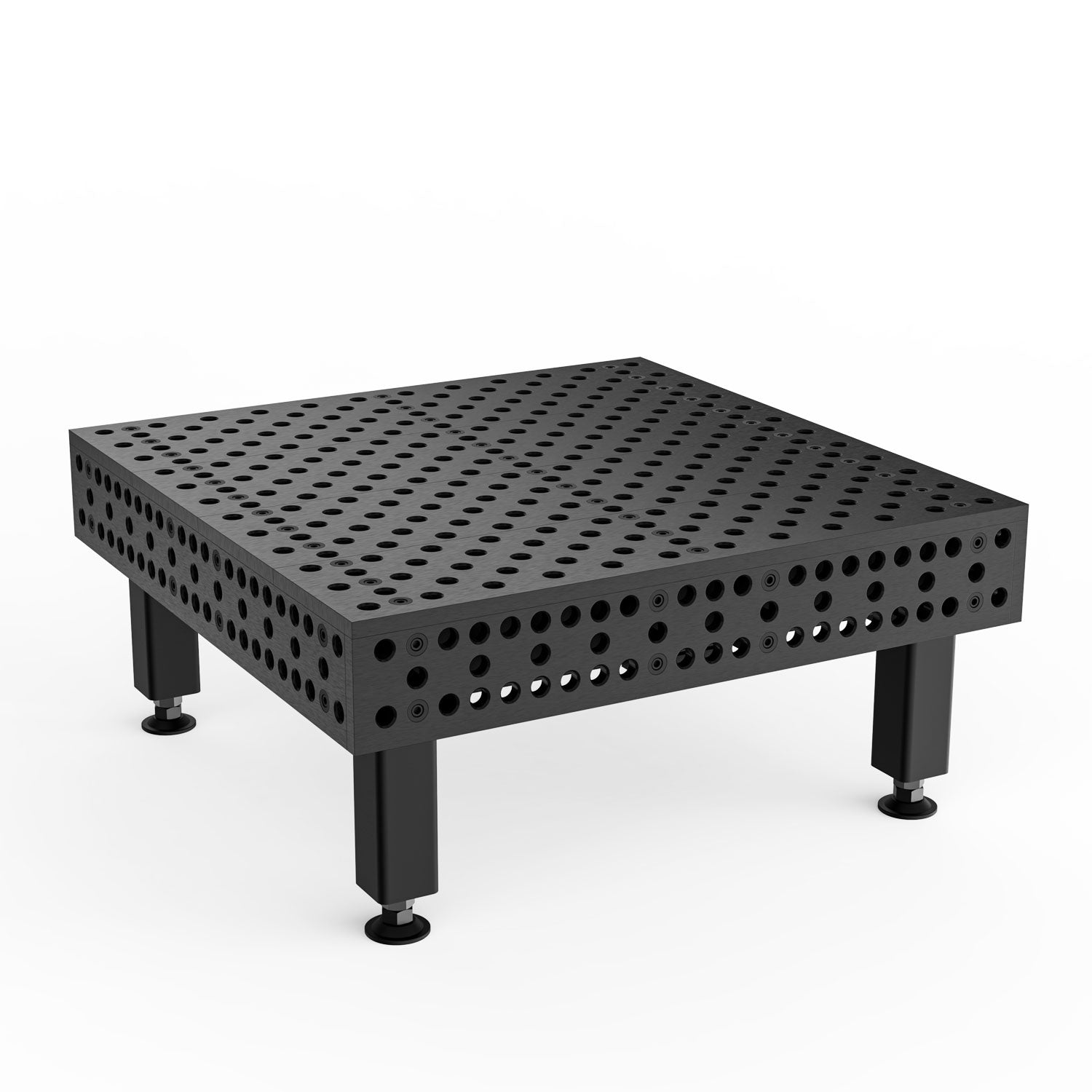

T28-1212XQ-A3 | T28-81004 | 600 | 4,000 | 574 |
Tabletop + Height-Adjustable Legs 620 ~ 970 mm
Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
---|---|---|---|---|

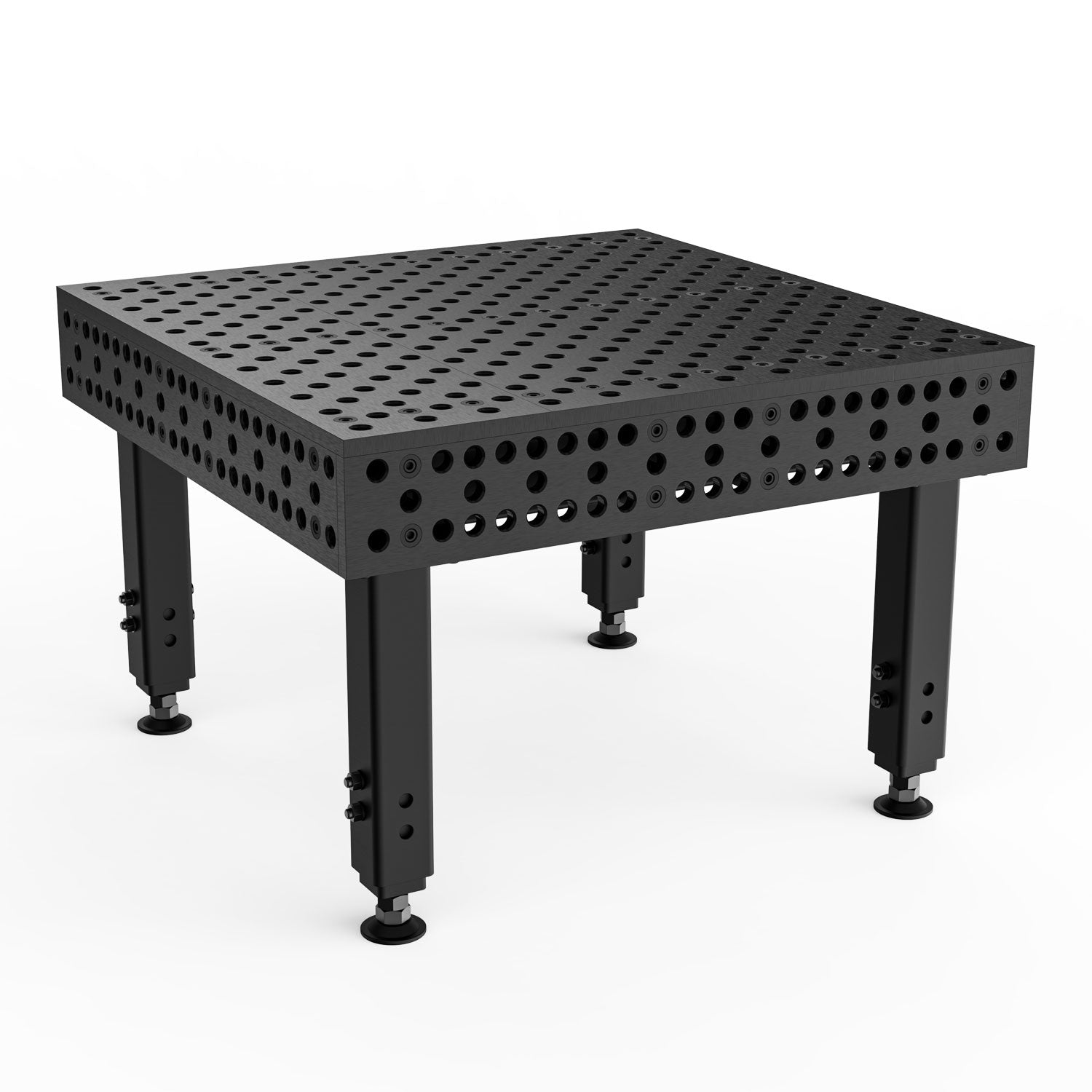

T28-1212XQ-B1 | T28-82009 | 750 ~ 1,100 | 4,000 | 622 |
Tabletop + Height-Adjustable Legs + Caster and Locking Brake 575 ~ 780 mm
Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
---|---|---|---|---|

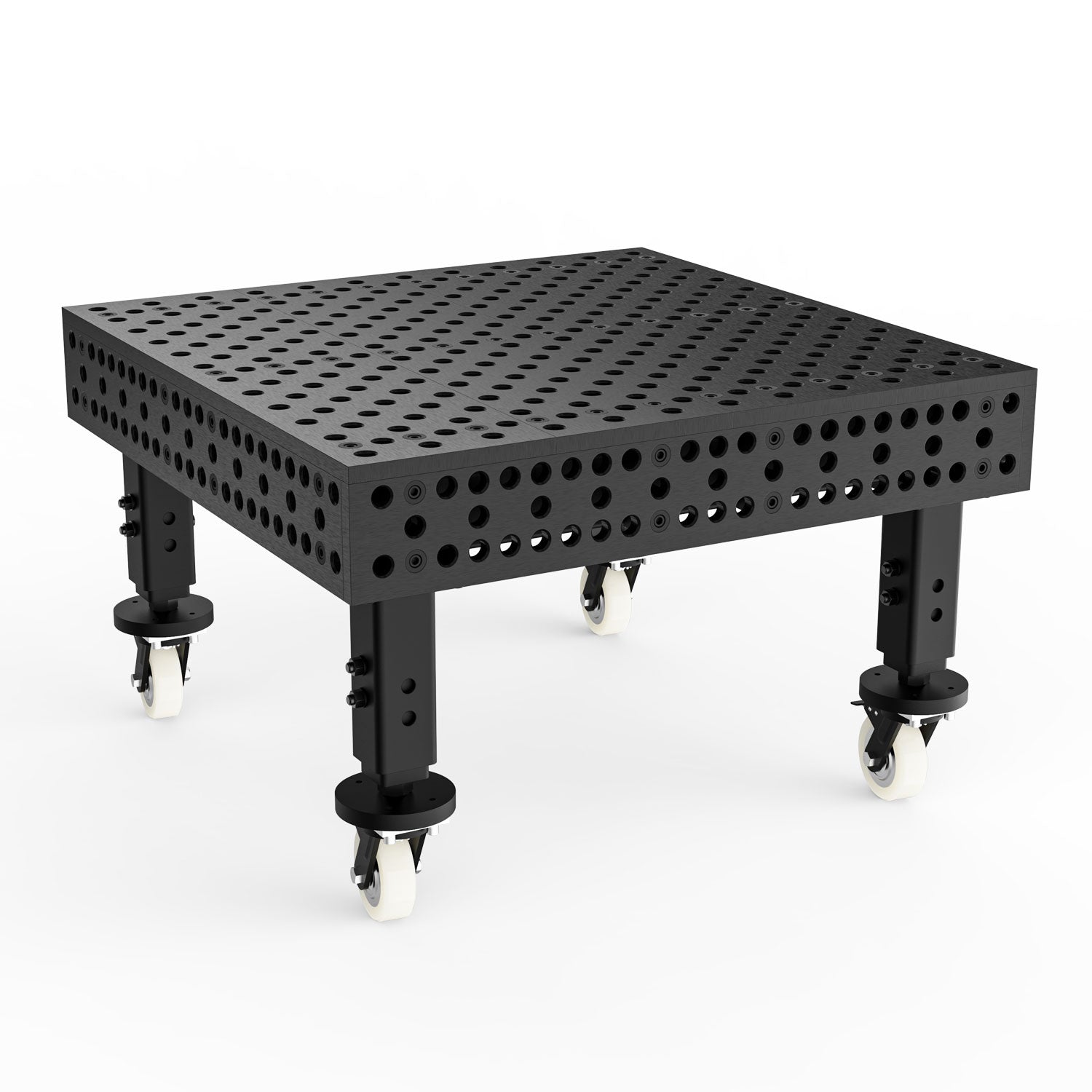

T28-1212XQ-C1 | T28-82407 | 750 ~ 950 | 3,200 | 668 |
Tabletop + Fixed Length Legs + Caster and Locking Brake 845 mm
Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
---|---|---|---|---|

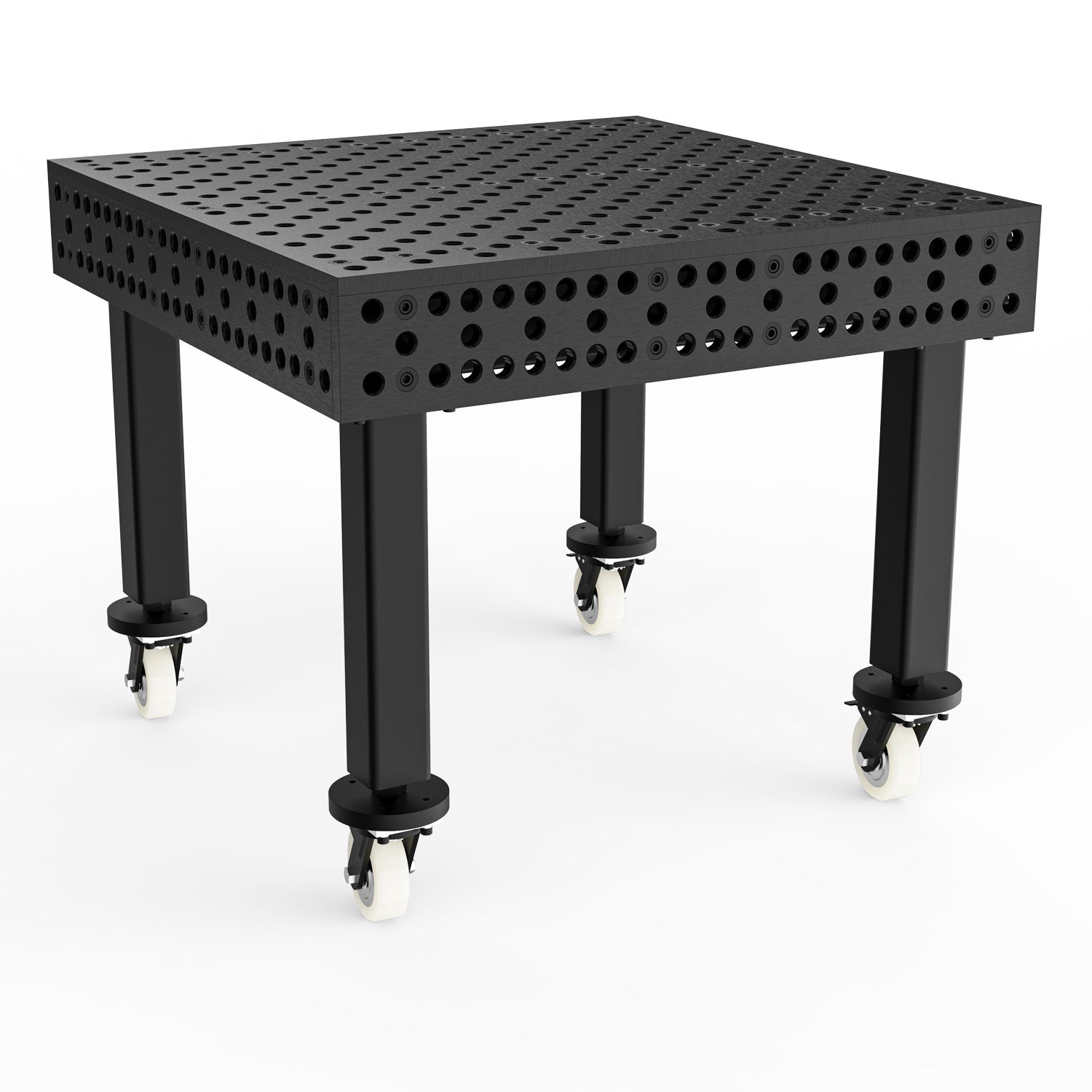

T28-1212XQ-C2 | T28-81406 | 850 | 3,200 | 625 |
