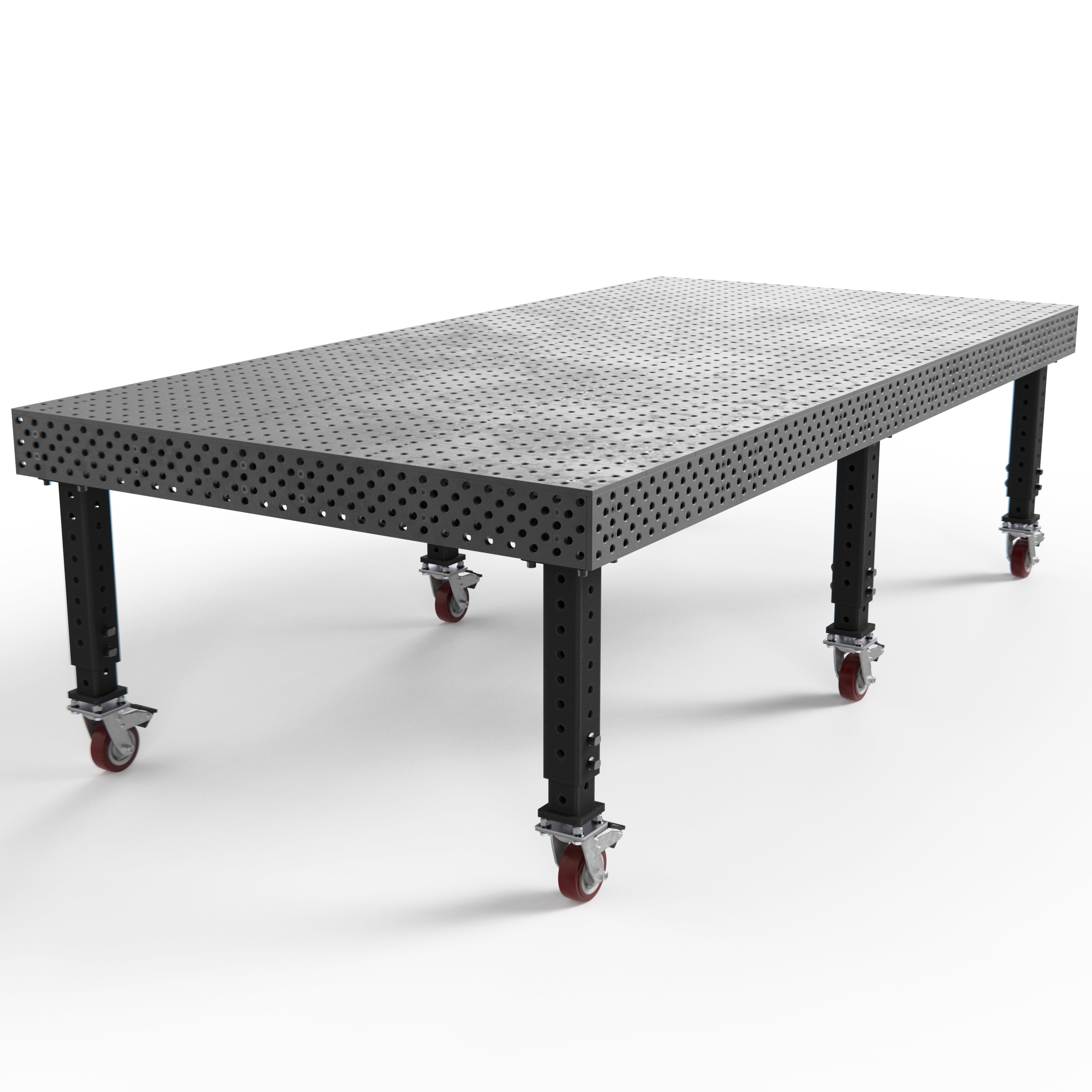

Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System
Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System

Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System

Alpha, 5-Sided, 10' x 5' (120" x 60") Table, 5/8" System

Patented

SKU: TA5-12060Q-A1

Custom Spec Bar
LEGO Logo
5/8"
Hole Diameter
LEGO Logo
2"
Hole Spacing
LEGO Logo
Nitrided
Material Finish
LEGO Logo
5
Table Sides
6x Legs: Heavy Duty 30-1/4"
$11,695.00 USD
$11,695.00 USD
Shipping calculated at checkout.
  • Eligible for Return Within 30 Days.
  • One Year Limited Warranty

  • Product Dimensions and Specifications: The table measures 120" x 60" with a 6" side height; it features 5/8" boreholes spaced 2" apart for precise fixturing and a five-sided, reversible design to extend usability.
  • Material and Construction: Constructed from P20 top plate (hardness 58-62 HRC) and Q345B sides (hardness 50-55 HRC), with a nitrided finish for enhanced durability; flatness tolerance is ±0.005" per 24" x 24".
  • Key Features: Includes self-locating, reversible plates that can be rotated 180° when worn; extended hole patterns on sides for added versatility; rated for static loads (specific capacity not detailed).
  • Additional Options and Pricing: Optional leg brace available for older models; pricing requires a quote request, as it is not listed on the page.

* All load capacities are calculated based on static load.
* If you have the legacy model that comes with yellow round legs, optional Leg Brace Assembly TMLB120A is suggested.

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

Table Accuracy

Hole Diameter: 0.625" + .002 / -.000
Hole Spacing: 2.000" ±0.001
Table Flatness: ±0.005 per 24" x 24"
Plate Thickness: 0.47" ±0.004
Tabletop Finish: Nitrided (Heat-Treated)
Surface Hardness: 58-62 HRC
Coefficient of Friction: 0.37

Top Plate

Material: P20
Hardness: 58-62 HRC

Side Plate

Material: Q345B
Hardness: 50-55 HRC

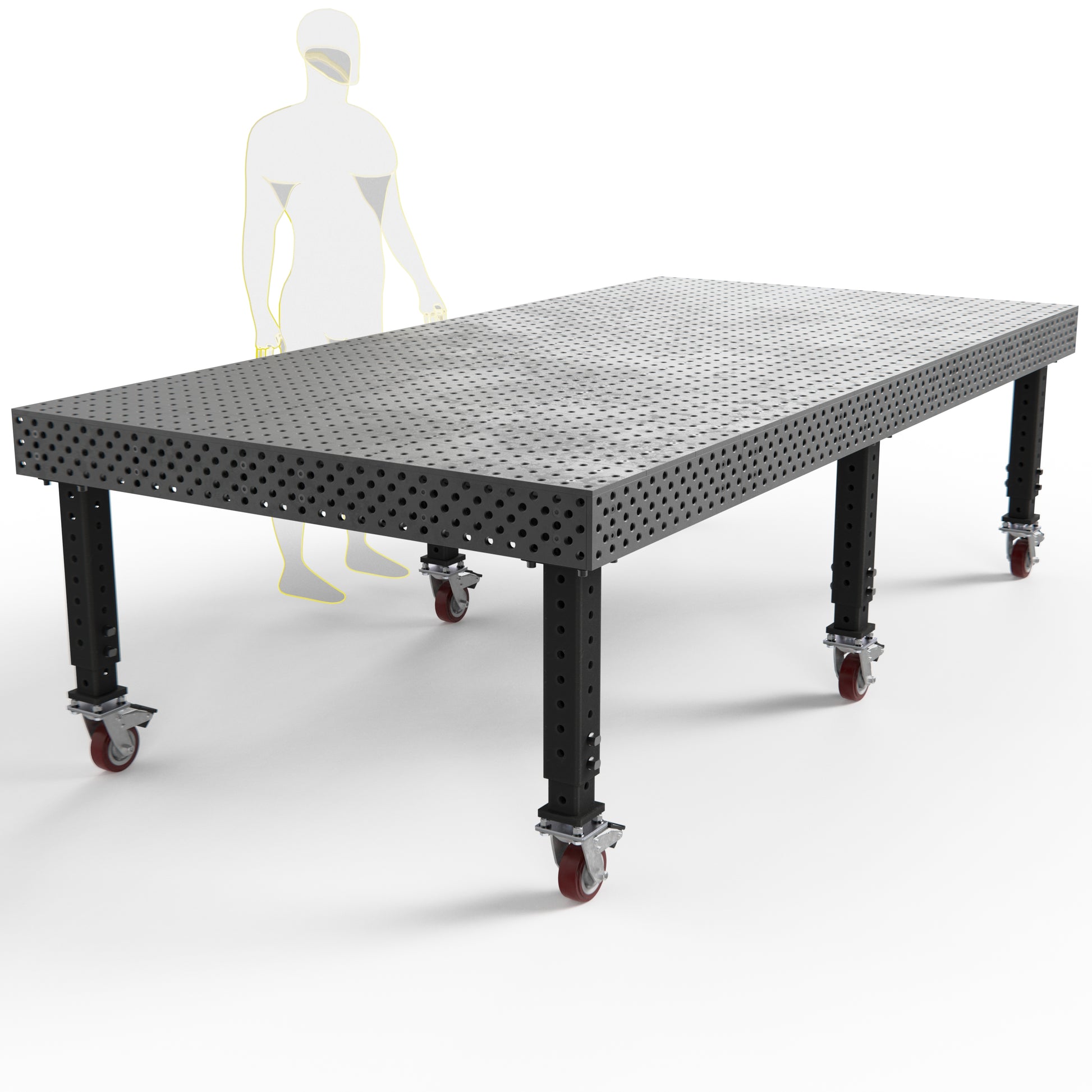

View this table in your shop

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

Table Accuracy

Hole Diameter: 0.625" + .002 / -.000
Hole Spacing: 2.000" ±0.001
Table Flatness: ±0.005 per 24" x 24"
Plate Thickness: 0.47" ±0.004
Tabletop Finish: Nitrided (Heat-Treated)
Surface Hardness: 58-62 HRC
Coefficient of Friction: 0.37

Top Plate

Material: P20
Hardness: 58-62 HRC

Side Plate

Material: Q345B
Hardness: 50-55 HRC

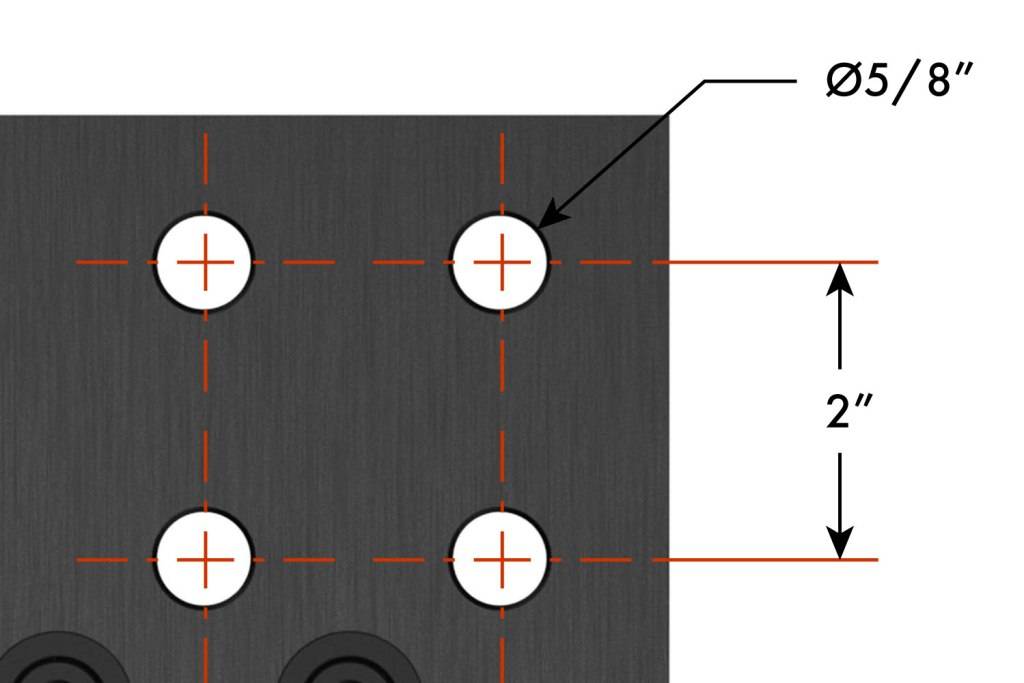

Precision ground steel plates, with CNC machined Ø5/8" holes in a 2" grid pattern for locating, positioning and mounting BuildPro clamps and accessories.

Plates can be reconfigured to expand the width of the table for larger projects.

Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.

Precision ground steel plates, with CNC machined Ø5/8" holes in a 2" grid pattern for locating, positioning and mounting BuildPro clamps and accessories.

Plates can be reconfigured to expand the width of the table for larger projects.

Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.

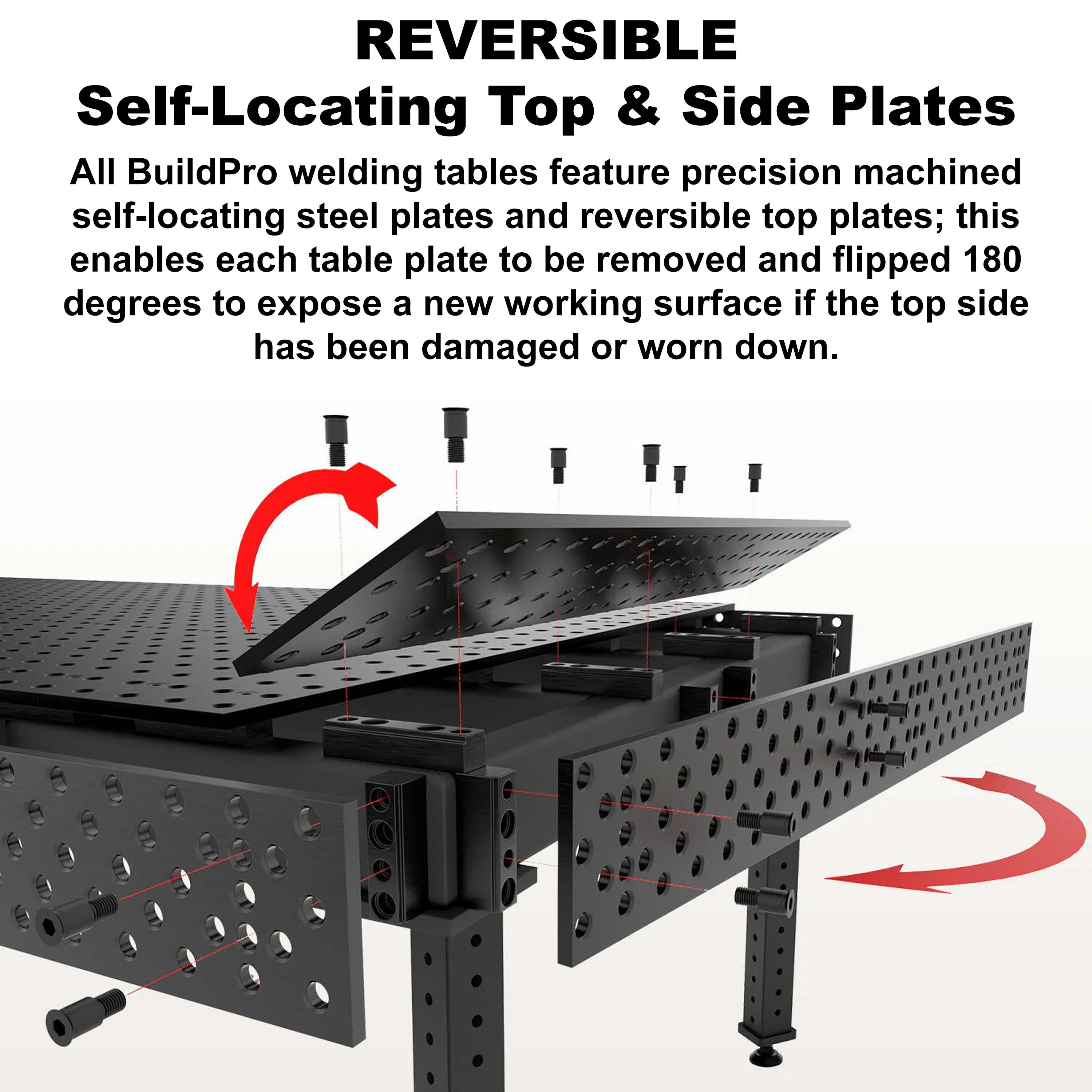

REVERSIBLE Self-Locating Top & Side Plates

All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.

Table Accuracy

Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.47″ ±0.004

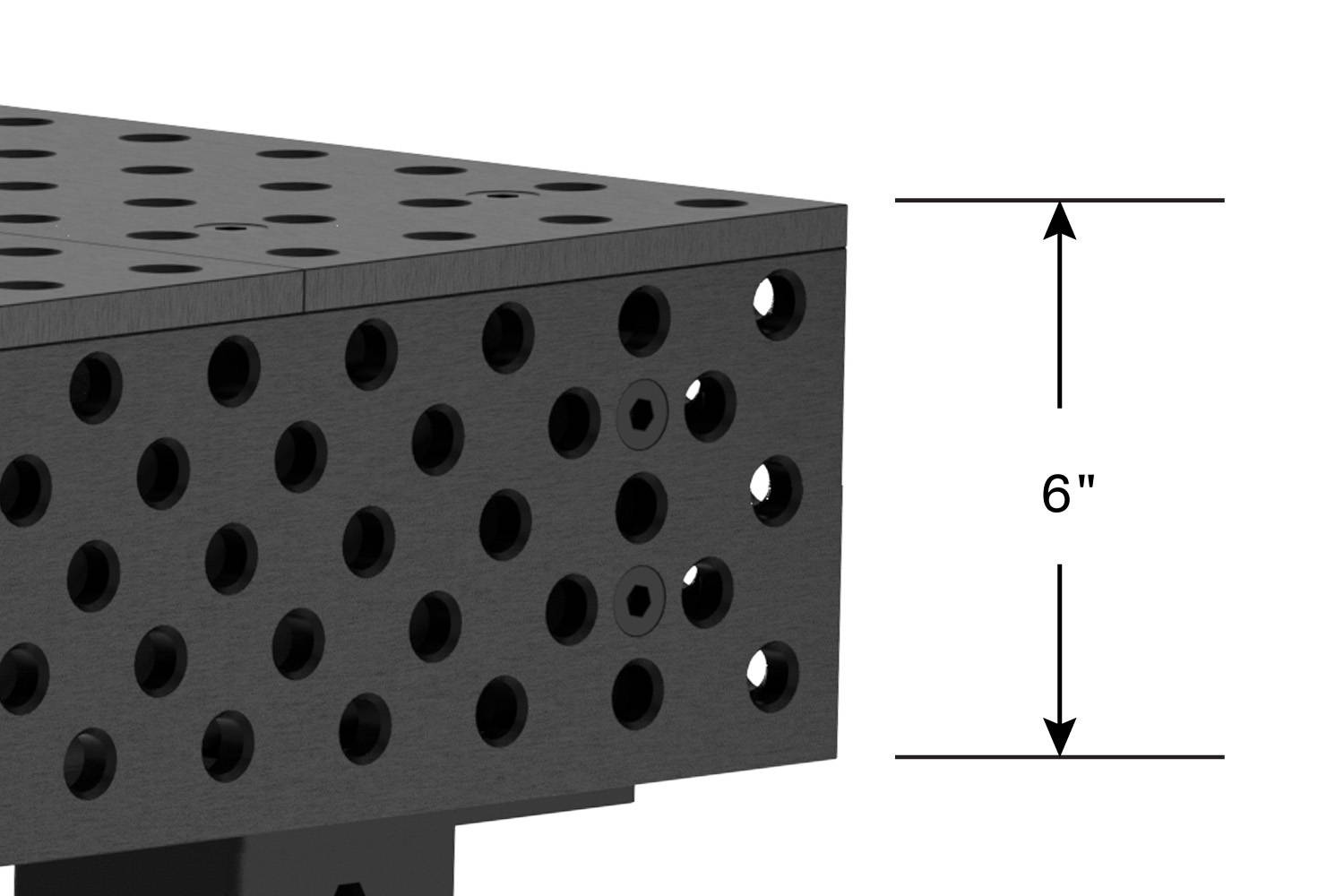

Tabletop Side Height

The new five-sided tables feature a 5-1/2″ side plate combined with the top plate to create a 6″ height.

Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.

Nitrided (Heat-Treated) Tabletop

All top and side plates of alpha table are constructed from heat-treated steel, hardened to 58-62 HRC (top) and 50-55 HRC (side), and finished with a nitrite coating with a case depth of .0004-.0008″.

REVERSIBLE Self-Locating Top & Side Plates

All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.

Table Accuracy

Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.47″ ±0.004

Tabletop Side Height

The new five-sided tables feature a 5-1/2″ side plate combined with the top plate to create a 6″ height.

Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.

Nitrided (Heat-Treated) Tabletop

All top and side plates of alpha table are constructed from heat-treated steel, hardened to 58-62 HRC (top) and 50-55 HRC (side), and finished with a nitrite coating with a case depth of .0004-.0008″.

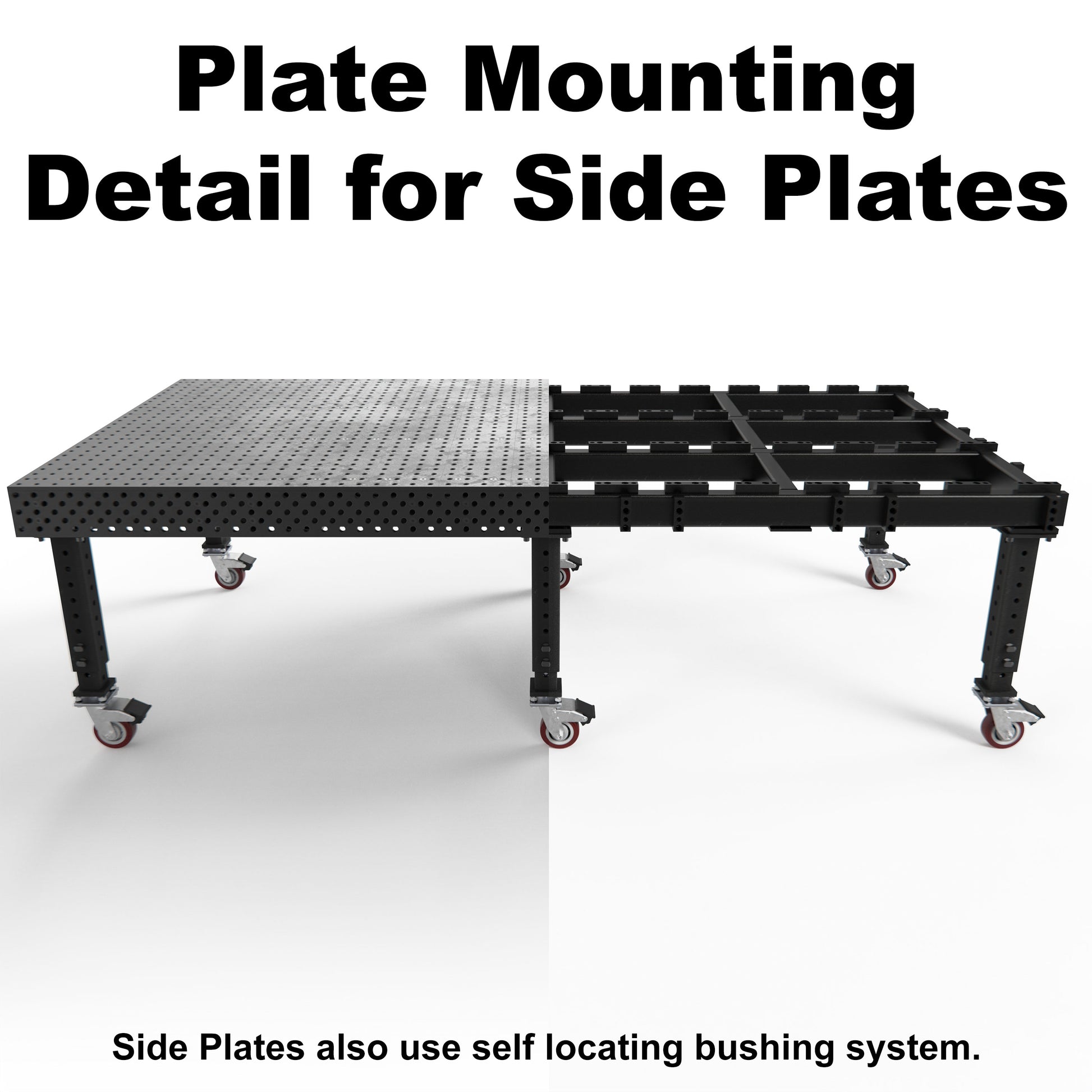

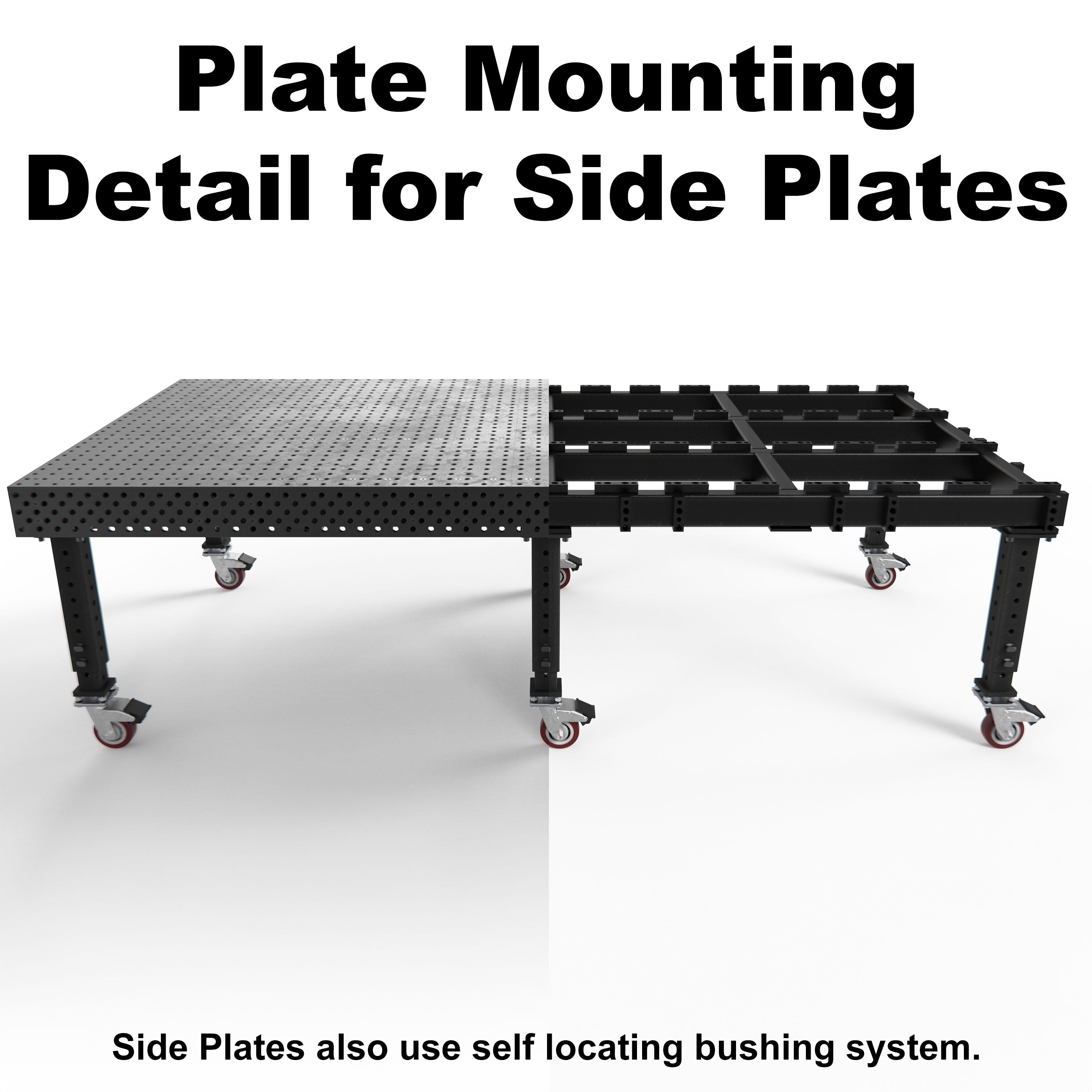

Plate Mounting Detail for Side Plates​

Side Plates also use self locating bushing system.

Side Plates also use self locating bushing system.

Plate Mounting Detail for Side Plates

Fully Assembled

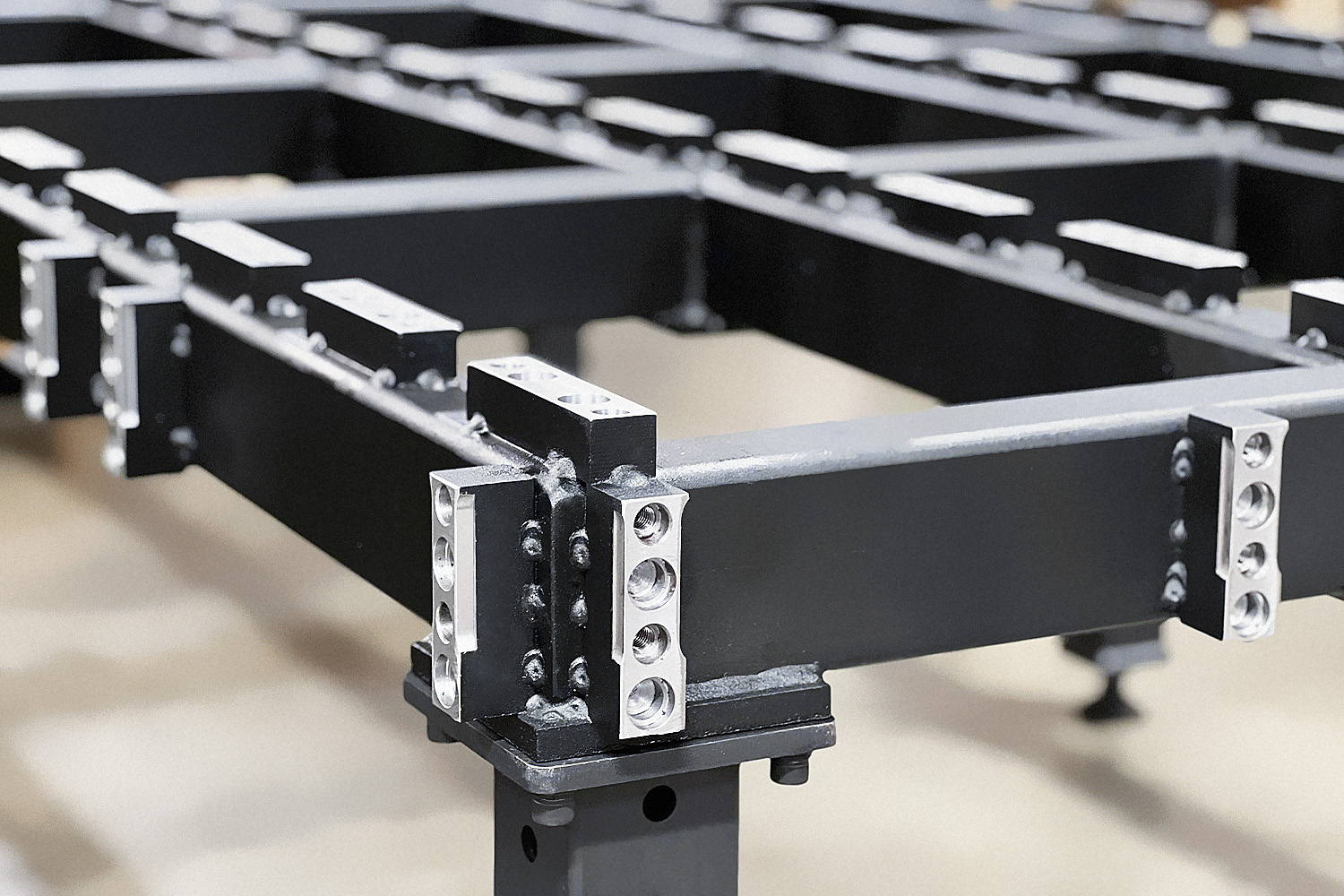

Plate Frame
