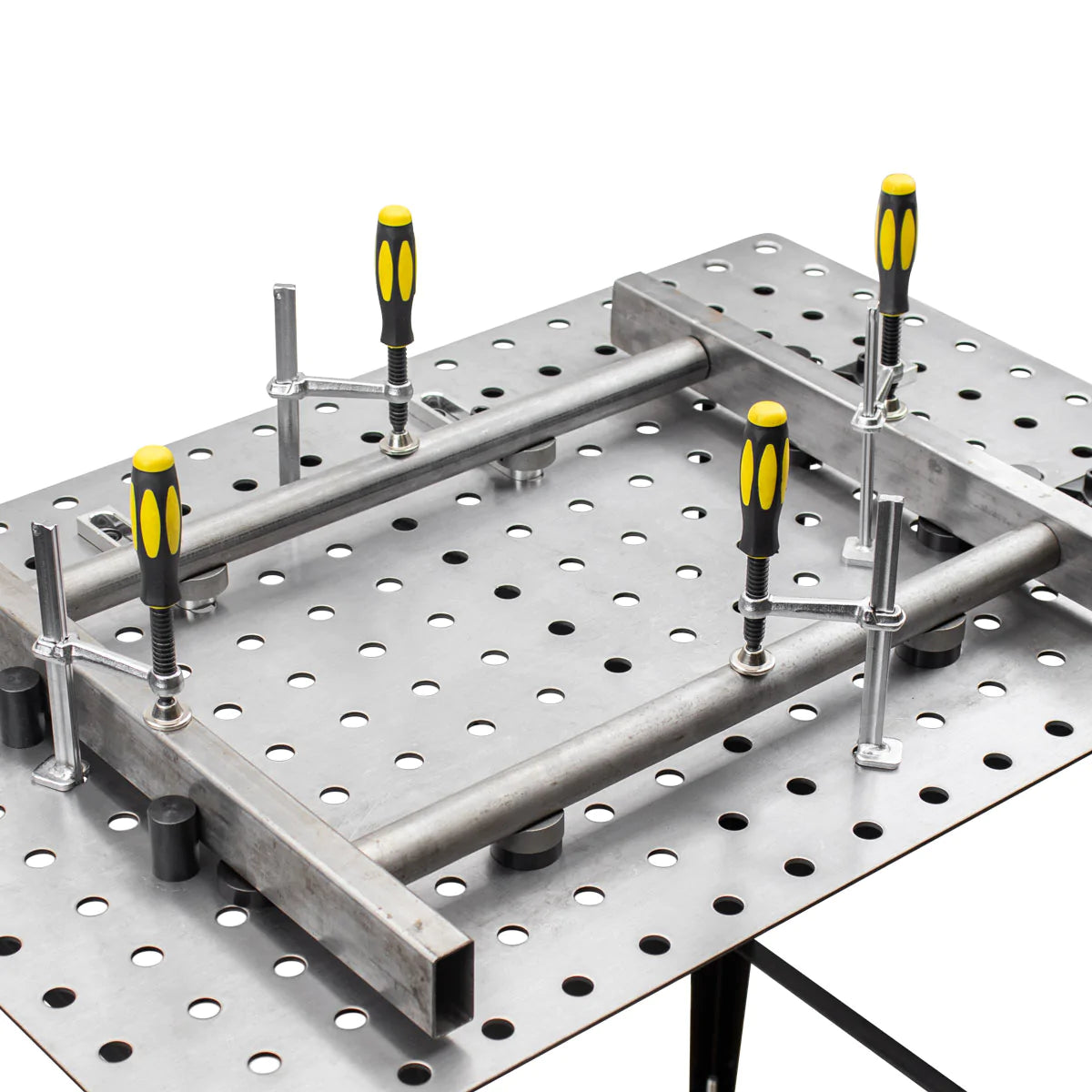

Load image into Gallery viewer, Square and Round Tubes Frame on fixturepoint table

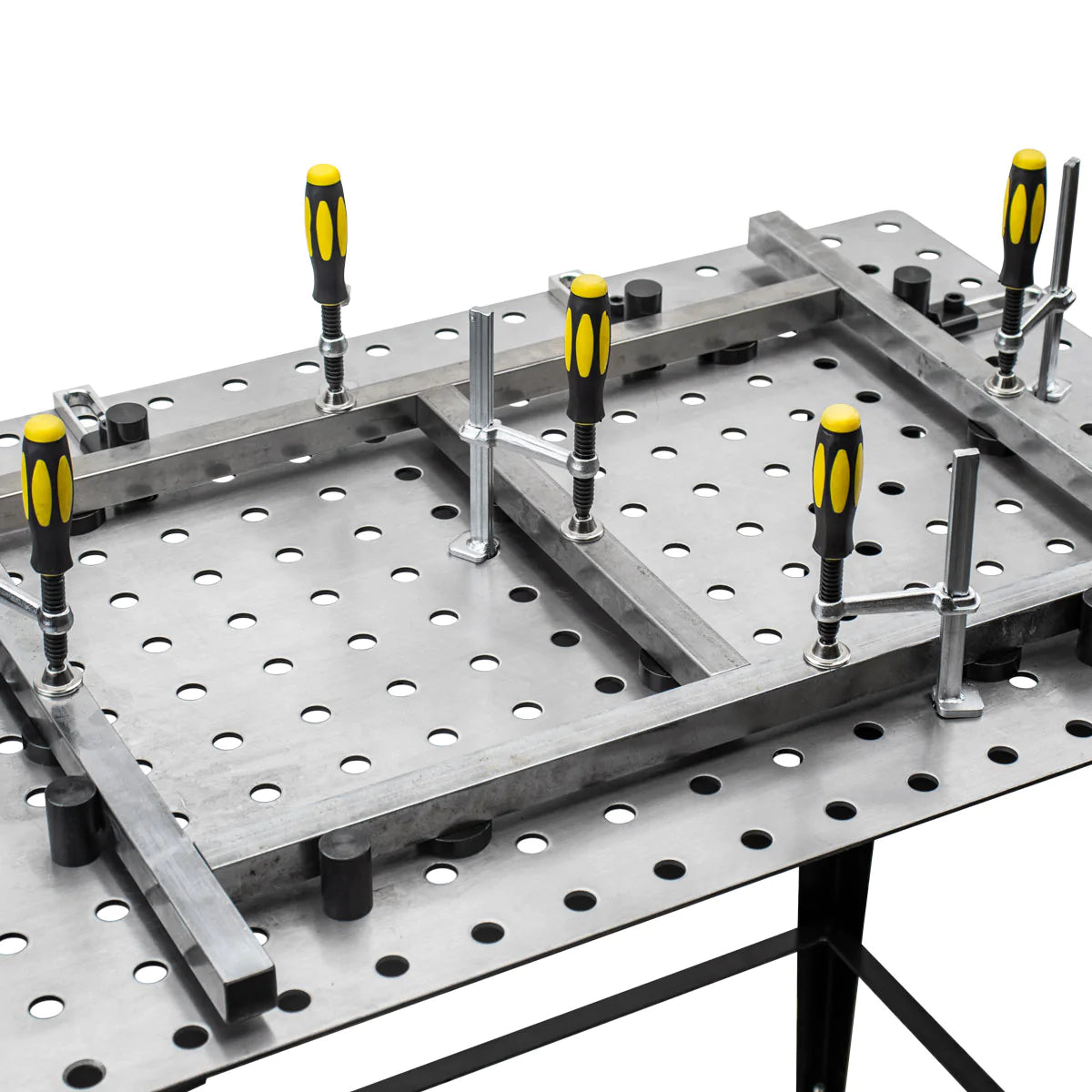

Load image into Gallery viewer, Square Tubes Frame

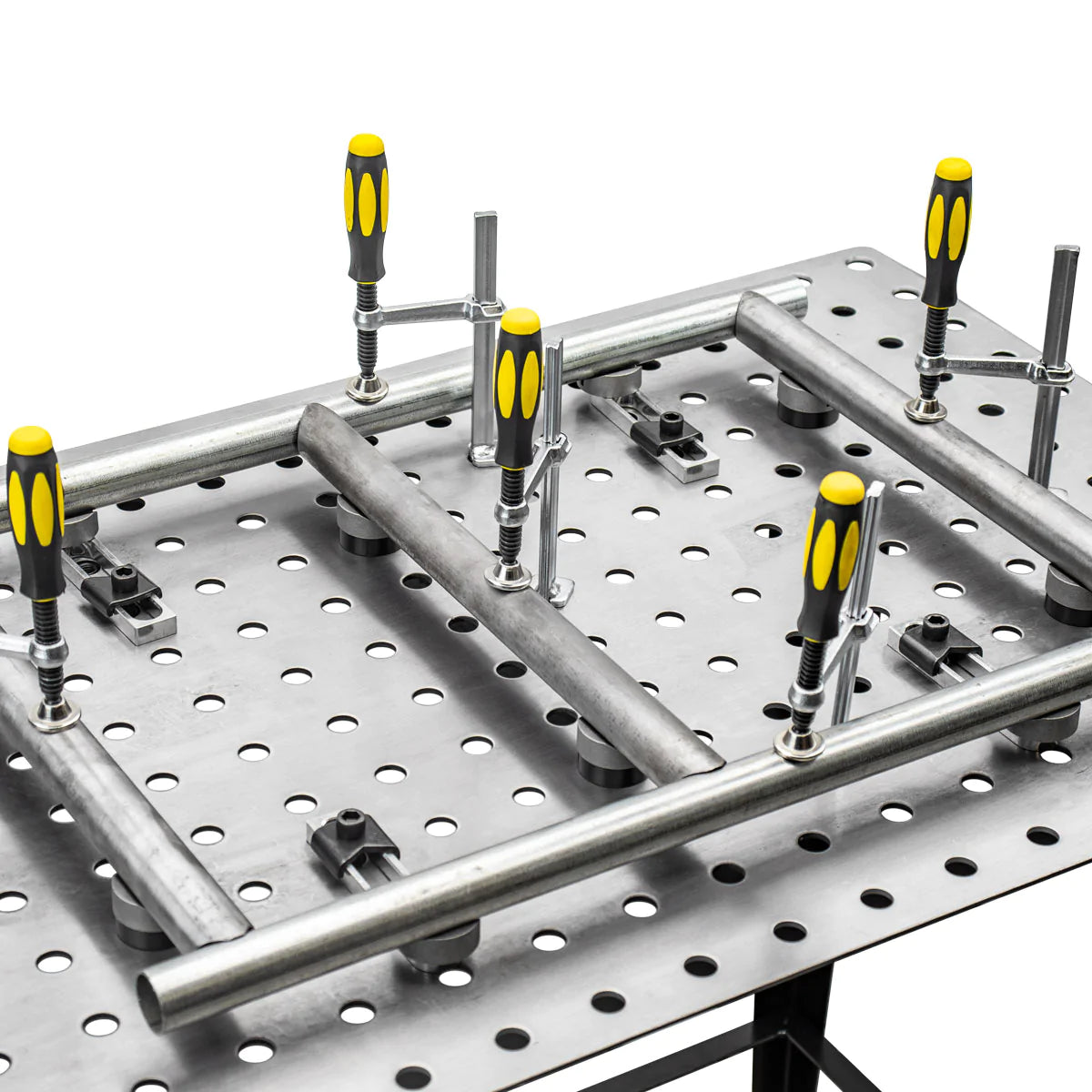

Load image into Gallery viewer, Round Tubes Frame

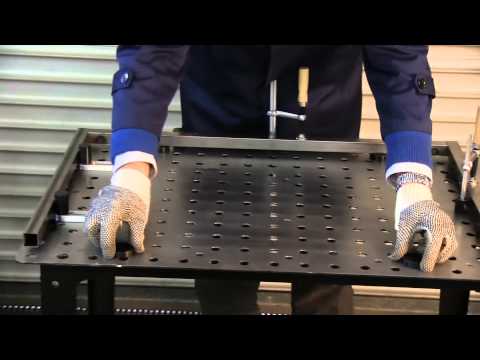

Load and play video in Gallery viewer, FixturePoint Table
Vendor BuildPro

FixturePoint Table

SKU: TBH36244

An Affordable, Easy-to-Use Modular Fixturing System. Increase work quality and productivity! Fixture at ANY POINT on the tabletop.

The FixturePoint System is ideal for the set-up of 2D frames. Use the FixturePoint Kits to get started right away, working comfortably, safely, and efficiently for improved work quality and productivity!

FixturePoint Clamps and Components can be inserted into the 16 mm holes on the 36" x 24" (900 x 600 mm) tabletop for complete flexibility in Modular Fixturing.

Regular price $210.00
Sale price $210.00 Regular price $321.00
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Specifications
CAD Files

TBH36244 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

FIXTUREPOINT JIG & FIXTURE TABLE

A Light Weight, Compact Modular Fixturing System.

The FixturePoint Table is ideal for the set-up of 2D frames.

Use the FixturePoint Table with or without leg frame to fit available space. The lightweight tabletop can be detached from the leg frame and placed on any alternate work surfaces as needed for small fixtures.

You can fixture at ANY POINT on the tabletop.

ONE Table, TWO Height Settings

The FixturePoint Welding Table can be used as a free-standing table or on top of your existing workbench with the included legs and leveling feet.

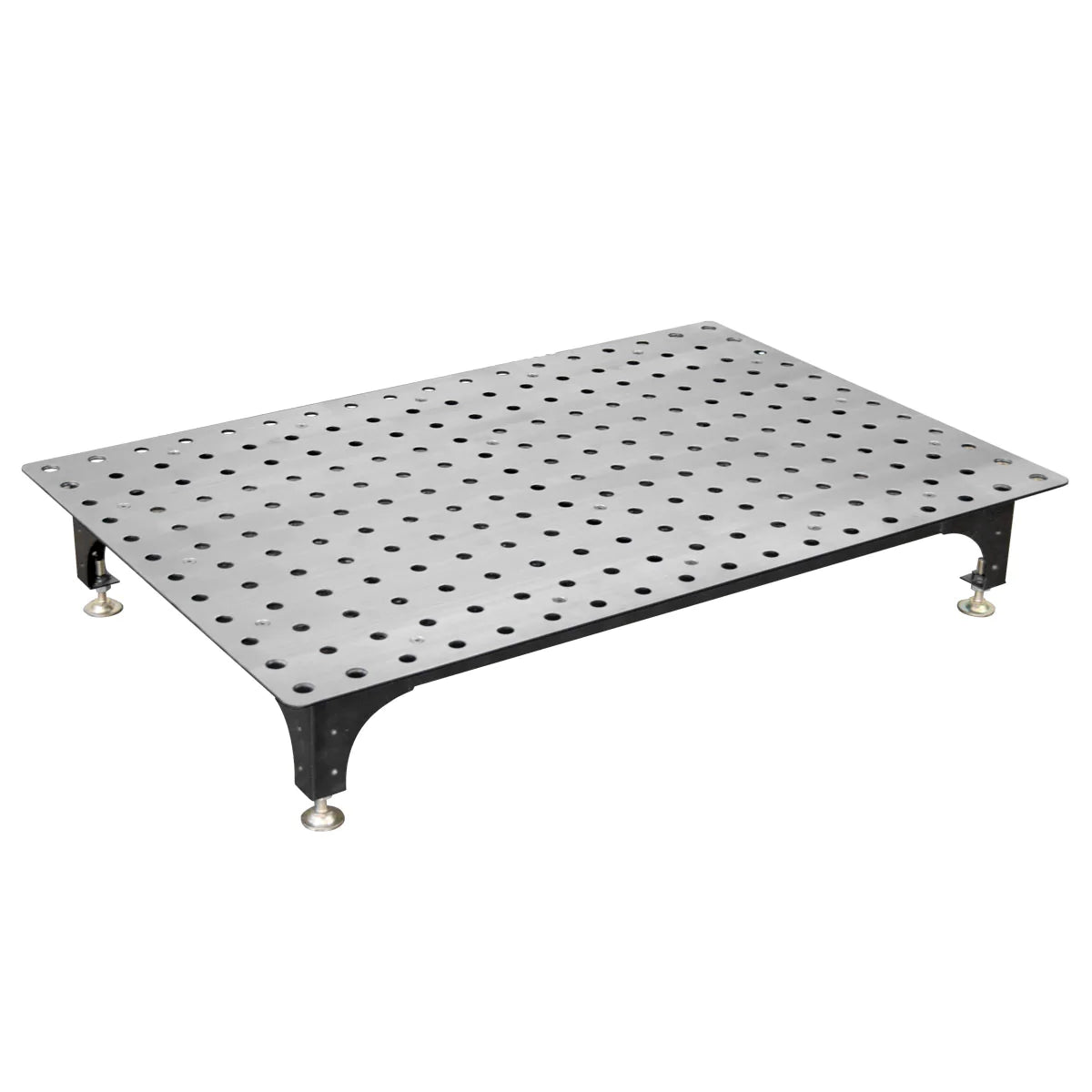

Tabletop WITHOUT Leg Frame

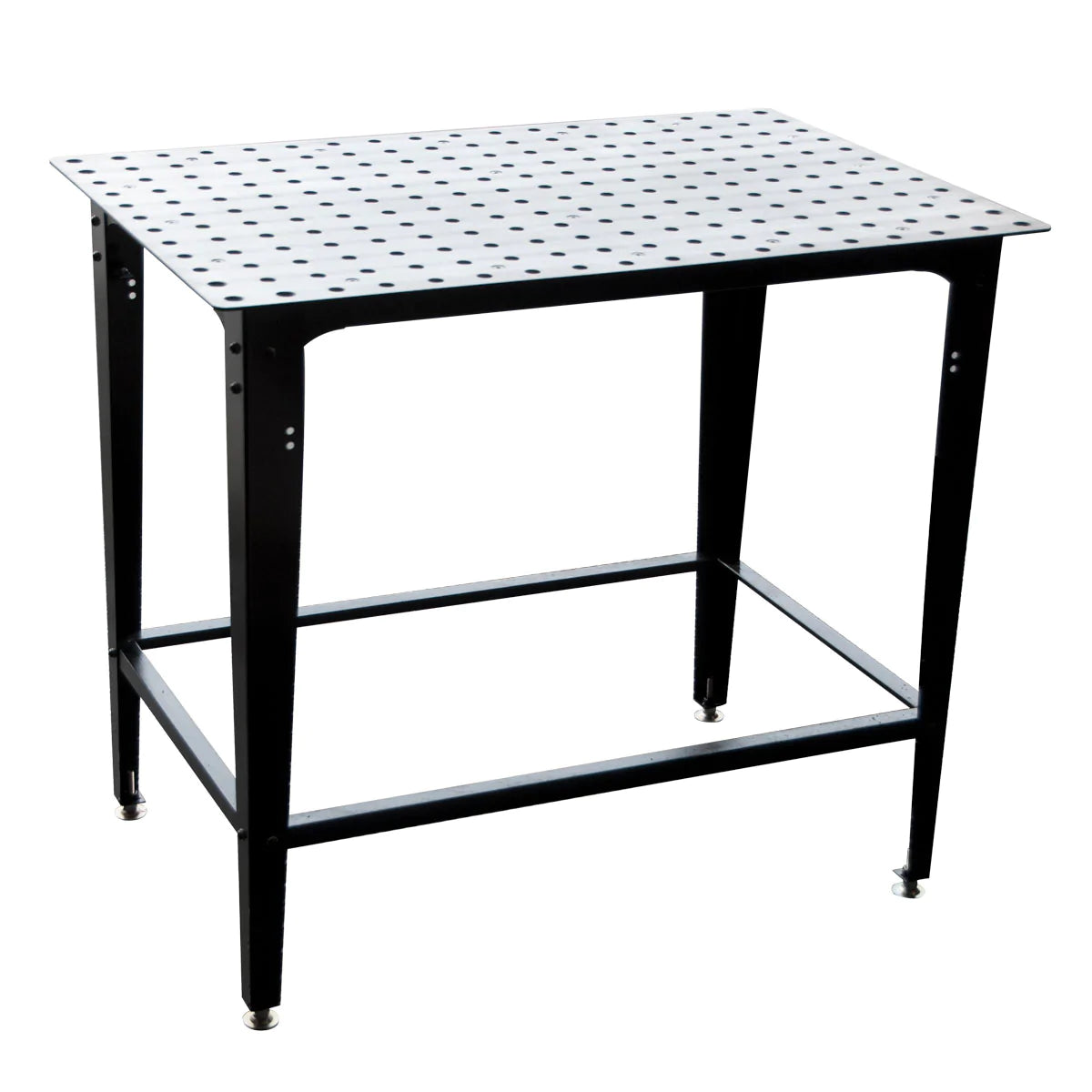

Tabletop WITH Leg Frame

Hole Diameter: 16 mm
Grid Pattern: 2" x 2"
Tabletop Size: 36" x 24"
Tabletop Material Thickness: 0.16"
Tabletop Height with leg frame: 34"
Tabletop Height with leveling feet: 6-1/4"
Tabletop Side Height (WITHOUT leg frame or leveling feet): 4.3"
Static Loading Capacity: 500 LB

Great starter fixture point table! I use it on my light duty jobs and it works awesome.

dtm dan

Part No. Tabletop Height with leveling feet (in) Tabletop Height with leg frame (in) Hole Dia. (in) Hole Spacing (in) Tabletop Surface Dimensions (in) Tabletop Material Thickness (in) Weight (lb) CAD
TBH36244 6-1/4 34 0.63 2 x 2 36 x 24 0.16 72 STEP

Choose from two fixturing kits that mate to the 16 mm holes on the 36” x 24” x 0.16" tabletop.
