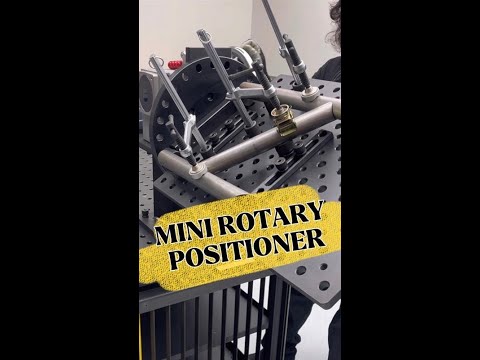

Load and play video in Gallery viewer, Mini Rotary Positioners, 300 lb capacity
Vendor BuildPro

Mini Rotary Positioners, 300 lb capacity

SKU: TMP52418T

Capacity: 300 lb.

The Mini Rotary Positioners are universal, with mounting bolt pattern to accommodate the Rhino Cart, MAX and Alpha 5/8 Welding Tabletops.

They can be an important addition to your tool chest allowing you to rotate assemblies easily without having to wait until they cool.

Regular price $2,600.00
Sale price $2,600.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Specifications
CAD Files

TMP52418T - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Mount on any of the 5/8 Welding Tabletops

The BuildPro Mini Rotary Positioner can be used for plane rotation of your work surface.

The low backlash gear drive allows for smooth operation, stability, and controlled turning and positioning.

Allows you to rotate your weld fixture to the best ergonomic position for worker safety, comfort, and reduced operator fatigue.

The worm gears combined with center of gravity positioning reduces the effort required for rotation while preventing free rotation of the table from gravity.

A faceplate with 15° increments provides positive manual locking.

Axis point to mounting base is 13-½”

Capacity: 300 lb.

Part No Description L x W x H (in) Approx. Weight (lb)
TMP52418T Mini Positioner Body only 18 x 15 x 24 178
TMP52418TS Mini Positioner with Tomb Stone Sub Assembly - No Fixturing Plate 19 x 15 x 24 210
TMP52418 Mini Positioner with Tomb Stone Sub Assembly - Fixturing Plate (approx. 24" x 18" x 0.6") Included 42 x 18 x 24 310
