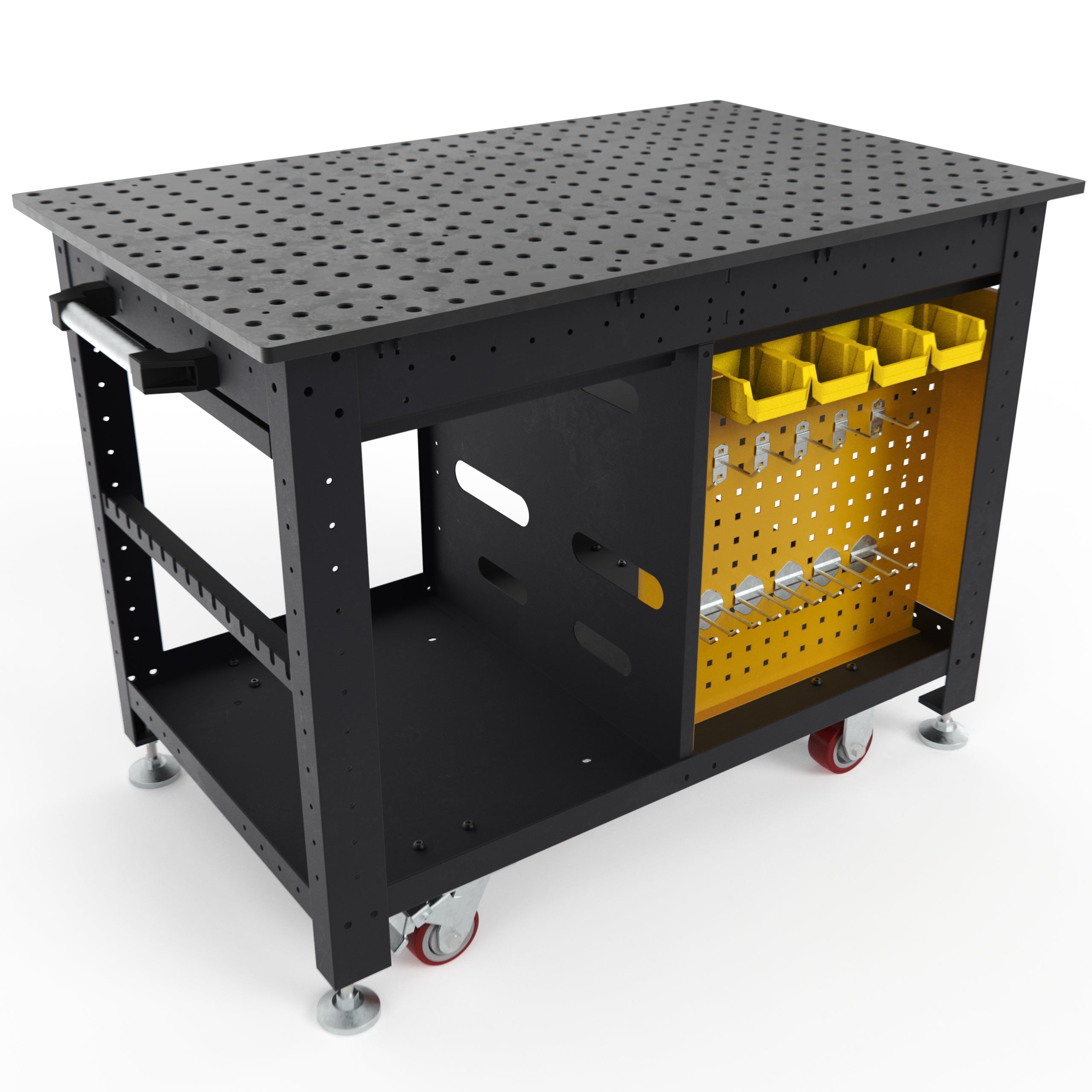

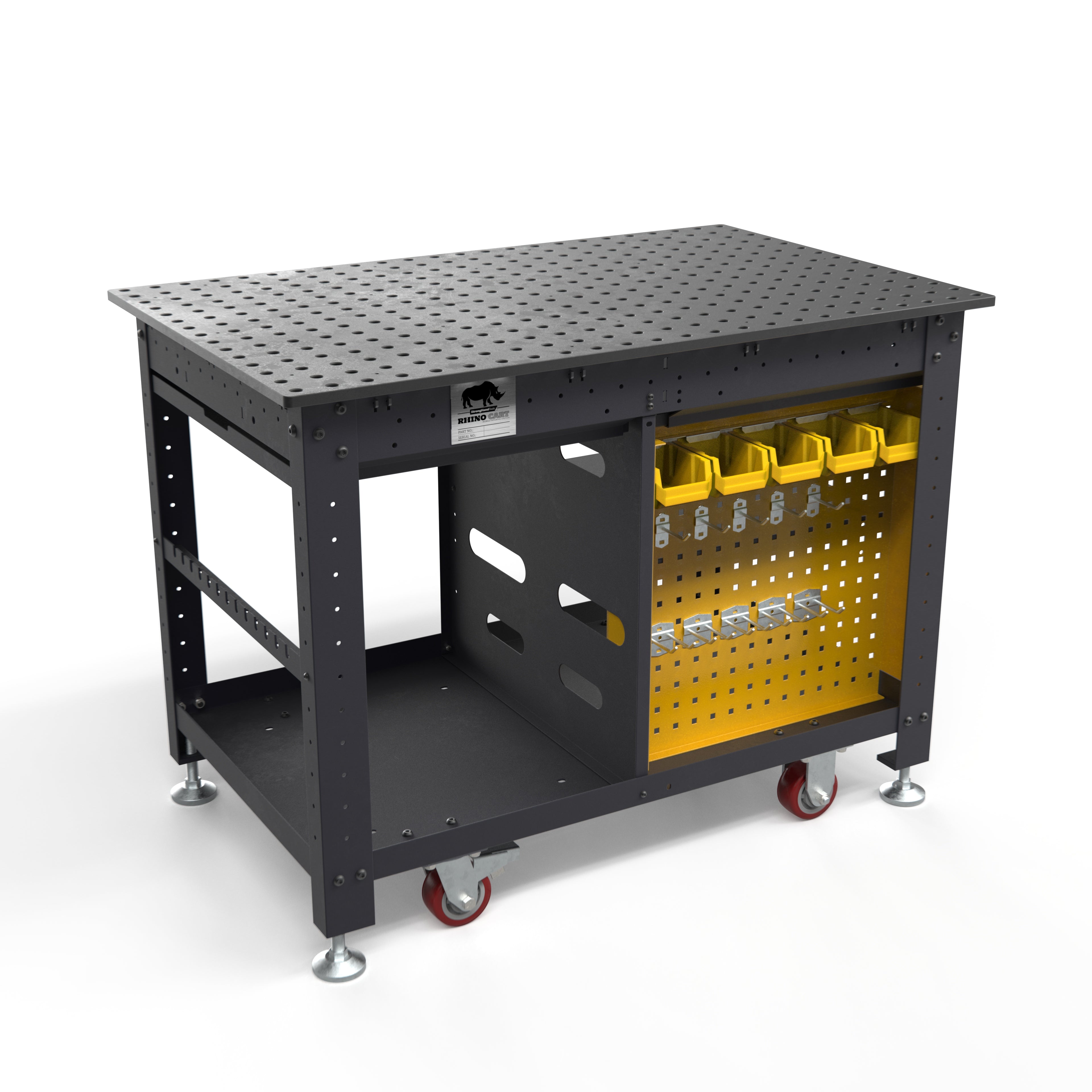

48" x 30" Rhino Cart

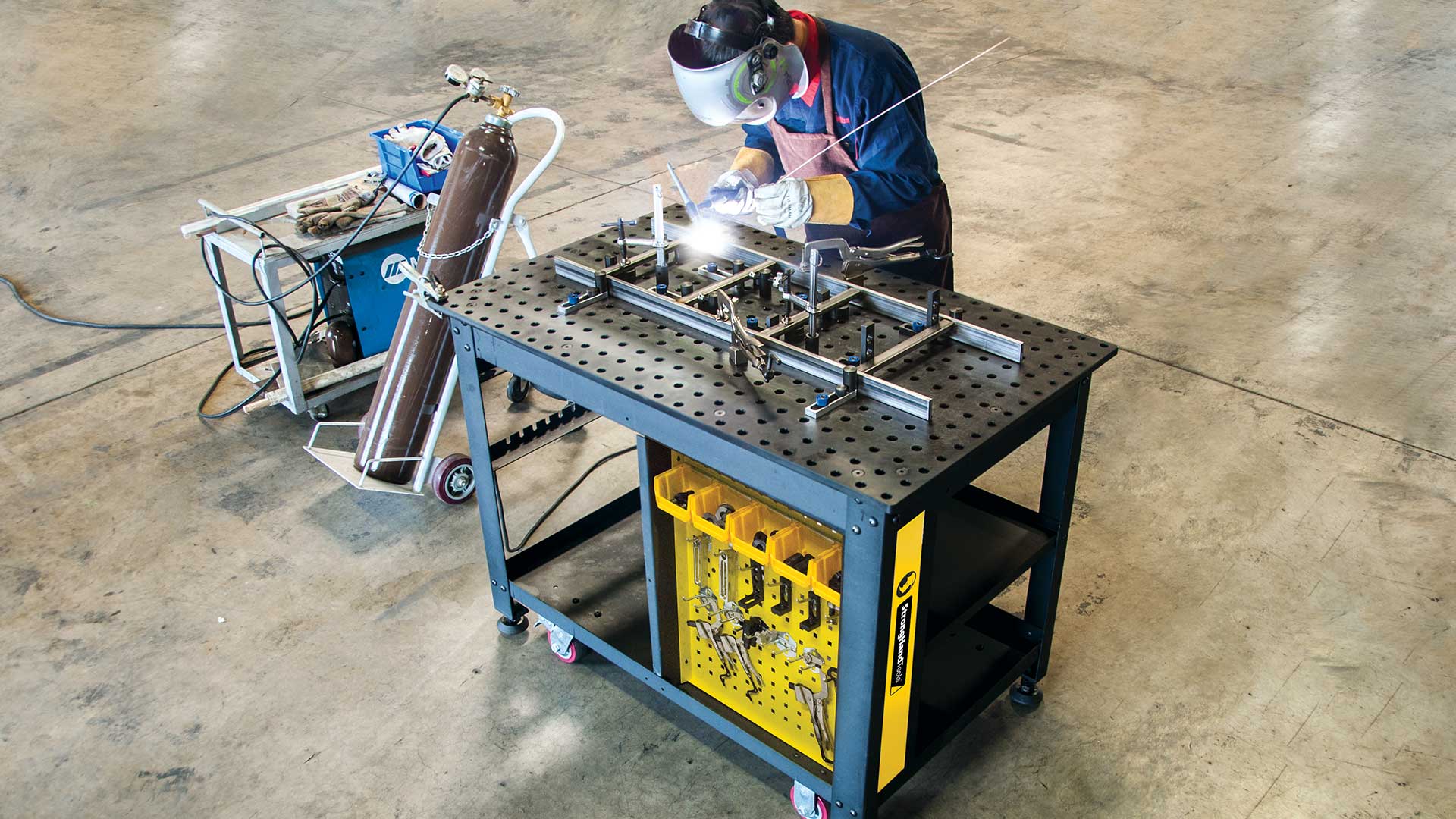

Get the best of both worlds; the functionality and quality of BuildPro tables with the mobility of a cart. The Rhino Cart features a replaceable heavy-duty tabletop that accepts all 5/8″ diameter TM fixturing components – giving you the ultimate, competent, and compact mobile working stations.

Increase your clamping and fixturing capabilities, and be ready to handle new projects with the Rhino Cart and Fixturing Kits.

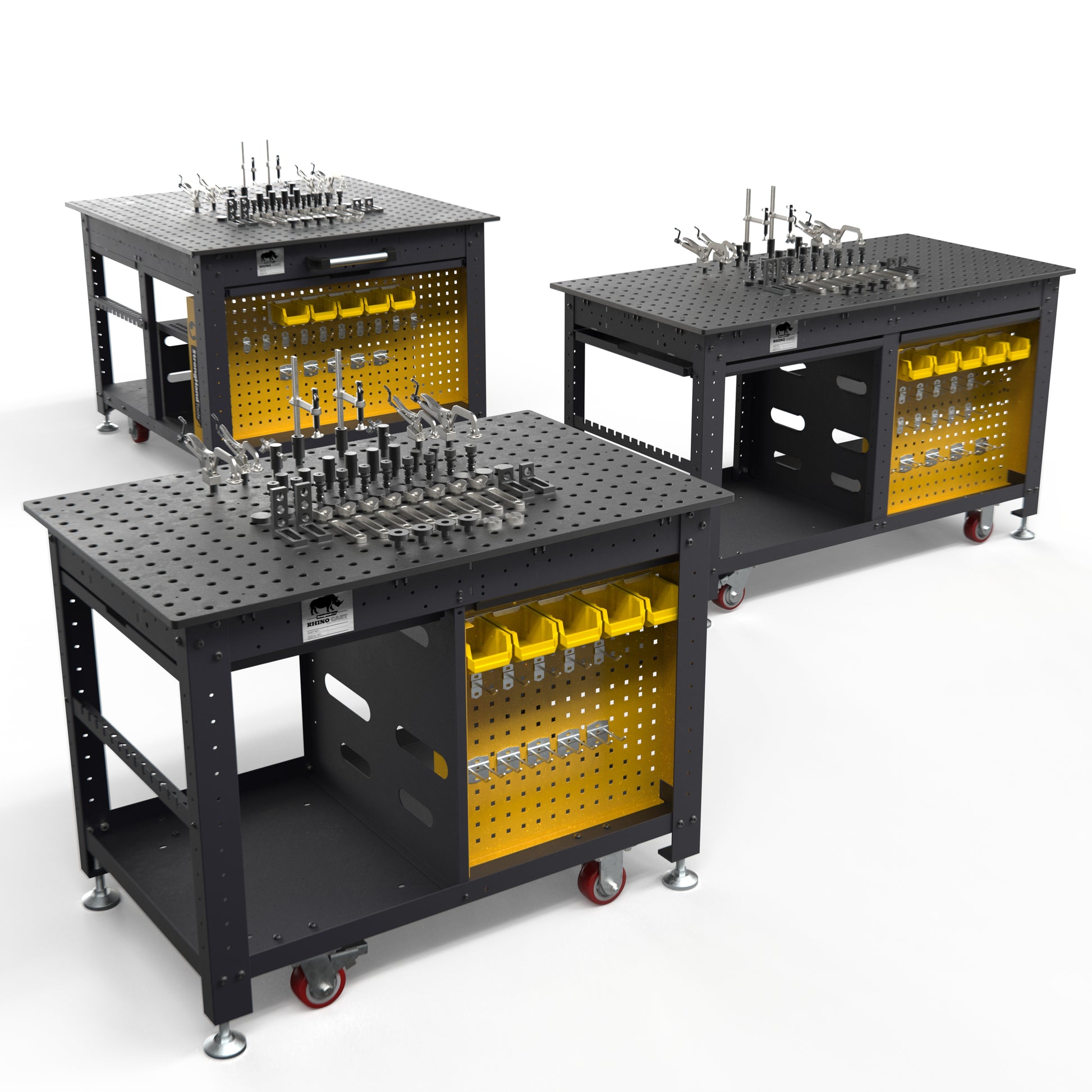

Now available with expanded storage options. Discover the power of customization with our new frame based hole mounting pattern.

U.S. PAT. 9896117

Hole Diameter:
5/8"
Grid Pattern:
2" x 2"
Tabletop Size:
48" x 30"
Table top Plate Thickness:
0.630" ±0.004
Table Flatness:
±0.015" per 24" x 24"
Table Height:
36″
Static Loading Capacity:
1,500 LB
Gross Weight:
518 LB

Features

REVERSIBLE Tabletop

Nitrided and black oxide table plate is reversible. Weld spatter, rust and scratch resistant.

Surface with evenly spaced round holes on a black background.

CNC Hole Pattern

Accurately position parts in CNC precision bored 5/8" diameter holes in 2" x 2" spacing pattern.

Close-up of a cart wheel and adjustable foot on a concrete surface.

Locking Casters

Steel legs are equipped with four locking casters and leveling feet for mobile or stationary use.

Compatible with 5/8" Fixturing Elements

Compatible with all 5/8" System Components, & Fixtures.

New Neat, Clean & Tidy

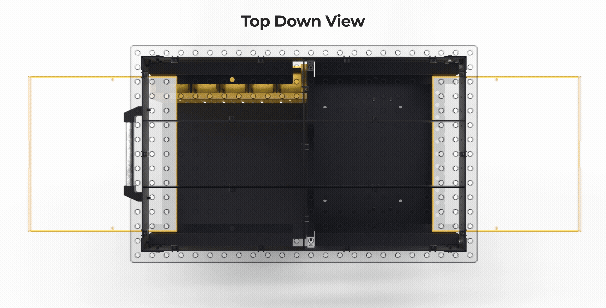

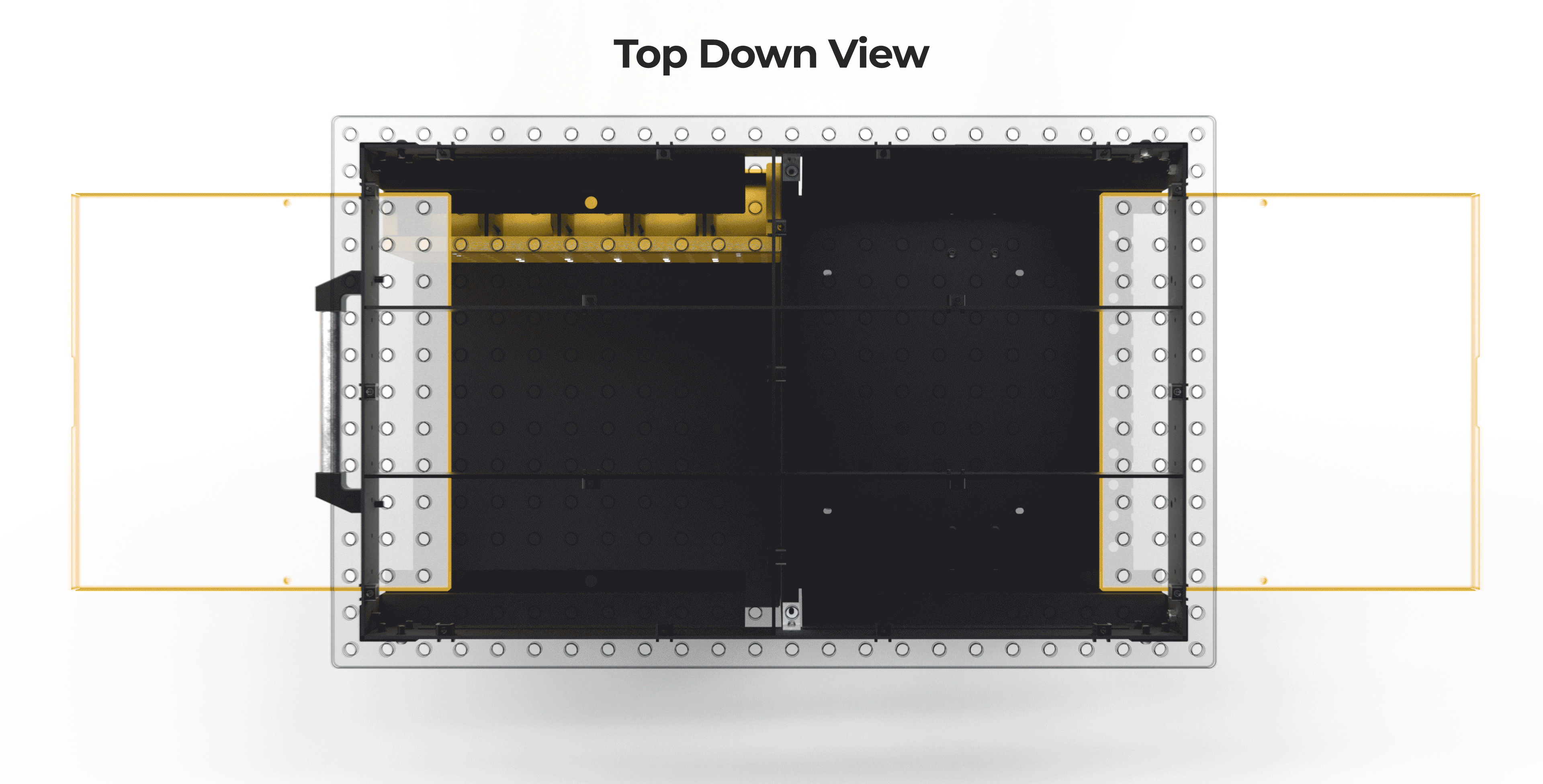

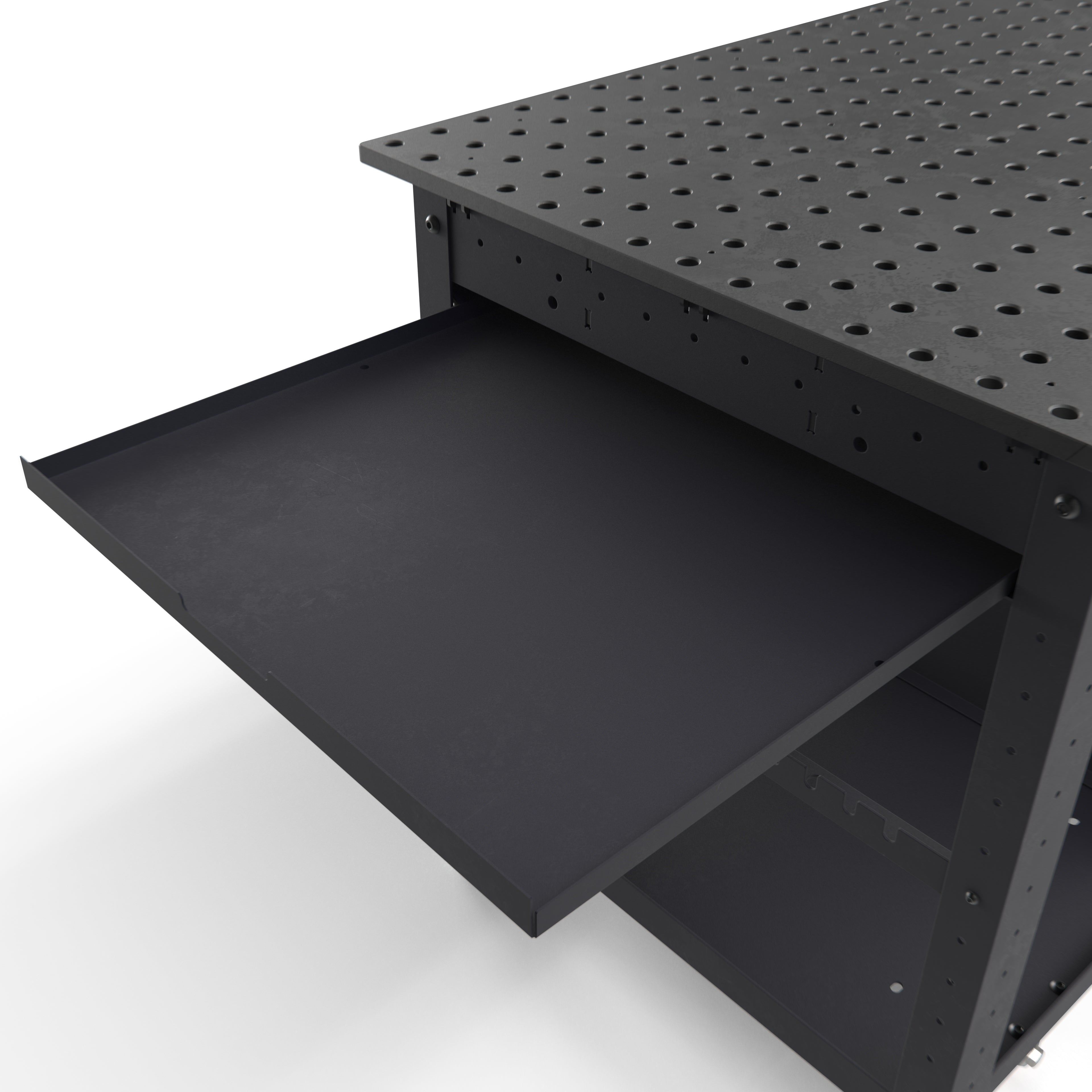

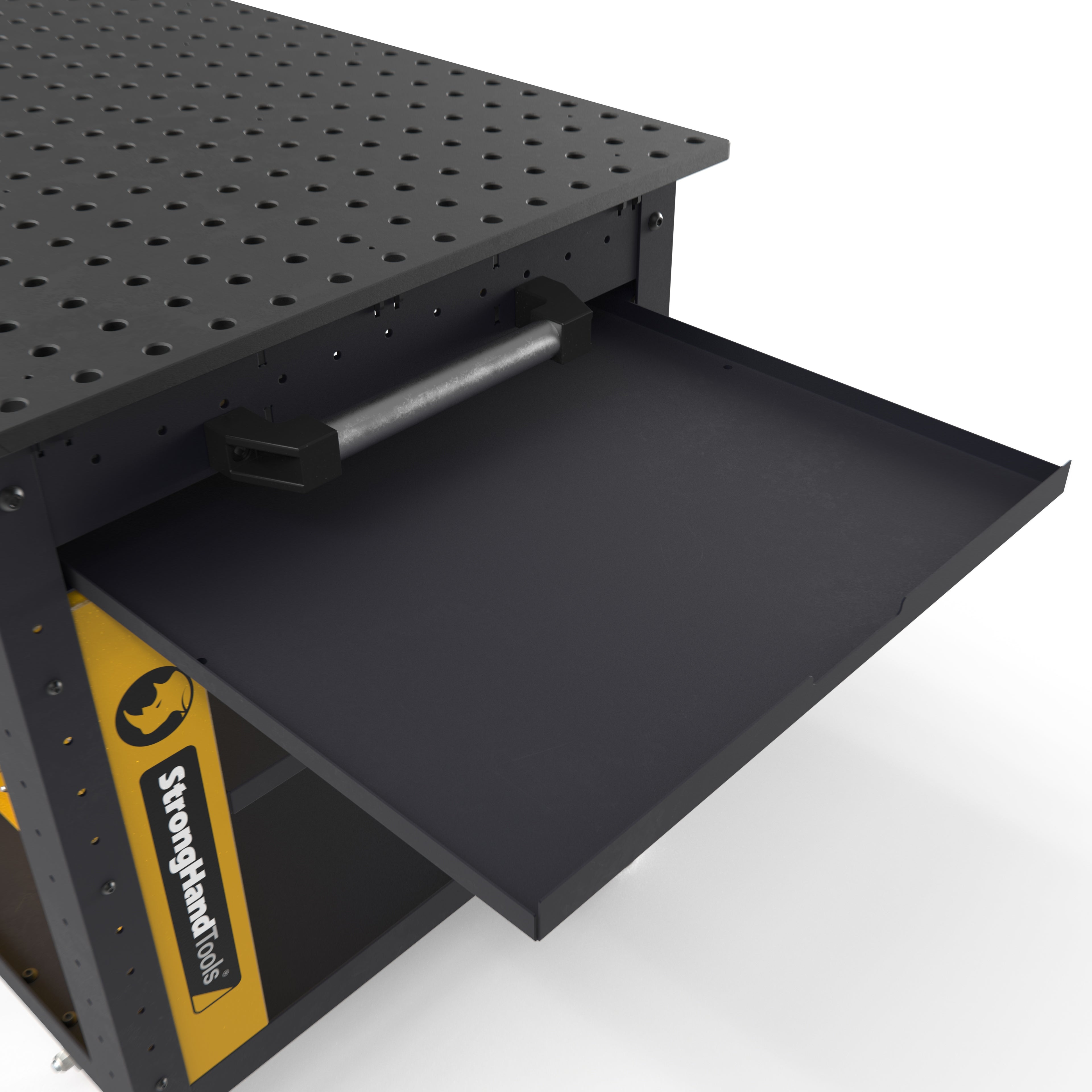

Keep Your Rhino Workspace Clear with Slag Trays

A clean, organized workspace is essential for fabrication. Two slag trays span the full width, keeping your area debris-free.

Improved Storage & Organization

Streamline Your Setup with Superior Electrical Access

A clean, organized workspace is essential for fabrication. Two slag trays span the full width, keeping your area debris-free.

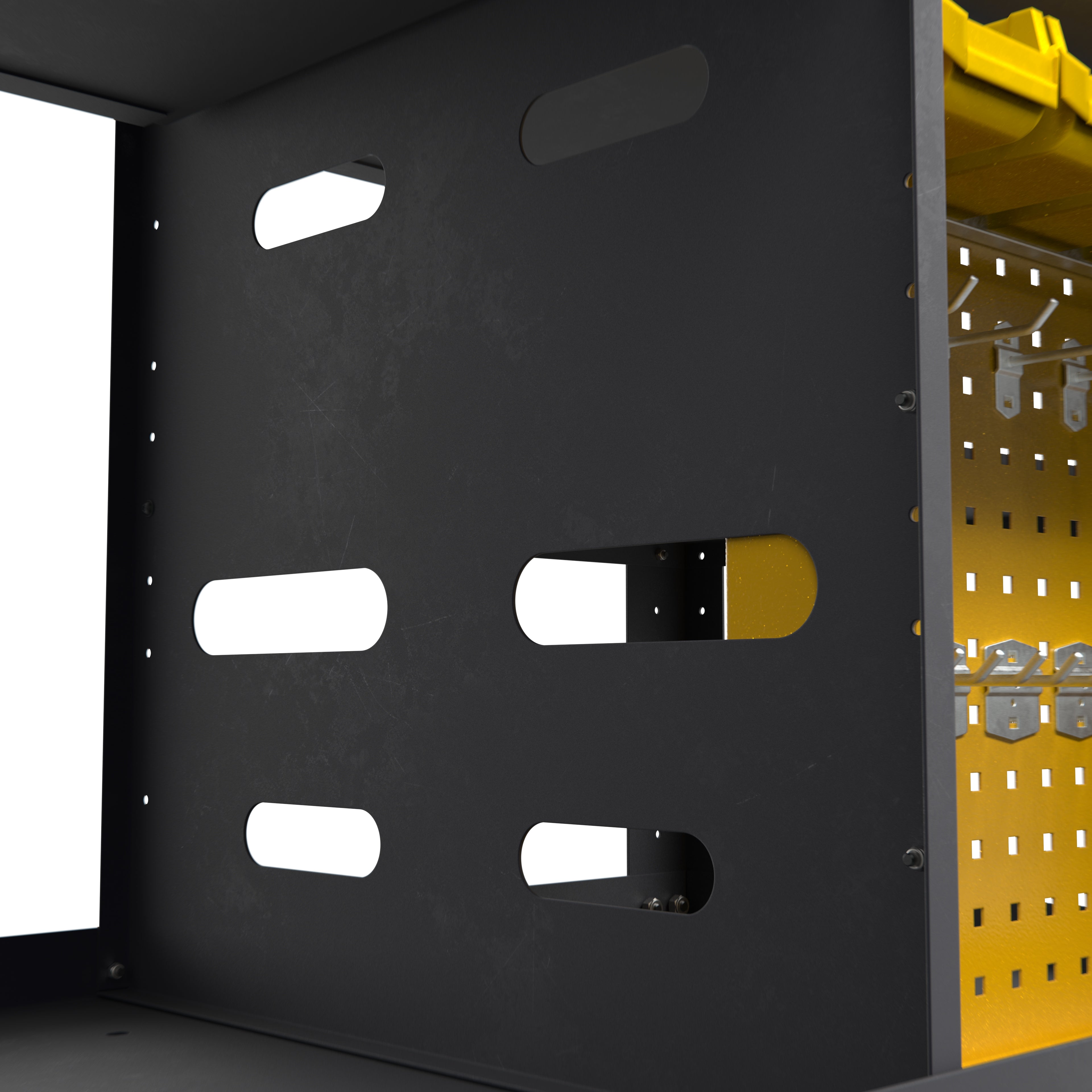

Cable Slots

All new F3 models include cable slots on the divider panel, allowing for tidier cable organization when using the cobot machine.

Tool Racks

The F3 48" x 30" Rhino Cart's storage rack now includes holes for pins, ball locks, and other critical fixturing items, enhancing organization and accessibility.

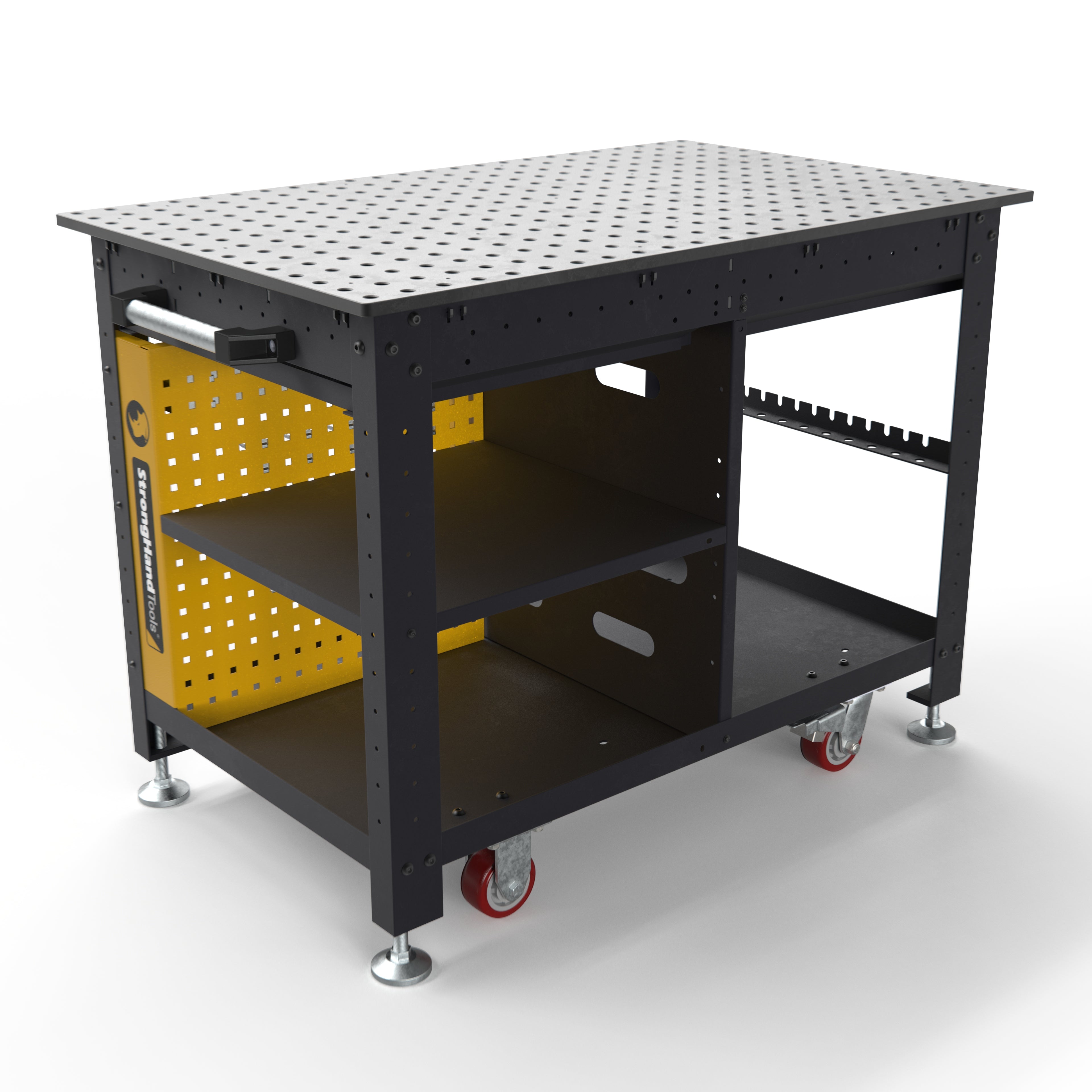

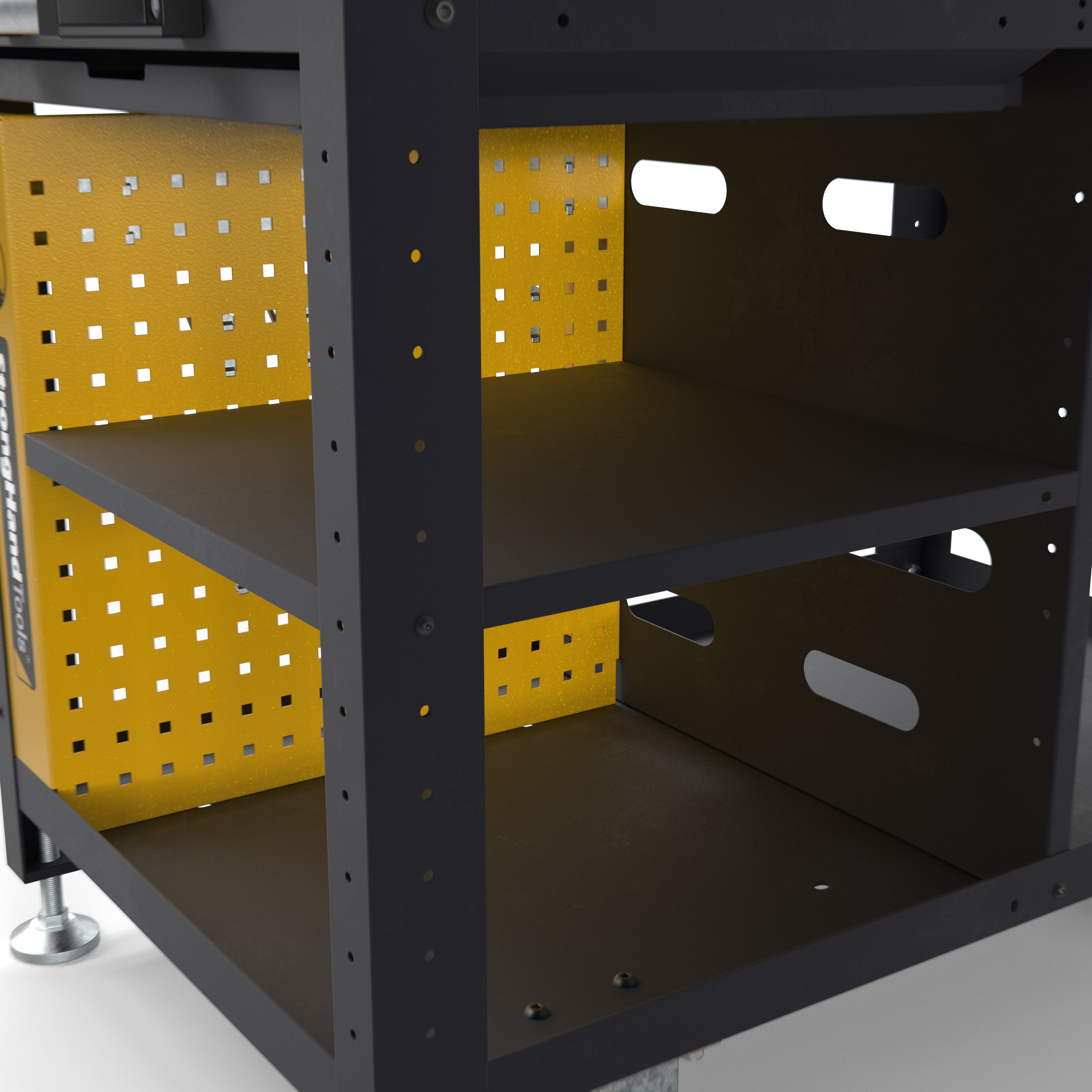

Inner Shelf

Keep tools and accessories stored close & organized, minimizing downtime and enhancing workflow efficiency.

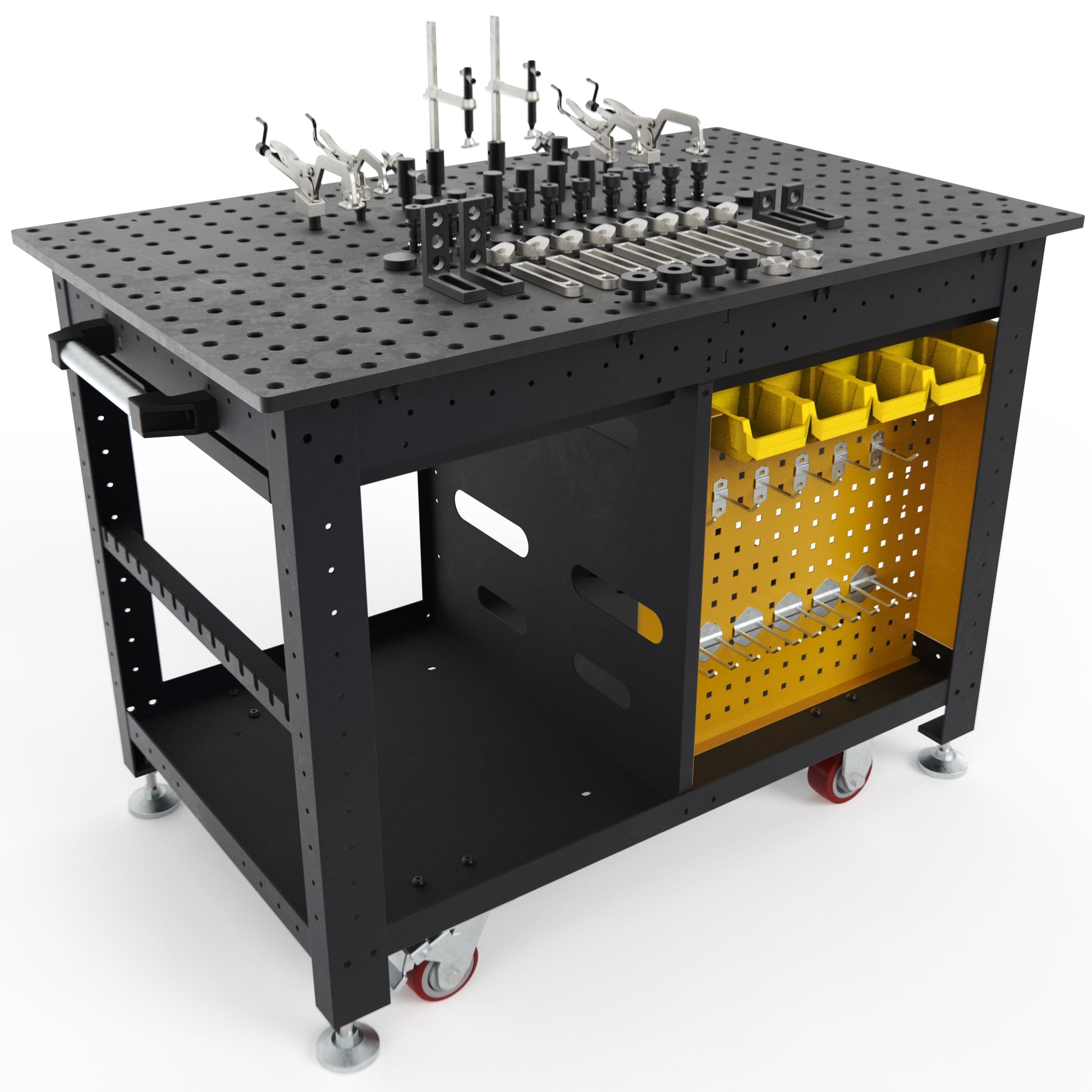

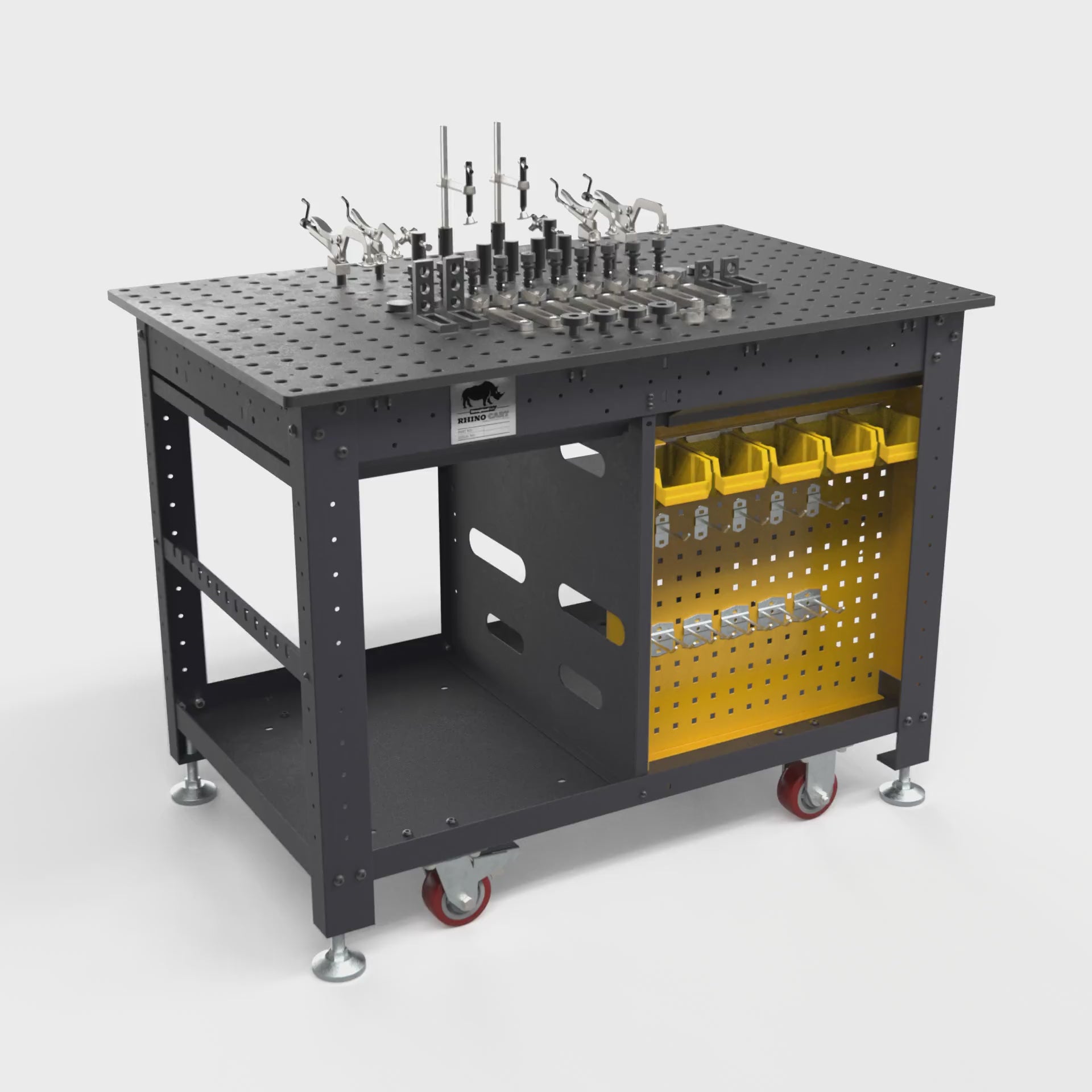

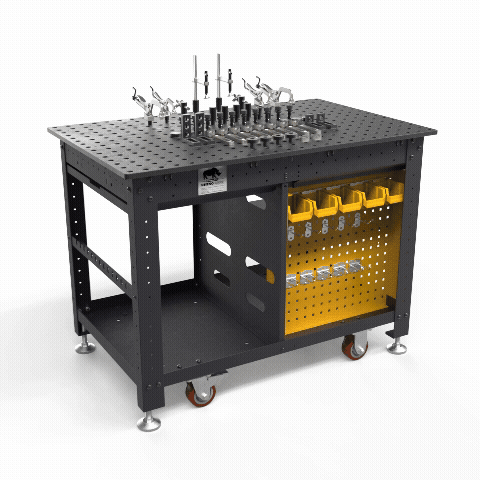

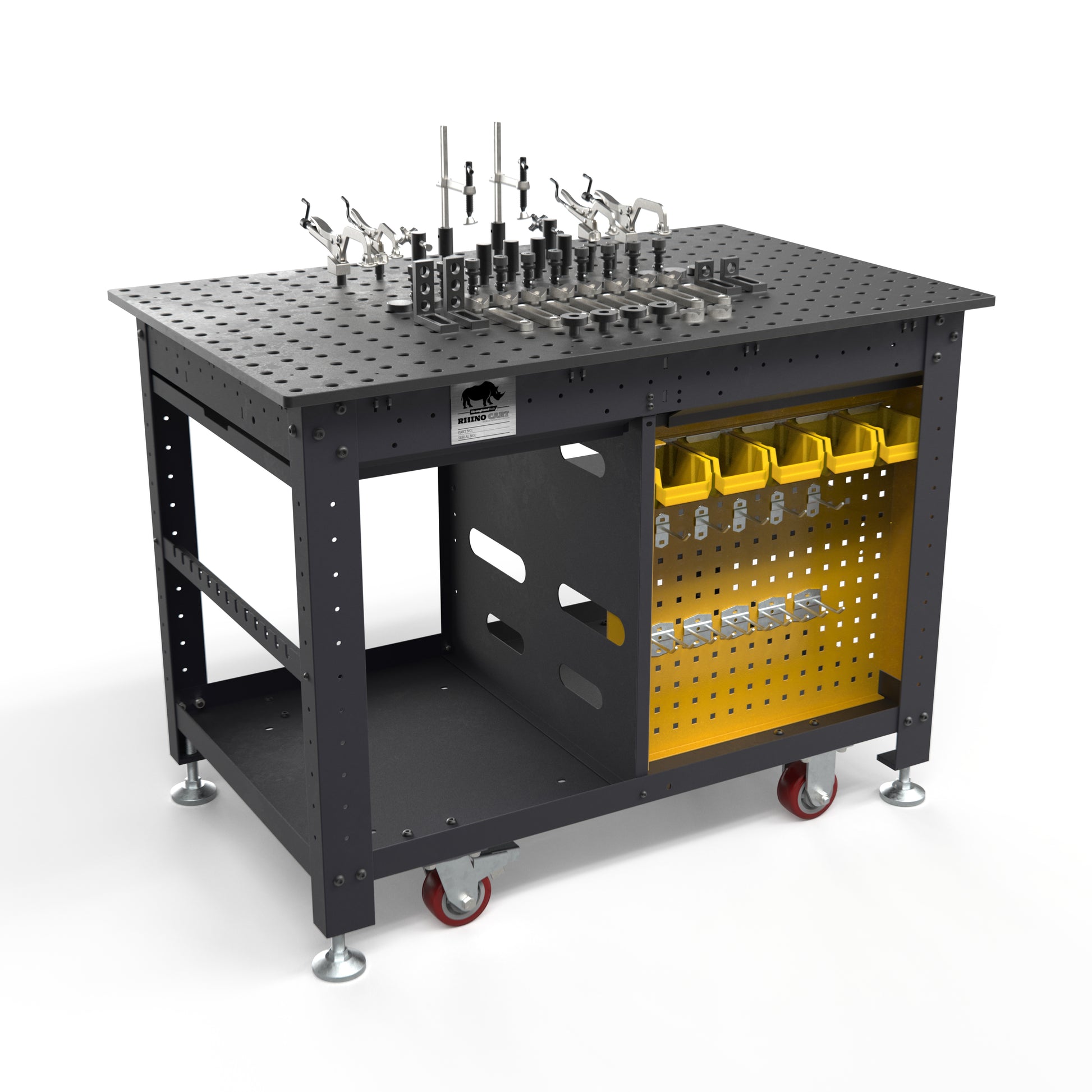

What Comes Inside The 66pc Fixture Kit?

UDN5150 x2

TCX5210 x2

PTT522K x2

PTT634K x2

T54217 x2

T55057 x10

T54201 x2

T50632-01 x8

T50304 x2

T50305 x2

T54203 x4

T54205 x4

T54216 x8

T54211 x4

T50737 x12

Optional Accessories

Tailor Your Rhino Cart To Your Specifications

7mm mounting holes on the frame and legs enable accessory customization, including Grinder Storage Racks and Shelves, for tailored functionality.

Sold out
Sold out
Sold out
Sold out
Sold out
Sold out
Sold out
Sold out

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

CAD

TD5-4830Q-F3 - STEP

TDK5100 - ZIP
