BuildPro

Right Angle Brackets, 5/8 Holes

SKU: T50330

These precision-machined angle squares hold material at 90º. The holes and slots combination allows for infinite adjustments in fixturing.

For heavy-duty applications, see the Riser Blocks.

$104.00
$104.00
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

T50304 - STEP

T50305 - STEP

T50310 - STEP

T50330 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Dimension (in) Plate Thickness (in) Holes Slot Length (in) Weight (lb)

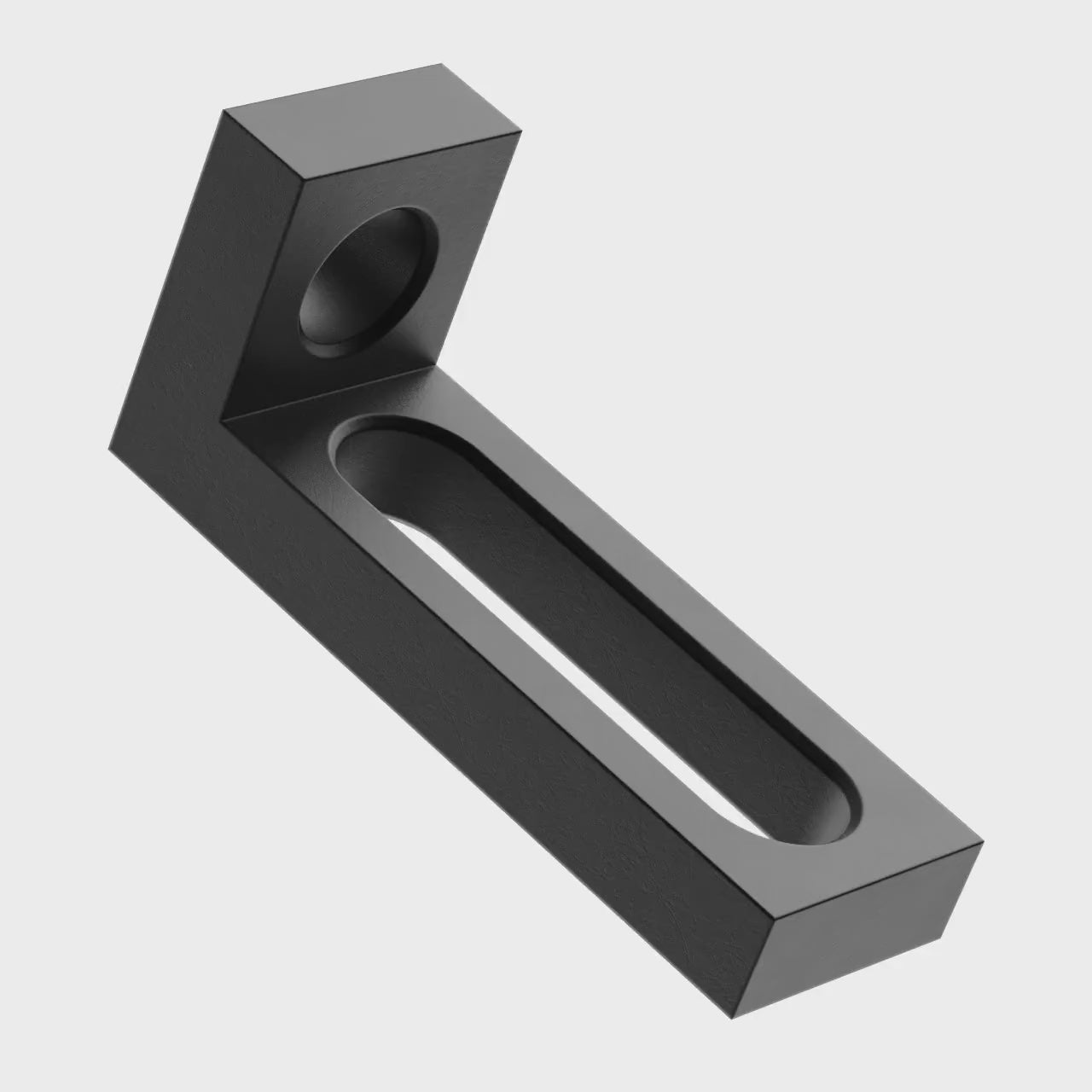

T50304 1.6 x 3.6 x 1.18 0.47 1 2.6 0.5

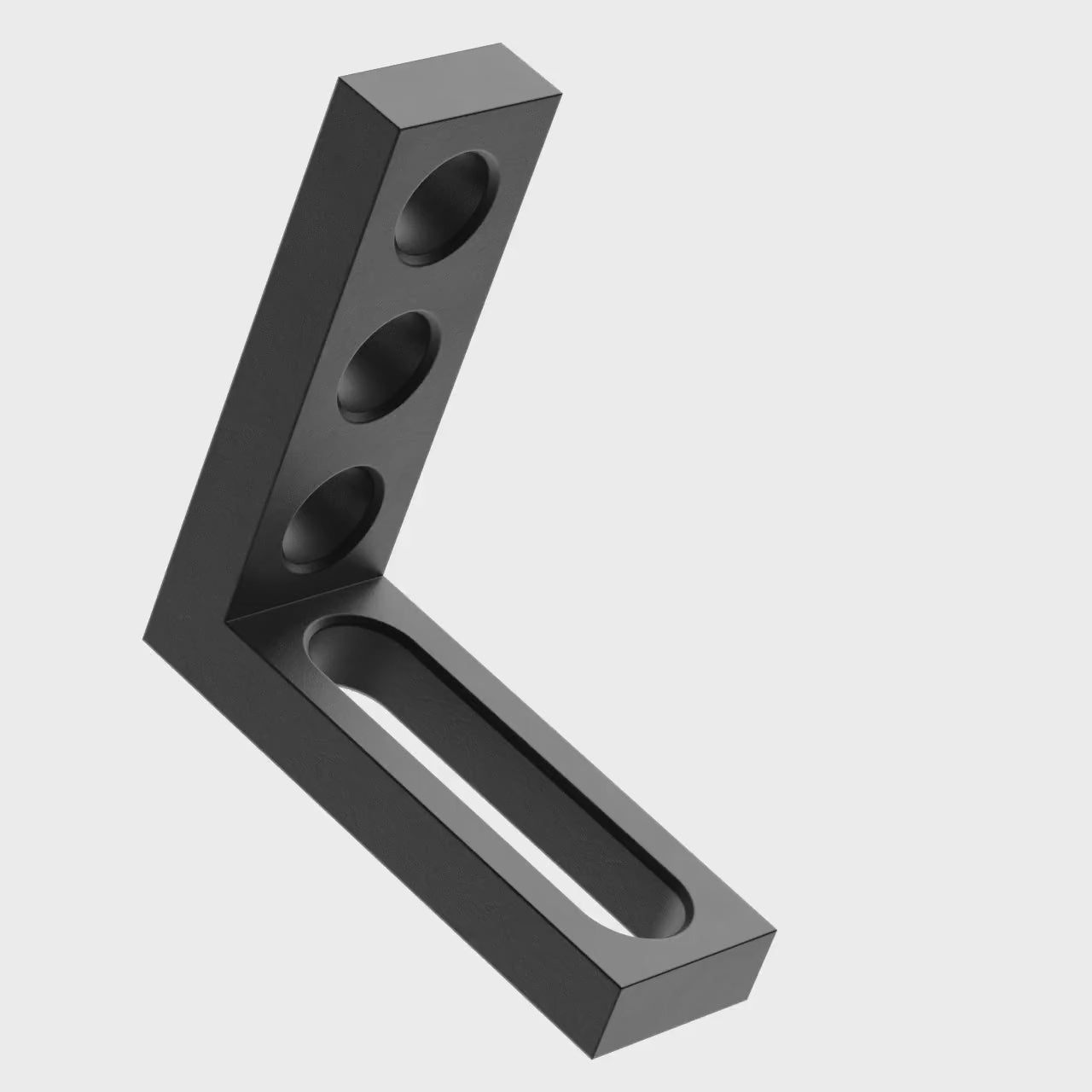

T50305 3.6 x 3.6 x 1.18 0.47 3 2.6 0.7

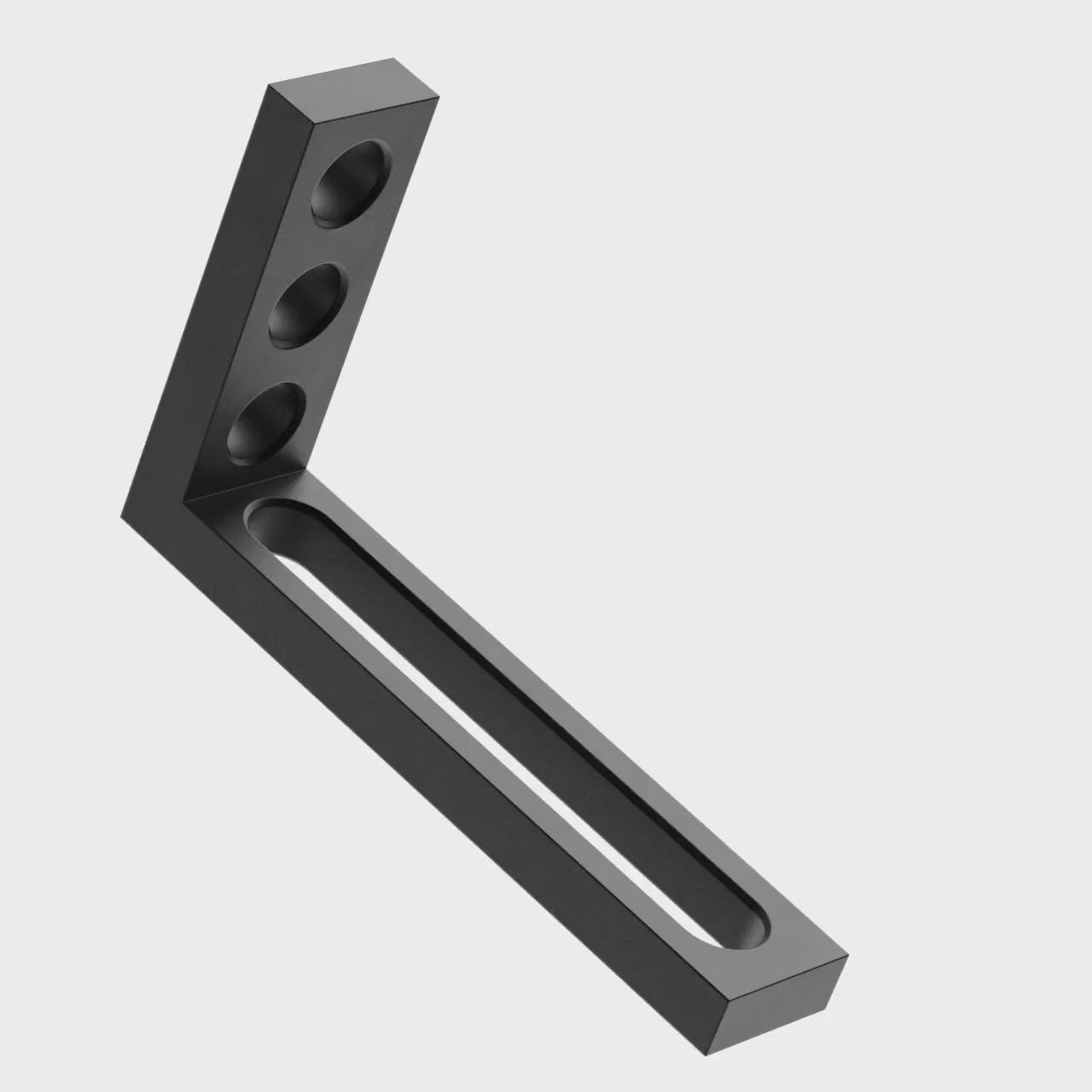

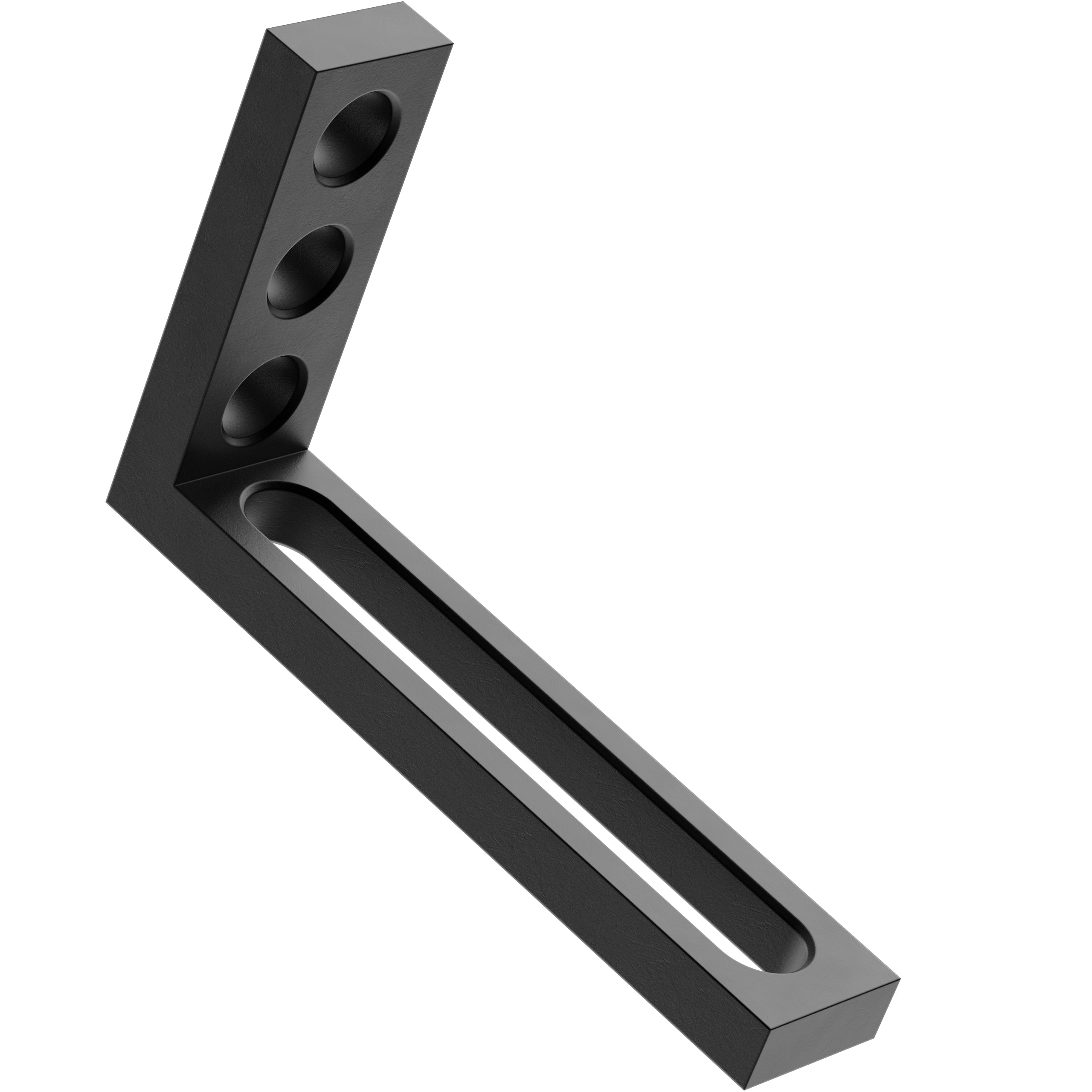

T50310 3.6 x 6 x 1.18 0.47 3 5 1.0

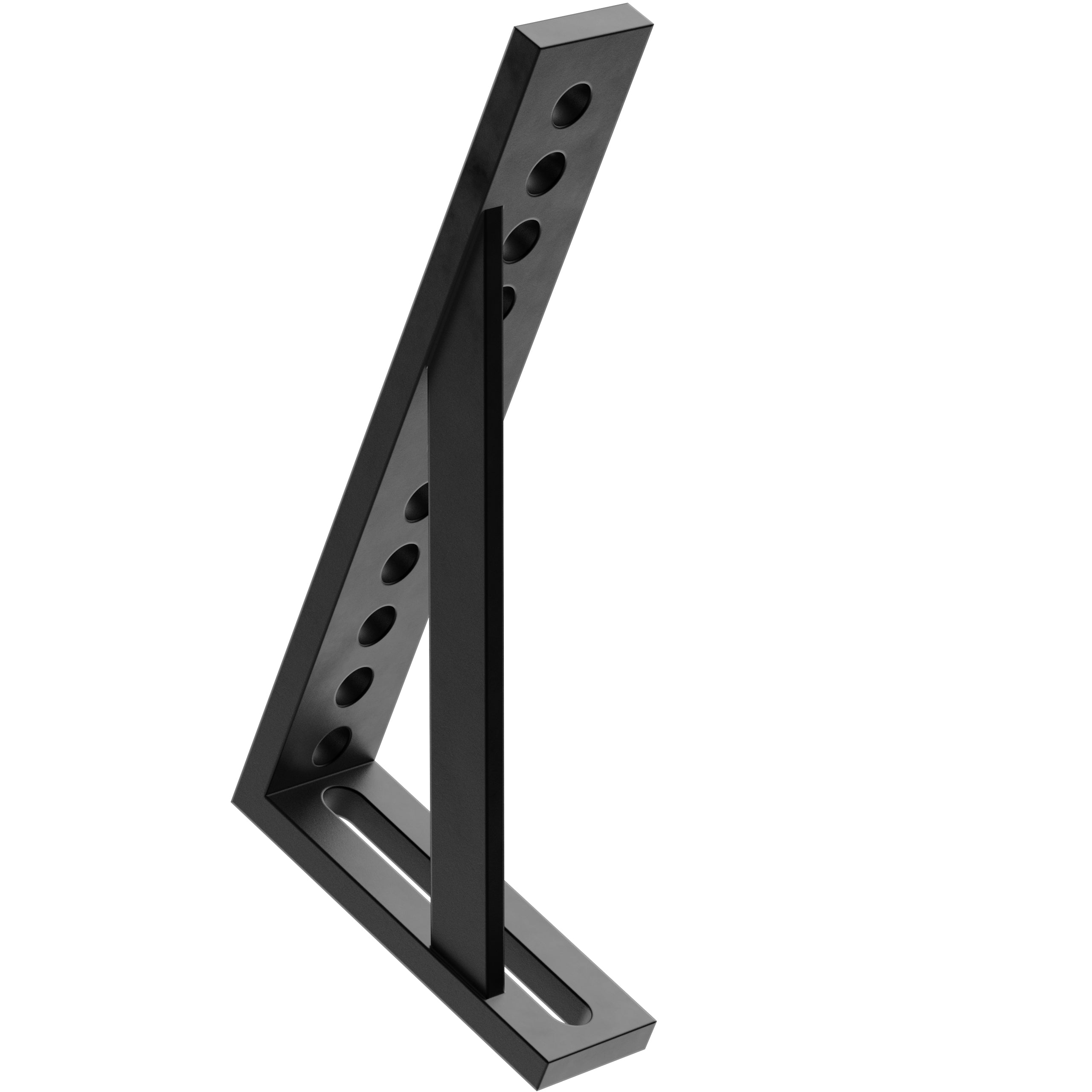

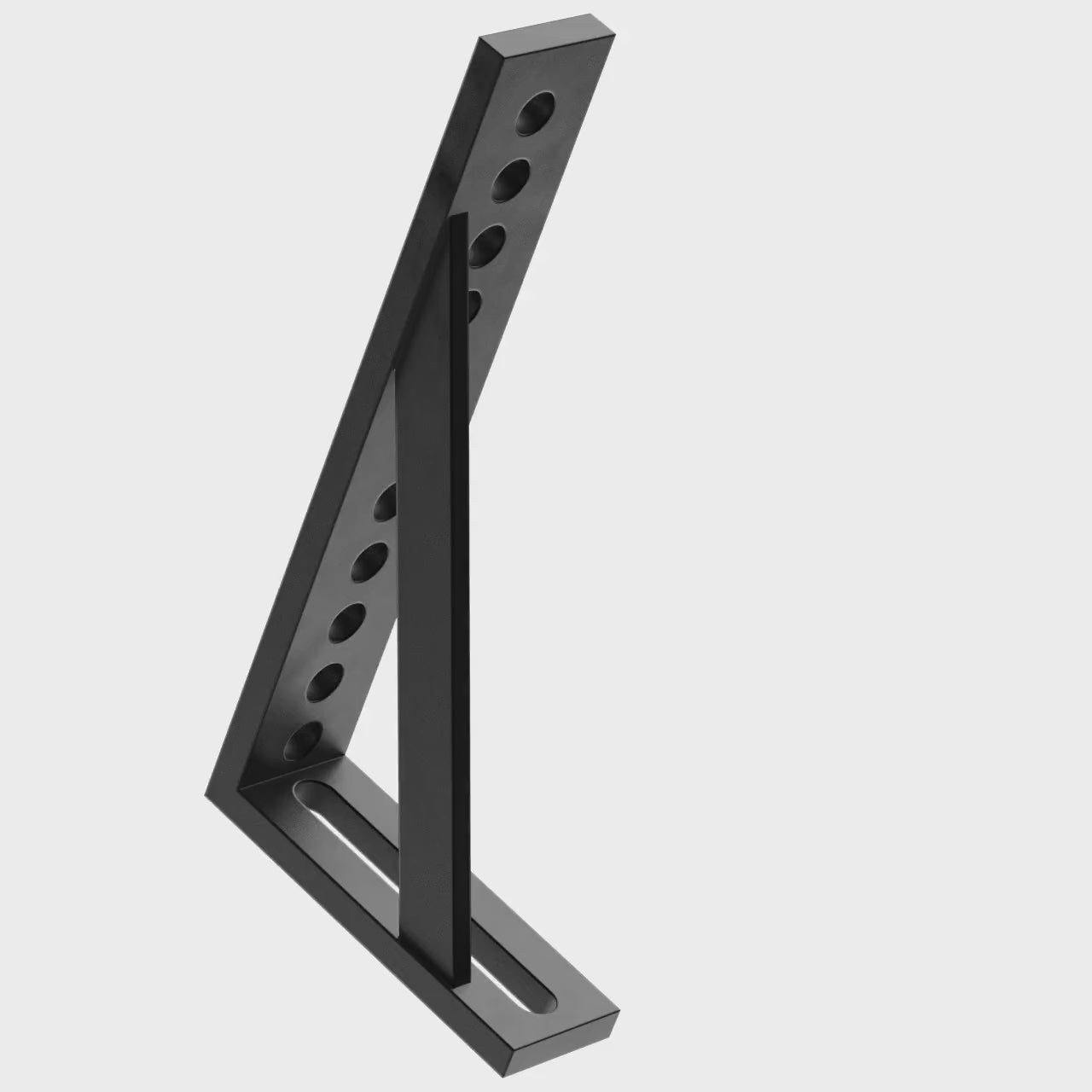

T50330 12 x 6 x 2 0.47 11 5 4.5
