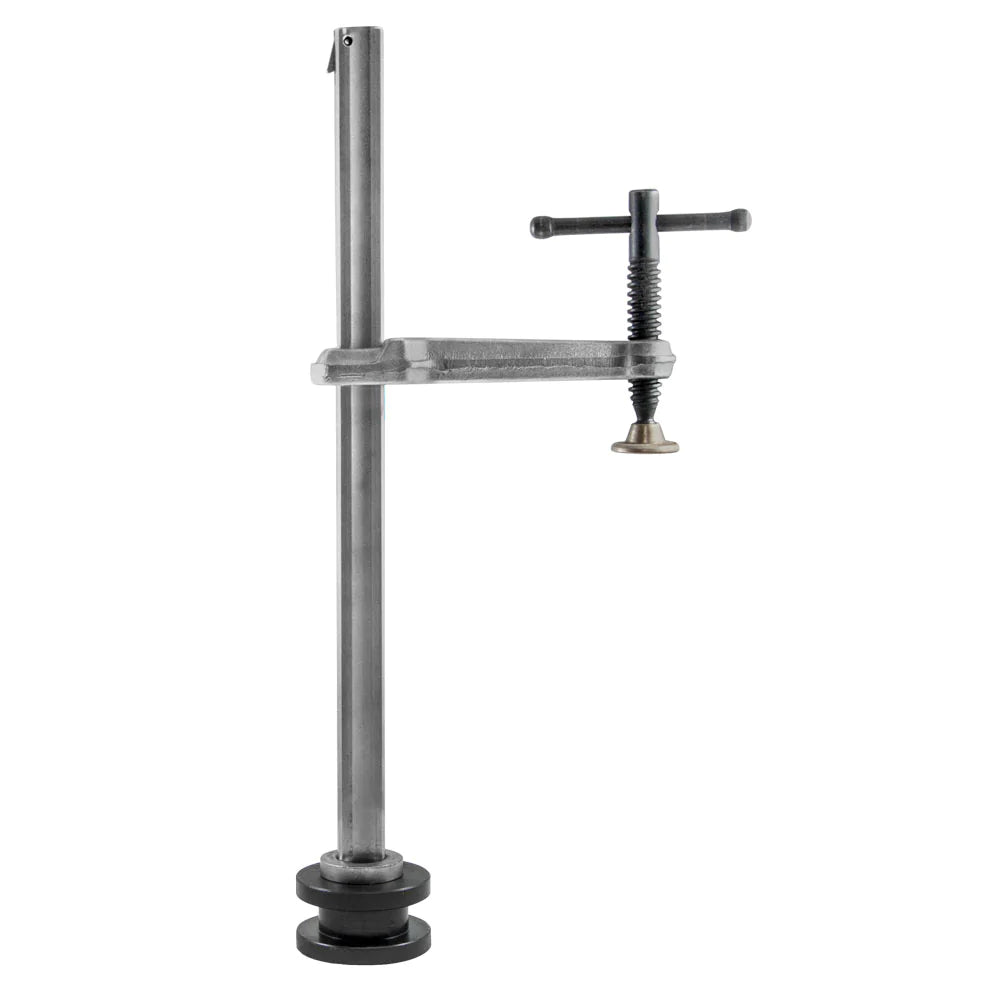

Sliding Channel Clamps, For MAX Slotted Tables

SKU: T51405

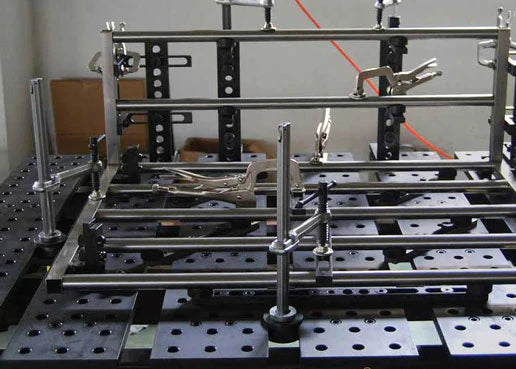

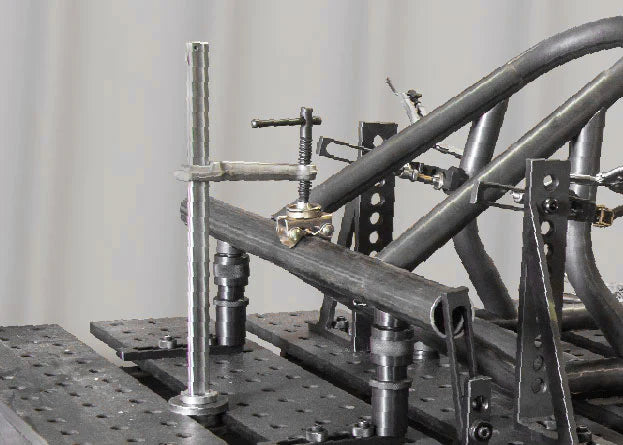

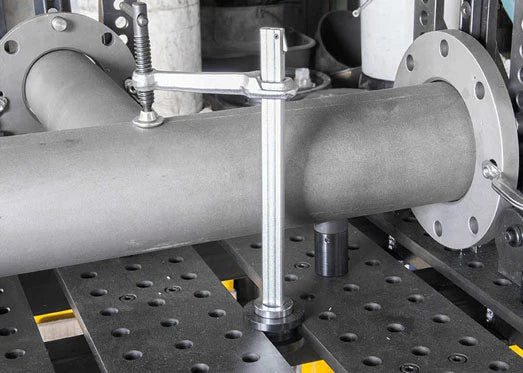

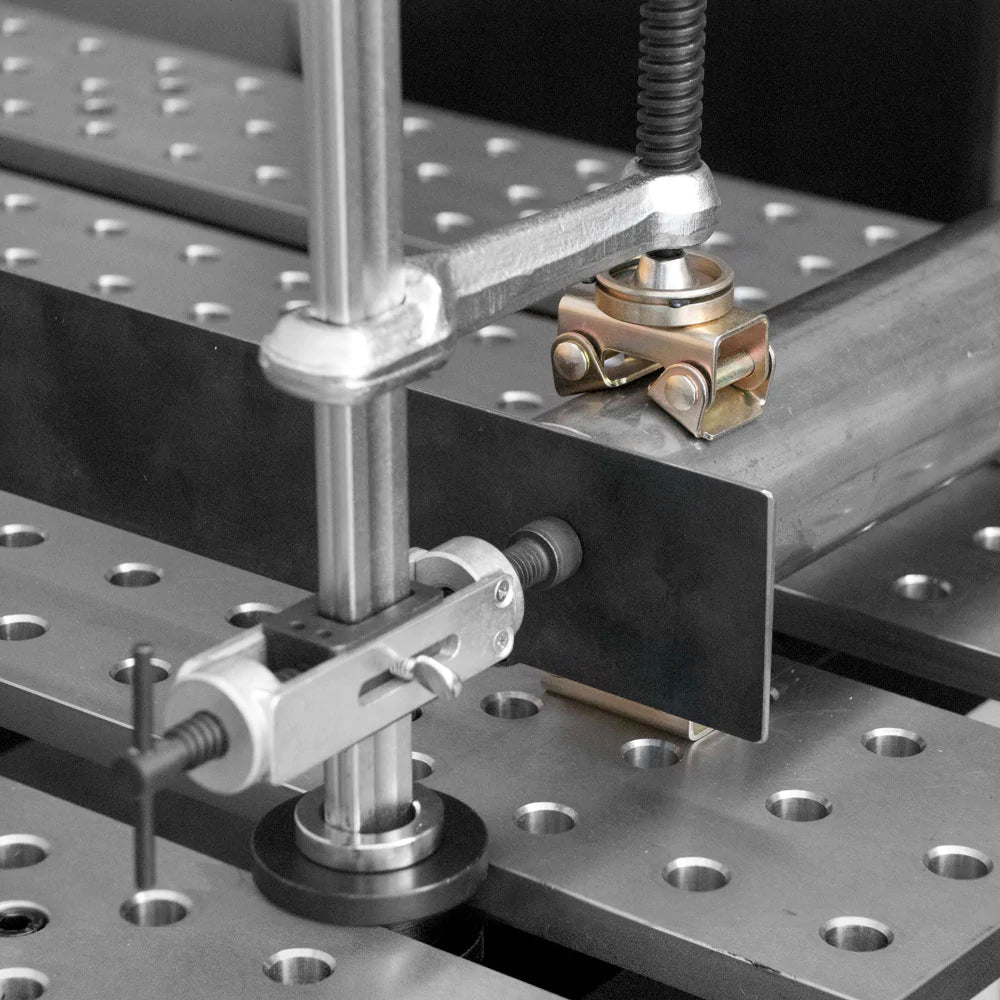

The 360º Sliding Channel Clamp slides into the 1.7″ spacing between plates which enables the clamp body to slide along the entire surface and swivel 360º for positioning at any point.

* Not applicable to slotless tables.

$50.50
$50.50
Sale Sold out
/
Shipping calculated at checkout.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

T51405 - STEP

T51510 - STEP

T51615 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Clamping Capacity (in) Throat Depth (in) Clamping Pressure (lb) Rail Size (in) Weight (lb)
T51405 8-1/2 4-3/4 500 7/8 x 7/16 3.5
T51510 12-1/2 4-3/4 600 1 x 15/32 4.8
T51615 20-1/2 5-1/2 700 1-3/16 x 9/16 8.2
