There are two mounting kits for Alpha 5/8 tables and MAX tables.
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures
Table Plate Mounting Kits, Fit 5/8 Holes
Table Plate Mounting Kits, Fit 5/8 Holes
5/8"
Hole Diameter
2"
Hole Spacing
Nitrided
Material Finish
5
Table Sides
– For Alpha 5/8 tables only
8 pc. of M12 screws for mounting tabletop or side plates to the table frame.

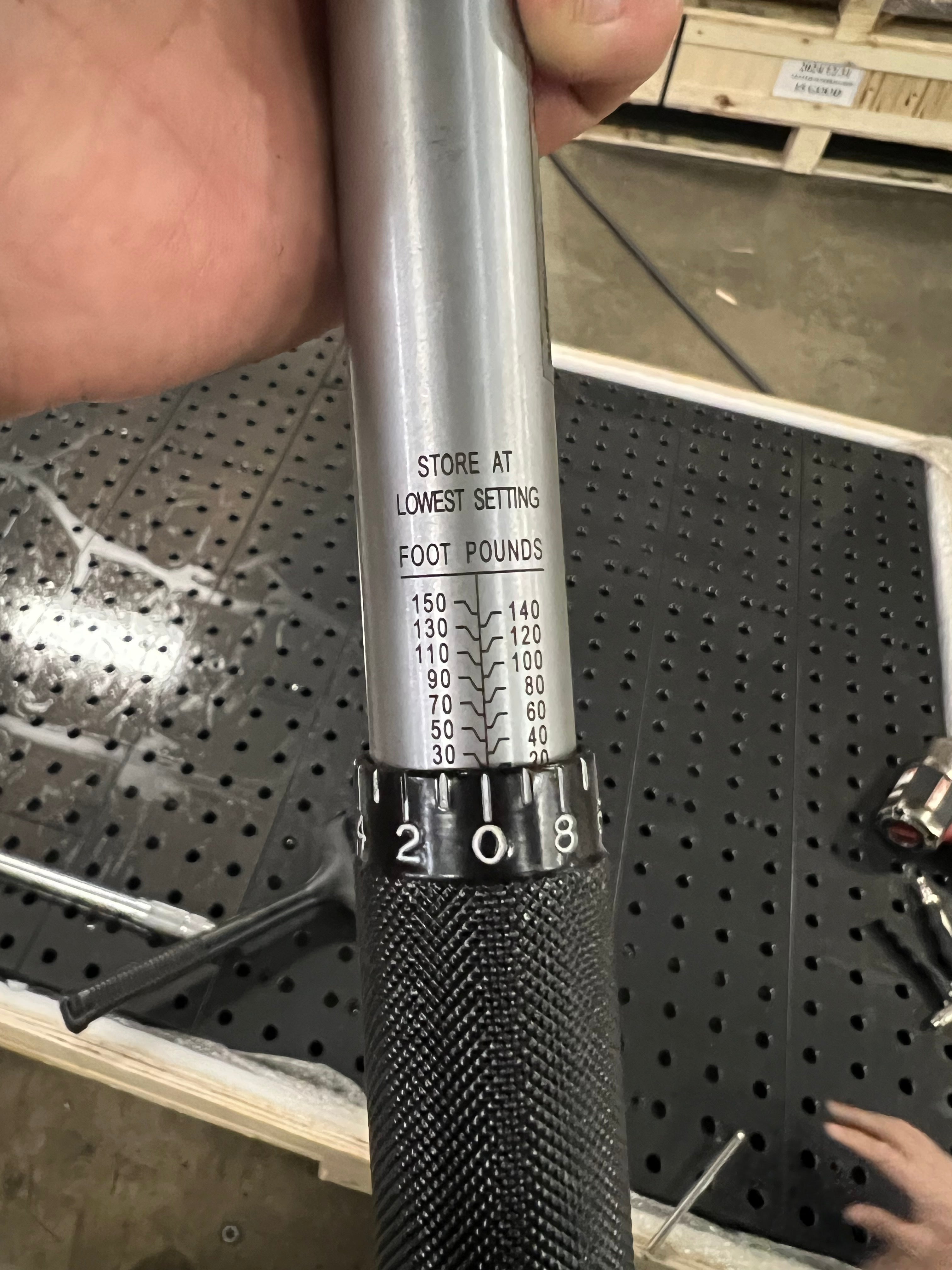

Need 28-30 Foot Pounds torque for tightening.
– For MAX tables
The kit includes 10 pc. of 0.866″ O.D. locating bushings and 10 pc. of M10 x 22 mounting screws.

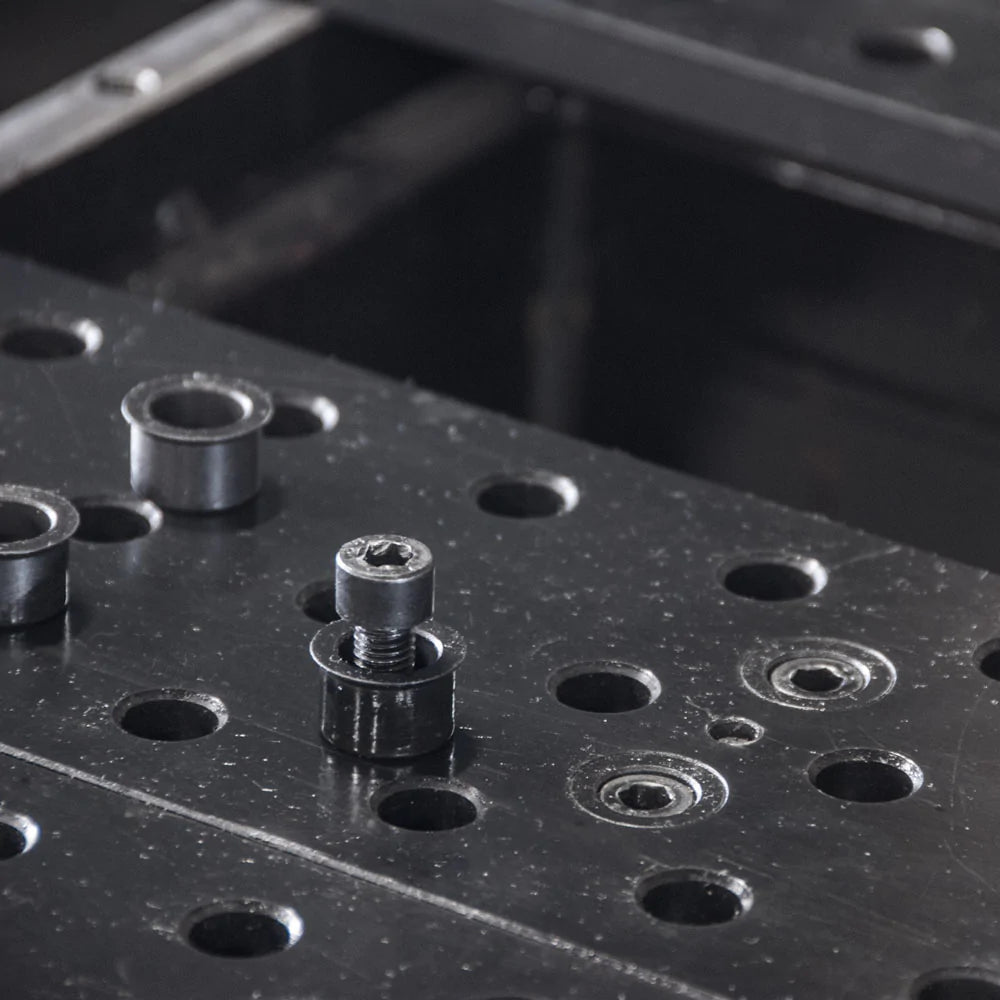

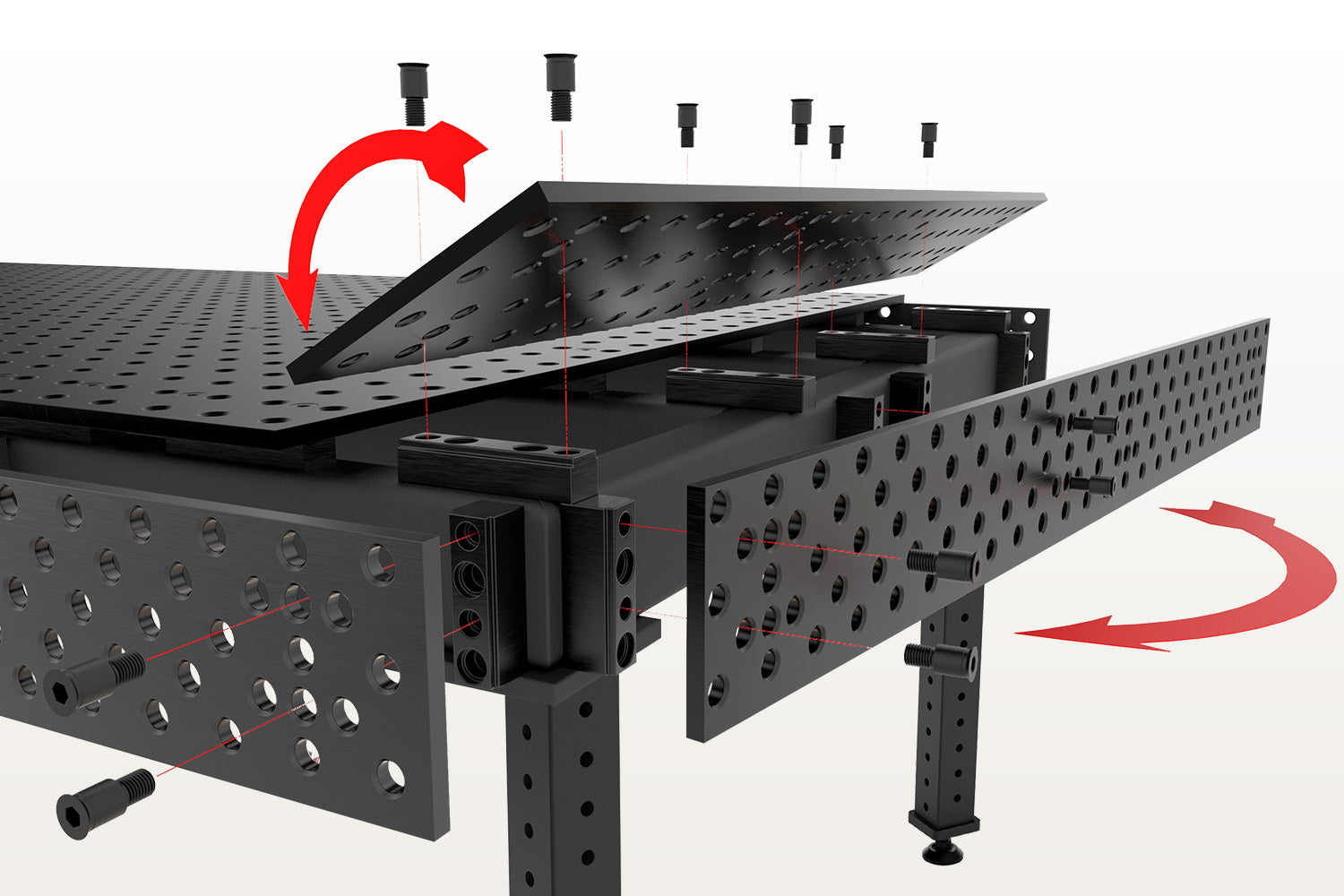

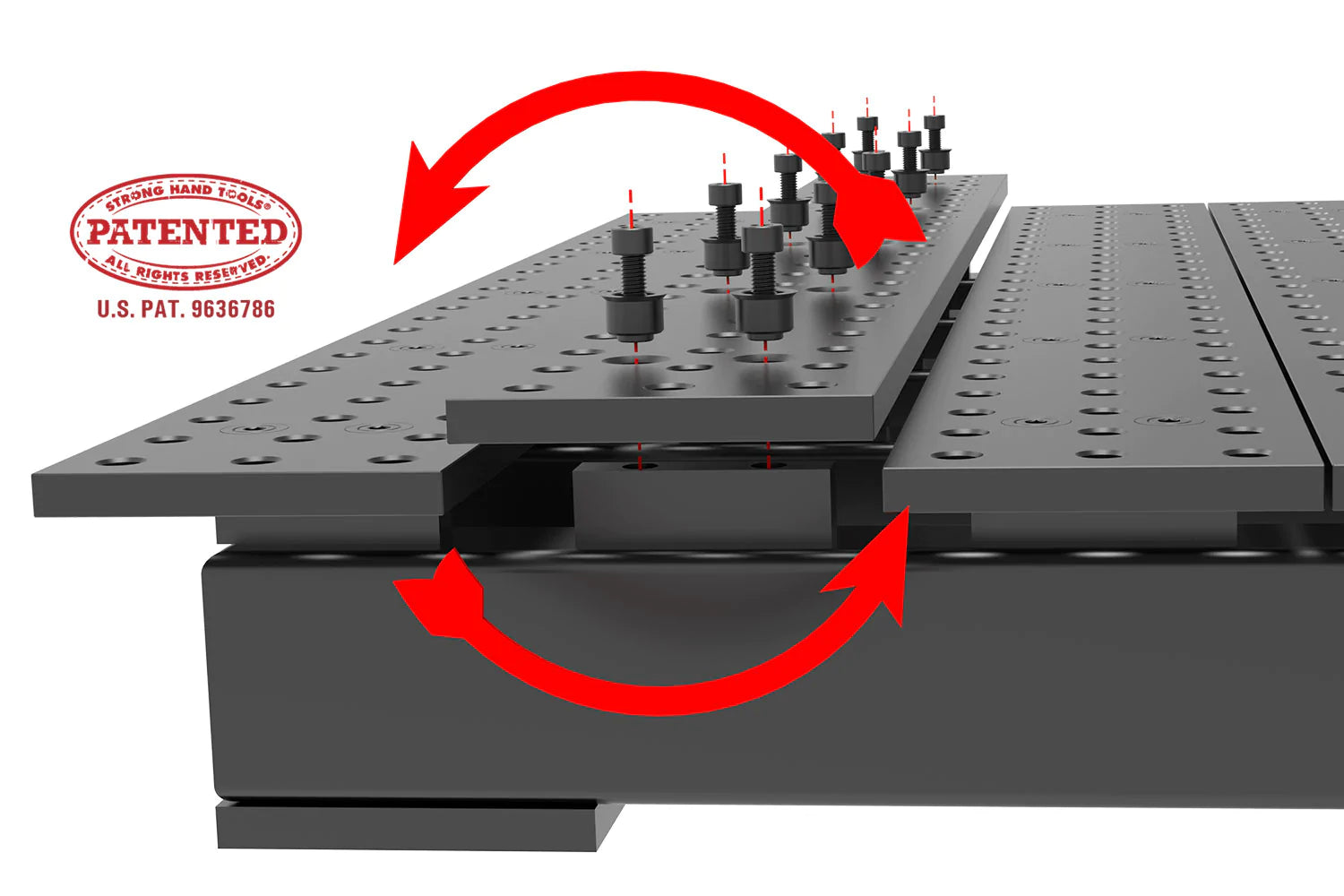

Locating Bushings allow you to remove, re-position, re-align, and reverse the table plates! Must be used in conjunction with mounting screws.
U.S. PAT. 9636786
If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.
California Prop 65- This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info:www.P65Warnings.ca.gov
Mounting Kit for Alpha 5/8 Tables ONLY

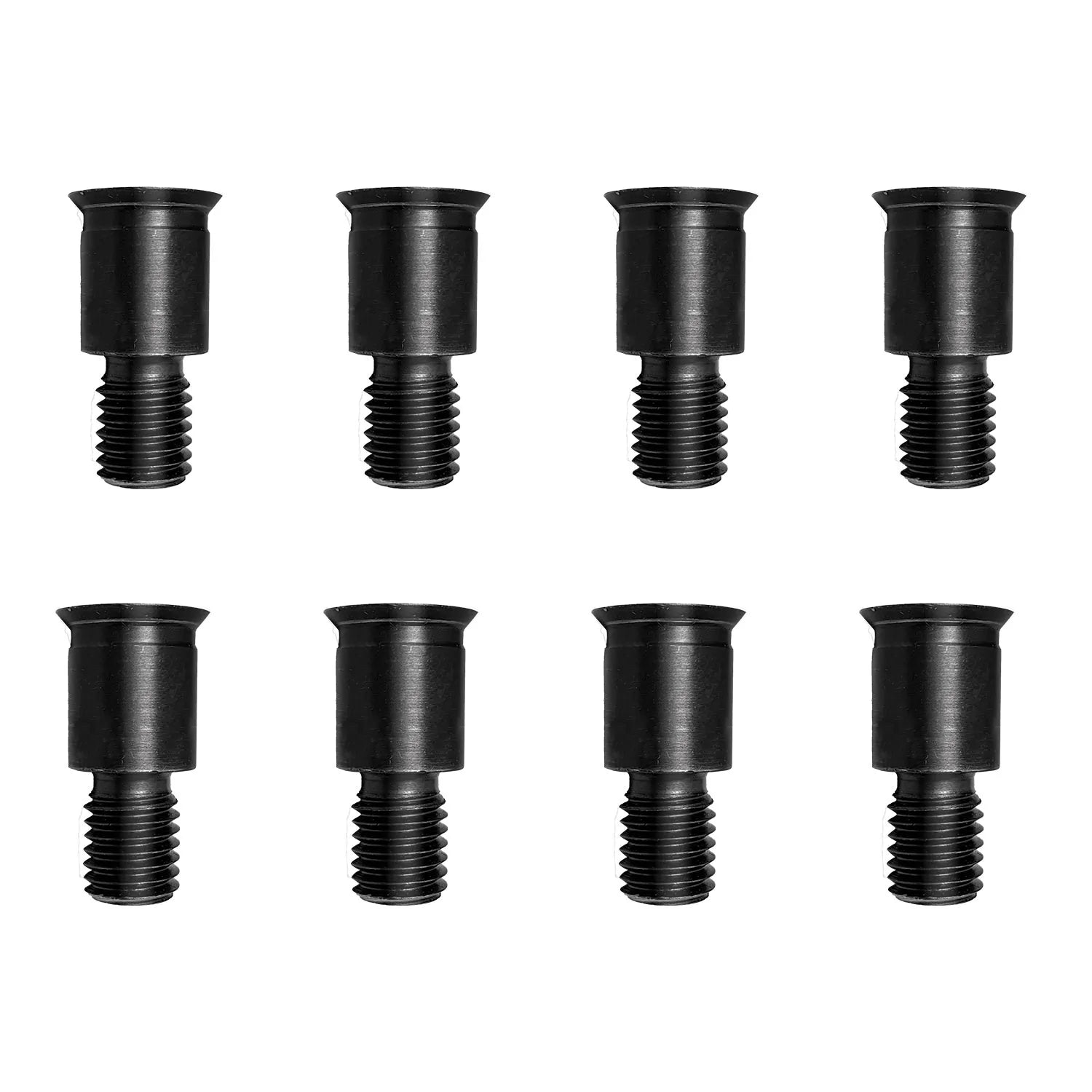

8 pc. of M12 screws for mounting table top or side plates to the table frame.
Need 28-30 Foot Pounds torque for tightening.
| Part No. | Description | Weight (lb) |
|---|---|---|
| TY5-M12-8K | 8x M12 Mounting Screws | 0.6 |
Mounting Kit for MAX (Slot-less and Slotted) tables
The kit includes 10 pc. of 0.866″ O.D. locating bushings and 10 pc. of M10 x 22 mounting screws.
Locating Bushings allow you to remove, re-position, re-align, and reverse the table plates! Must be used in conjunction with mounting screws.
| Part No. | Description | Weight (lb) |
|---|---|---|
| TM62010-04-10K | 10x Locating Bushing + 10x Mounting Screws | 1.1 |
Fully Assembled
Plate Frame
