BuildPro

Threaded Adapters, Fit 5/8 Holes

SKU: TXT5203

Convert any hole in the table into a threaded hole.

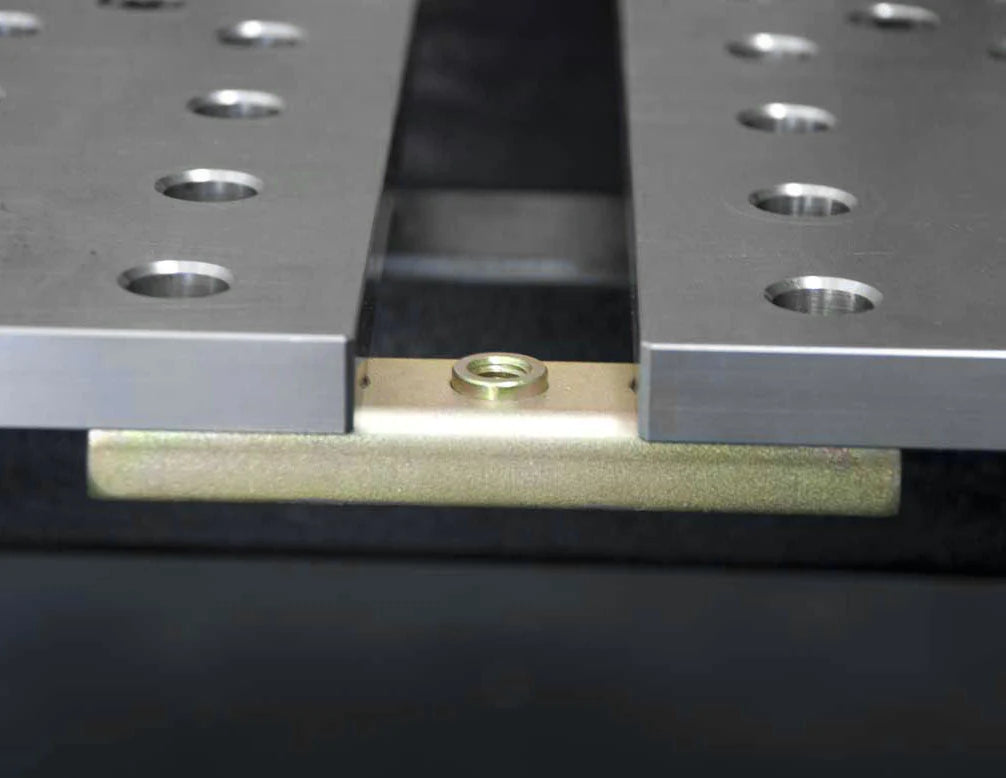

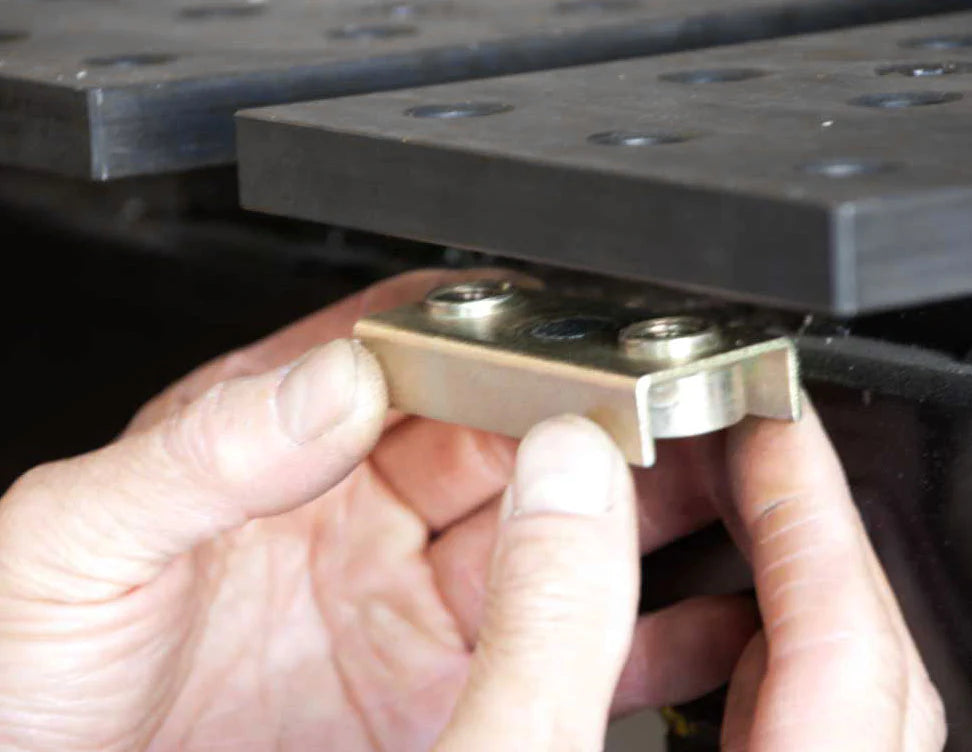

Place the Adapter in position beneath the tabletop, in alignment with table holes. Magnets hold threaded adapter in place.

$7.50
$7.50
Sale Sold out
/
Shipping calculated at checkout.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

TXT5203 - STEP

TXT5204 - STEP

TXT5205 - STEP

TXT5303 - STEP

TXT5304 - STEP

TXT5305 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

2 Holes Models

Part No. Hole Adapters Threaded Holes Magnets Weight
(lb)		 CAD
TXT5203 2 5/16 - 18 1 0.3 STEP | IGS

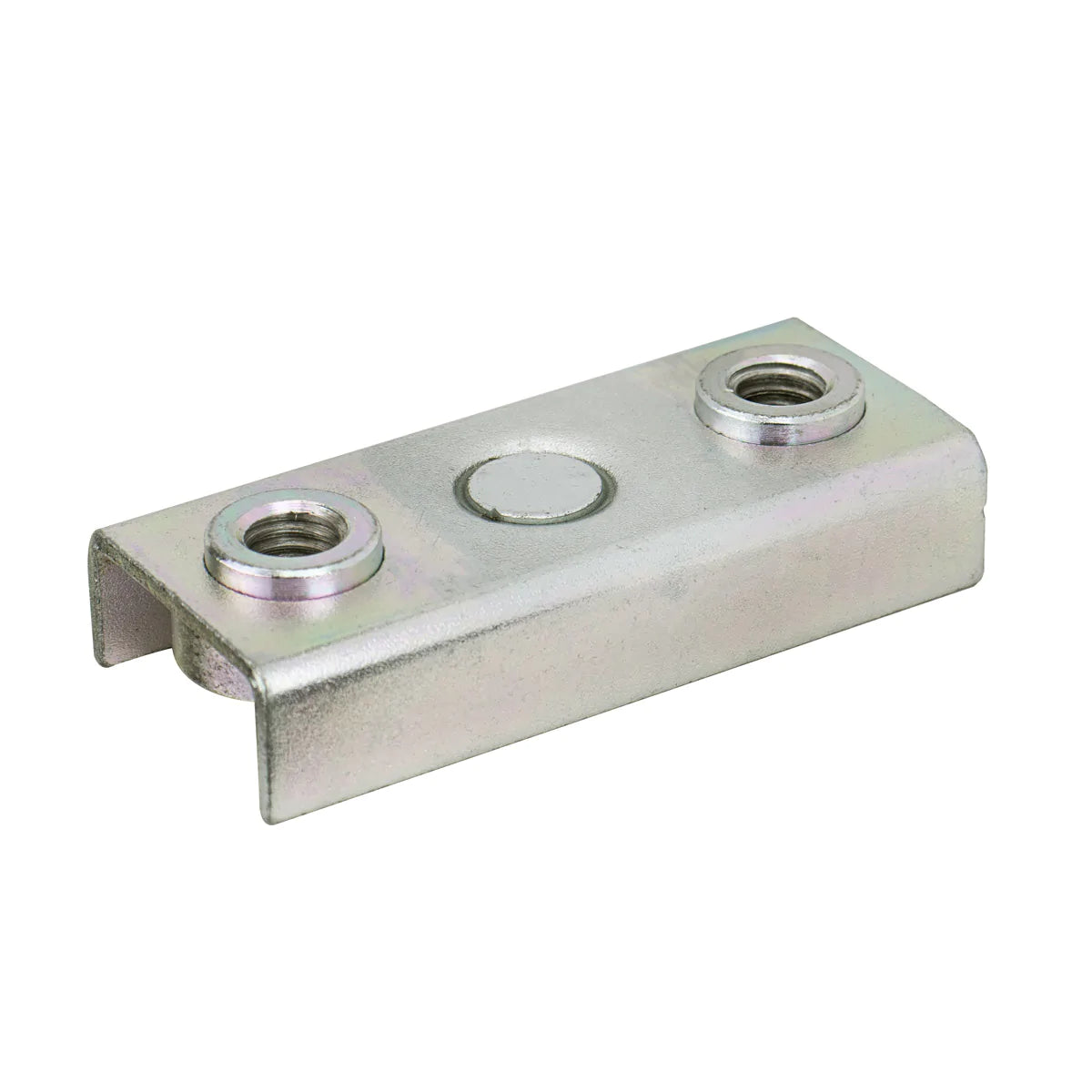

TXT5204 2 3/8 - 16 1 0.3 STEP | IGS

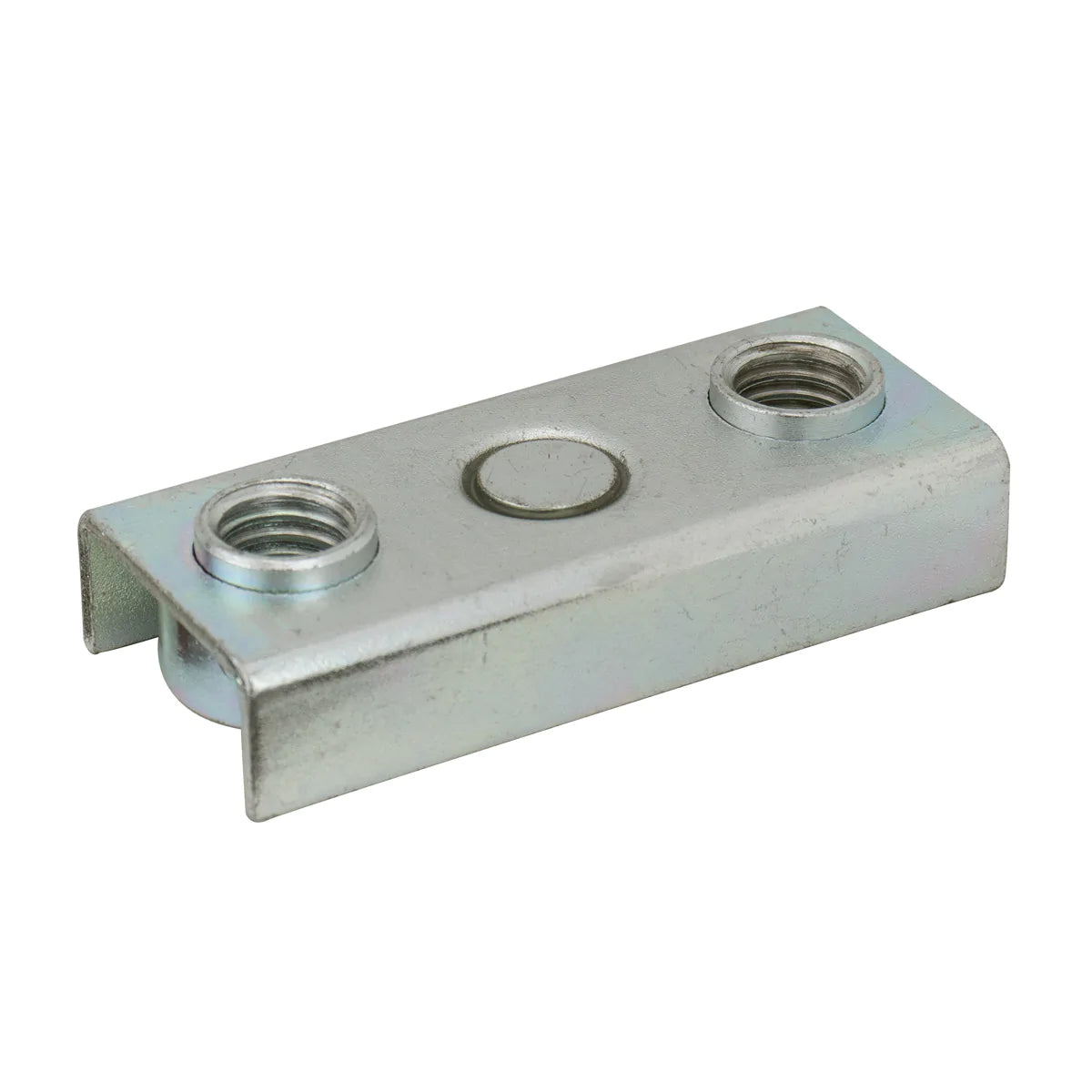

TXT5205 2 1/2 - 13 1 0.3 STEP | IGS

3 Holes Models

Part No. Hole Adapters Threaded Holes Magnets Weight
(lb)		 CAD

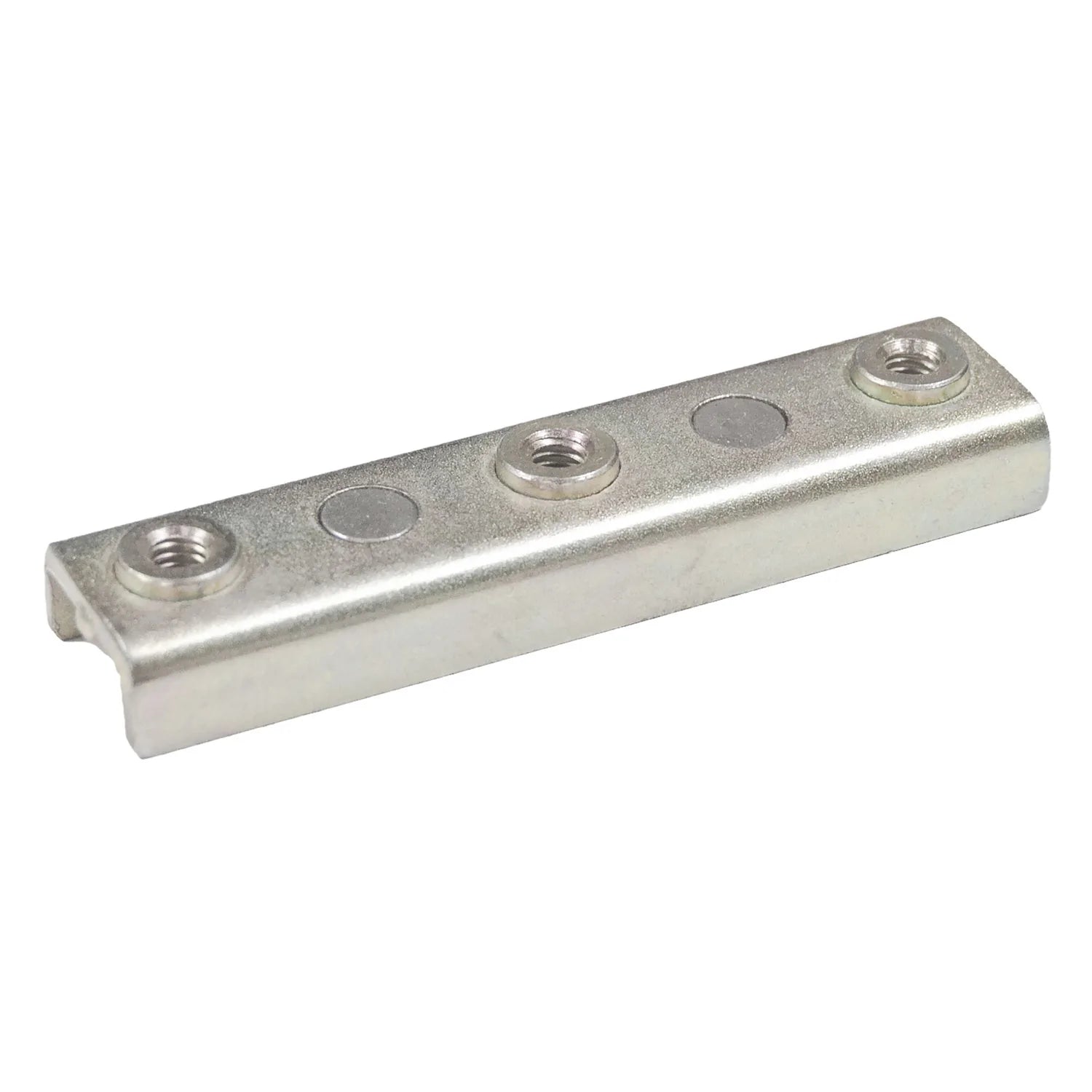

TXT5303 3 5/16 - 18 2 0.6 STEP | IGS
TXT5304 3 3/8 - 16 2 0.6 STEP | IGS
TXT5305 3 1/2 - 13 2 0.6 STEP | IGS
