Vendor BuildPro

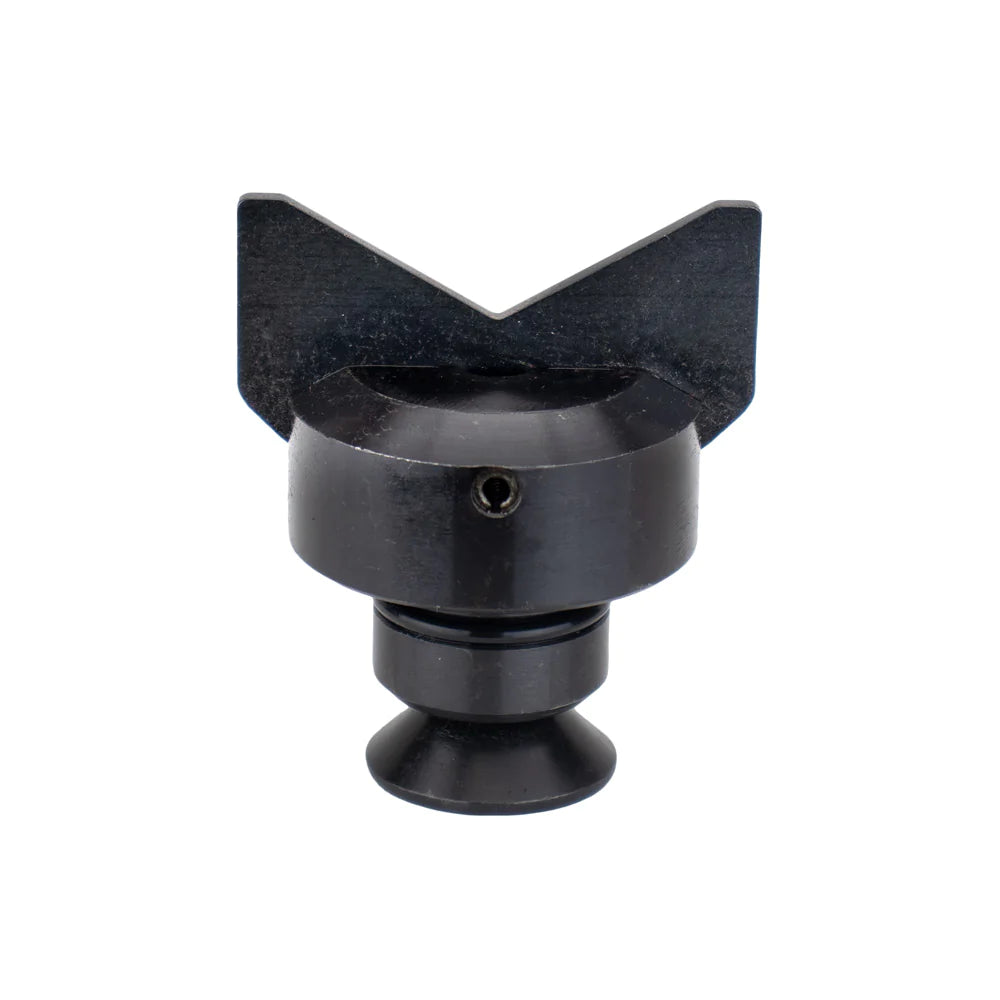

Bend Rests, 28 mm

SKU: T28-520612

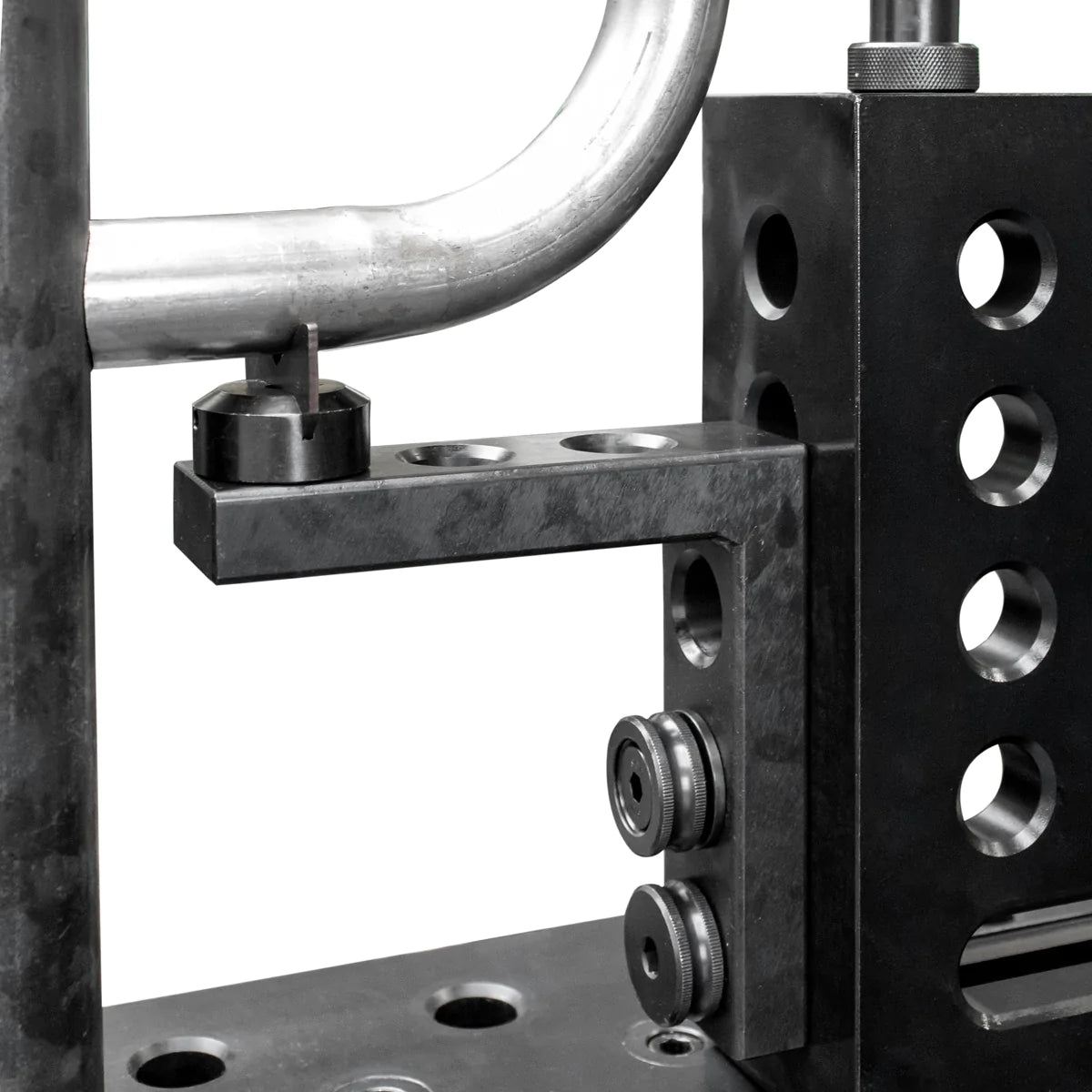

The Bend Rest supports round stock at bends and elbows in fixturing, preventing lateral movement and providing clamp support.

The low profile design allows use of multiple Bend Rests as needed to elevate stock, leaving ample space for clamping.

Place Bend Rests directly into any hole on the Alpha 28 Tabletop, or use in combination with Alpha 28 Rests to set at the desired height to meet clearance or alignment requirements for each unique fixture.

Regular price $22.00
Sale price $22.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

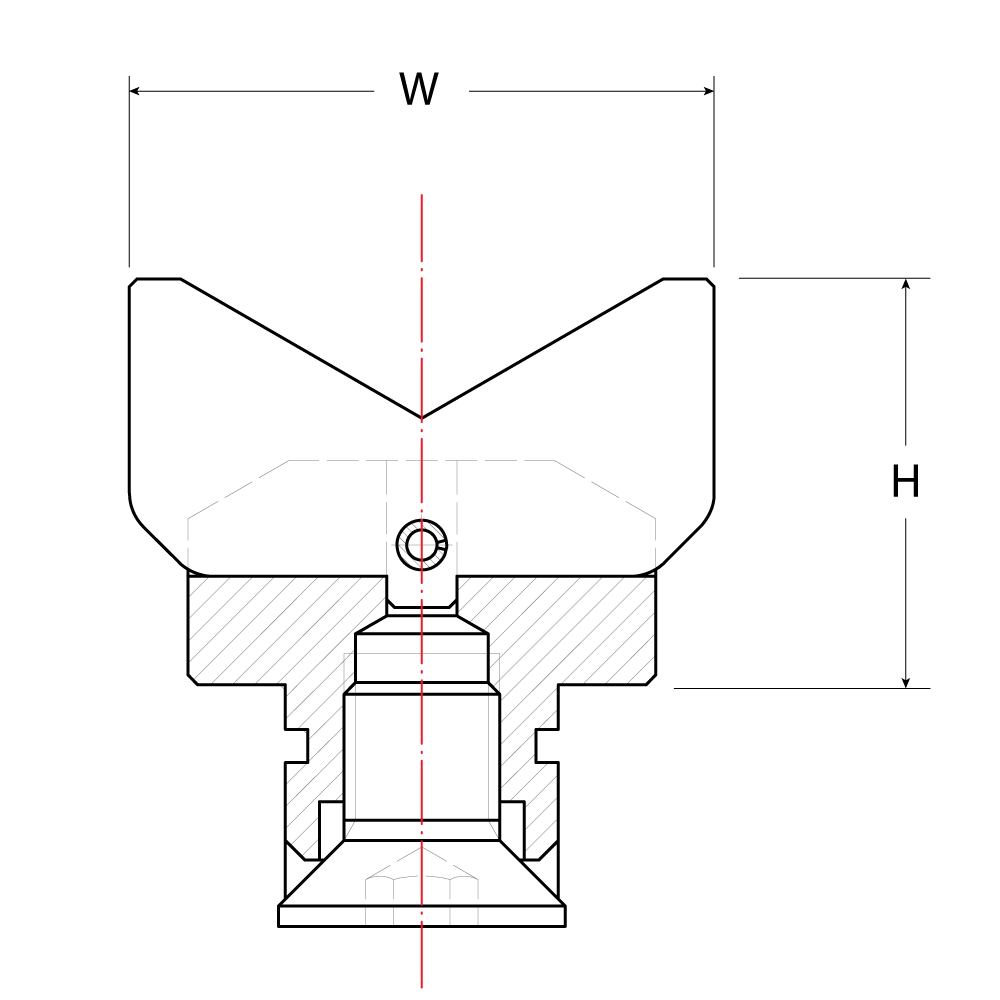

Part No. Angle W x H (mm) Max. Tube Size (mm) Weight (kg)

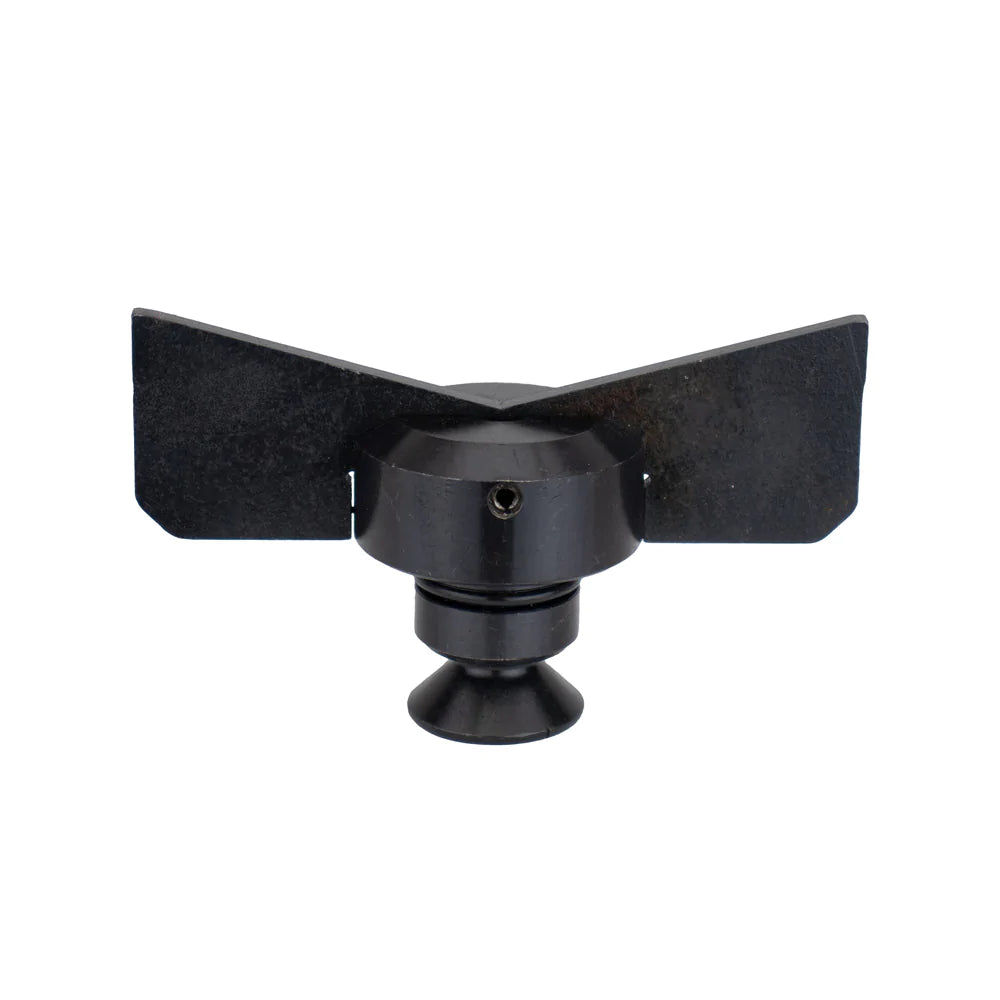

T28-520612 120º 60 x 41.6 80 0.3

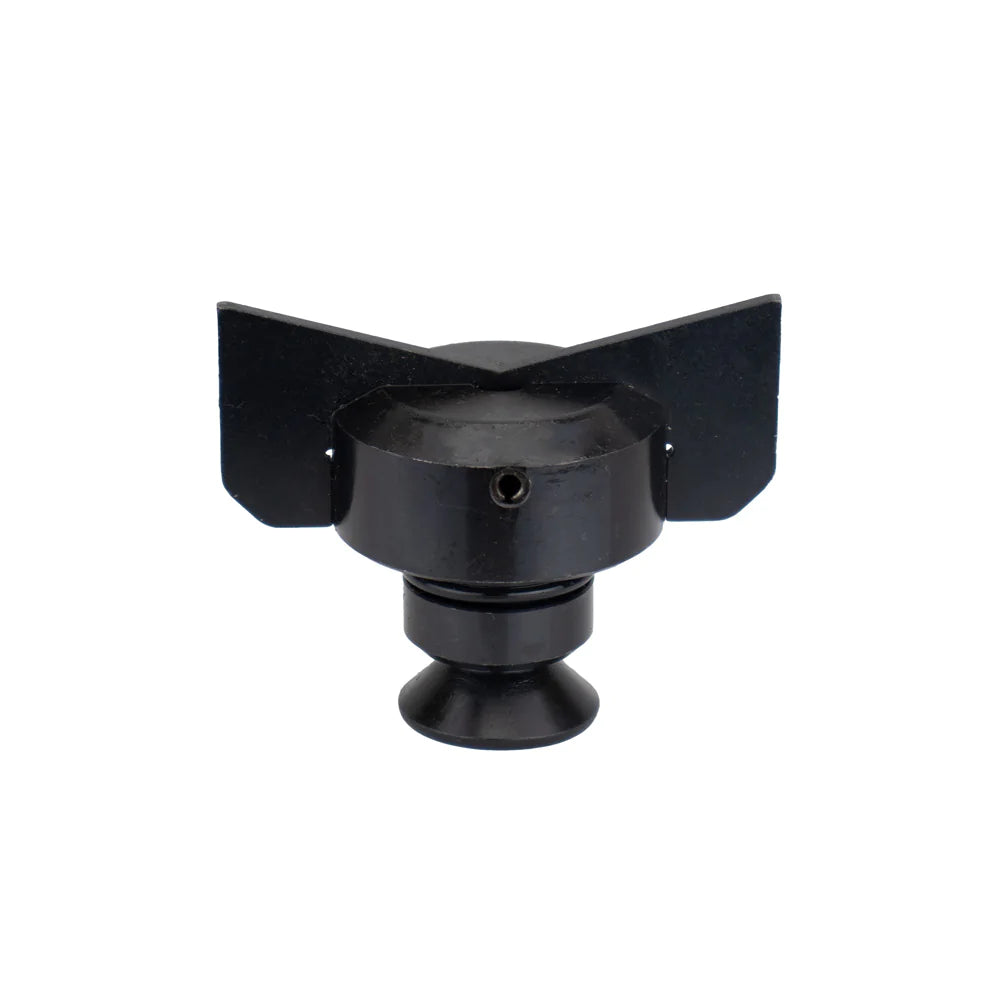

T28-520815 150º 80 x 34 120 ~ 400 0.4
T28-521215 150º 120 x 39 120 ~ 400 0.5
