BuildPro

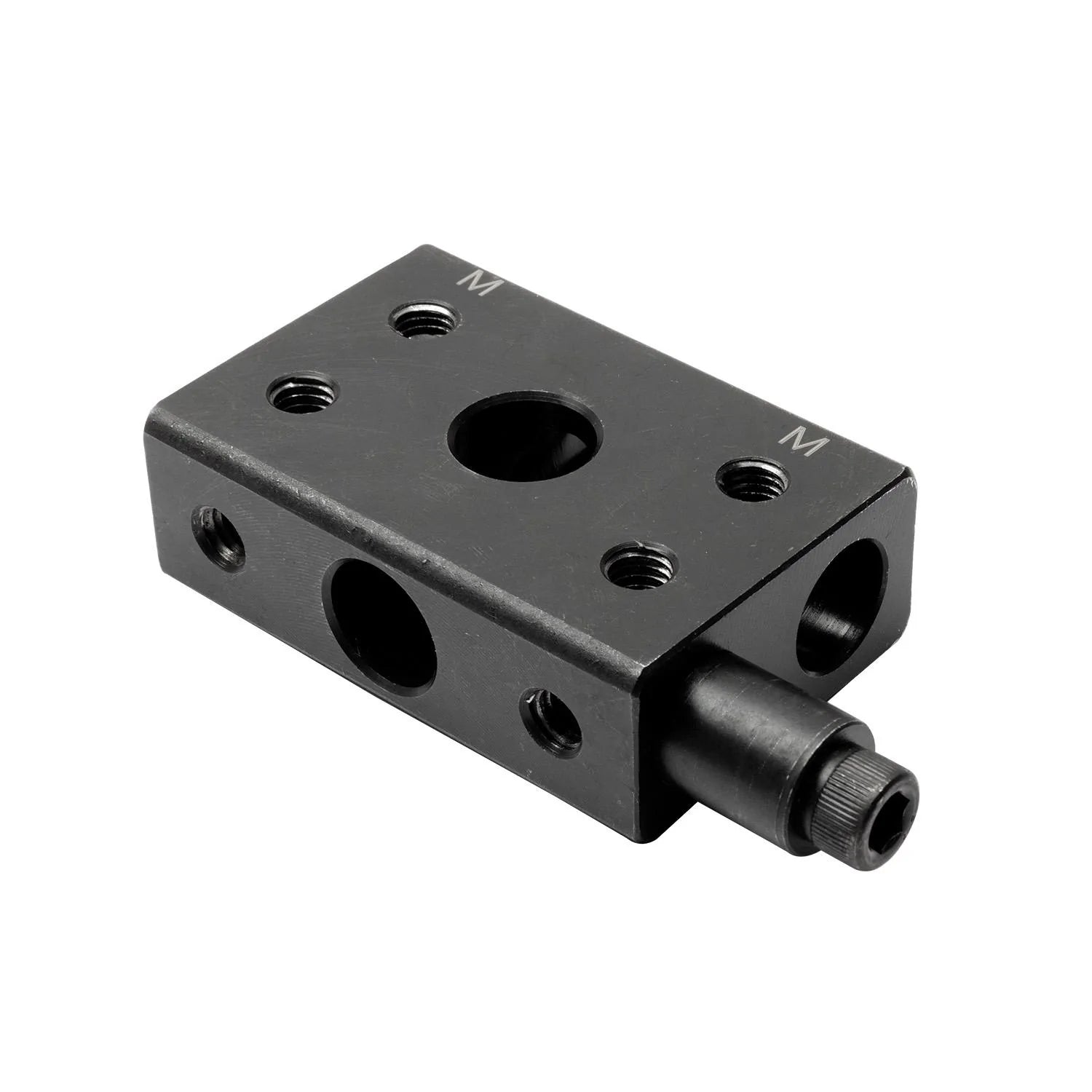

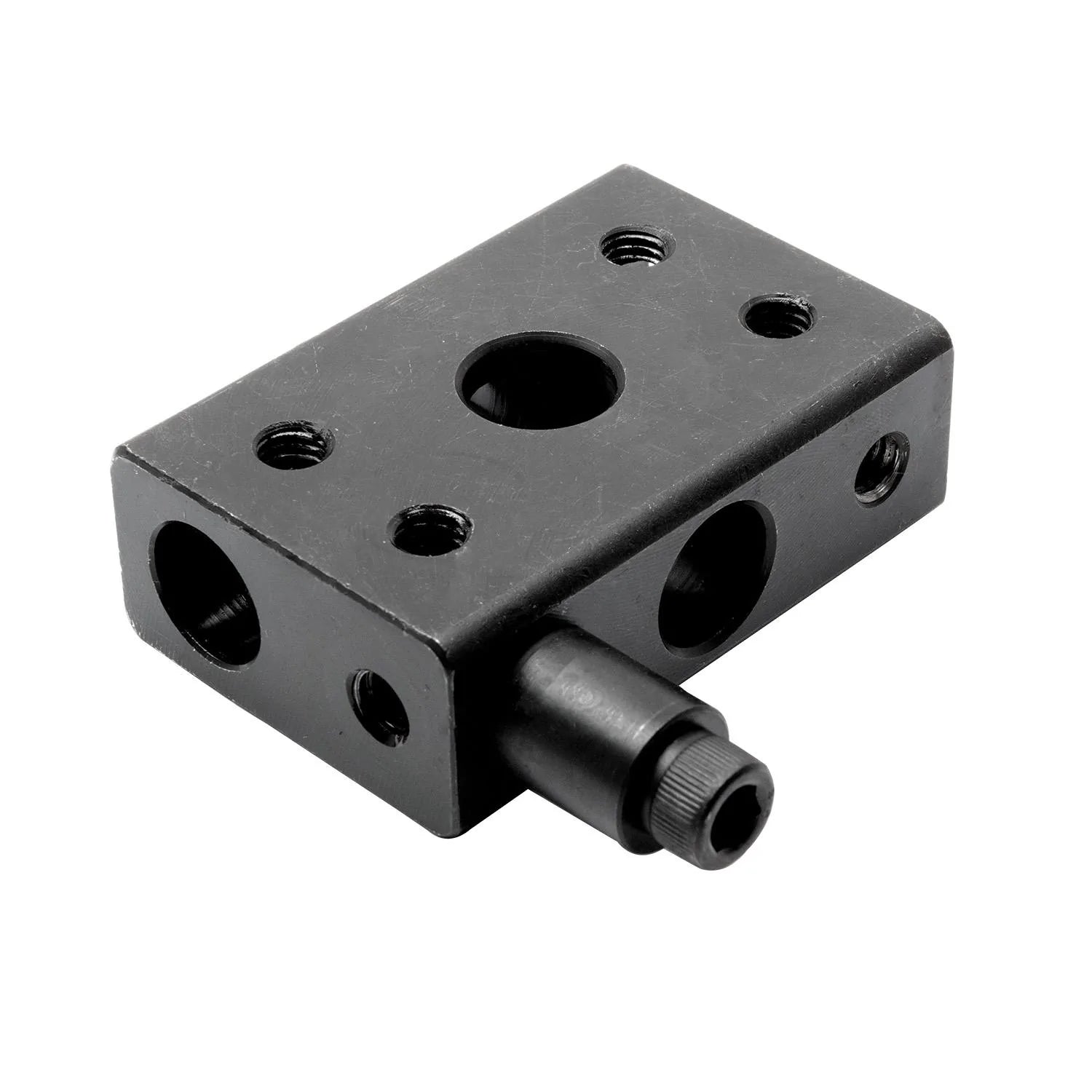

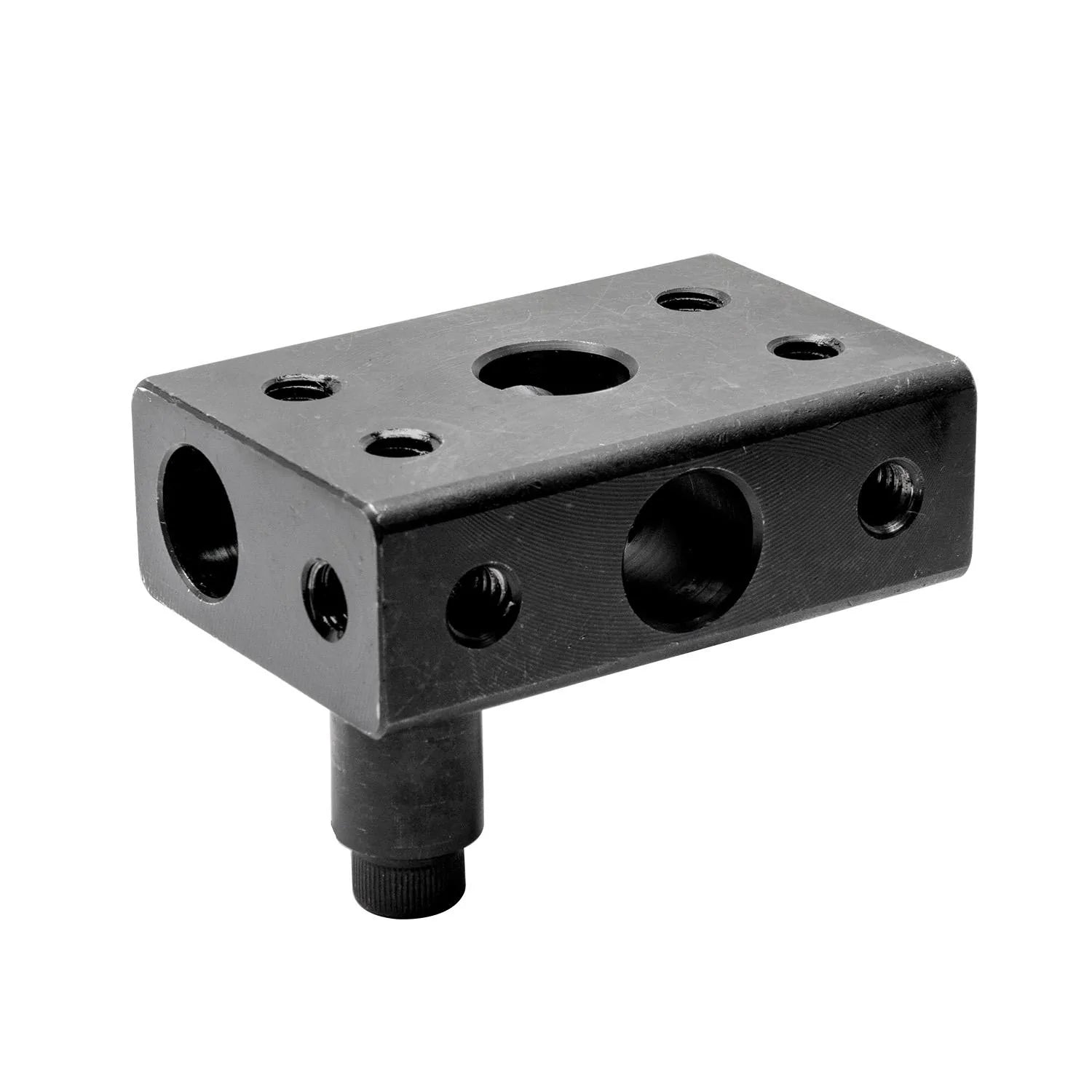

Mounting Adaptor for the Inserta Pliers, Large, Fit 5/8 Holes

SKU: T56020

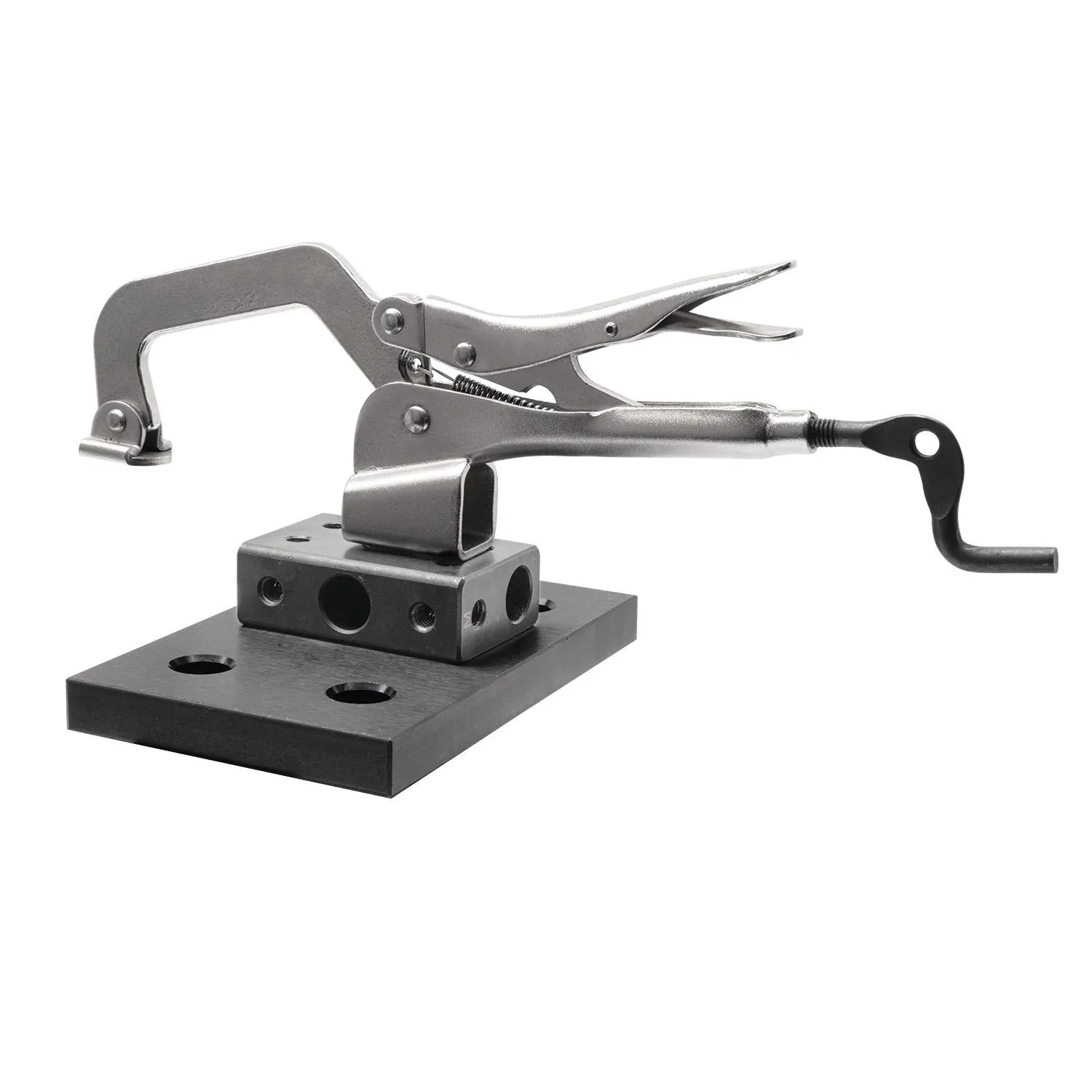

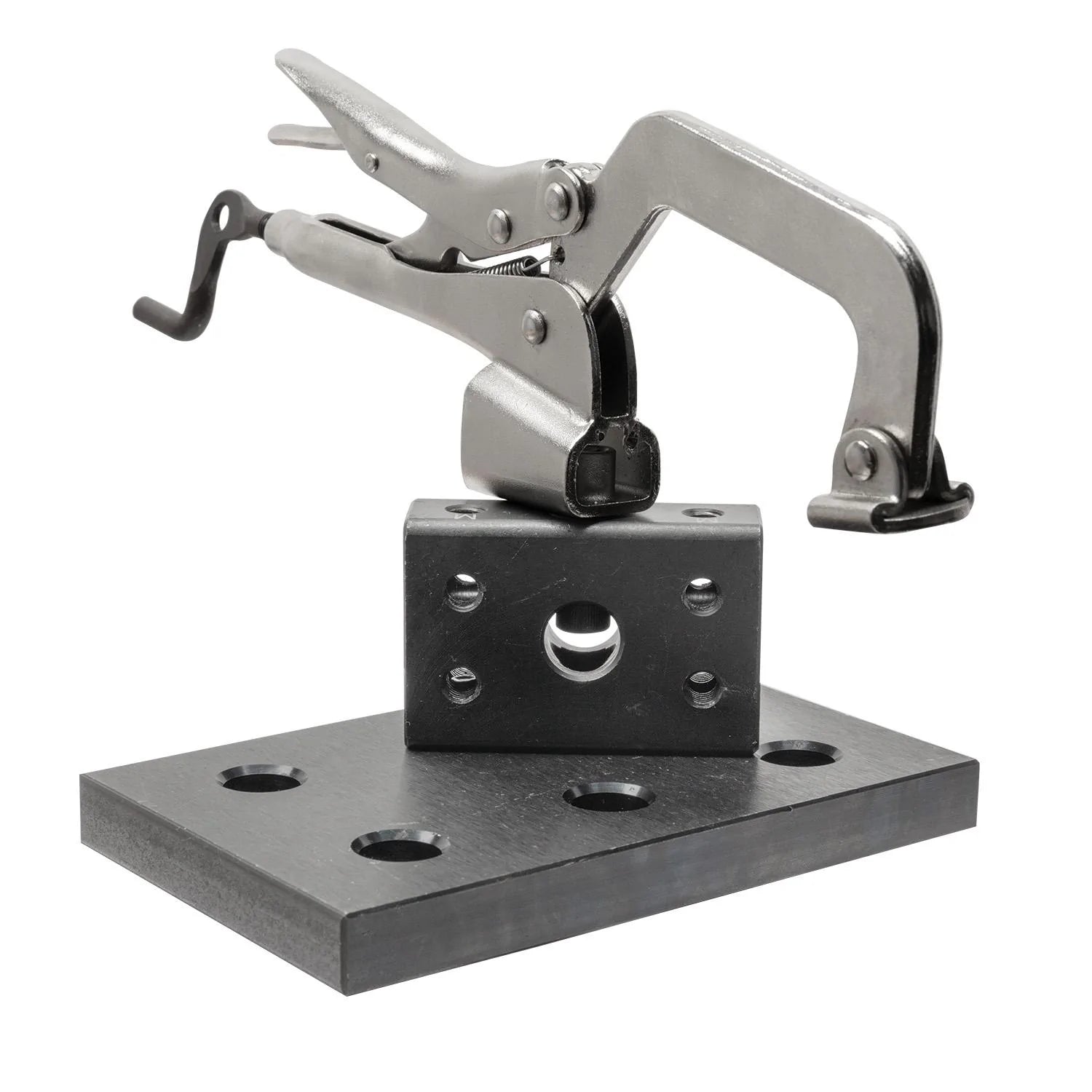

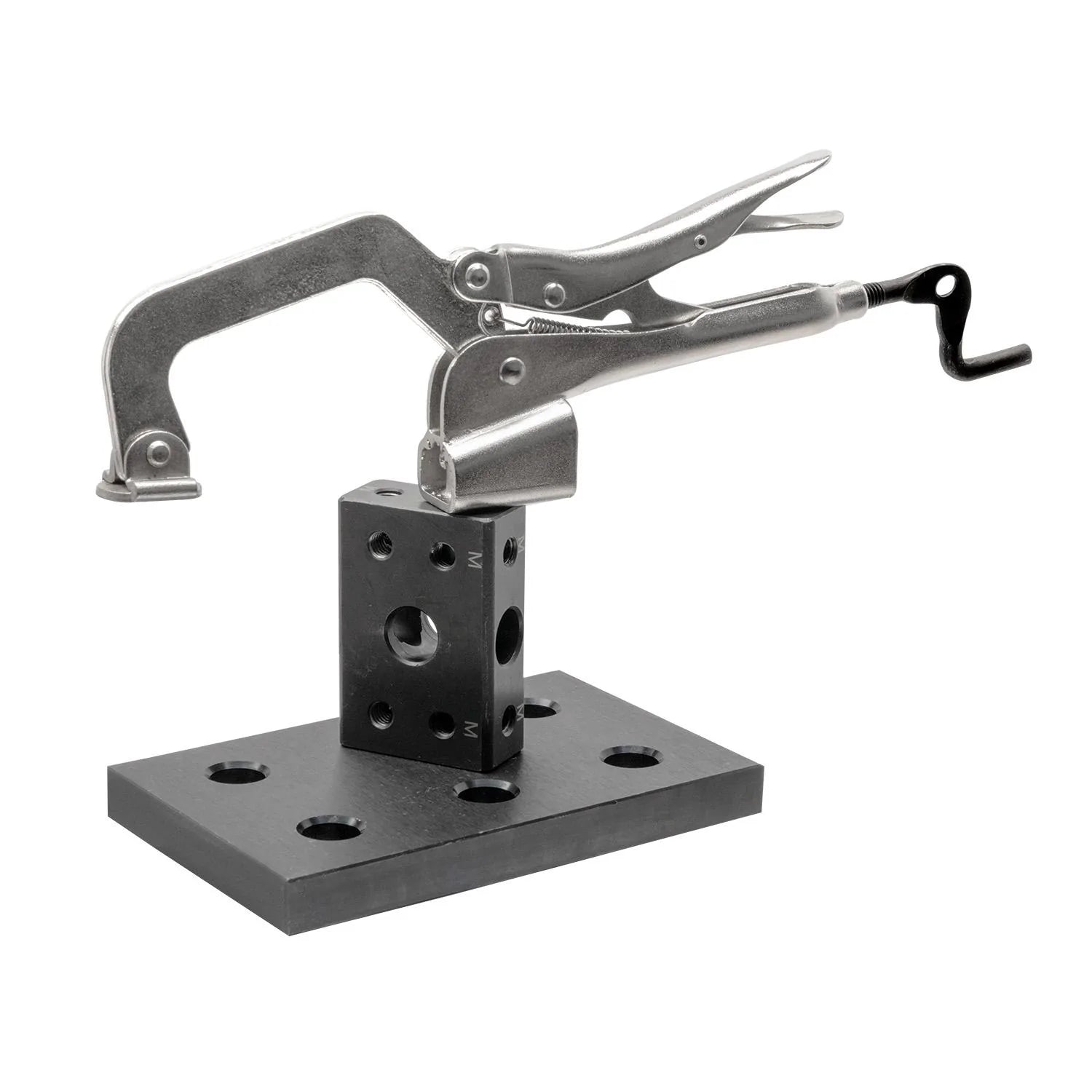

It allows you to precisely place the tip of the Inserta Pliers anywhere on the table surface.

The Mounting Adaptor swivels 360° and provides extension of the Inserta Pliers base for the extended reach, or retraction, of the Inserta Pliers as needed for precise placement of the clamping pad.

Simply replace the existing stud on the Inserta Pliers with the swivel mounting adaptor.

$29.00
$29.00
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

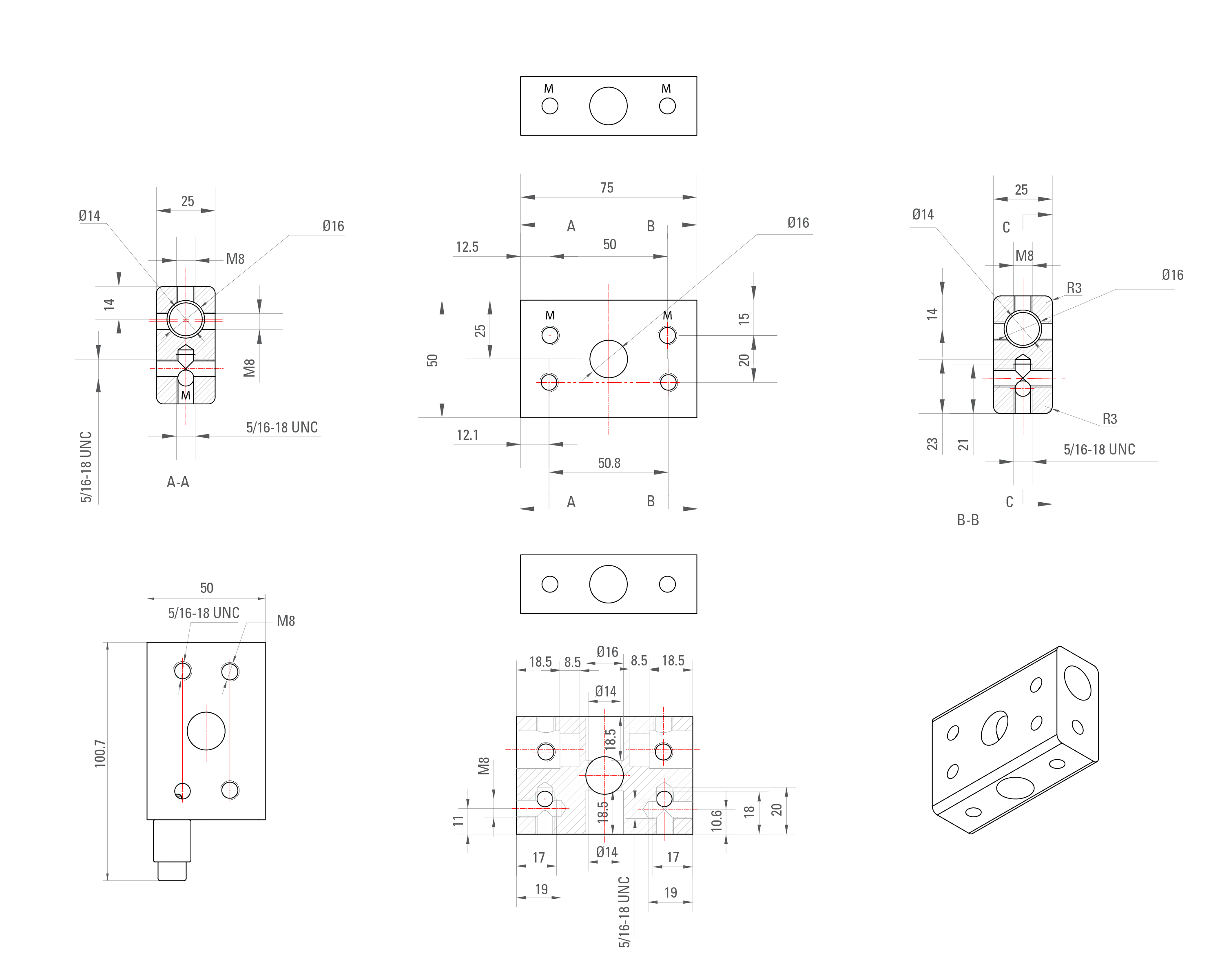

Part No. Main Body Dimension (in) Thread Weight (lb)
T56020 3 x 2 x 1 5/16-18 M (metric): 8 x 1.25 1.2
