Vendor BuildPro

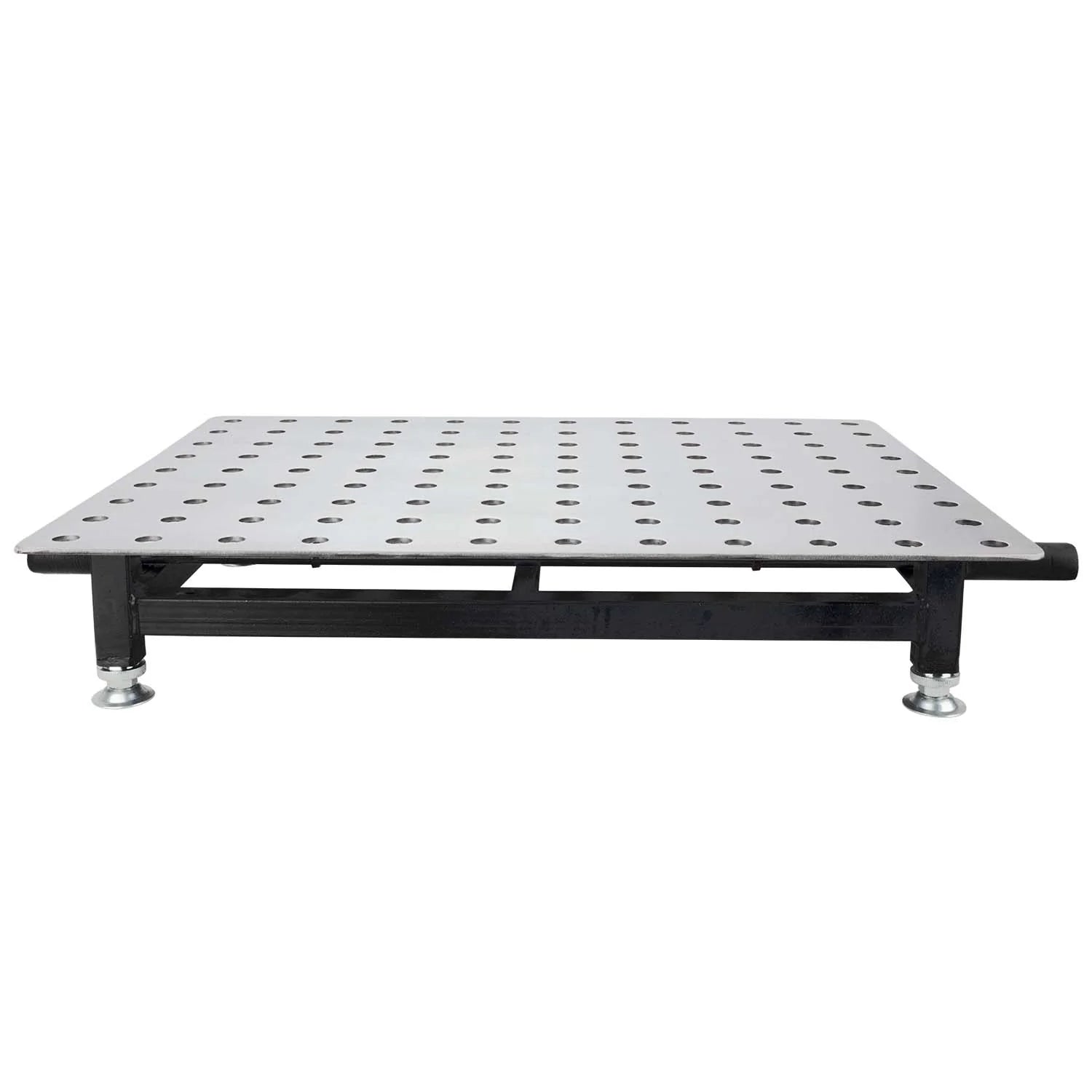

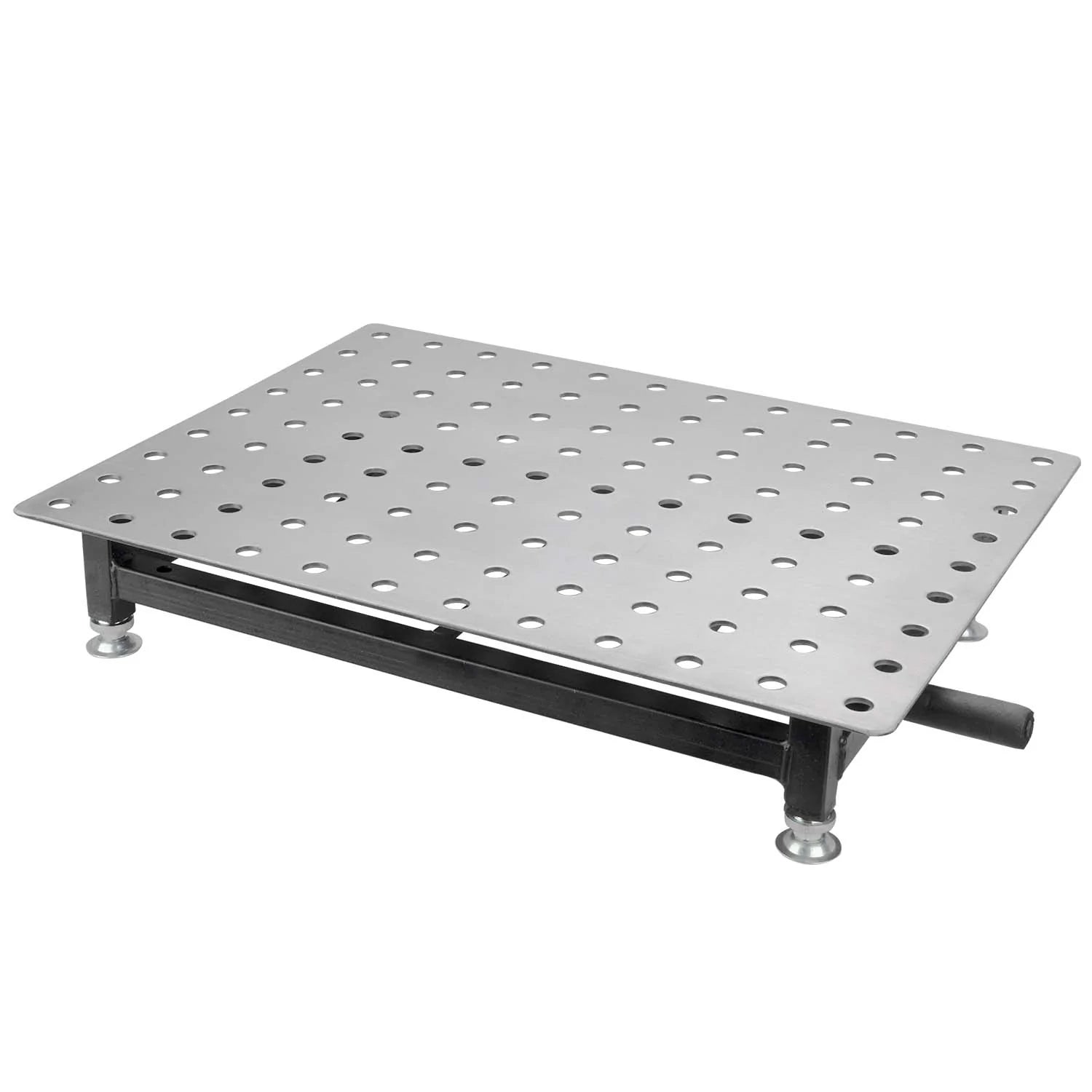

Portable FixturePoint Table Package

SKU: TB52418-K1

This package includes Portable FixturePoint Table with 12-pc Tool Kit.

The lightweight 4 mm tabletop plate can be set at 30º, 45º, and 65º to provide comfort and extra working space for small projects on the side. Easily moves around the shop!

FixturePoint Clamps and Components can be inserted into the 16 mm holes on the 24″ x 18″ tabletop for complete flexibility in Modular Fixturing.

Regular price $291.20
Sale price $291.20 Regular price $364.00
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Portable FixturePoint Table Package

Portable, positionable welding table for TIG welding of small parts.

Part No. Description Gross Weight (lb)
TB52418-K1 Portable FixturePoint Table + 12-pc. Fixturing Kit 35

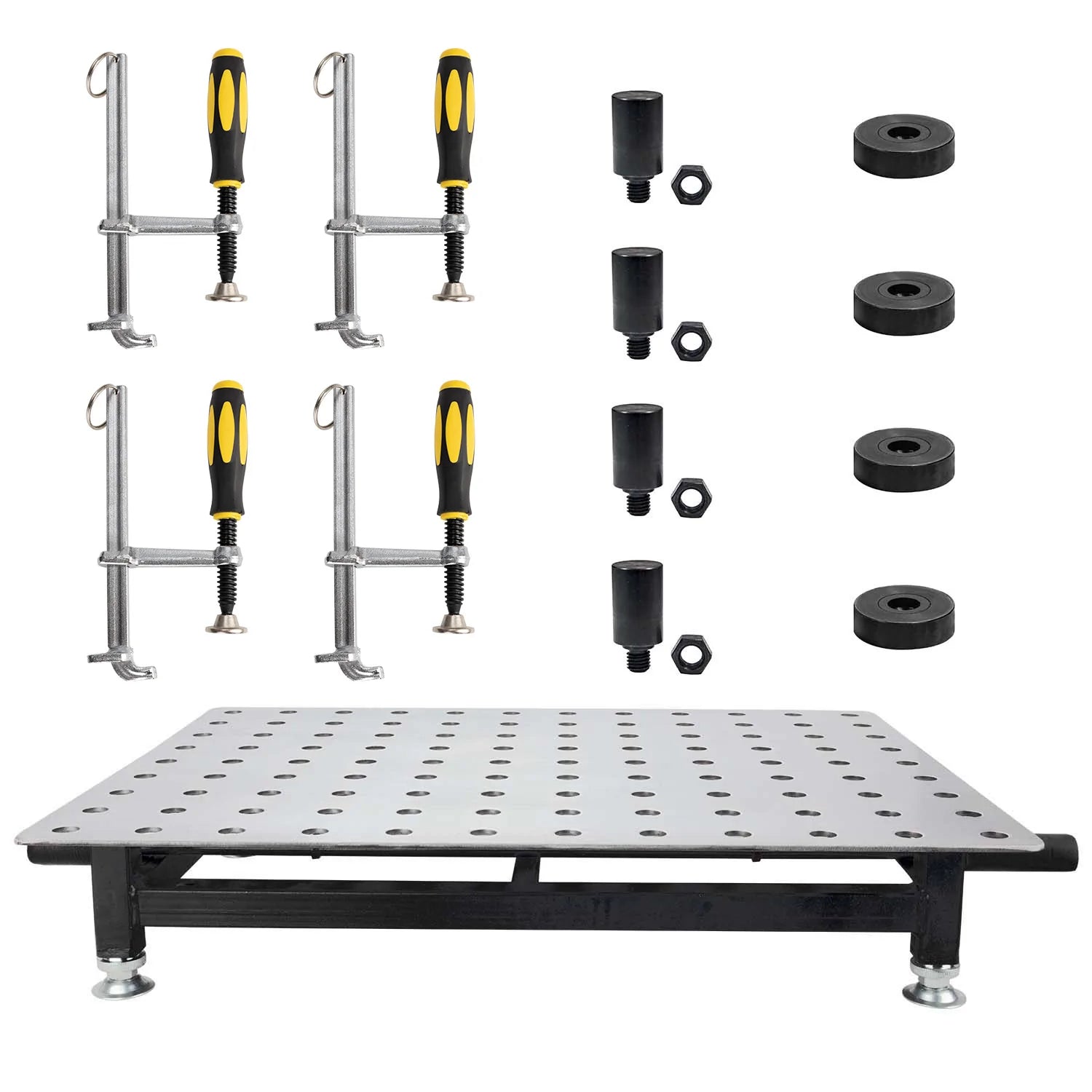

Package includes:

Rigid construction, multi-angle settings. Easily moves around the shop!

Create your setup in the horizontal position, then set the ideal tabletop angle for worker comfort in each unique project! Parts stay securely clamped in position at any angle.

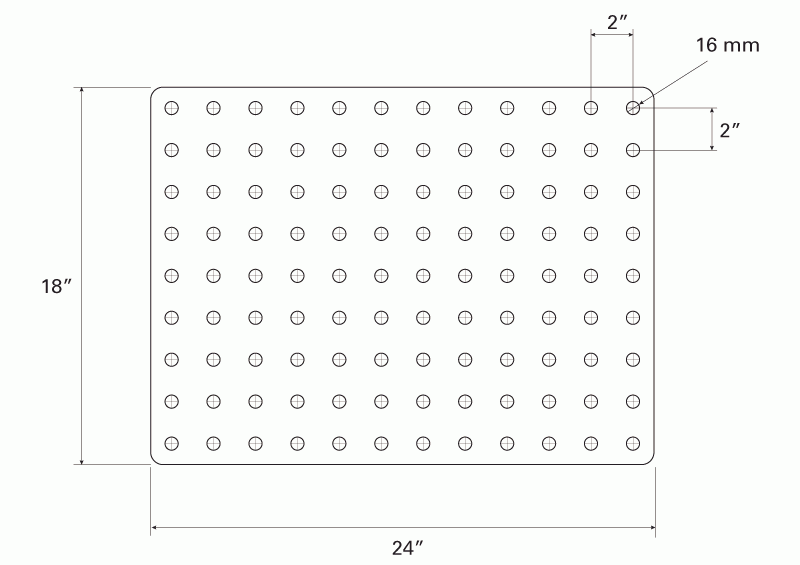

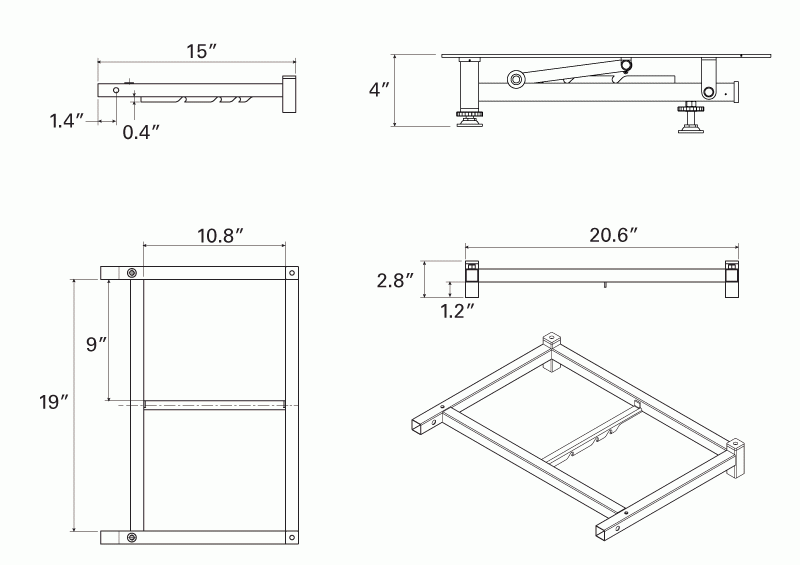

Table Details:

Hole Diameter: 16 mm
Grid Pattern: 2" x 2"
Tabletop Size: 24" x 18"
Tabletop Material Thickness:  0.16" / 4 mm
Table Height: 4"
Leveling Feet Adjustment: 0 ~ 1.6"
Static Loading Capacity: 60 lb
Table Net Weight: 25.4 lb

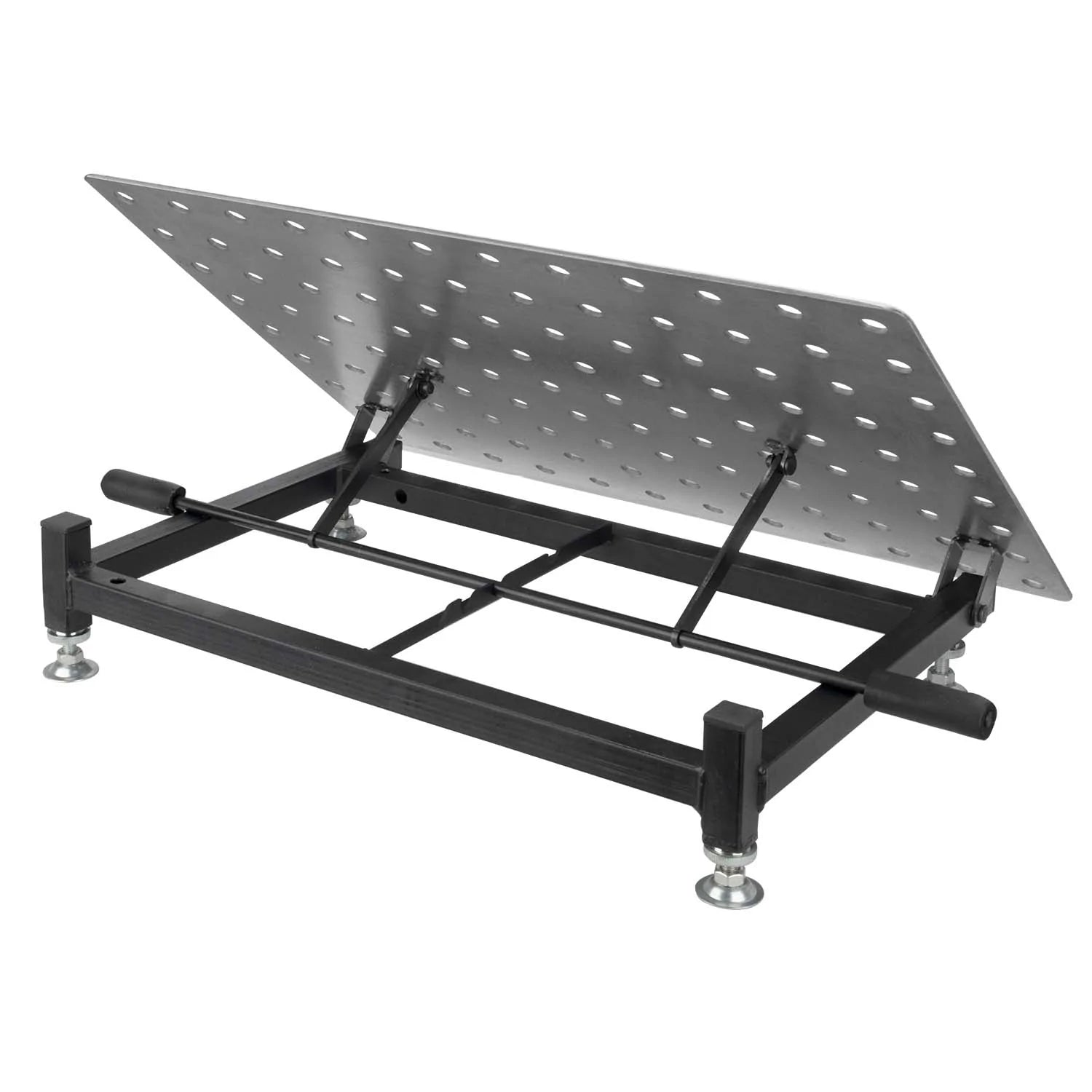

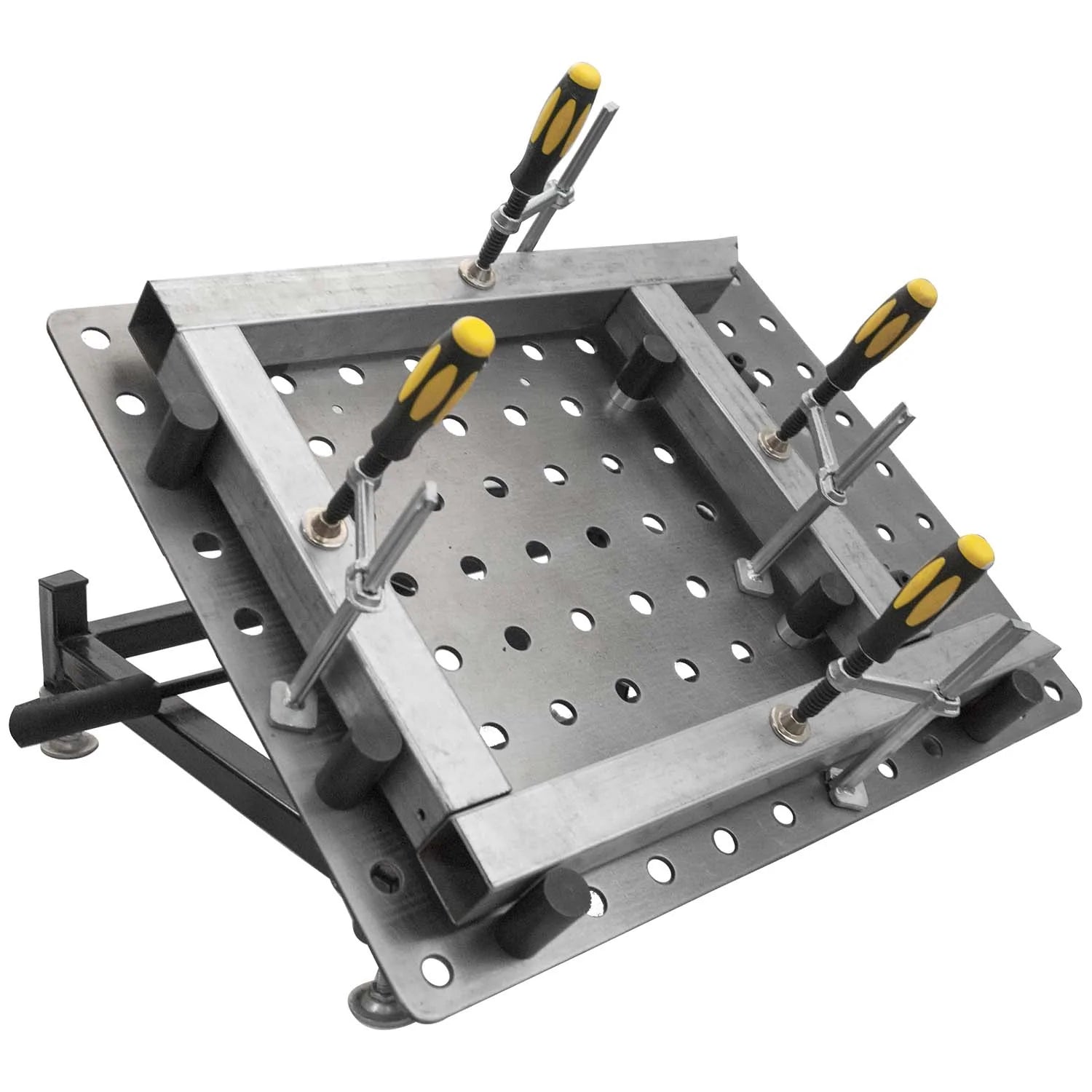

Adjust tabletop angle for worker comfort in each unique project!

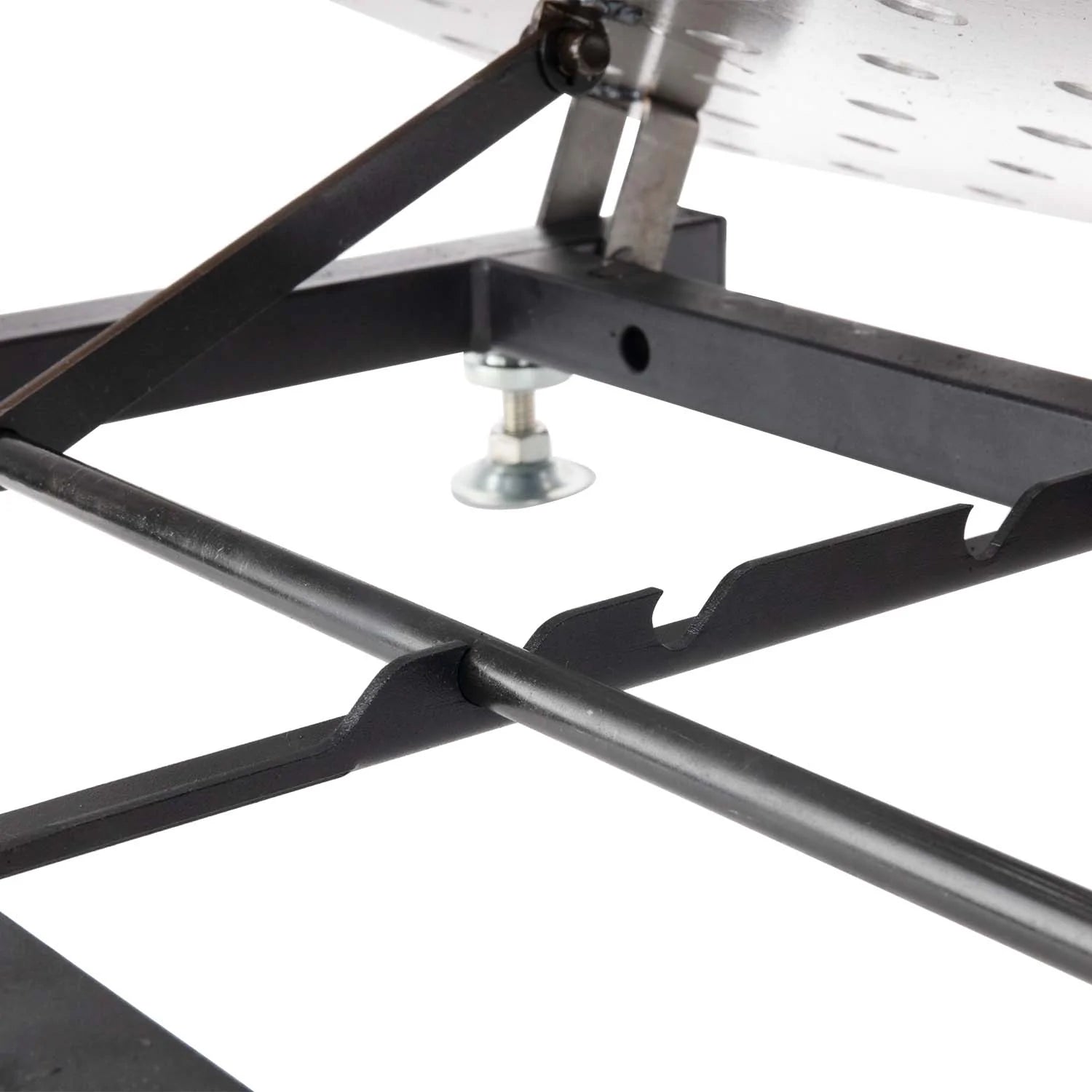

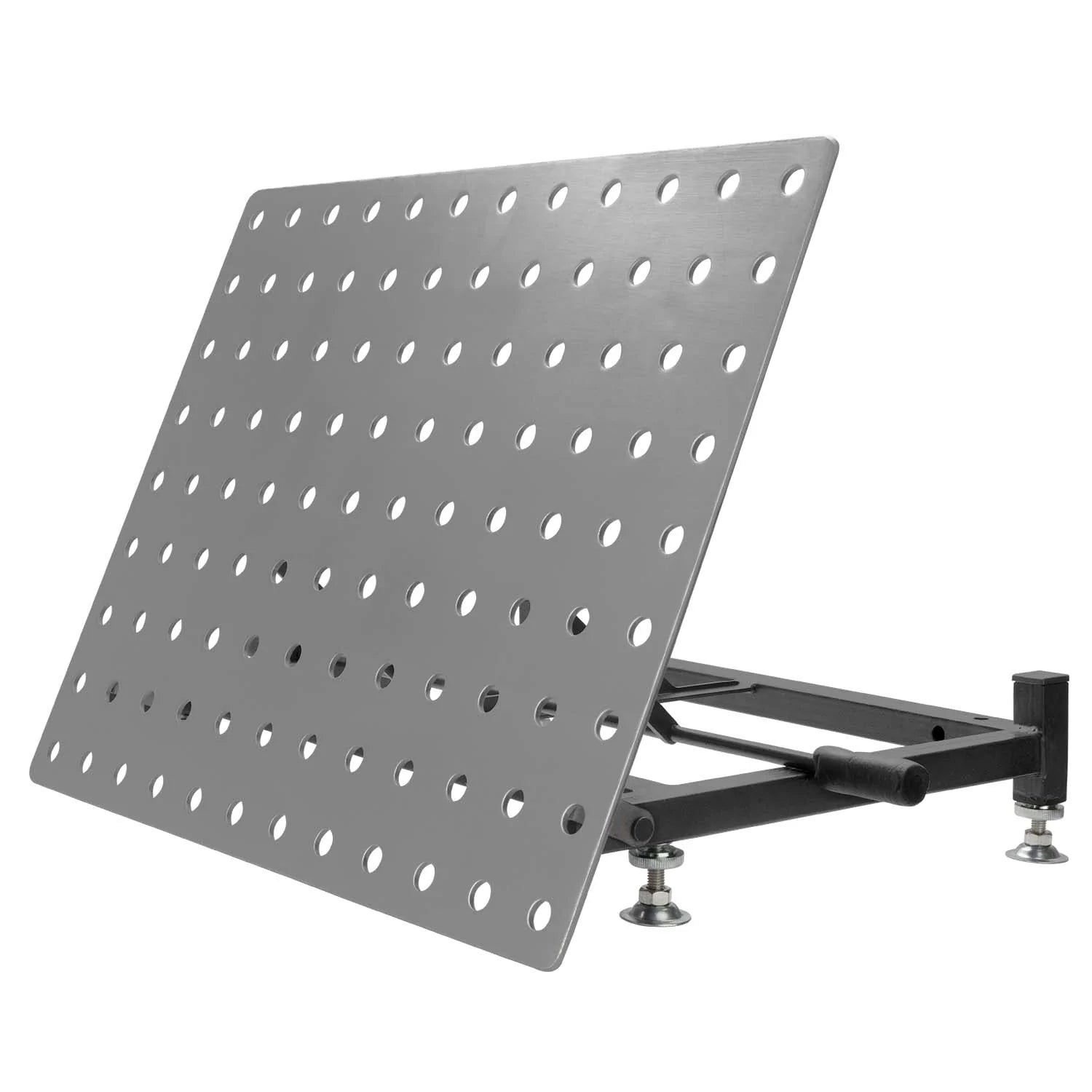

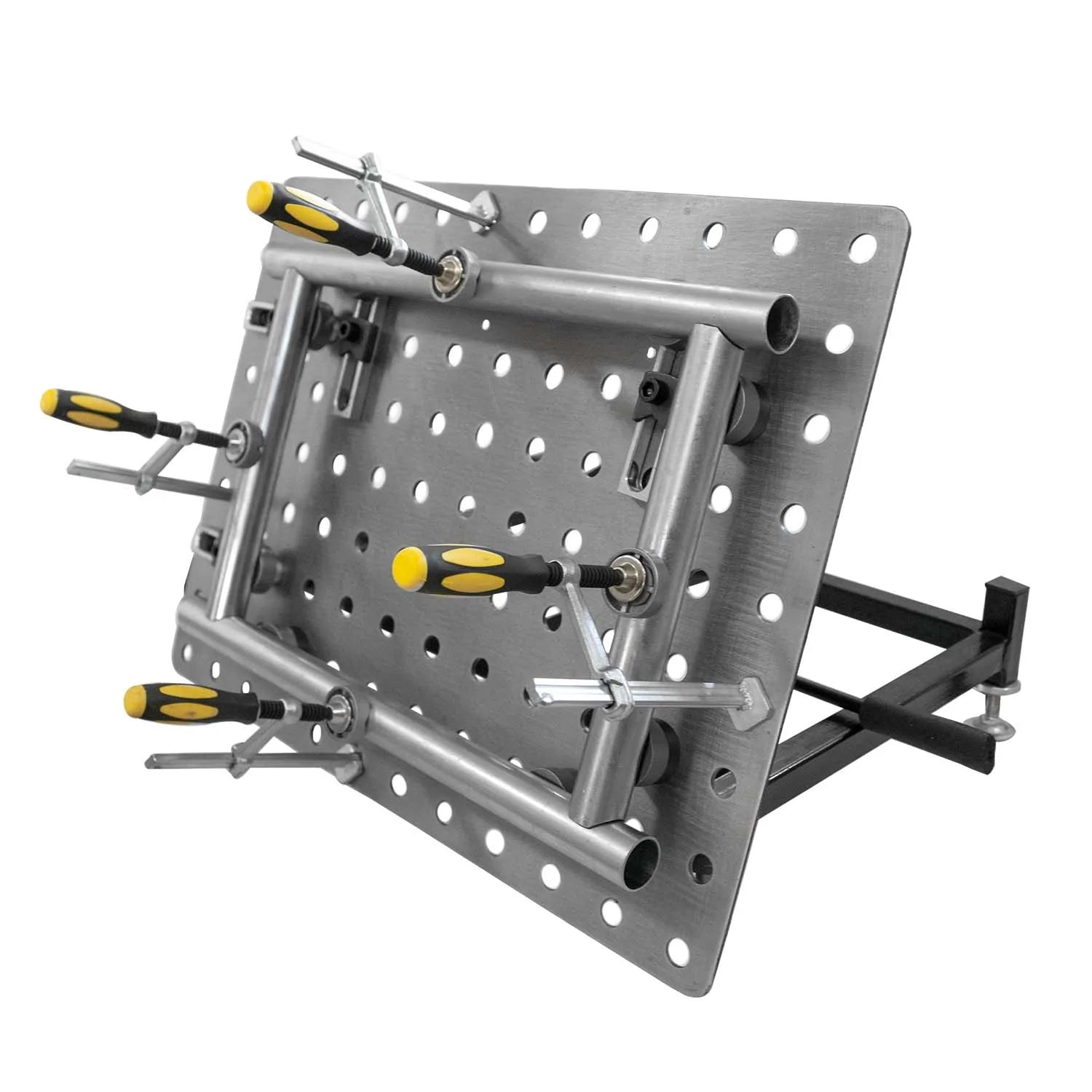

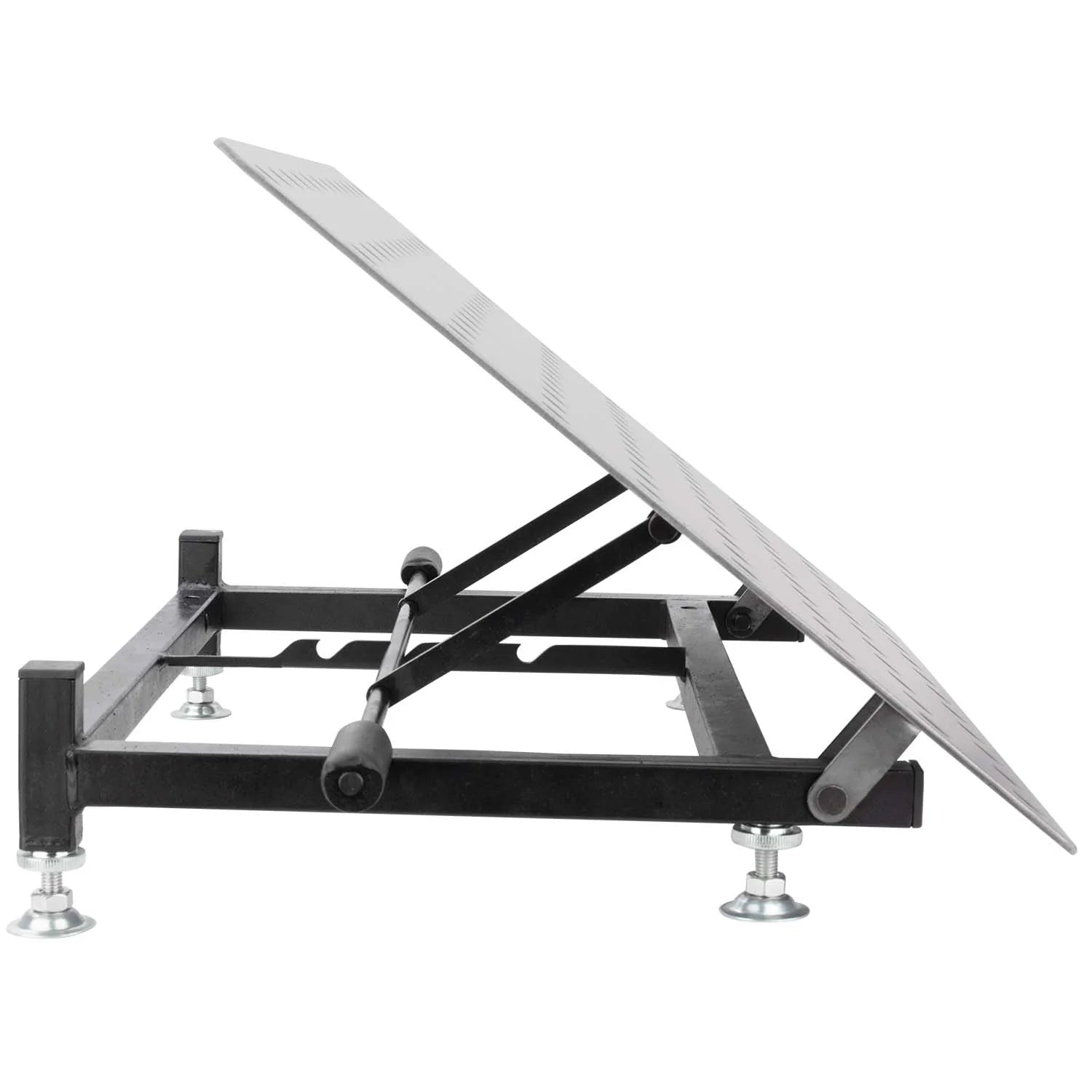

Rigid construction, multi-angle settings: 30º, 45º, and 65º.

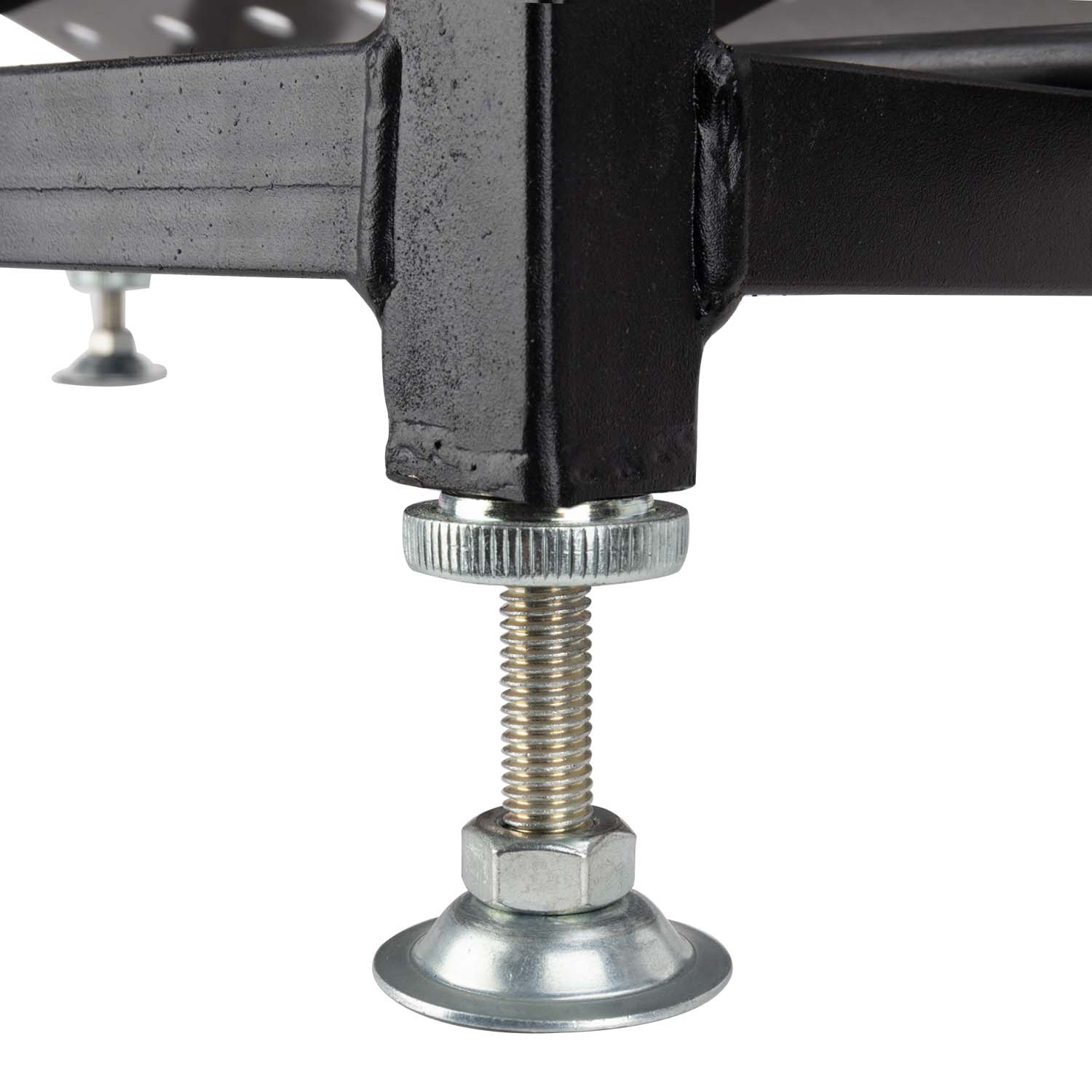

Leveling Pad adjust from 0 ~ 1.6″

Also Compatible with all FixturePoint Elements

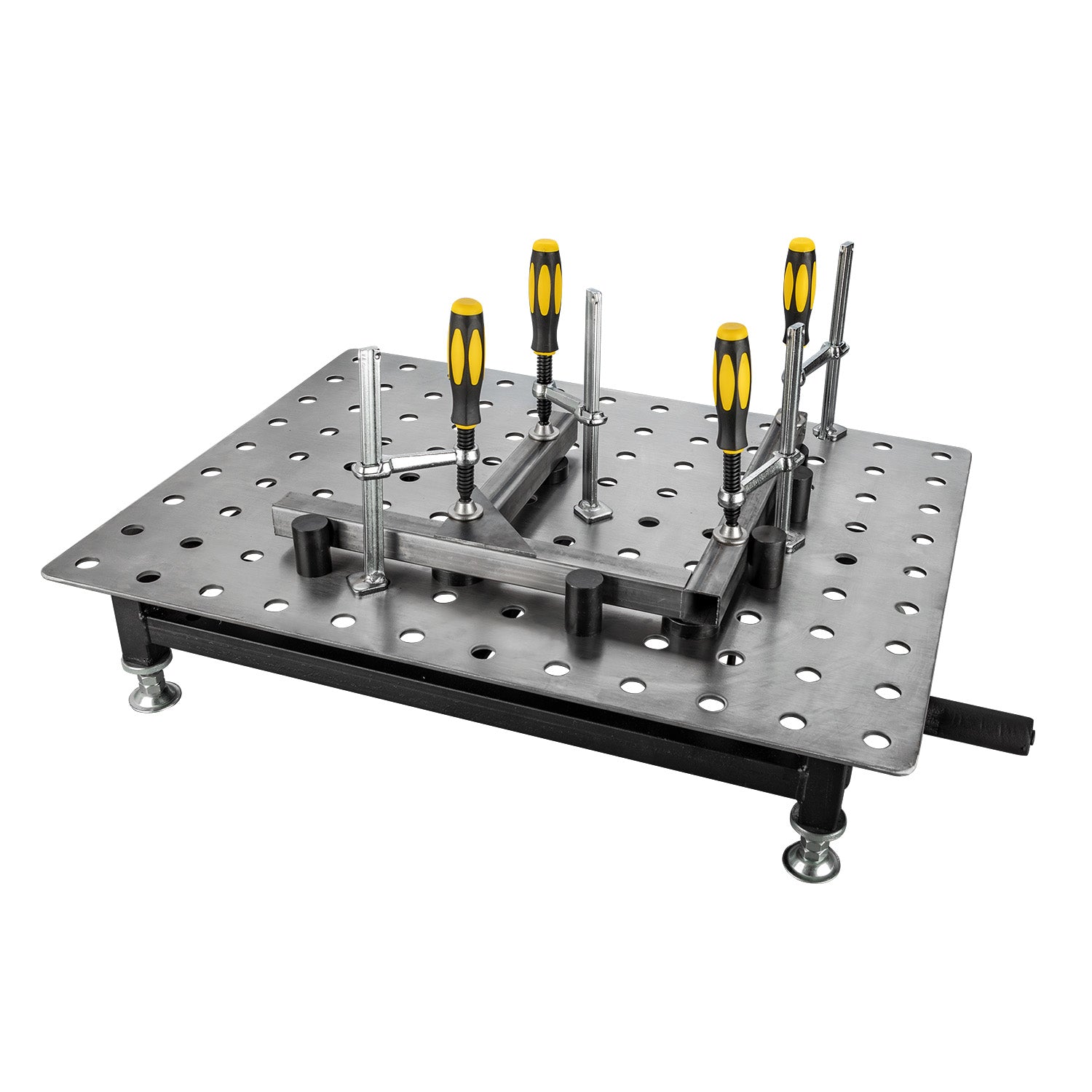

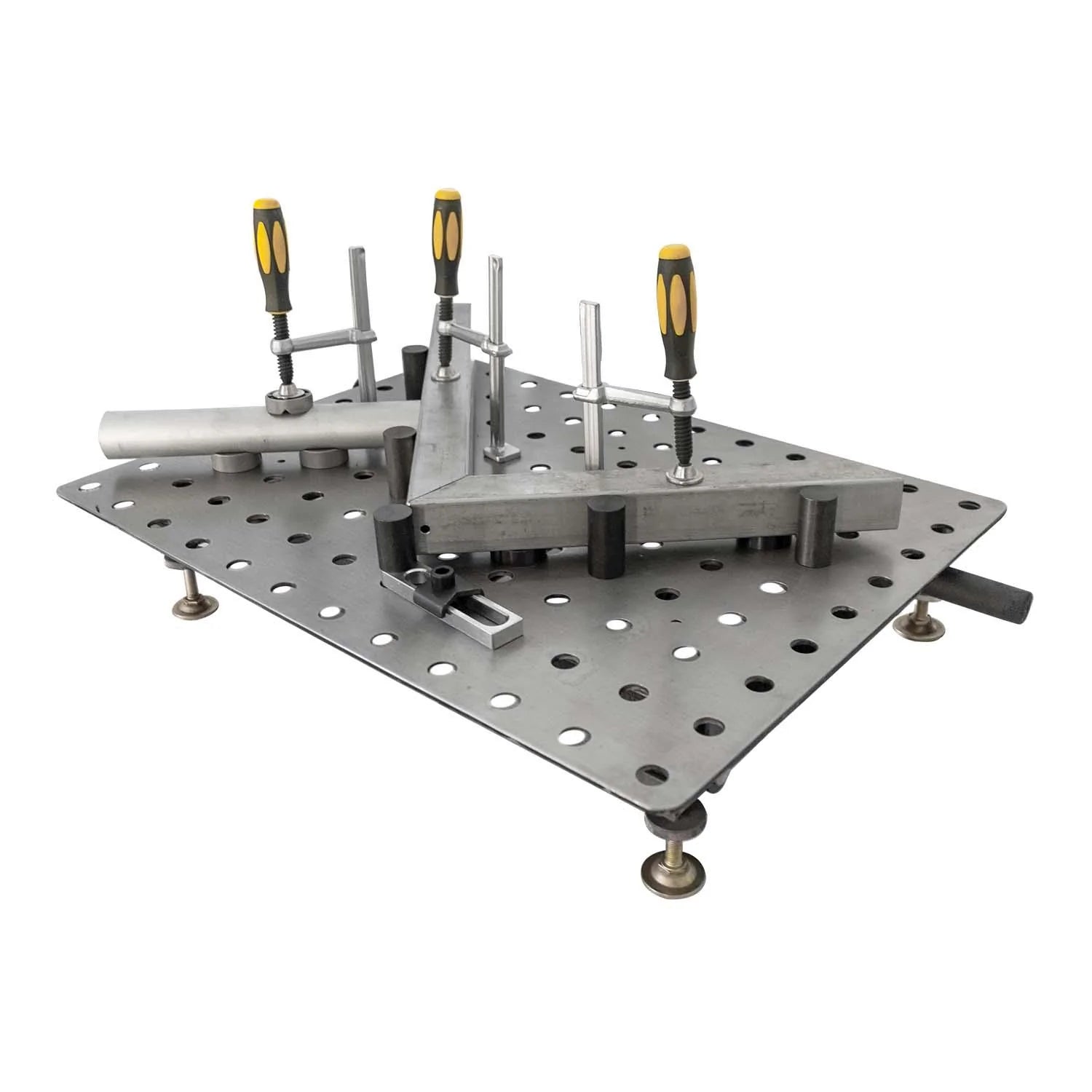

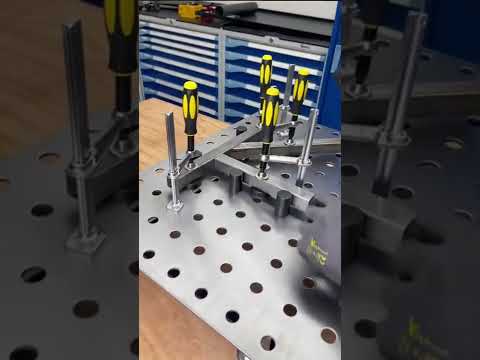

Use all the FixturePoint components to create your setup in the horizontal position, then tilt as needed for tack welding. Parts stay securely clamped in position at any angle.
