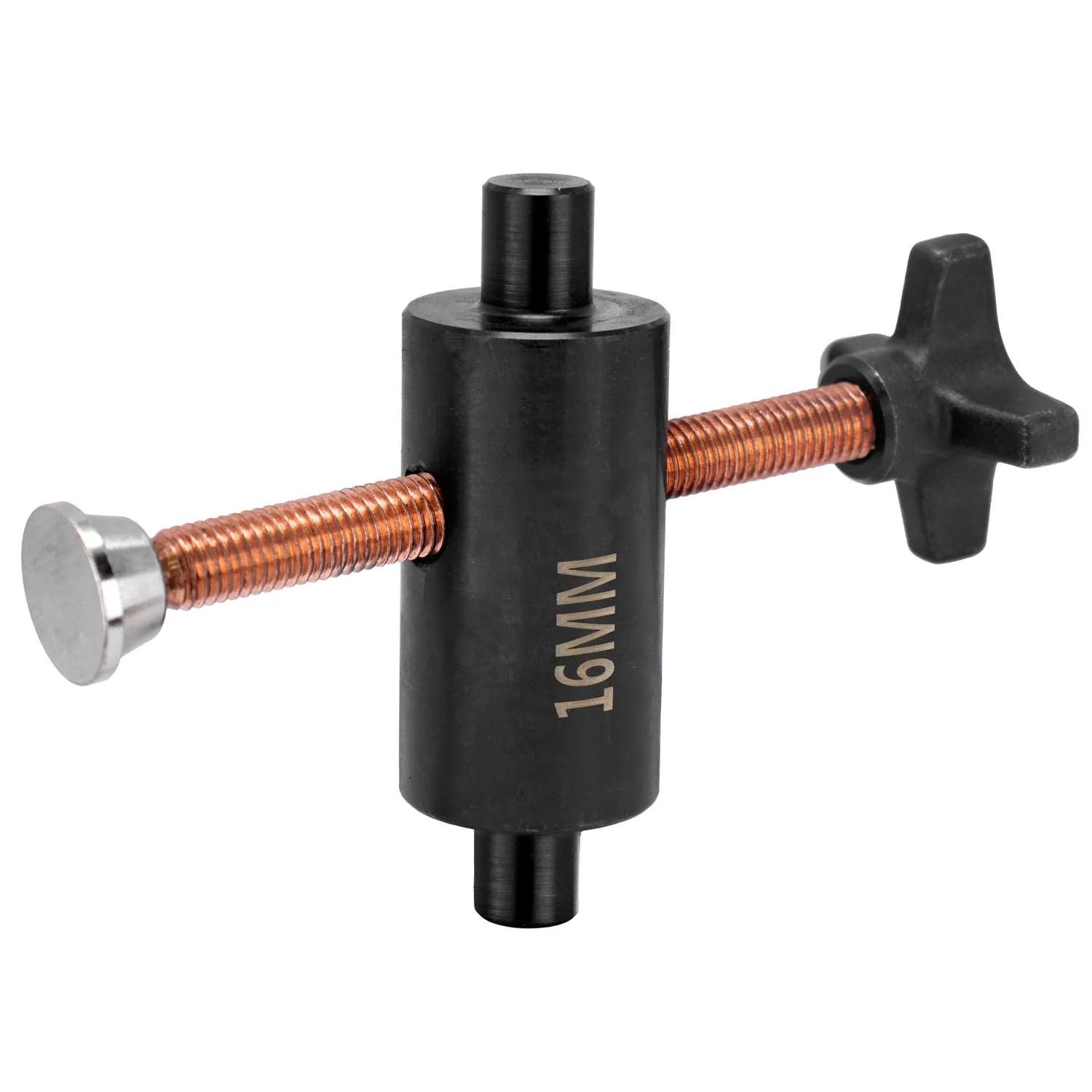

The side push clamp is designed for applying lateral pressure with a slight down force to keep the workpiece from lifting or rolling upwards.

Extra long spindle insures you can reach anywhere on the table. Copper-plated spindle resists weld spatter.

A special flipping feature ensures that you can always get the pad placed at the right height, which is useful for smaller material sizes.

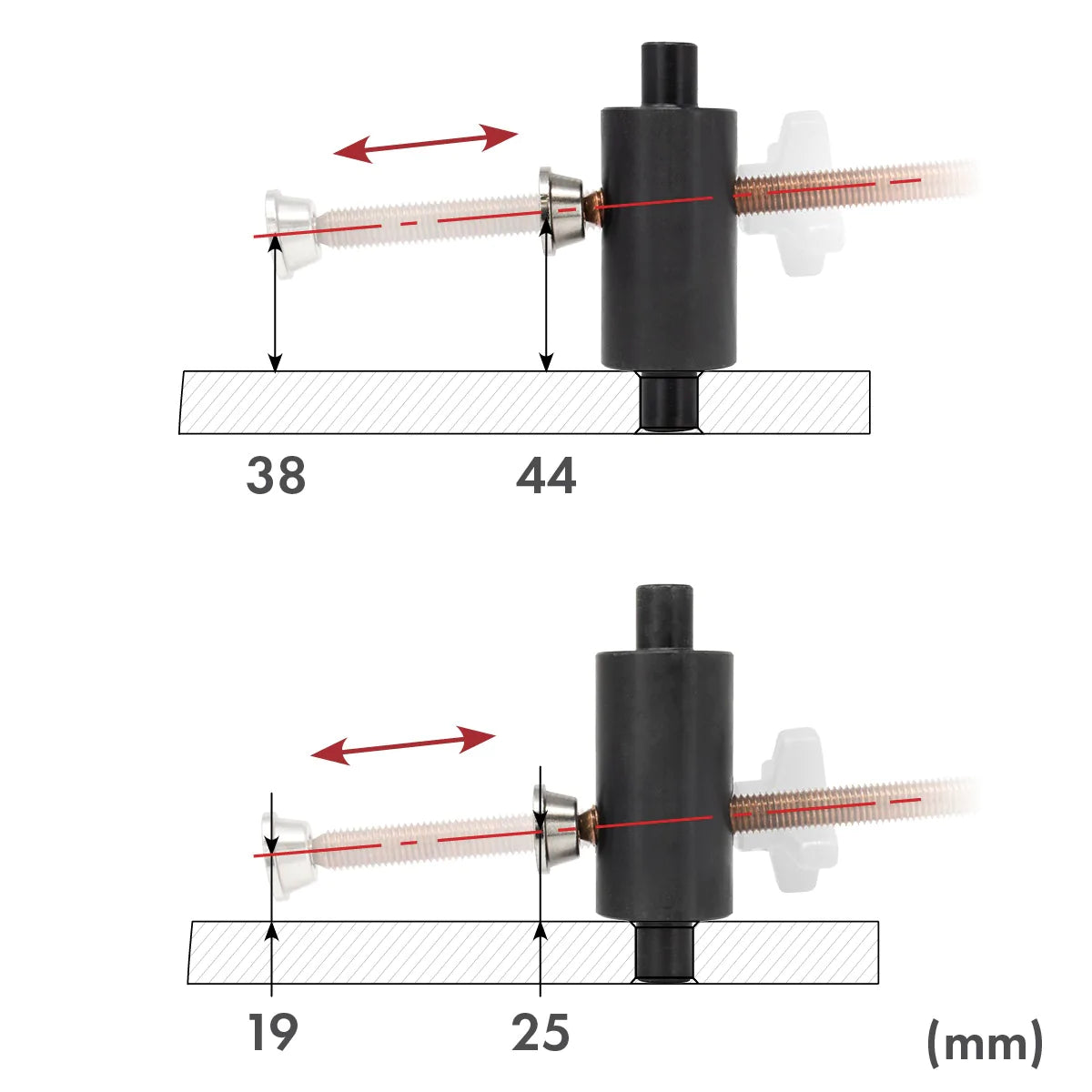

Two height settings of TCX6320:

To change the height of the clamp:​

Upper Height Setting

Pull pad off and reverse spindle direction

Reinstall spindle and pad in opposite direction pointing up.

Then use the "top" stud on the "bottom" instead.

Lower Height Setting

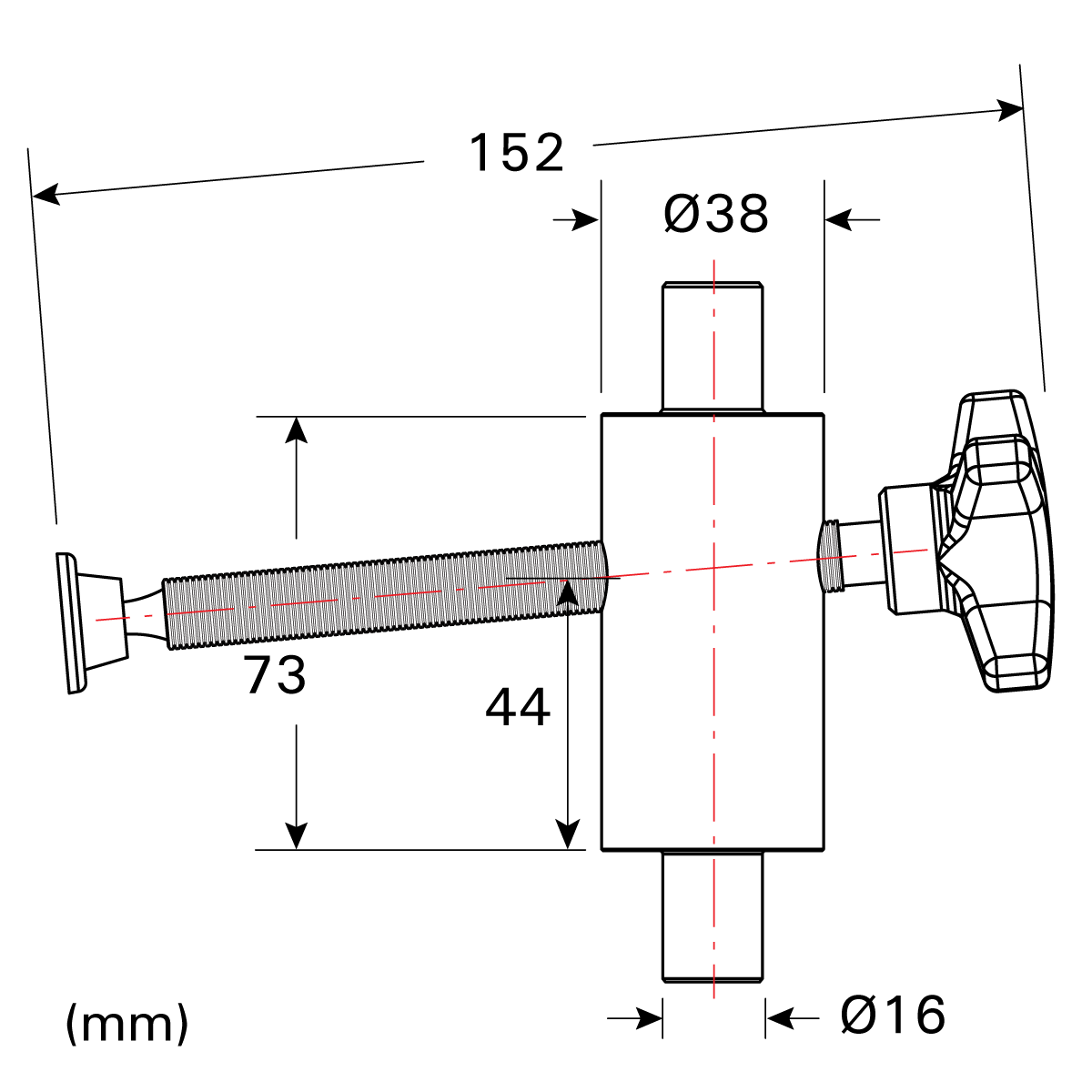

Part No. Stroke (mm) Weight (kg)
TCX6320 38 0.9
